MPPS V18 Main + Tricore + Multiboot V18.12.3.8 with Breakout Tricore Cable Car Diagnostic Tool, V18 – Durable Build, Easy to Use

MPPS V18 Main + Tricore + Multiboot V18.12.3.8 with Breakout Tricore Cable Car Diagnostic Tool, V18 – Durable Build, Easy to Use.

Key Features:

• Features
• Note: You need to turn off the anti-virus software (including the system built-in one) before installation. Please do not place an order if you mind.

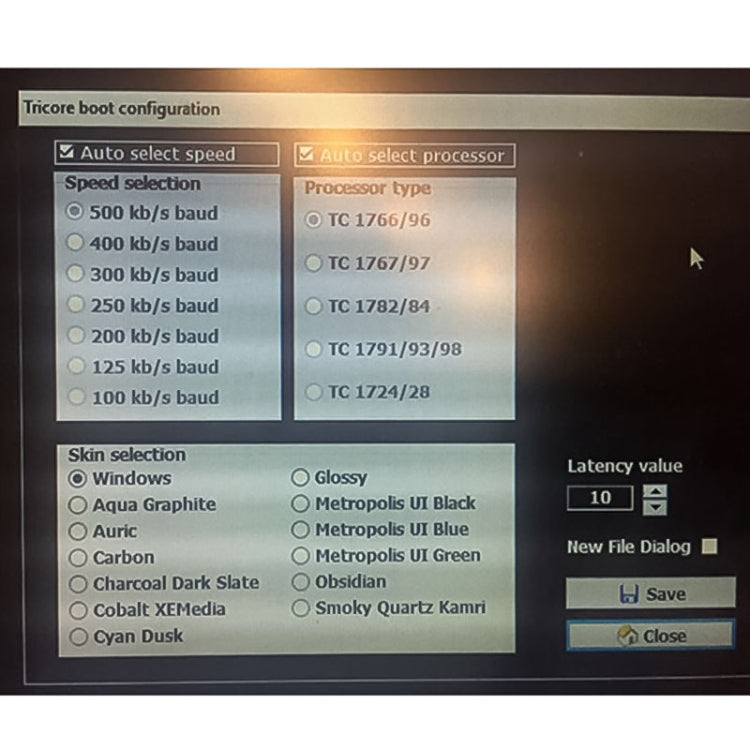

• This module adds boot mode support for controllers with the tricore processor Features:
• Auto detects ECU and processor type. No need to select from list, everything is automatic!
• Read/Write of all memories Eeprom, Irom, Xrom (where possible)
• Patch function for OBD Flashing of TPROT ECUs (supports only VAG at the moment)

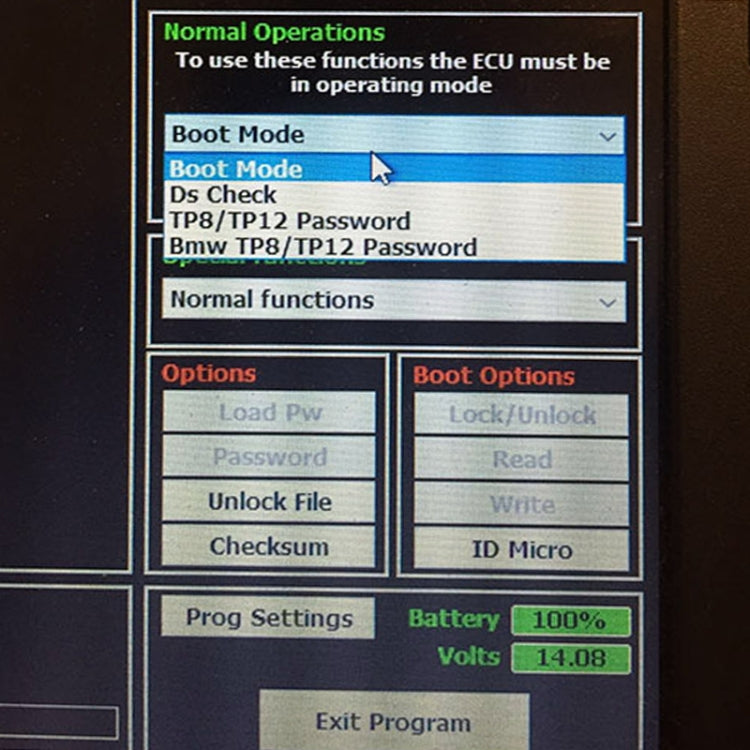

• TPROT / DS check feature, for testing if TPROT is active without opening ECU.
• Supports For upto TP12
• Supports For Siemens (current only for ECUs without password protection),
• Support for unlocking of VAG Simos PCR and For Simos 8.
• Checksum Correction supported for MEDC17.
• The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional...
• Selectable full / partial reading and writing when the ECU allows this function.
• Selectable reading / writing speed.
• Writing changes only function for faster programming (when supported by the ECU).
• Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
• Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
• Boot mode support for ECUs with C167 and ST10 processors.
• EEprom read/write functions for some ECUs are included.

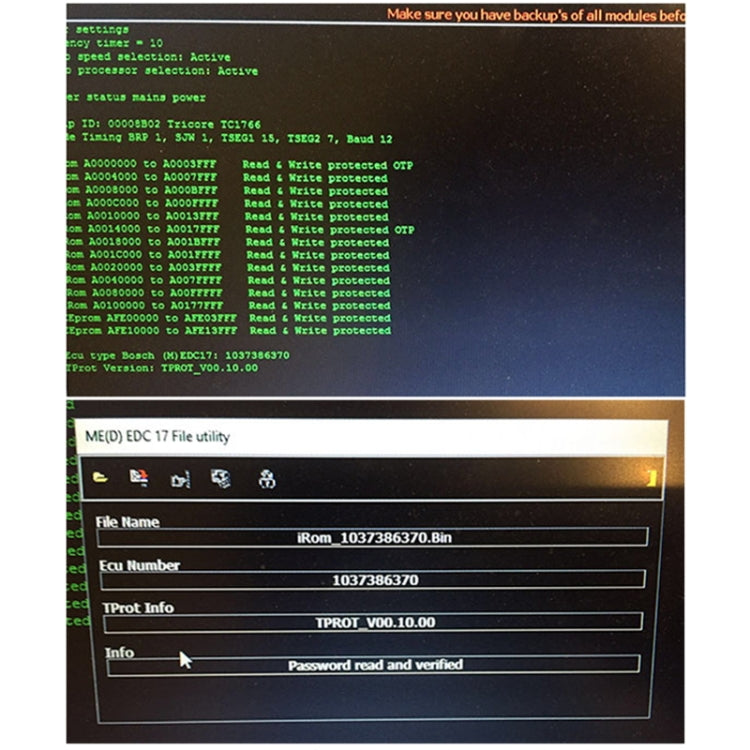

• For VAG MEDC17 TPROT level checking without opening the ECU.
• Please install on Win7 system.
• Software: V18.12.3.8, Firmware: V 1.08.21

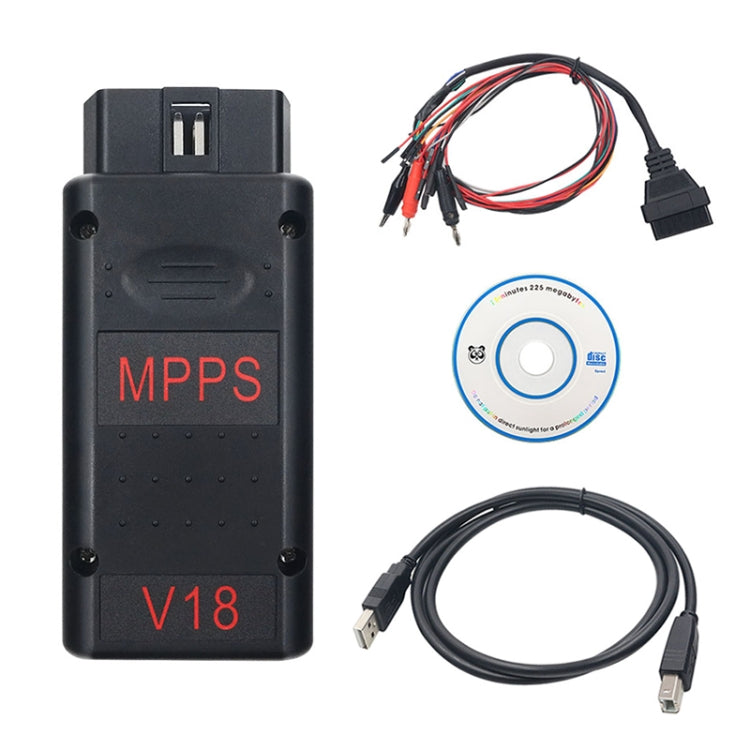

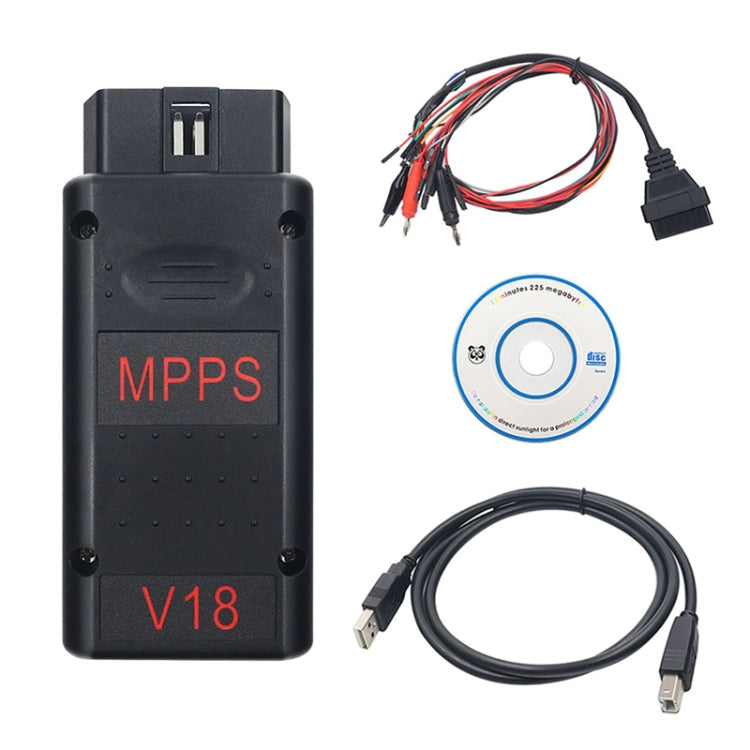

• Package:

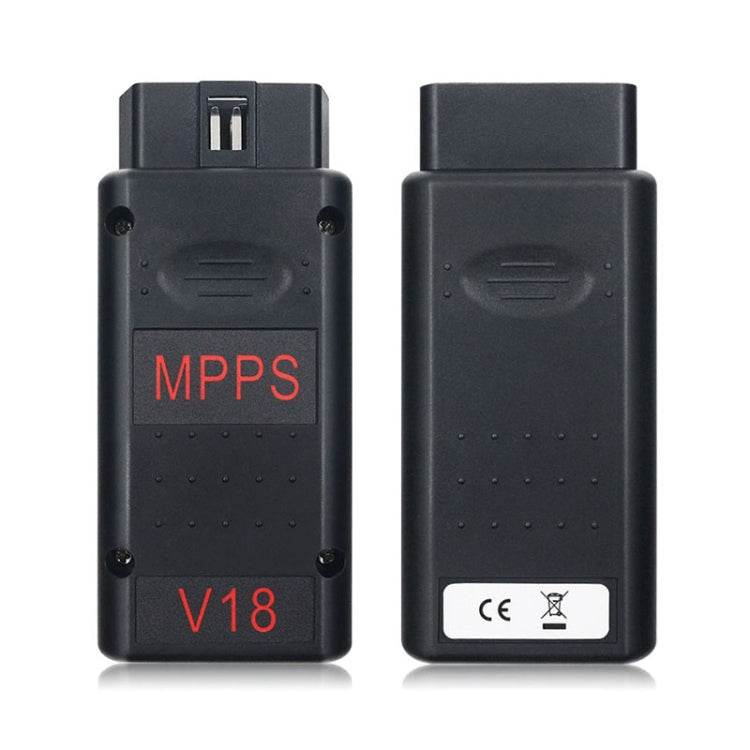

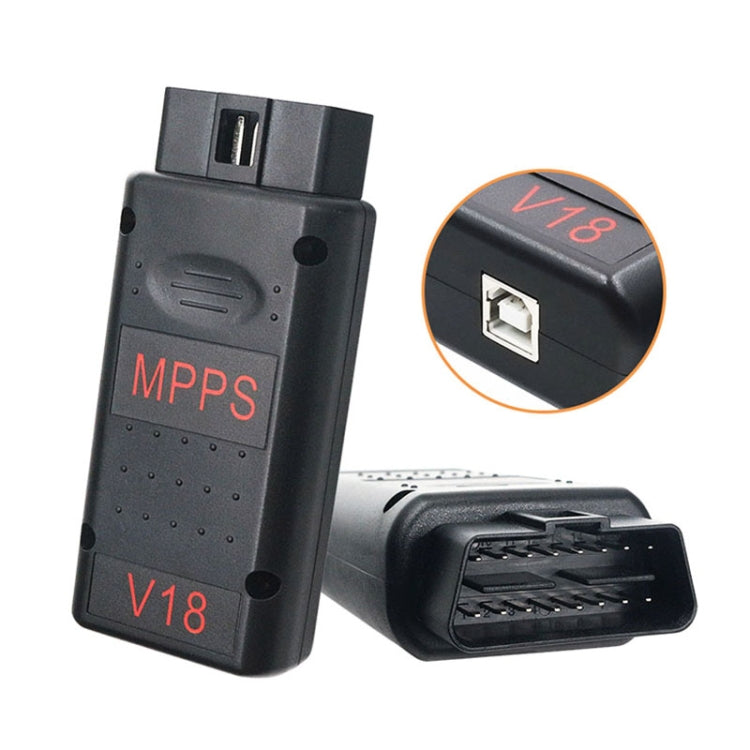

• 1 x MPPS V18.12.3.8
• 1 x Breakout Tricore cable
• 1 x CD Software
• Application
• Read / Write of Micro, Flash and EEprom without using a BDM programmer!
• For Fiat 6F3- Full Read / Write Micro, Flash and EEprom over K-line and CAN.
• For Fiat 6JF - Full Read / Write Micro and EEprom over K-line.
• For Fiat 8DF - Full Read / Write Micro and EEprom over K-line.
• For Fiat 8F2 - Full Read / Write Micro and EEprom over K-line and CAN.
• For Fiat 8F3 - Full Read / Write Micro and EEprom over K-line and CAN.
• For Fiat 8GM - Full Read / Write Micro and EEprom over CAN.
• For Fiat 8GS - Full Read / Write Micro and EEprom over CAN.
• For Fiat 5SF3 - Full Read / Write Flash and EEprom over CAN.
• For Fiat 5SF3 - Full Read / Write EEprom over K-Line.
• For Fiat 5SF8 - Full Read / Write Flash and EEprom over K-line and CAN.
• For Fiat 5SF9 - Full Read / Write Flash and EEprom over CAN.
• For Fiat ME7.9.10 - Full Read / Write Micro over CAN.
• For Fiat ME7.6.3 - Full Read / Write Micro over CAN.
• For Opel 6O2 - Full Read / Write Micro, Flash and EEprom over K-line and CAN.
• For Opel 6O3 - Full Read / Write Micro, Flash and EEprom over K-line and CAN.
• For Opel 6JO - Full Read / Write Micro and EEprom over K-line.

Package Info: Weight: 0.24kgs / 0.53lb, Size: 20cm * 18cm * 4cm / 7.87inch * 7.09inch * 1.57inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
