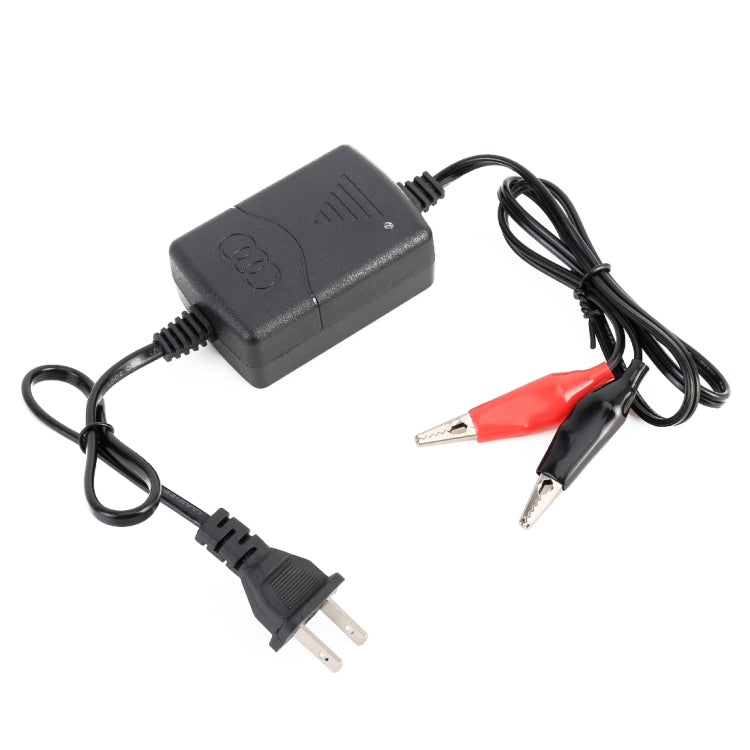

Motorcycle 12V Intelligent Automatic Battery Smart Battery Power Charger US Plug, US Plug – TPU

Motorcycle 12V Intelligent Automatic Battery Smart Battery Power Charger US Plug, US Plug – TPU.

Key Features:

• Product features:
• High conversion efficiency, energy saving, low operating temperature, and components with a temperature resistance above 105 degree Celsius.
• When the battery is fully charged, it will automatically stop and transfer to the floating state. At this time, the charging has a repairing effect on the...
• With soft start function, the starting current is small, and the AC input shock is effectively reduced. Can withstand frequent switch activation without...
• With short circuit protection and overload protection, it adopts constant current, constant voltage and turbulent three-stage charging to protect the...
• Turning light indication function, red light standby (no load) / full, blue light / yellow light charging, the status is clear at a glance.
• Low temperature and long service life at full load.
• Parameter:
• input: AC 100-240V~ 50/60Hz
• Output: 13.8V 1300mA
• Battery capacity Charging time (reference value, depending on battery)
• 12V 5-7Ah more than 6 hours
• 12V 9Ah more than 10 hours
• 12V 15-25Ah more than 13-25 hours
• Specifications and performance: 13.8V1A (12V1300mA)
• Floating charge voltage: 14.2V+/-0.5V
• Constant voltage output voltage: 13.8V+/-0.5V
• Constant current charging current: 0.85-1.25A
• Conversion current: 450-550mA
• DC maximum output power: 13W
• Efficiency: more than 84% (maximum output voltage, full load)
• Input voltage range: 100 ~ 240V AC; 50 ~ 60Hz
• Input current: 0.05A/MAX
• Overload protection: 105% to 150% type: Reset: automatic recovery
• Temperature coefficient: +/-0.03% degree Celsius(0 ~ 50 degree Celsius) OUTPUT
• Working temperature, humidity: -10 degree Celsius~ +40 degree Celsius, 20% ~ 90% RH
• Storage temperature, humidity: -10 degree Celsius ~ +60 degree Celsius, 20% ~ 90% RH
• Wiring length: input: 65CM, output, output 85CM
• Note: The above parameters test conditions are: 220V AC input, rated load, 25 degree Celsius 70% RH humidity.
• Connection method:

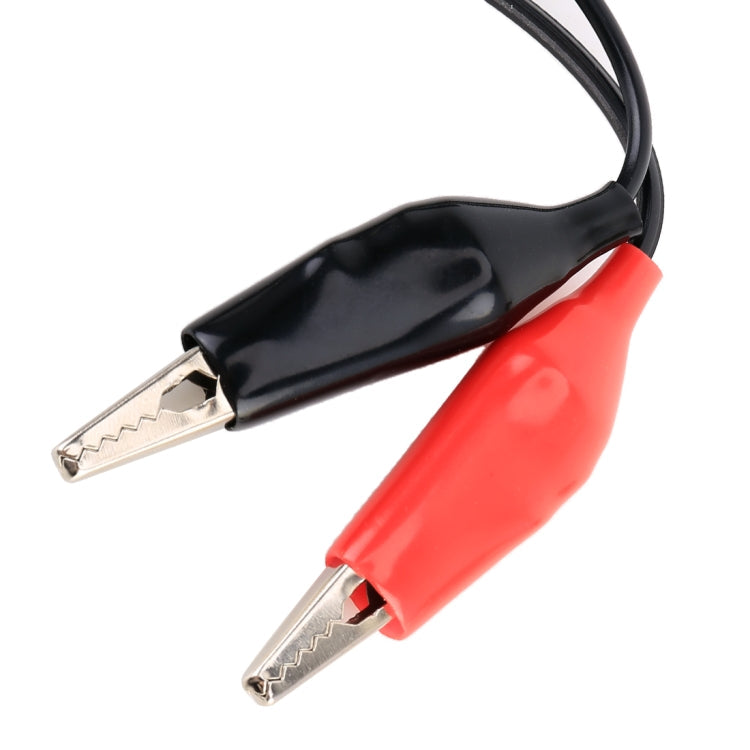

• The red pin is connected to the positive pole and the black is connected to the negative pole.
• With the repair function, when the indicator light is empty, it can be recharged for 1 to 10 hours.
• Two-color light indication, over-charge protection, full automatic stop.
• With reverse connection protection, not afraid of short circuit.
• Suitable for batteries below 25Ah.
• Scope of application:
• All 12V valve-controlled maintenance-free lead-acid batteries / water batteries (motorcycle batteries, battery car single battery, car battery, backup...

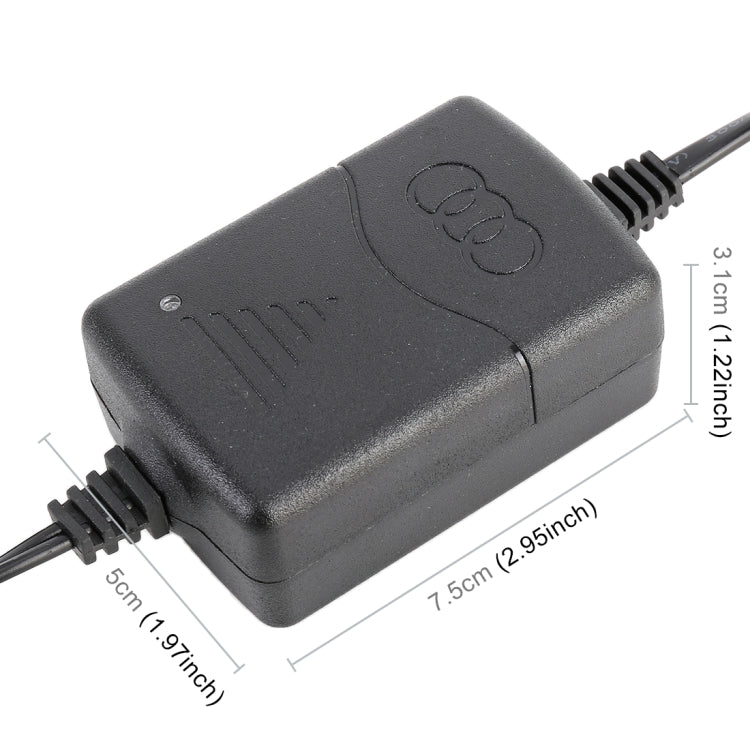

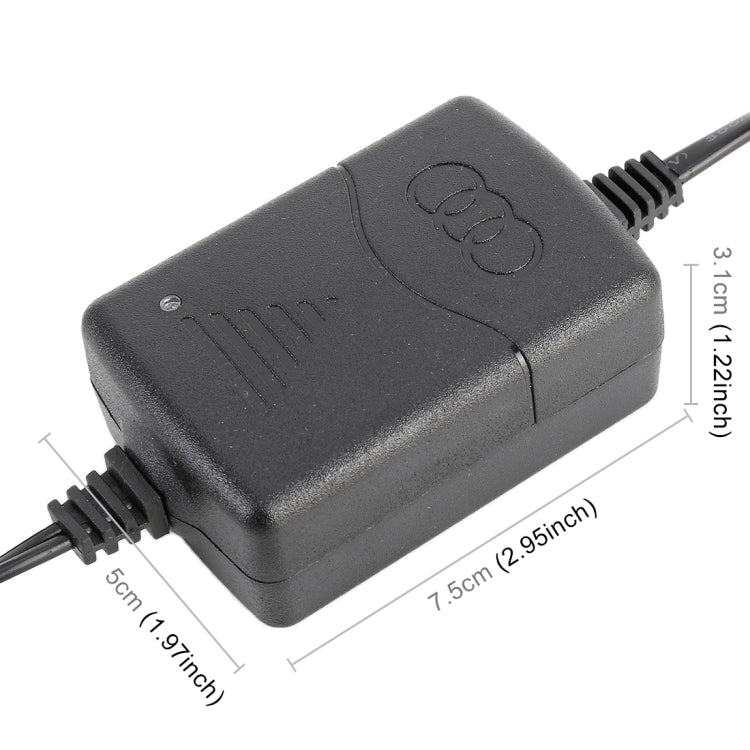

Package Info: Weight: 0.13kgs / 0.28lb, Size: 12cm * 5.5cm * 5.5cm / 4.72inch * 2.17inch * 2.17inch
