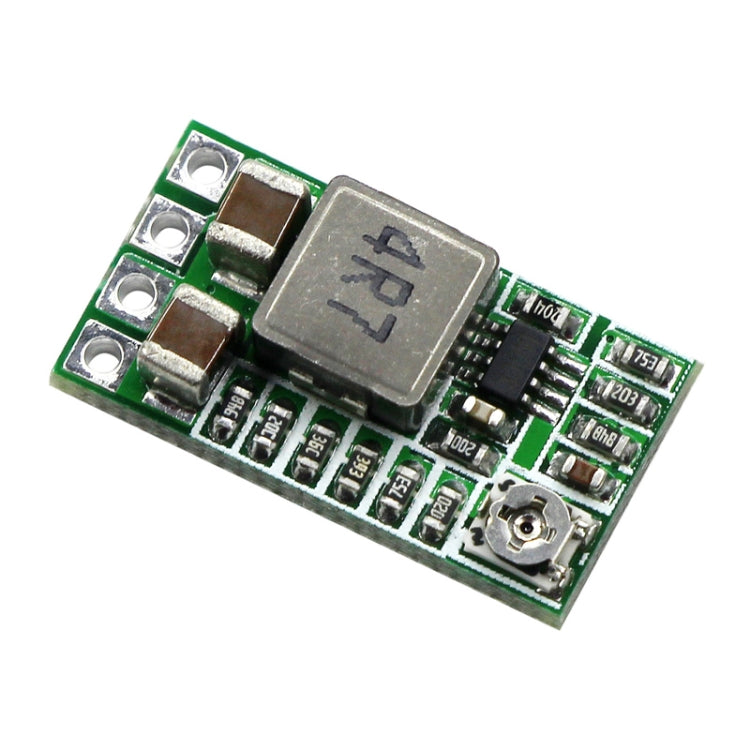

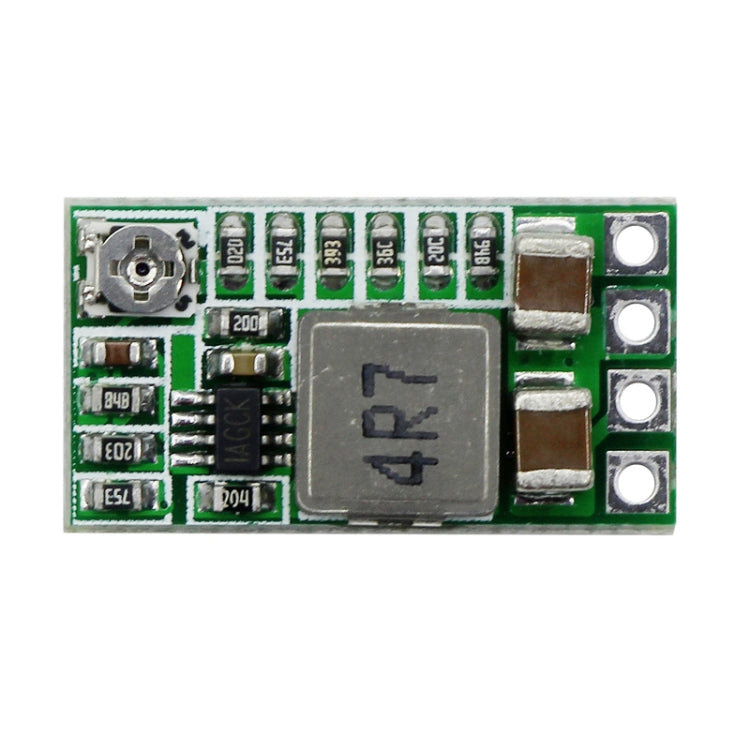

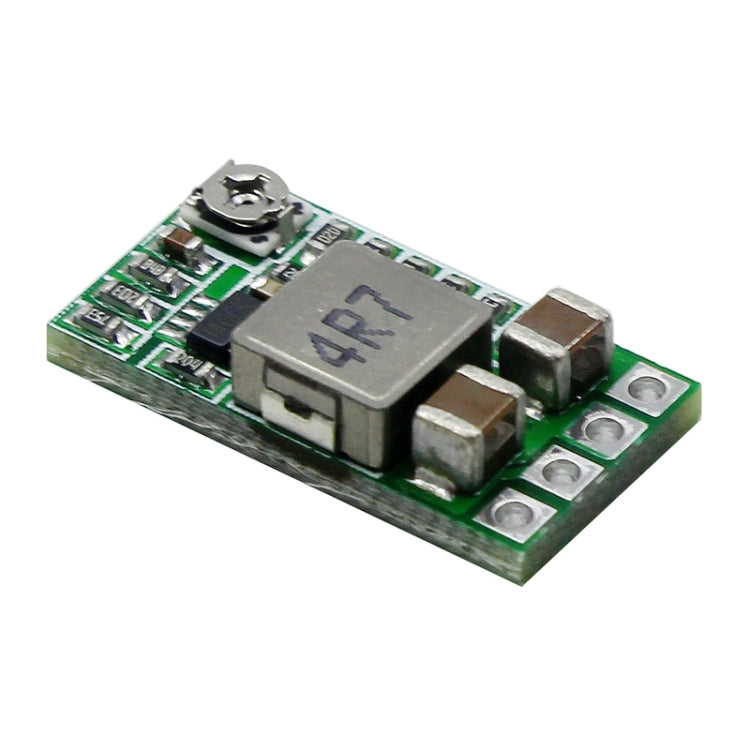

Mini High Efficiency Ultra Small Size DC-DC Step-Down Module 12V-24V To 5V3A Car, Step-Down Module – TPU

Mini High Efficiency Ultra Small Size DC-DC Step-Down Module 12V-24V To 5V3A Car, Step-Down Module – TPU.

Key Features:

• Type:Voltage Regulator
• Package: Step-down module
• Power: Standard
• Size: 20*11*5 mm
• Input voltage: DC 4.5-24V

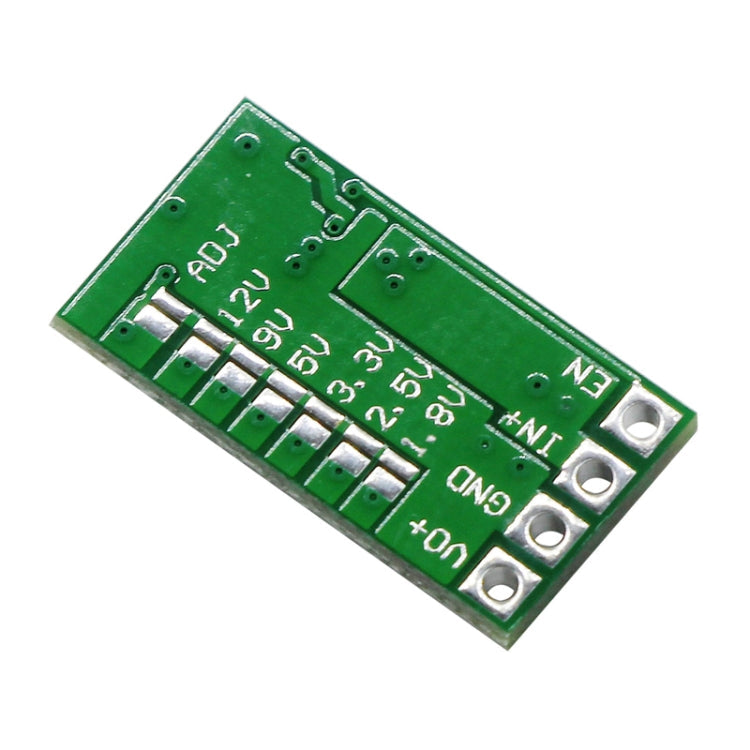

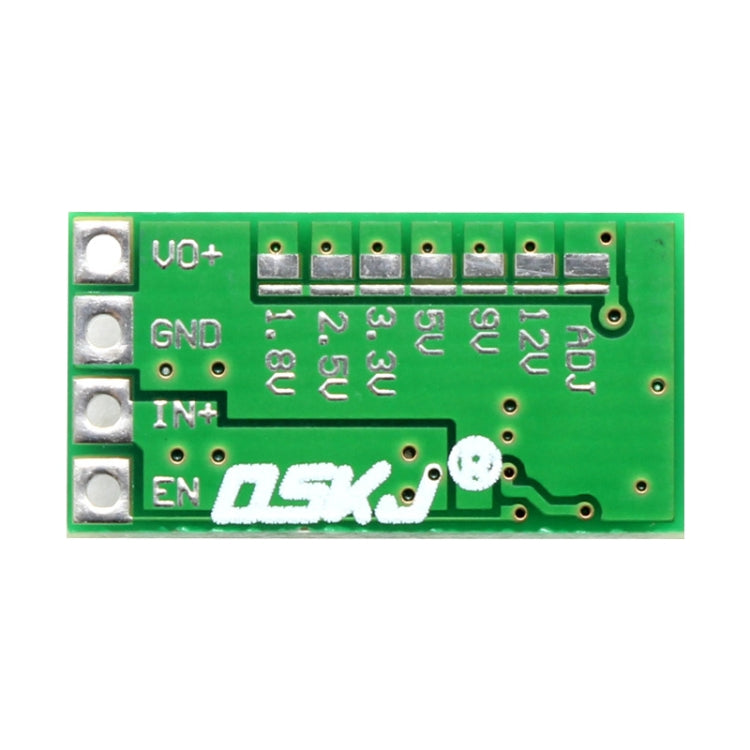

• Output voltage: integrated adjustable and fixed output, fixed output voltage on the back
• Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
• Output current: maximum 3A (please pay attention to heat dissipation at full load), the actual test input 12V output within 1.5A without special treatment...
• Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A)
• Switching frequency: 500KHz
• Output ripple: 20mV (12V to 5V3A) 20M bandwidth
• Wiring method: welding
• Input method: welding
• Output method: welding / pin header
• Welding hole spacing: 2.54 mm
• Output over voltage protection: none
• Full load temperature rise: 40 ° C
• Quiescent current: 0.85 mA
• Load adjustment rate: ±1%
• Voltage regulation rate: ±0.5%
• Dynamic response speed: 5% 200uS

Package Info: Weight: 0.02kgs / 0.05lb, Size: 10cm * 5cm * 2cm / 3.94inch * 1.97inch * 0.79inch
