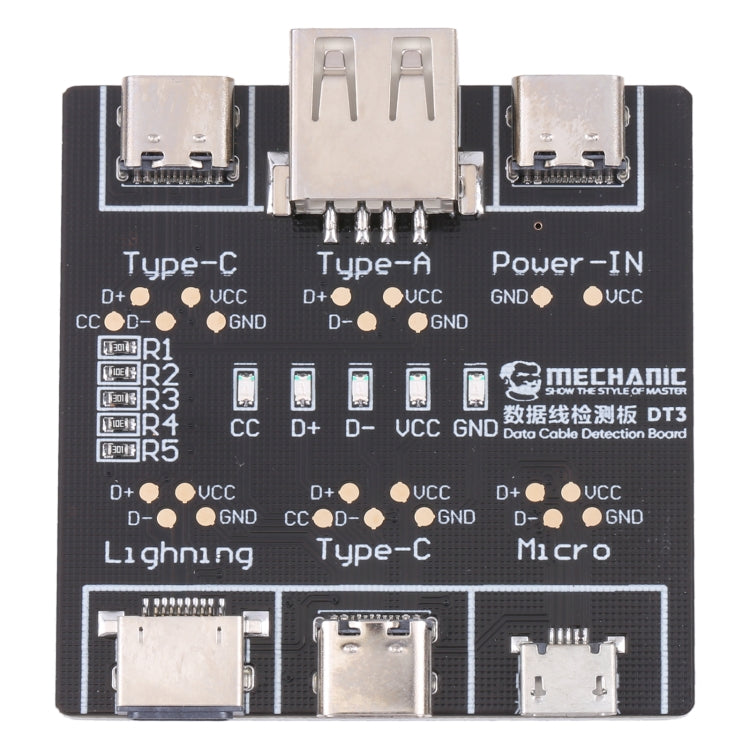

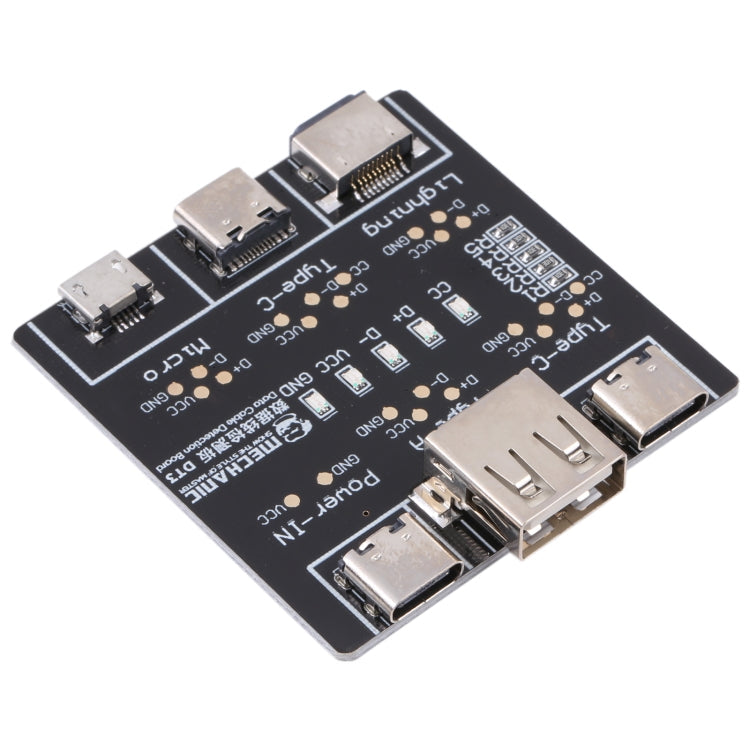

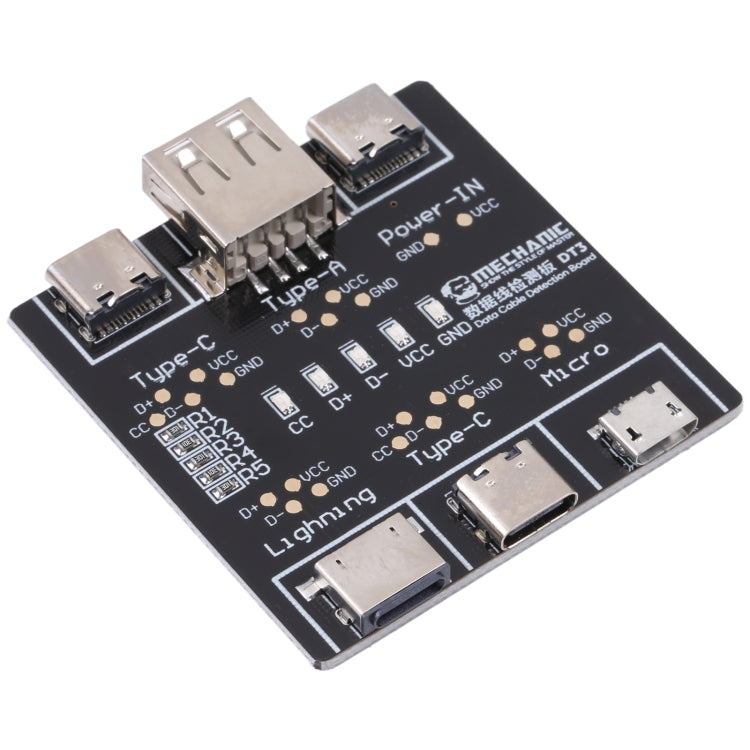

MECHANIC DT3 USB Data Cable Detection Board Short Circuit On-Off Switching Tester, DT3 Tester – Data Transmission, TPU

MECHANIC DT3 USB Data Cable Detection Board Short Circuit On-Off Switching Tester, DT3 Tester – Data Transmission, TPU.

Key Features:

• Interface Type:USB / Type-C 1 / Type-C 2 / USB-Micro / Lighting
• Power Supply Port Type:Type-C
• Output Current:1A
• Output Voltage:5V
• Product Size:About 48.5x45mm
• Net Weight:About 12g
• The measurement allowed error is +/- 1.0-2.0cm

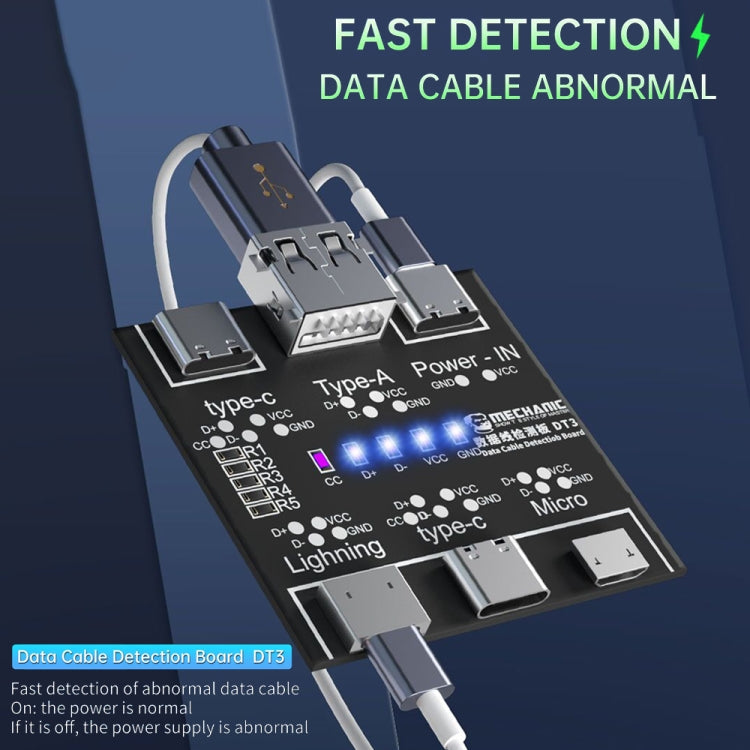

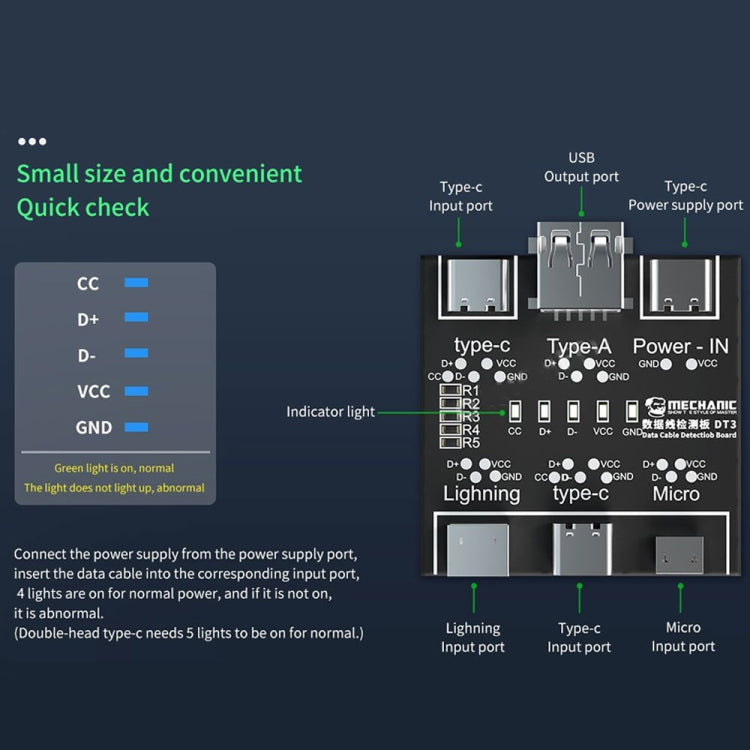

• All 4 indicator lights are on, then the data line is normal (double-head type-C data line requires all 5 indicator lights to be on).
• If VCC or GND is not lit, it indicates that the charging function of the data line is abnormal.
• D+ or D- is off, indicating that the data transmission function is abnormal.
• CC is dedicated to double-head type-C data line detection. When testing other data lines, the light will not turn on.
• The operation is simple, the detection is convenient, and the detection efficiency of the data line is improved.
• Uncompromising performance in an ultra-light body,heavyweight performance without the weight.

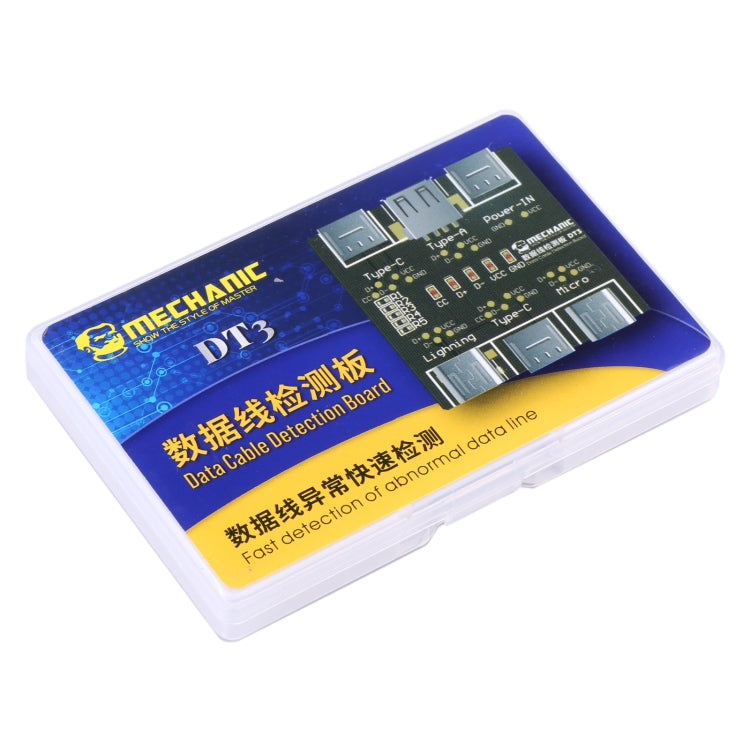

Package Info: Weight: 0.05kgs / 0.11lb, Size: 9.5cm * 6.2cm * 1.5cm / 3.74inch * 2.44inch * 0.59inch
