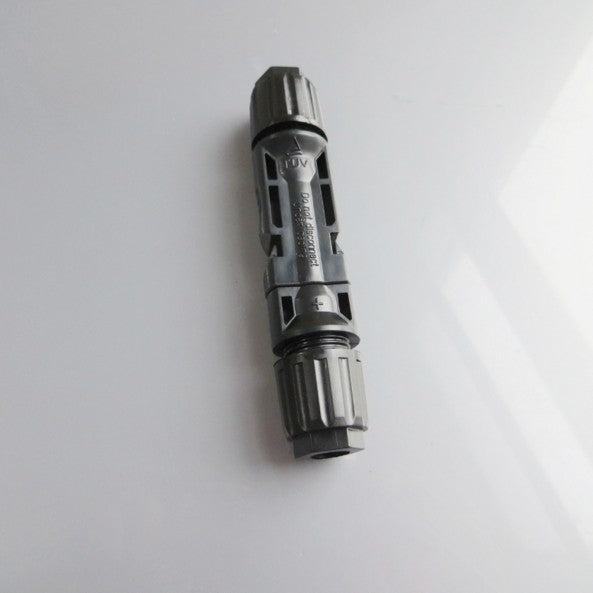

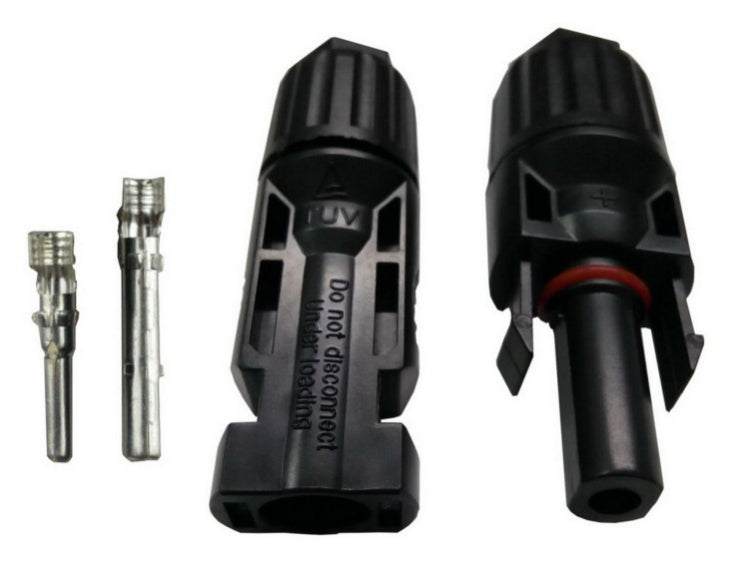

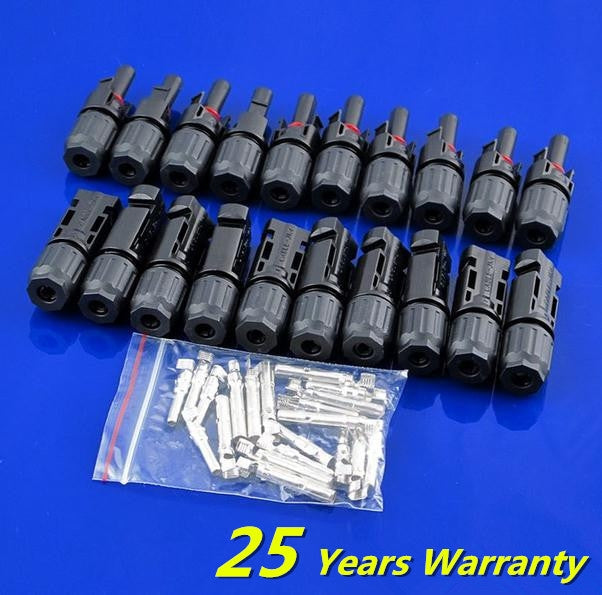

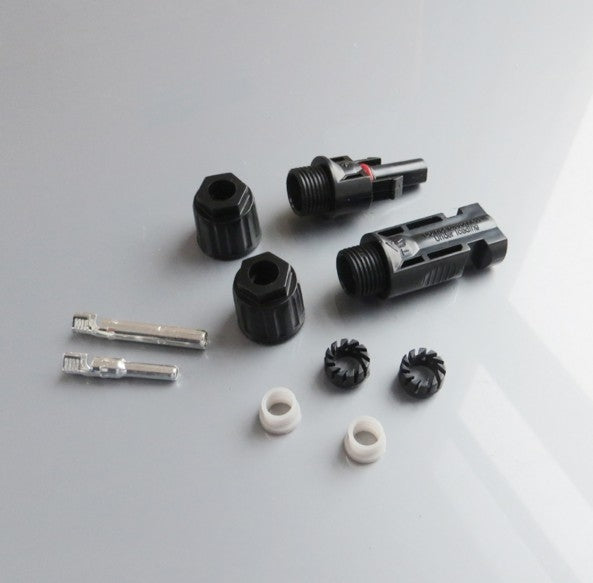

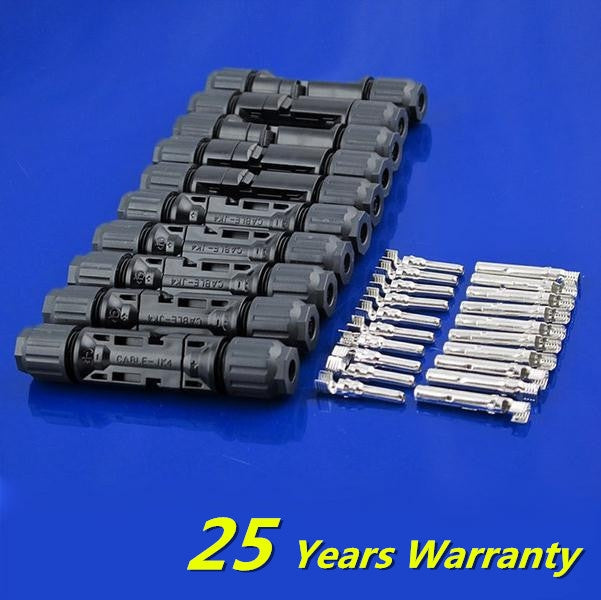

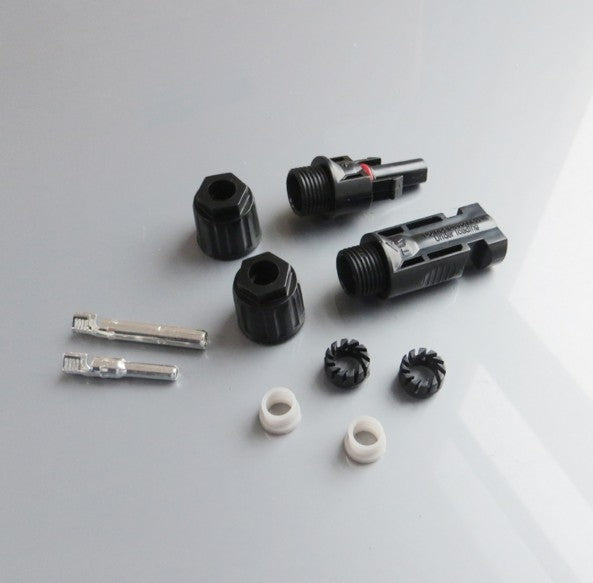

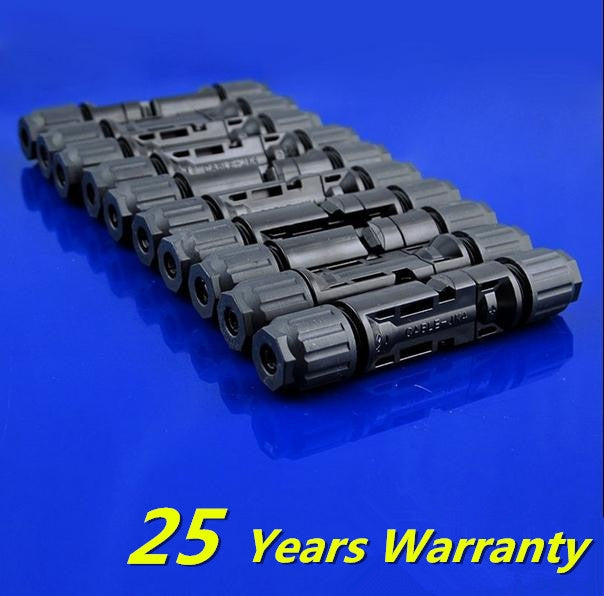

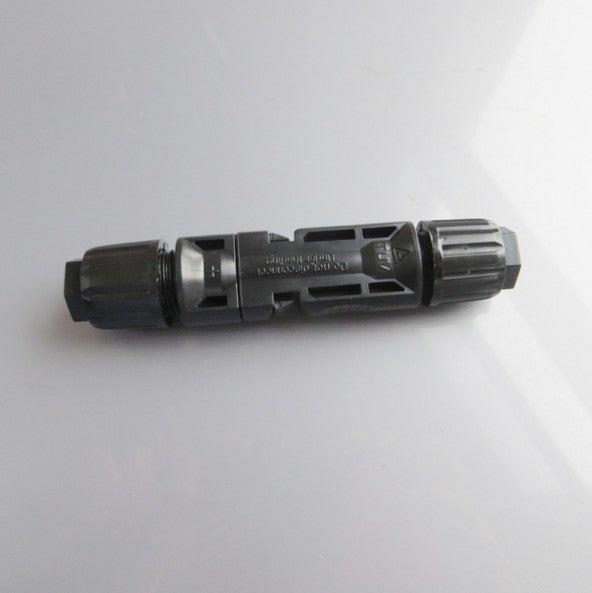

MC4 Connector male female 30A 1000V Solar Panel Branch Series Default Title

MC4 Connector male female 30A 1000V Solar Panel Branch Series – TPU

£5.99 £8.99

MC4 Connector male female 30A 1000V Solar Panel Branch Series Default Title

MC4 Connector male female 30A 1000V Solar Panel Branch Series – TPU

MC4 Connector male female 30A 1000V Solar Panel Branch Series – TPU

£5.99 £8.99

MC4 Connector male female 30A 1000V Solar Panel Branch Series – TPU.

Key Features:

Model Number:EU Connection:Plug In Output Type:DC Brand Name:ZOORUI Usage:Electric Tool Output voltage:DC1000V Usage:solar Specification
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0

Package Info: Weight: 0.03kgs / 0.07lb, Size: 8cm * 5cm * 2cm / 3.15inch * 1.97inch * 0.79inch
