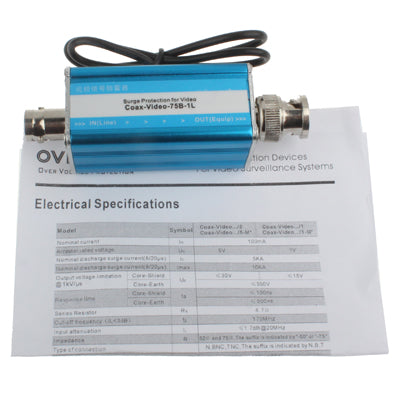

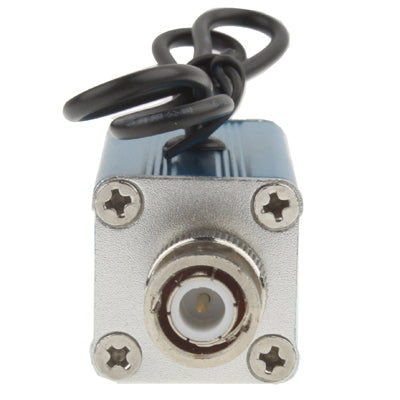

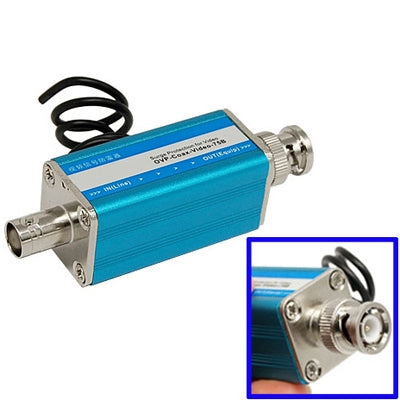

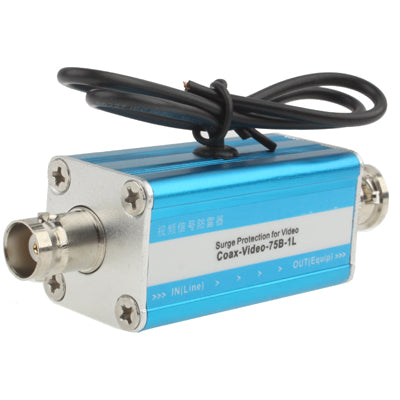

Male to Female BNC Interface Video CCTV Surge Arrester, CCTV Surge Arrester – Durable Build, Easy to Use

Male to Female BNC Interface Video CCTV Surge Arrester, CCTV Surge Arrester – Durable Build, Easy to Use.

Key Features:

• Description:
• 1) Adopting internal standard BNC interface(male to female), this Surge Protector can protect equipment which transmit video digital signal by coaxial-cable...
• 2) Video Surge Arrester features two-part surge protection, small insertion loss, large discharge current.
• 3) Suitable for coaxial communication equipment surge protection, such as cable TV, Satellite TV receive, minitor system, etc.
• 4) CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.
• Specifications:
• 1) Type: OVP VIDEO SPD
• 2) Model: OVP-Coax-Video-75B
• 3) Material: Aluminum
• 4) Color: Blue
• 5) Standards for air and creepage distances: VDE 0110-1; IEC 60664-1: 1992-10
• 6) Total surge current(8/20us): 10kA
• 7) Ambient temperature(operation): -40~+85 degree
• 8) Degree of protection: IP20
• 9) Direction of action: Line-Shield/Earth Ground
• 10) Size: 82x34x25mm
• 11) Cable length: 28cm
• 12) Weight: 86.4g

Package Info: Weight: 0.08kgs / 0.17lb, Size: 11cm * 6.5cm * 3cm / 4.33inch * 2.56inch * 1.18inch
