Lithium Battery Fuel Gauge Display Module, Green, Blue – Waterproof

Lithium Battery Fuel Gauge Display Module, Green, Blue – Waterproof.

Key Features:

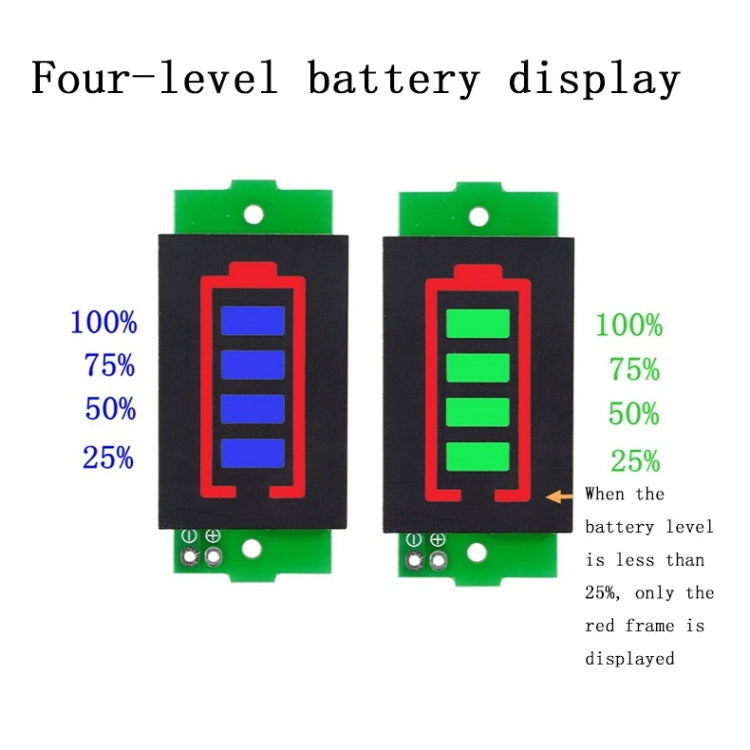

• Four-level battery display
• Working current: 5mA
• Working voltage: 3-34V
• Please be waterproof for outdoor use
• Working temperature: -20-50 degrees Celsius
• When the battery level is less than 25%, only the red frame is displayed

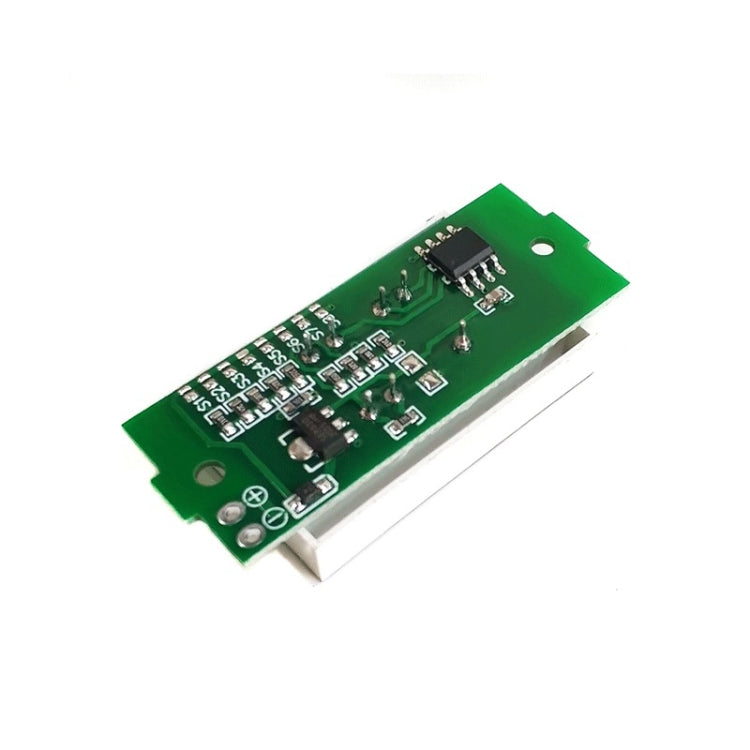

• S1-S8 optional pads can only be connected to one type, and 2 or more simultaneous short-circuiting are not allowed
• Lithium battery, lead acid, nickel metal hydride, battery can be used to display the battery, as long as the voltage is within the range of the parameter table

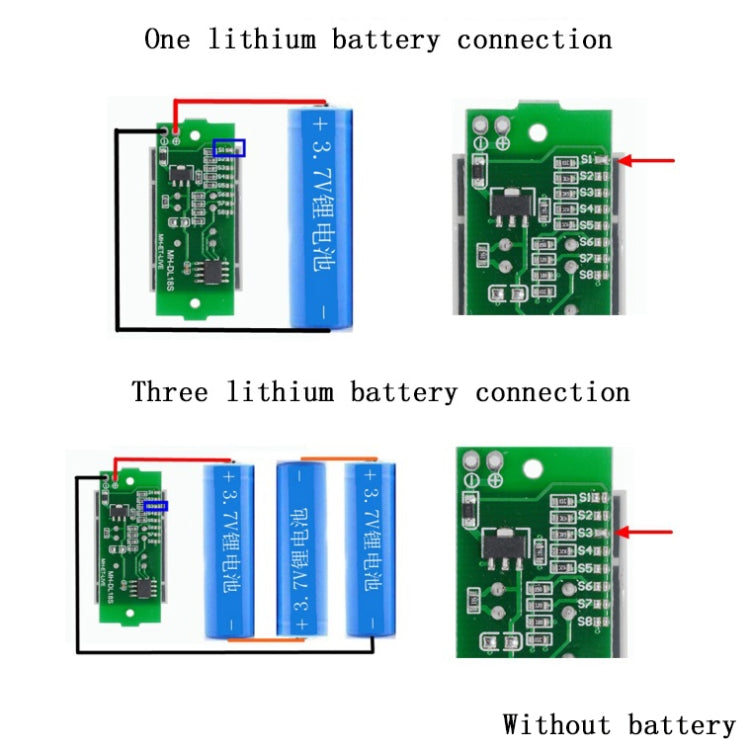

• Battery-type power display, select the corresponding solder pad to detect the voltage of the battery pack corresponding to 1S-8S, which is very convenient
• How to use: connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the...

Package Info: Weight: 0.03kgs / 0.07lb, Size: 10cm * 5cm * 2cm / 3.94inch * 1.97inch * 0.79inch
