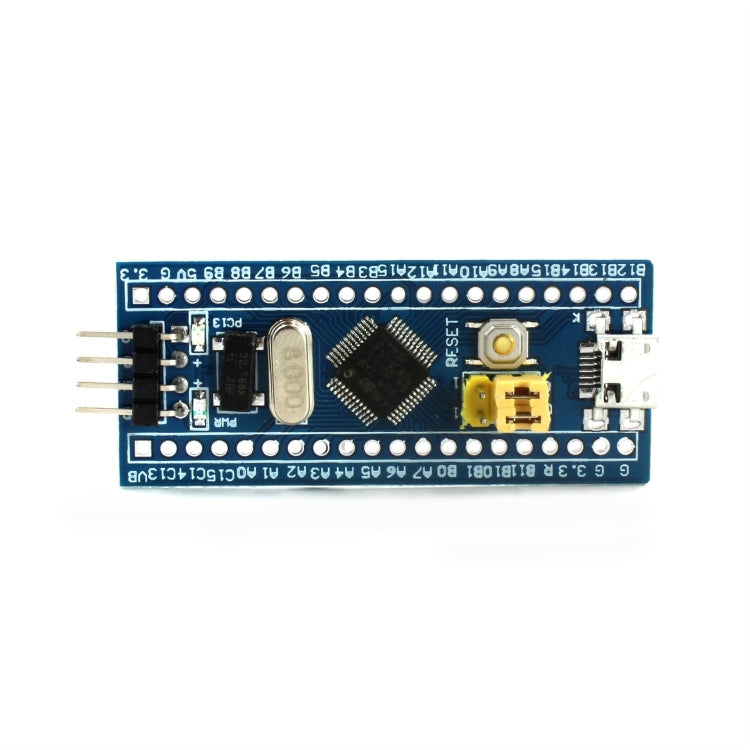

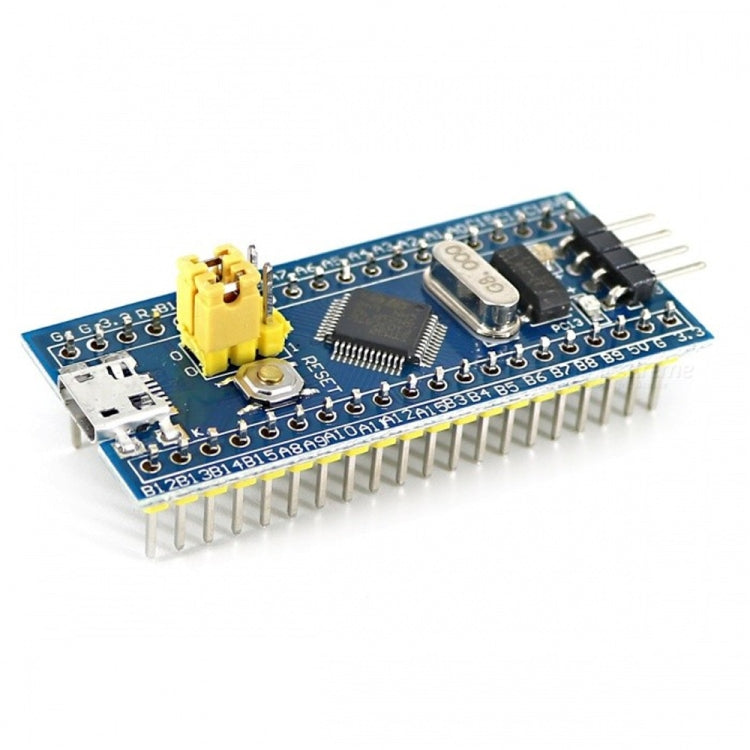

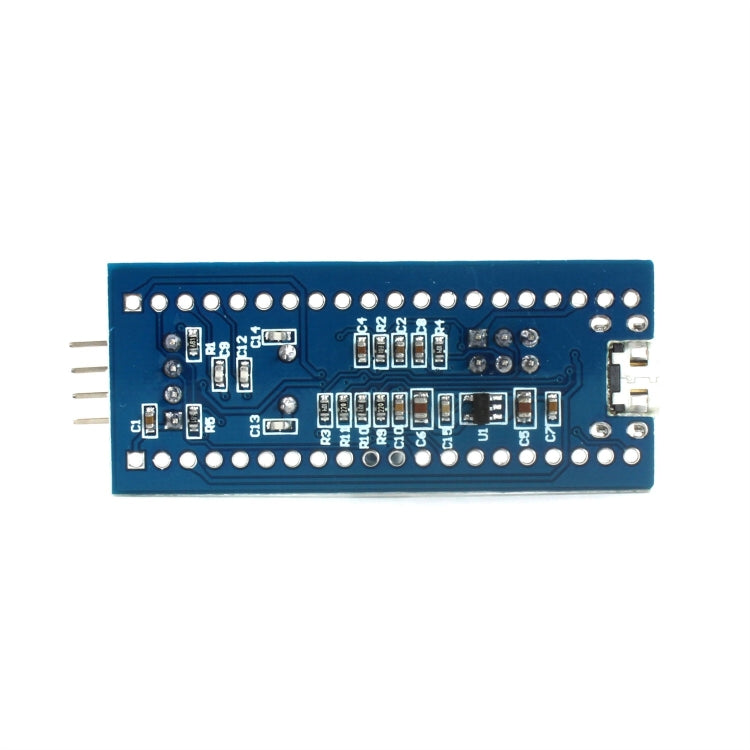

LDTR-WG0158 STM32F103C8T6 STM32 Development Board – 4K

LDTR-WG0158 STM32F103C8T6 STM32 Development Board – 4K.

Key Features:

• Features
• 1. On-board SWD interface, and it can be programmed with ST-LINK V2.
• On-board test indicator LED, and the beginners can program to control it.
• On-board 100ma 3.3V Regulator.
• All GPIO are led out and the names of the pins are marked。
• Microcontroller: STM32F103C8T6.
• Burning times: 10k cycles
• Operating voltage: 3.3 V.
• IO logic voltage: 3.3V
• Digital I/O Pins: 37.
• Analog Input Pins: 10 (12bits).
• Flash Memory: 64KB.
• RAM: 20KB.
• Programmable Clock Speed: 72 MHz (MAX).
• Specification
• Model: DTR-WG0158
• Quantity: 1 set
• Color: Blue + Yellow
• Material: PCB + Alloy + Plastic
• Chipset: STM32F103C8T6

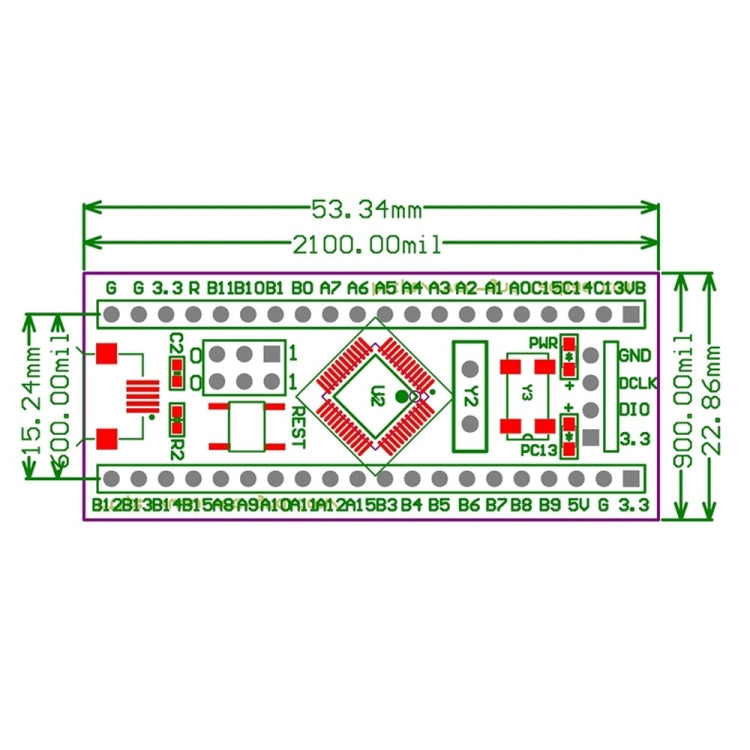

• Dimensions (5.5 cm x 2.2 cm x 1.2 cm), weight (7.5g)
• Packing List:

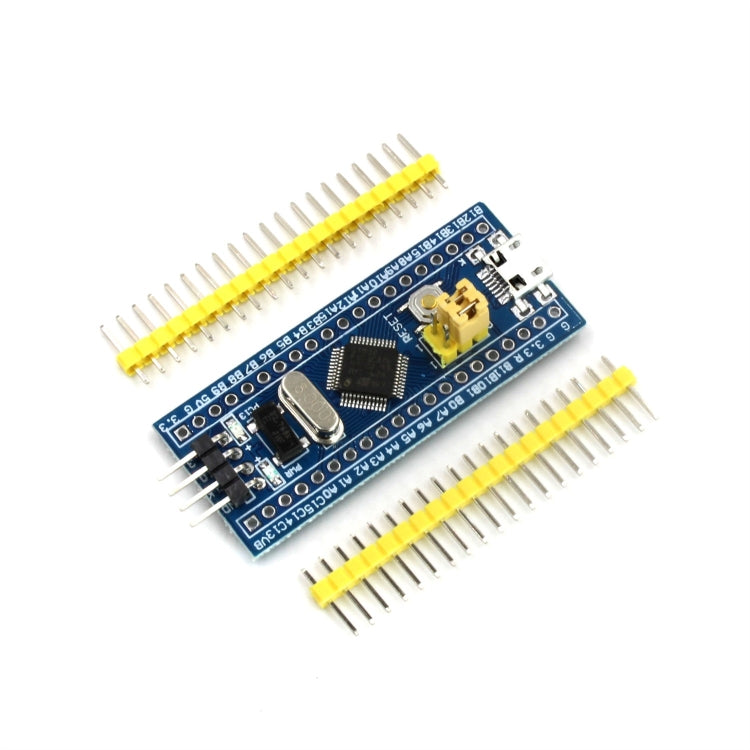

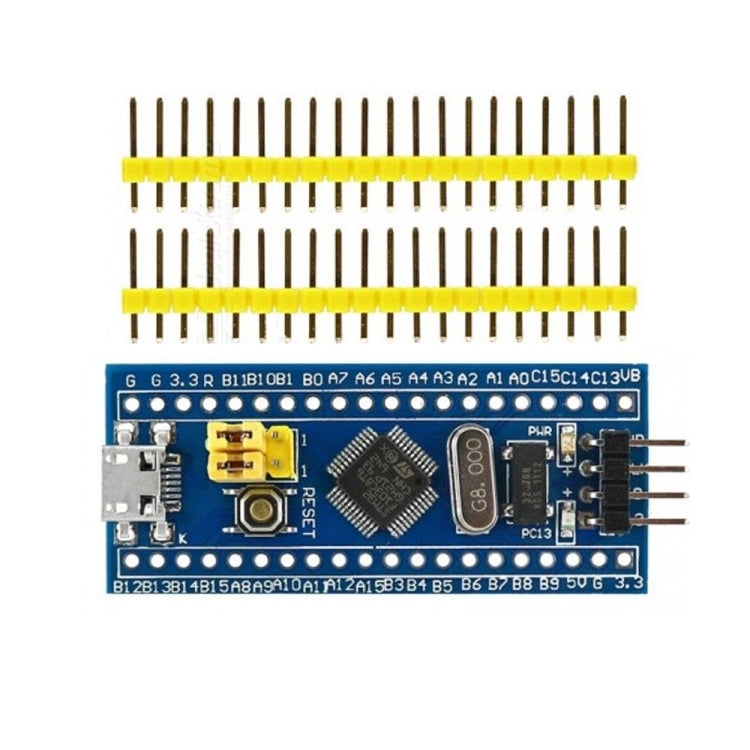

• - 1 x STM32F103C8T6 development board
• - 2 x 1X20P pin headers (2.54mm pitch)

Package Info: Weight: 0.03kgs / 0.07lb, Size: 9cm * 3cm * 1cm / 3.54inch * 1.18inch * 0.39inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
