L60 12V/24V 60A Solar Controller Power Voltage Current LCD Display Solar Charge Controller – Durable Build, Easy to Use

L60 12V/24V 60A Solar Controller Power Voltage Current LCD Display Solar Charge Controller – Durable Build, Easy to Use.

Key Features:

• parameter:
• Rated voltage: 12/24V lead-acid battery voltage
• Maximum charge and discharge current: 60A
• Solar panel input voltage range: maximum 18V-750W/36V-1500W
• Load working time setting: 1-24 hours adjustable
• Charging mode: PWM
• Overvoltage protection: 17V/34V
• Fully disconnected: 13.8V/27.6V adjustable
• Undervoltage disconnection: 10.8V/21.6V adjustable
• Over-discharge recovery voltage: 12.2V adjustable
• Wiring specification: less than or equal to No. 3 AWG (22 square millimeters)
• Working environment temperature: -25-55 degrees Celsius
• Features:
• This controller is used for solar off-grid systems or solar street lights, solar power generation systems, etc., to adjust charging and discharging. It can...
• 12V/24V automatic identification of lead-acid battery voltage, maximum charge and discharge current 60A

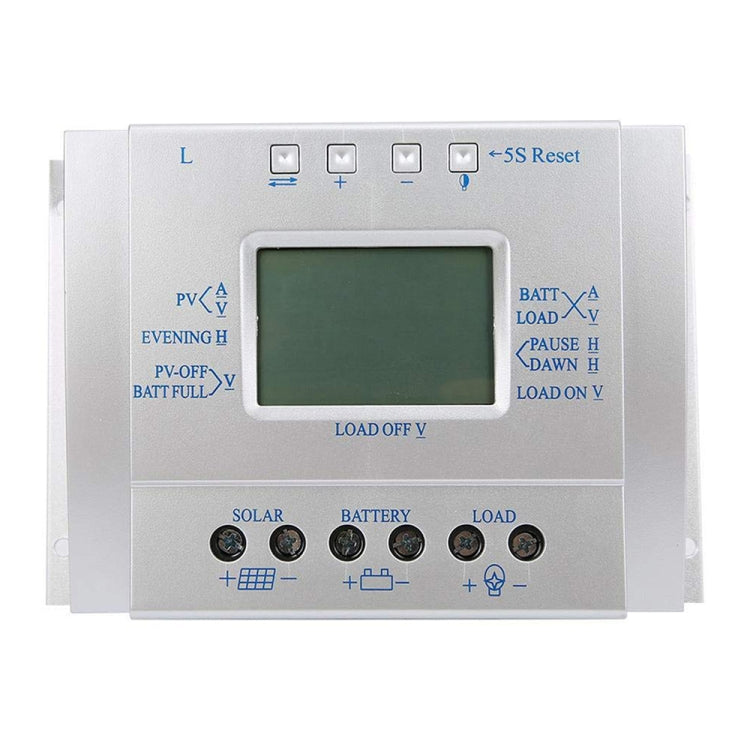

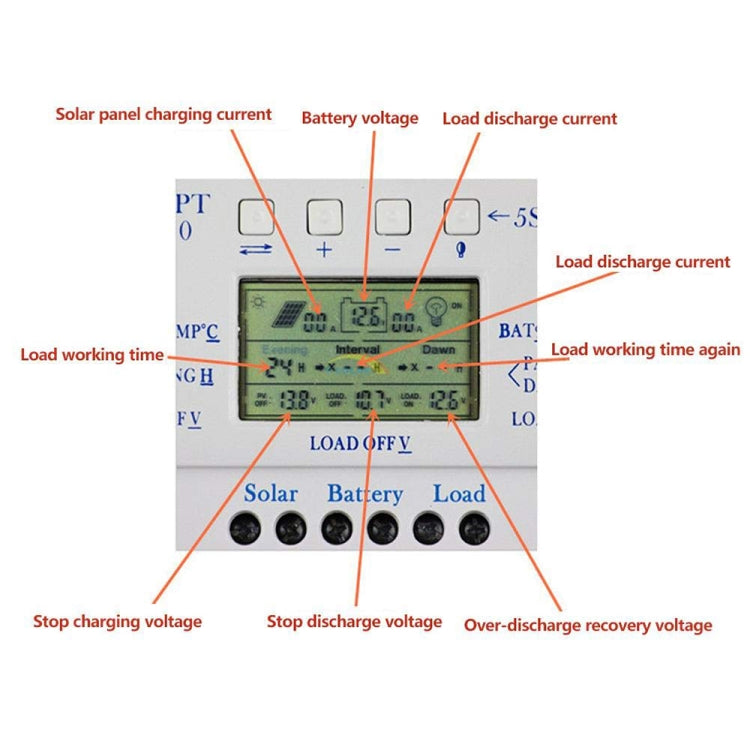

• Vivid LCD graphic symbol LCD display, simple button mode.
• Intelligent micro-processing with automatic temperature compensation according to the pulse width PWM charging method.
• Adjustable charge and discharge control parameters, load working mode that can be set
• Various protection functions such as battery reverse discharge, undervoltage, and reverse connection protection
• Polarity reverse connection protection, overload protection, overcharge protection, short circuit protection.
• Has a wide range of applicability, automatic recognition of day/night
• The timing period of street lamps is adjustable from 1 to 24 hours, with dual period load discharge setting function
• Unique dual time control enhances the flexibility of the street light system
• Adopt temperature compensation, automatically adjust charging and discharging parameters, and improve battery life

Package Info: Weight: 0.76kgs / 1.68lb, Size: 23cm * 16cm * 9cm / 9.06inch * 6.3inch * 3.54inch
