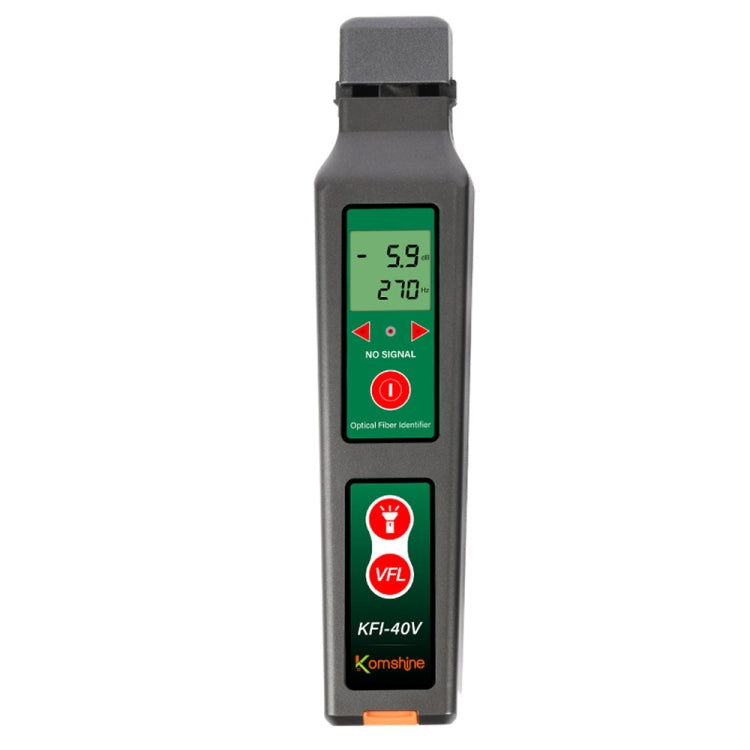

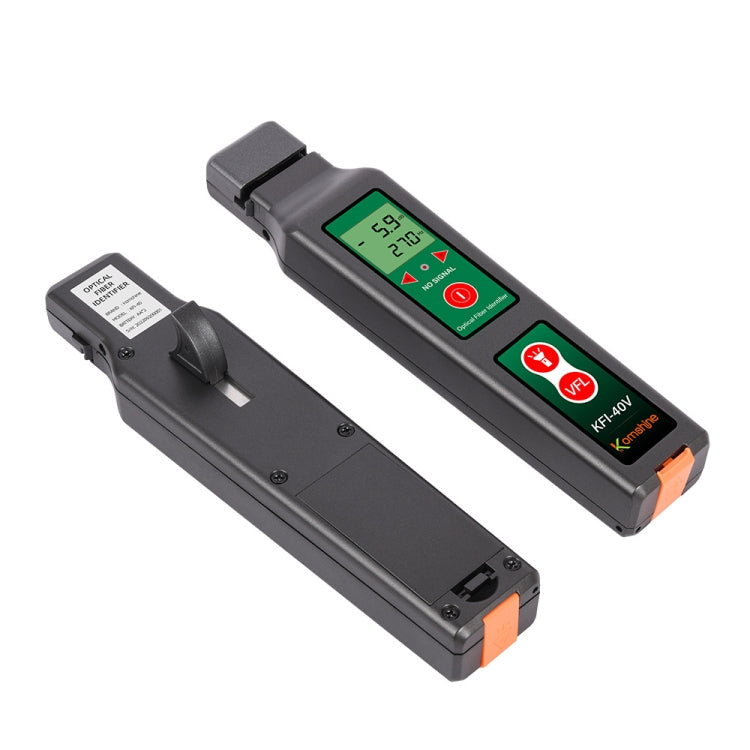

Komshine Fiber Optic Identifier Optical Cable Signal...

KFI-40V

£86.79

£86.79

Komshine Fiber Optic Identifier Optical Cable Signal Direction Identifier With VFL Red Light 10mW, KFI-40V – Durable Build, Easy to Use.

Key Features:

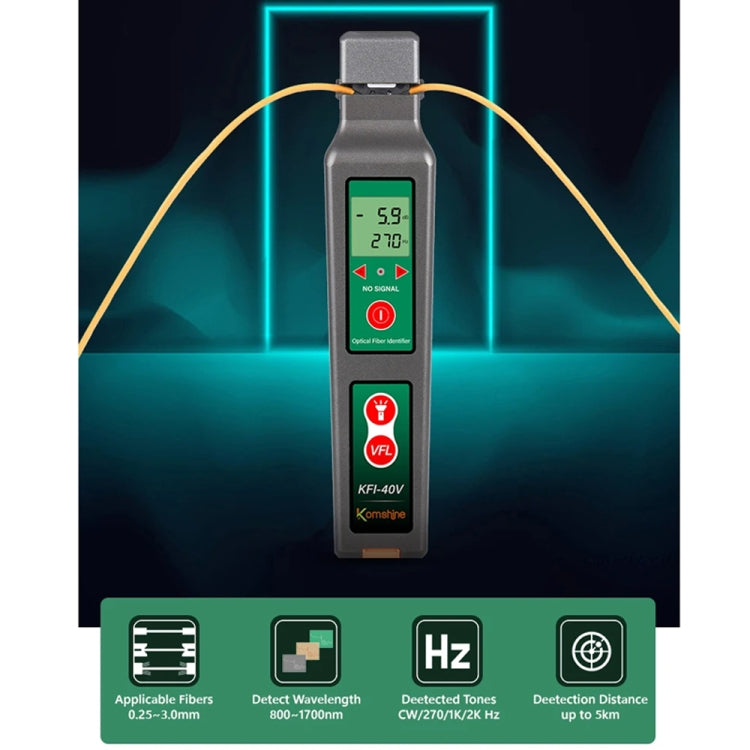

Applicable optical fiber type: 0.25-3.0mm
Wavelength range: 800~1700nm
Detection frequency range: CW/270/1k/2k Hz
Detection distance: up to 5km
Detector type: 1mm InGaAs 2 pcs
Signal direction: Left & Right LED
Optical power reading range: 40 dBm to 10 dBm
Power supply type: AAx2 (not included)
VFL power range: 10mW
VFL test distance: 5-8km
VFL wavelength range: 650nm
VFL laser type: LD

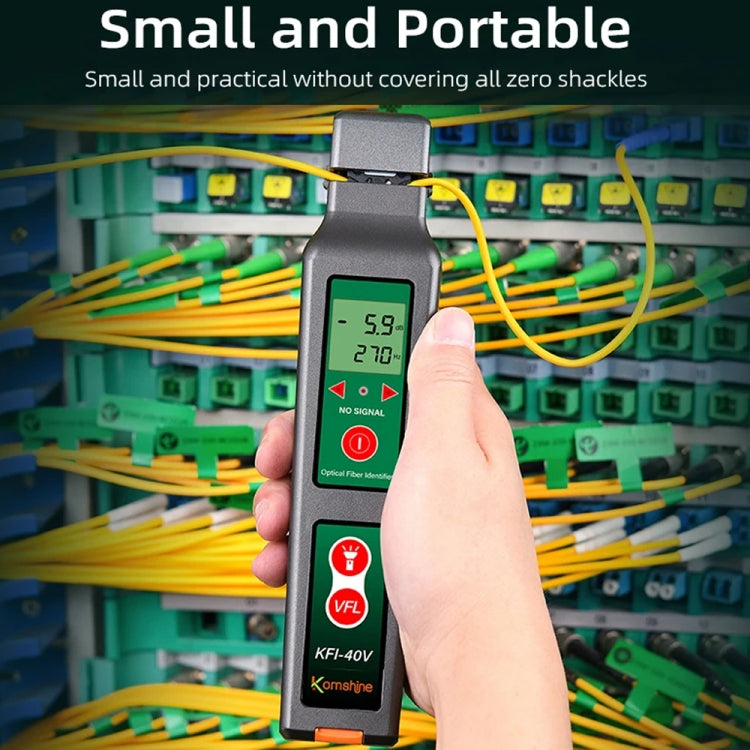

Compact and practical, portable, no need to change fixtures, online testing

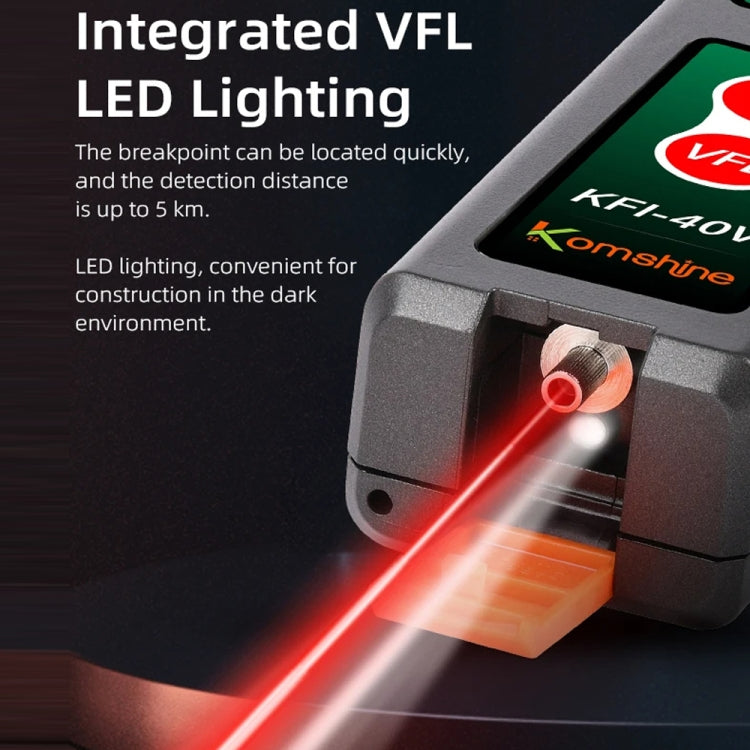

Can quickly locate power outages, with a detection range of up to 5km, and LED lighting to facilitate construction in the dark.
Detection can be performed at any position on single-mode and multi-mode optical fibers, and an identifier can be used to identify it on the line.
Can identify 270Hz, 1KHz, 2KHz signal frequencies, and there will be a buzzing sound when the frequency is identified.

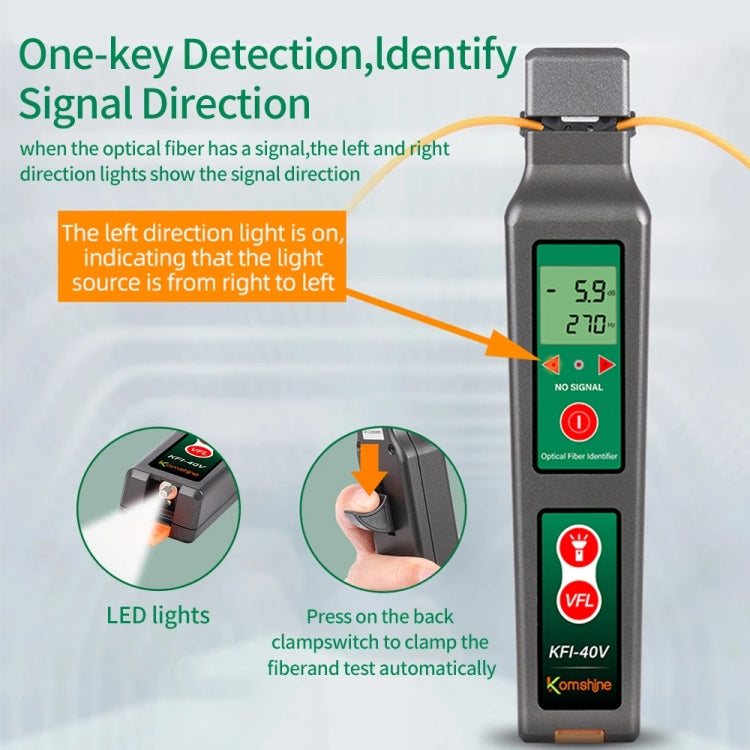

When there is a signal in the optical fiber, the left and right direction lights will display the signal direction.

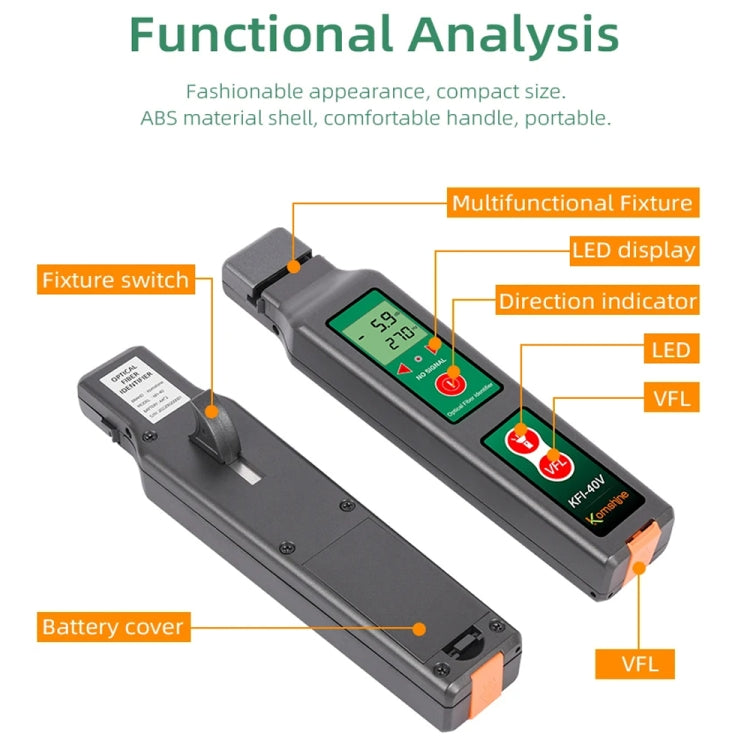

When holding the machine, press the clamp switch on the back with your index finger to clamp the optical fiber cable, and the test will automatically start.
ABS material shell, good hand feel, comfortable to use, compact and light, easy to carry
Product size: 219mmx45mmx28mm
Product weight: 235g
