ISDT Aircraft Model Lithium Battery 1-8S Electric Display Measuring Appliance, ISDT BG-8S – TPU

ISDT Aircraft Model Lithium Battery 1-8S Electric Display Measuring Appliance, ISDT BG-8S – TPU.

Key Features:

• Working voltage range: 5.0V-36V
• Balance port 1 string input voltage range: 0.8V-15V
• Balance port 2-8 series input voltage range: 0.8V-4.8V
• Support battery string number: 1-8S
• Voltage measurement accuracy: 0.005V @4.2V
• Cell balance accuracy: 0.005V
• Support USB charging: QC 2.0/3.0 BC1.2, 12/2A (MAX)
• Support smart battery: set charging and anti-power parameters, query battery information and usage
• Supported battery types:
• - LiHv (1-8S)/LiPo (1-8S)/LiFe (1-8S)
• - Lilon (1-8S)/NiMH/Cd (1-10S)
• Display type: 2.4 inches 320x240 260,000 colors IPS LCD
• Visible 260,000 color display under strong sunlight

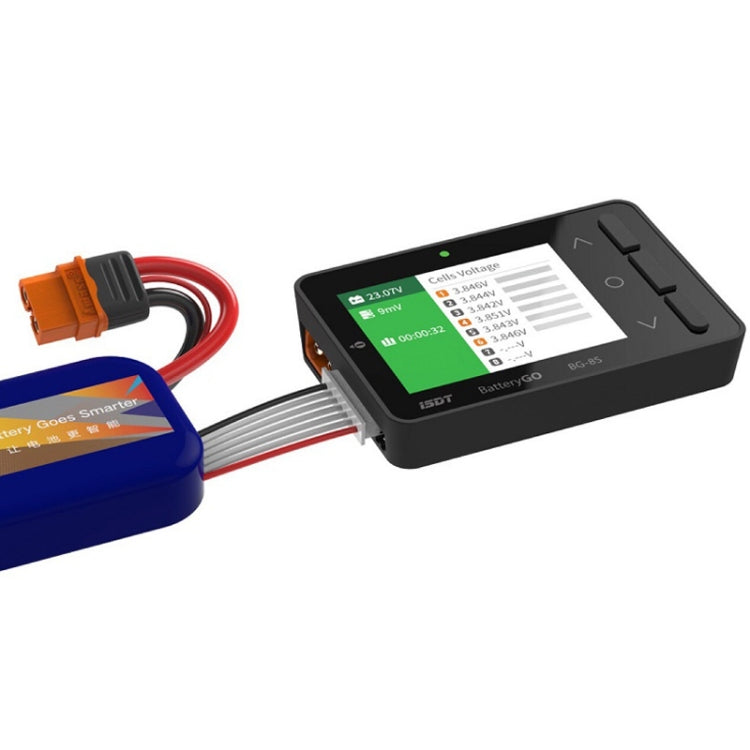

• The exquisite and powerful BG-8S intelligent battery tester fully supports BattGO technology

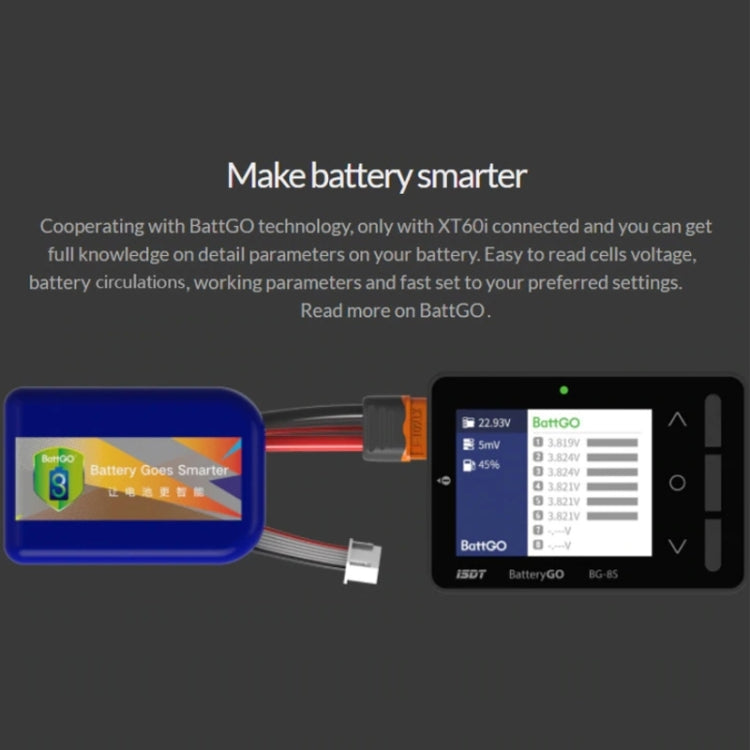

• With BattGO technology, you can fully understand the detailed parameters of the battery just by connecting to XT60i

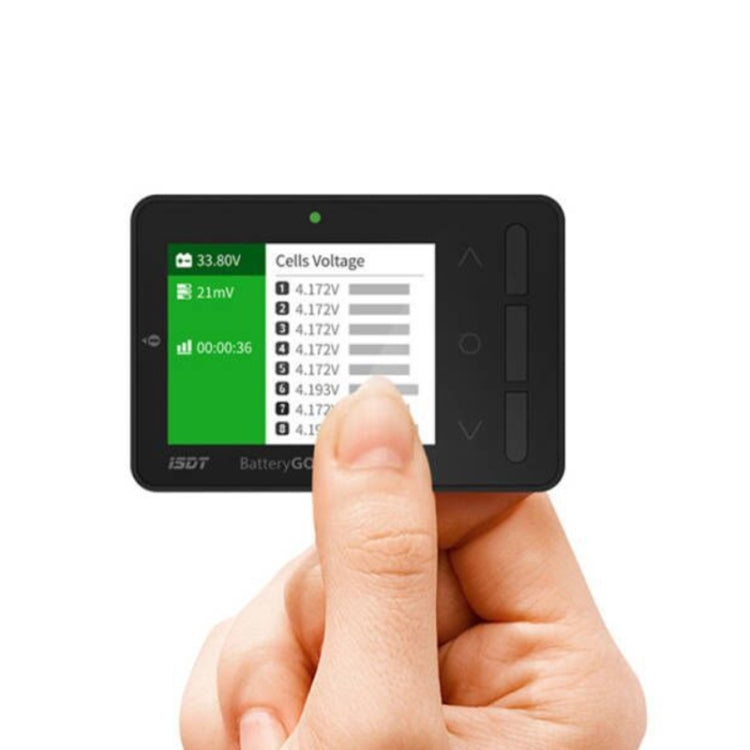

• Easy to read battery voltage, battery cycle, working parameters and set up quickly
• Automatically balance the battery voltage, advanced automatic balance algorithm, to ensure the balance of each cell, automatically enter the low power...

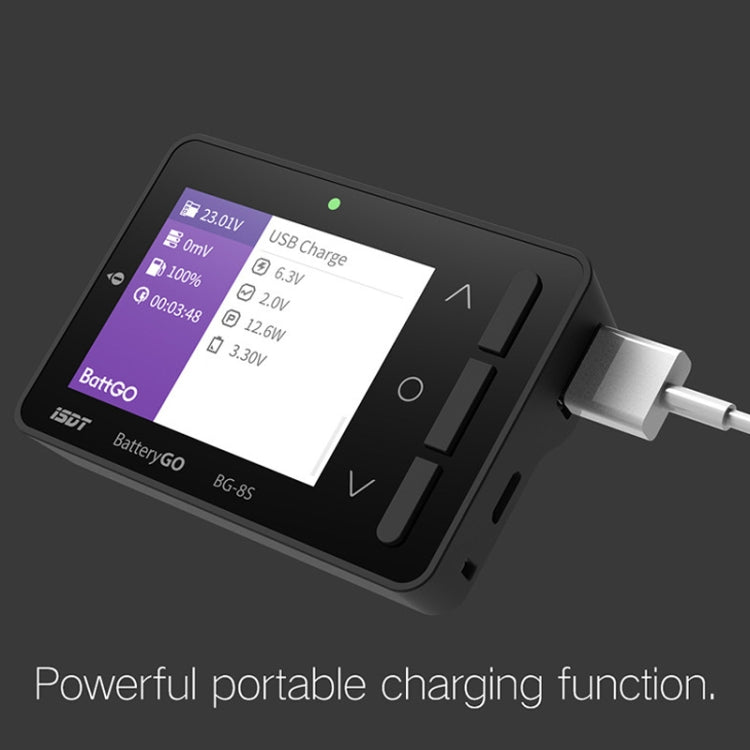

• Powerful portable charging function, connect to your battery, BG-8S can be a power bank for your mobile devices
• Support Qualcomm QC 2.0/3.0, compatible with BC1.2 and for Apple devices

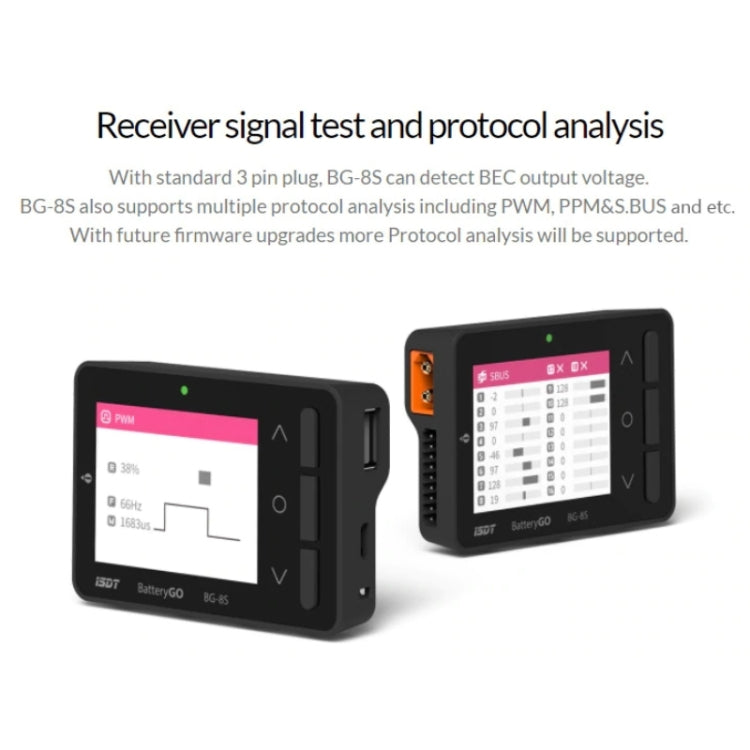

• Receiver signal test and protocol analysis, BG-8S uses a standard 3-pin plug to detect BEC output voltage
• BG-8S also supports multiple protocol analysis, including PWM, PPM&S.BUS, etc. Future firmware upgrades will support more protocol analysis

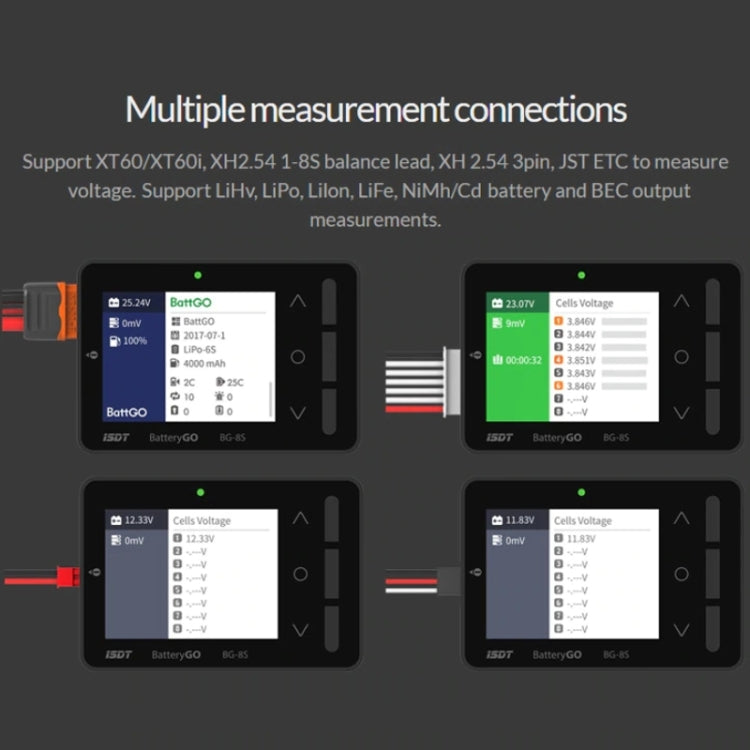

• Support XT60/XT60i, XH2.54 1-8s balanced leads, XH2.54 3-pin, JST ETC measuring voltage
• Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurement

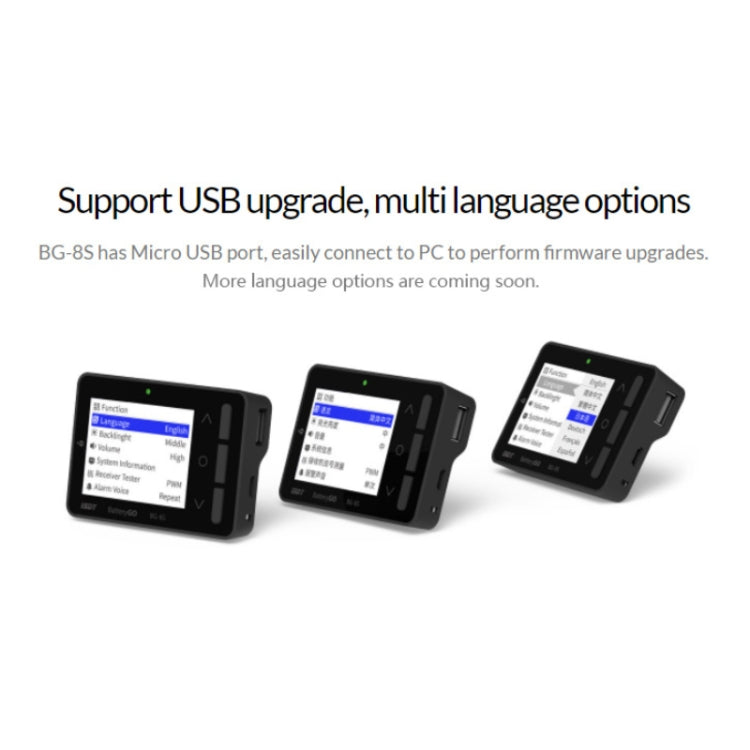

• Support USB upgrade, multi-language selection
• BG-8S has a Micro USB port, which can be easily connected to a PC for firmware upgrades

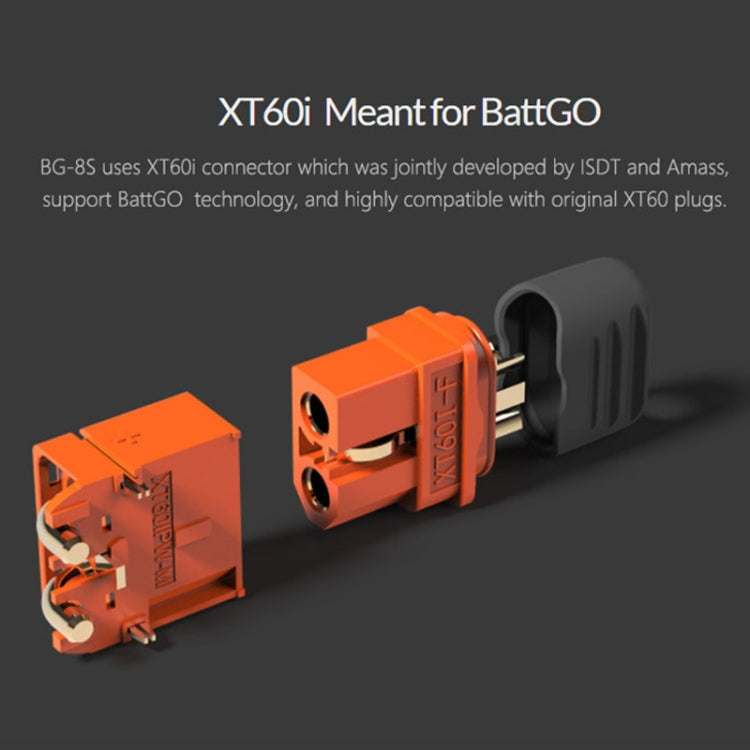

• The XT60i is designed for BattGo
• BG-8S adopts the XT60i connector jointly developed by ISDT and Amass, supports BattGO technology, and is highly compatible with the original XT60 plug
• Dimensions: 80x55x19mm
• Weight: 59 grams

Package Info: Weight: 0.11kgs / 0.25lb, Size: 11cm * 10cm * 5cm / 4.33inch * 3.94inch * 1.97inch
