IRSW20B USB Reflective Photoelectric Switch, IRSW20B – Durable Build, Easy to Use

IRSW20B USB Reflective Photoelectric Switch, IRSW20B – Durable Build, Easy to Use.

Key Features:

• Product manual：
• Through-beam photoelectric switch (IRSW20B) is a customizable USB button.It is equivalent to a standard HID USB keyboard and mouse. The switch function can...
• Products are widely used in printers, copiers, game consoles, factory inspections, instrument control, equipment, etc. as well as mobile monitoring,...
• The switch adopts a through-beam photoelectric trigger mode. The infrared emitting tube in the device emits infrared light. If there is an object in the...
• Provides button definition setting software based on Windows system. After setting, you can use it in the following systems: Dos, Win 2000, Win XP, Win...
• Scope of application: office, game, industry, disabled person
• Function Description：
• Keyboard function: It can be set to any key value or key combination, for example, to key value A or CTRL+A.
• Mouse function: It can be set to the left, middle, right, forward and backward keys of the mouse, the movement of the X and Y axes, and the up and down...
• String printing: You can set up to 38 characters, for example, set "hello!".
• Multimedia function: It can be set as previous song, next song, volume up, volume down and other multimedia control functions.
• Gamepad function: It can be set as up, down, left and right four direction keys and 6 function keys.
• When you want to change the function of the button, you can use the FootSwitch software to modify the button function:
• Insert the device into the computer USB port
• Run the software FootSwitch
• Click to select the corresponding setting window
• Click or enter the function you want to set
• Click Save to confirm.
• The setting software only supports Windows system. The FootSwitch software is often upgraded. Please follow the latest version.
• Product specifications:
• Product model: IRSW20B
• Interface type: USB
• Power supply: 5V30mA
• USB cable length: 2 meters (the cable length can be customized)
• Product weight: about 65 grams

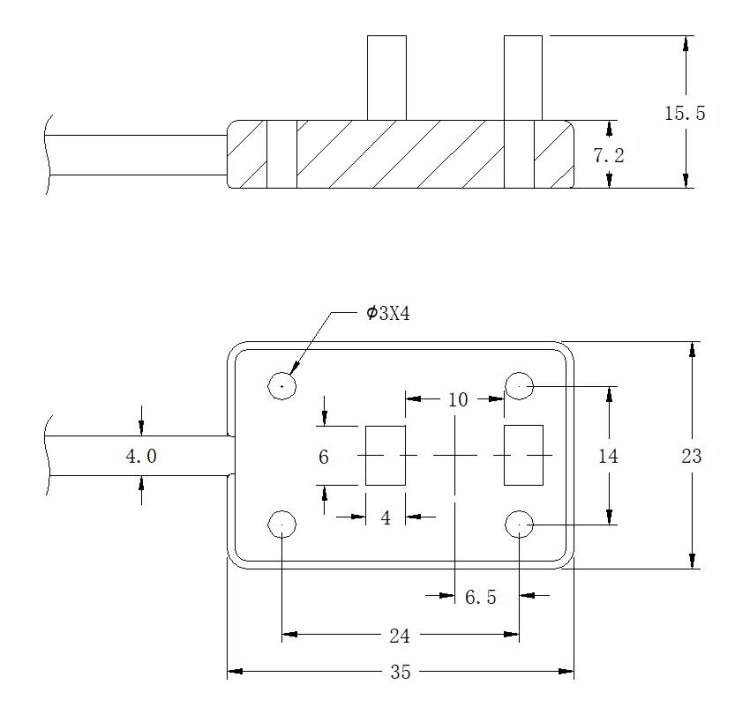

• Outline dimension drawing and installation hole position drawing as show pictures

Package Info: Weight: 0.07kgs / 0.16lb, Size: 10cm * 8cm * 3cm / 3.94inch * 3.15inch * 1.18inch
