Integrated Circuit Tester Transistor IC Tester, Host, Host+3 SOP Test Socket – Durable Build, Easy to Use

Integrated Circuit Tester Transistor IC Tester, Host, Host+3 SOP Test Socket – Durable Build, Easy to Use.

Key Features:

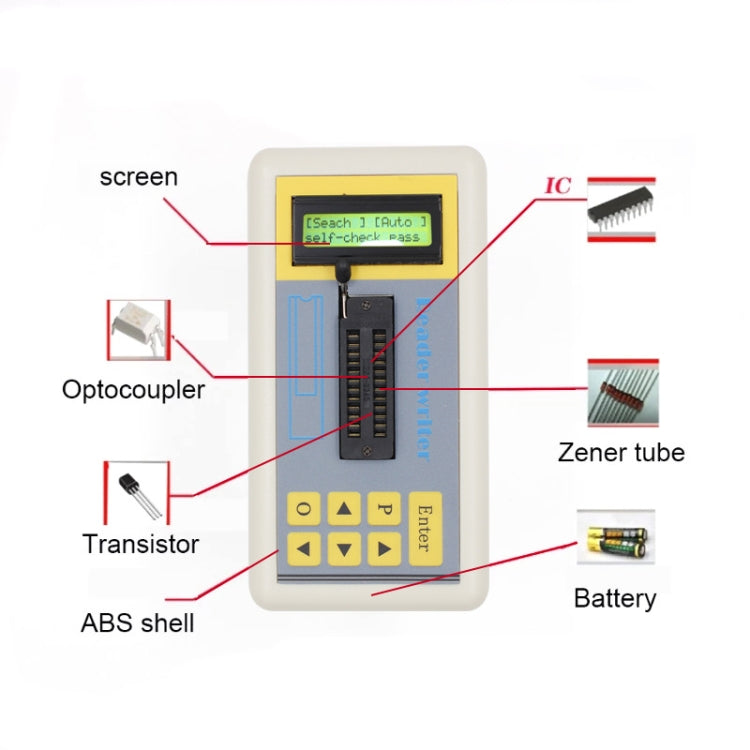

• Scope of application: can test 74ch series, osmo series, cd4000 series, hef400 series, 4500 series, operational amplifiers, interface chips, optocouplers,...
• Integrate more than 1,300 types of chip data models and more than 420 types of transistor data models, covering most common general-purpose devices within...

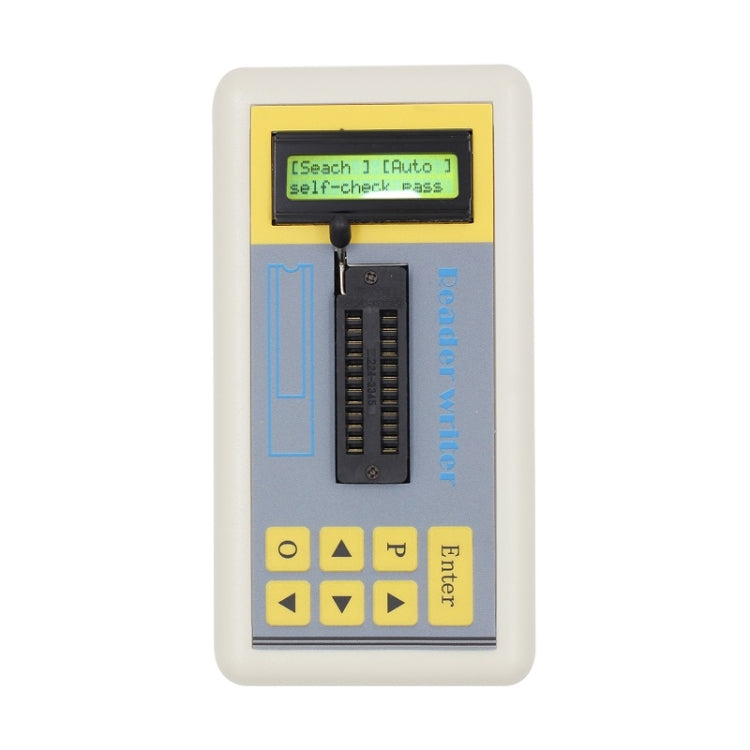

• Press the Enter key to turn on the machine for the first time and automatically run a self-test. The self-test detects the battery voltage and displays it...
• Nativead 10 ad, the theoretical resolution of 5v voltage is 0.0048v
• Due to the use of batteries for power supply, it is not suitable for measuring high-power thyristors
• The Zener value must be based on the actual measurement, not just the nominal value
• The default directory for initialization is the search directory
• Different test modes: 5v mode, 3.3v mode, auto mode

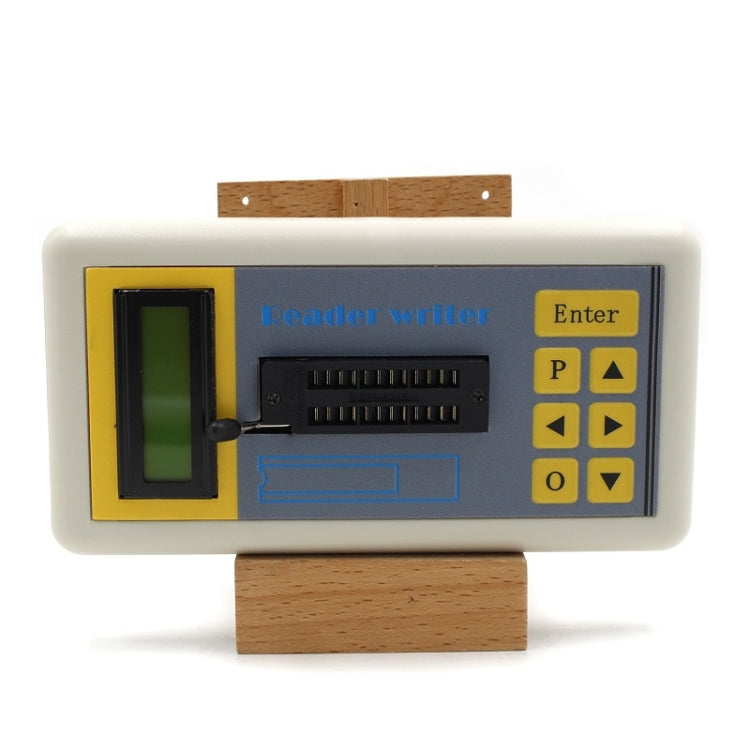

• There are seven buttons on the panel, which are respectively used for up, down, left, right and typing keys and hotkeys o, p
• The up and down keys are used to adjust the catalog and change the model, and the left and right keys are used to move the cursor left and right to select...
• The input key is used to change the machine and execute the test command

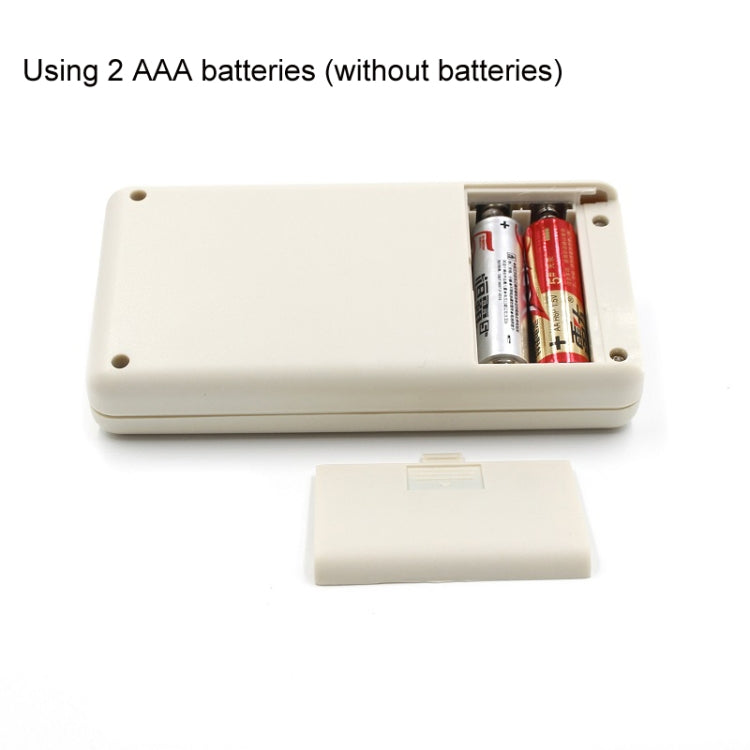

• Use two AA 1.5v batteries (not included), press Enter for more than 2 seconds to turn on the machine, and the current battery voltage will be displayed...
• After 60 seconds without any operation, it will automatically shut down
• Test socket: SOP16 narrow body, SOP20 medium body, SOP24 wide body
• The device positioning method is as follows:
• Place the chip and optocoupler on the top of the alignment, and the 1-pin ic alignment seat
• The triode on the left, mostly three slots
• The 13 and 14 pins of the ic regulator are placed
• Note: Transistor display pin sequence from left to right corresponds to 10-foot, 11-foot, 12-foot ic block (not built-in battery or adapter)

Package Info: Weight: 0.18kgs / 0.39lb, Size: 15cm * 10cm * 4cm / 5.91inch * 3.94inch * 1.57inch
