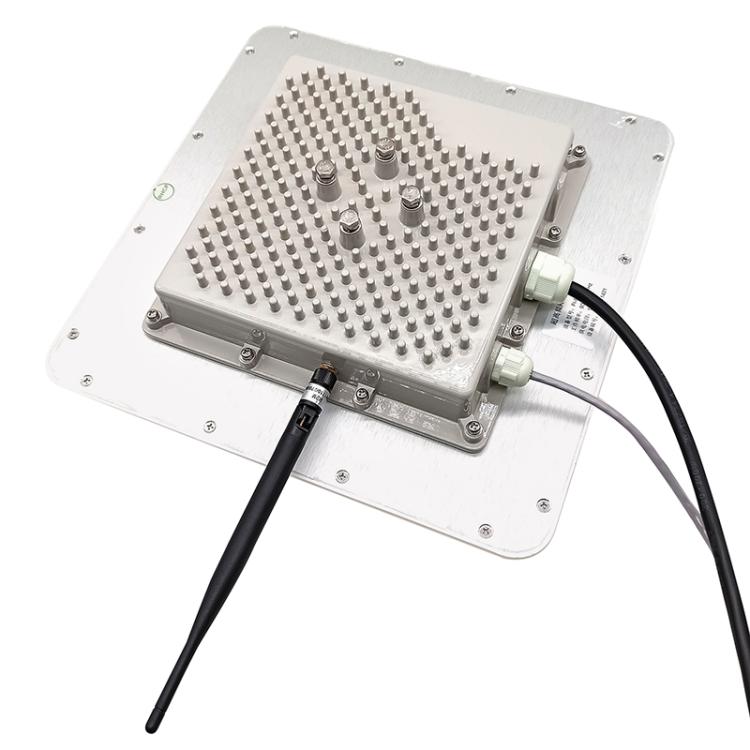

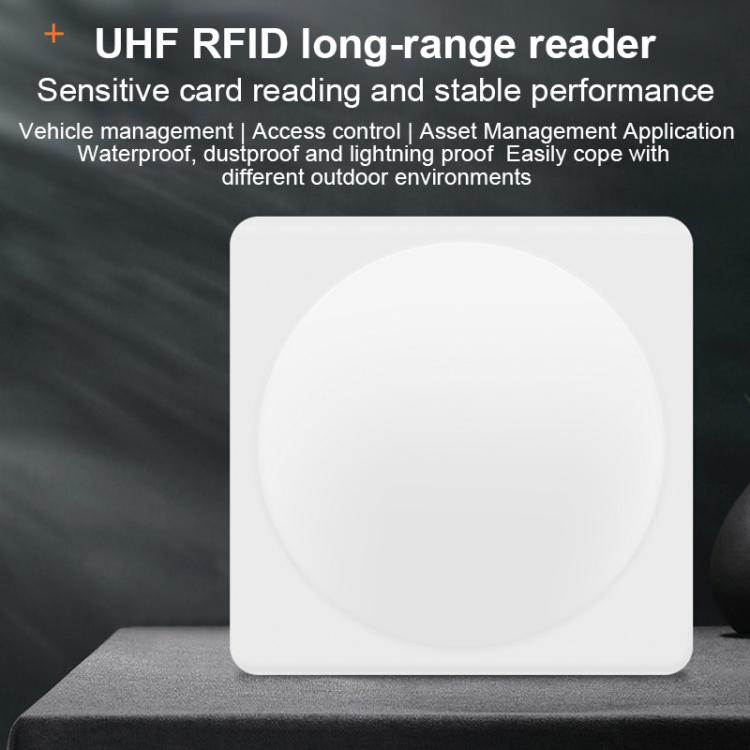

Industrial UHF RFID Long Range Integrated Reader Built-in 9dBi Antenna, Style: with WiFi Communication – Waterproof, TPU

Industrial UHF RFID Long Range Integrated Reader Built-in 9dBi Antenna, Style: with WiFi Communication – Waterproof, TPU.

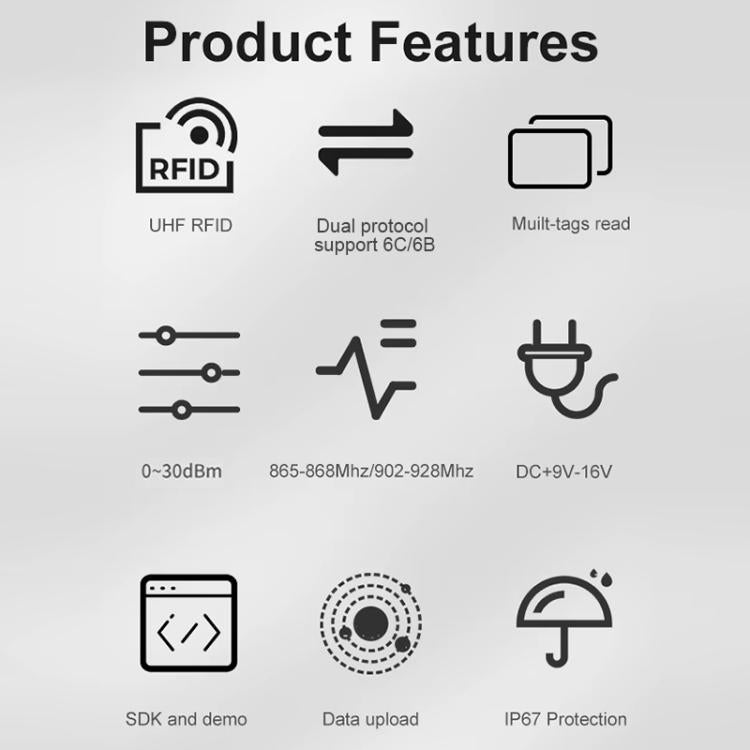

Key Features:

• Equipped with the Impinj E710 chip, it boasts a peak read rate exceeding 700 tags per second and a long read distance.
• Built-in high-gain 9dBi antenna provides wide coverage, sensitive card reading, and stable performance.
• Multiple communication interfaces and a separate cable design for ease of use.

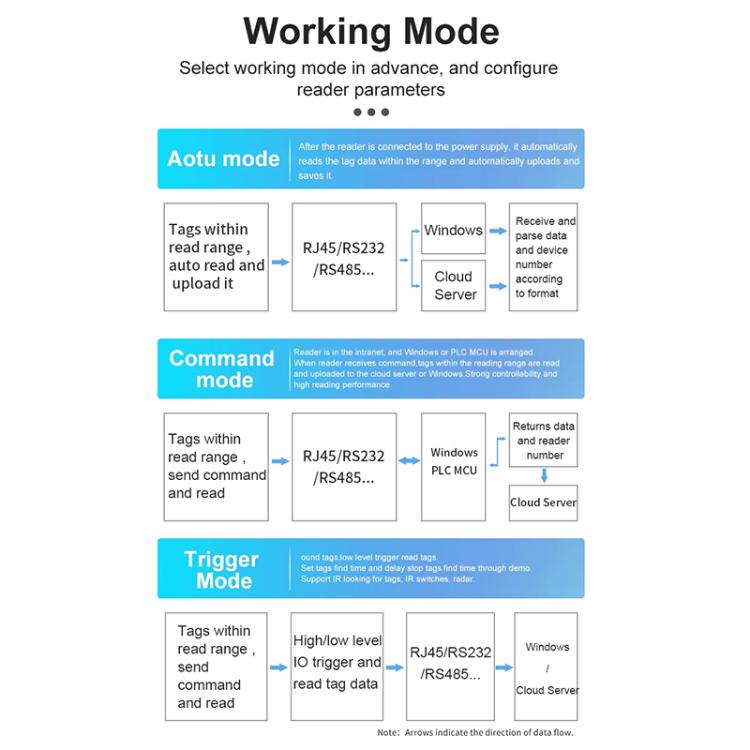

• Flexible operating mode selection: Active, Passive, and Trigger.
• Integrated structure with IP67-rated waterproof, dustproof, and lightning protection, making it easily adaptable to diverse outdoor environments.

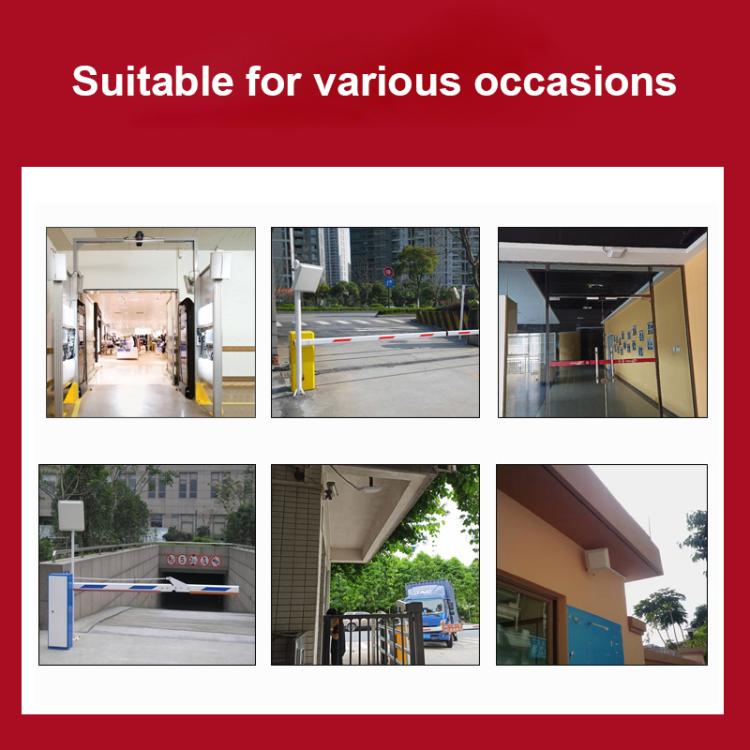

• Wide range of applications: Suitable for warehousing and logistics, production line tracking, intelligent asset management, and access control systems.
• Product Specifications:
• Model: FI-807B

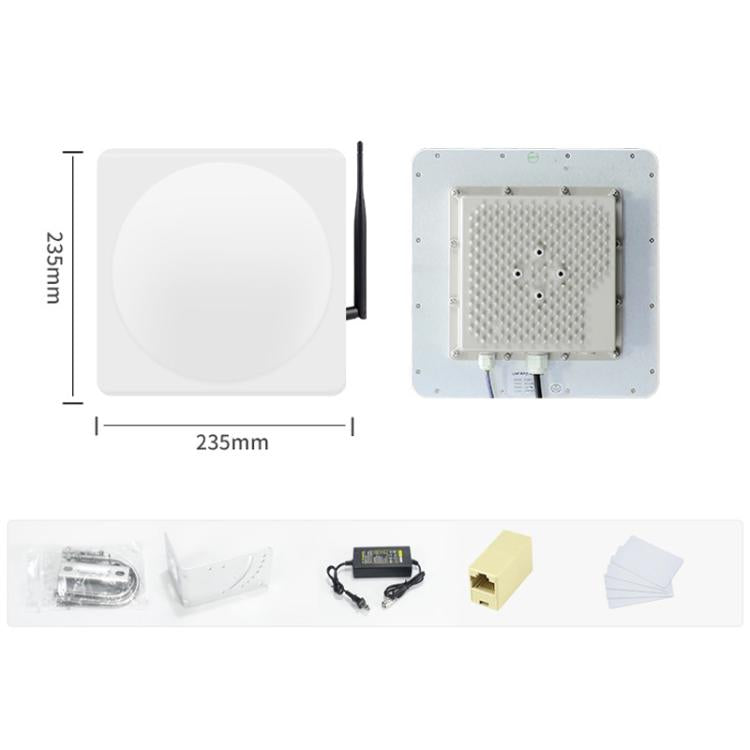

• Dimensions: 305mm x 305mm x 75mm
• Operating Frequency: Standard: ISM 902-928MHz and ISM 865-868MHz, optional.
• Operating Protocols: ISO18000-6C (EPC GEN2), ISO18000-6B

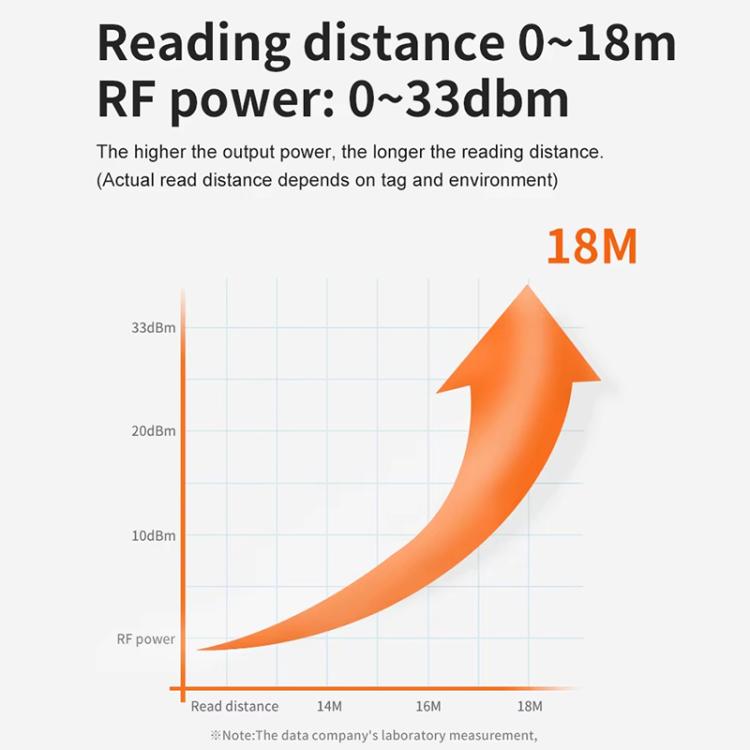

• Reading distance: 0-10m
• Output power: 0-33dBm, software-adjustable
• Operating mode: Wide-spectrum frequency hopping (FHSS)

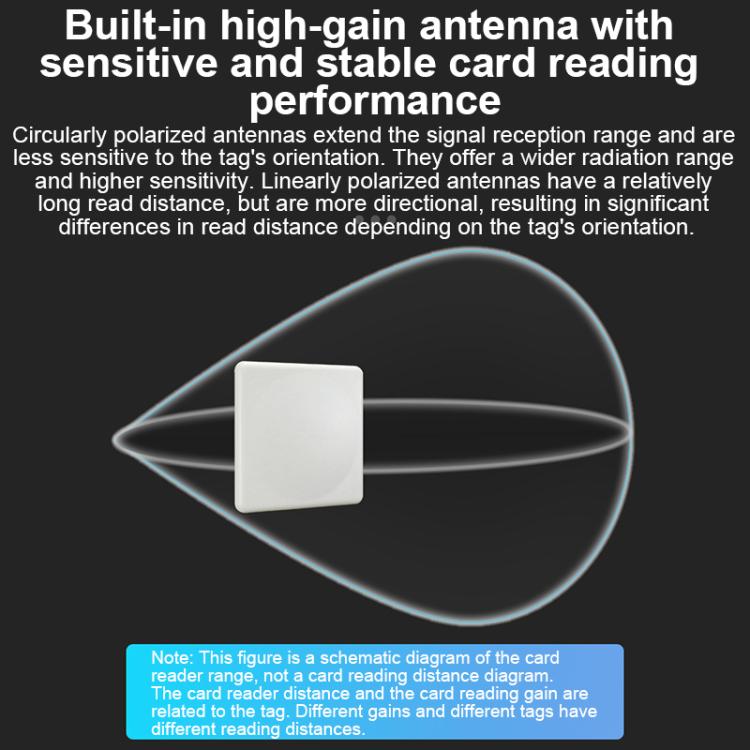

• Antenna gain: Built-in linearly polarized antenna, 9dBi gain

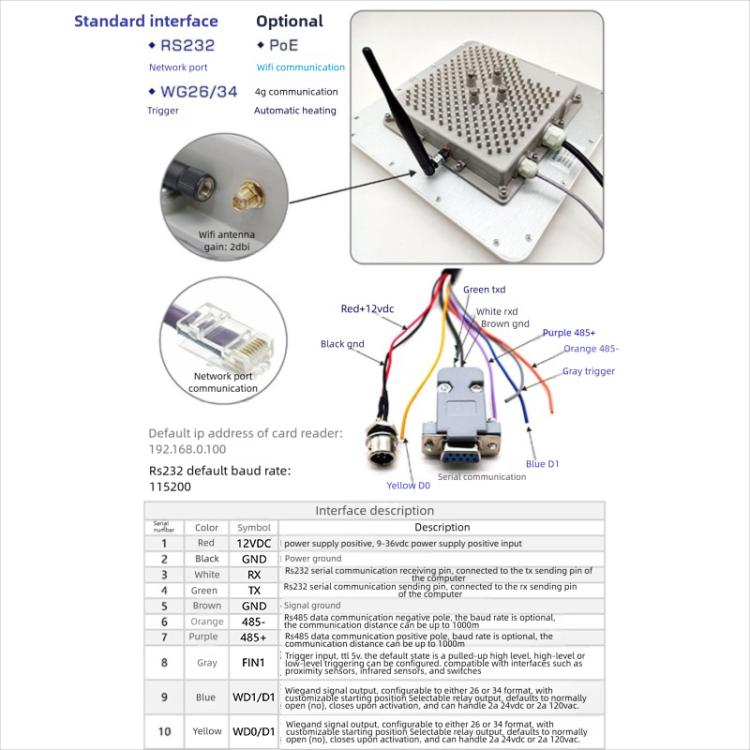

• Communication interfaces: RS232, RS485, RJ45, Wiegand 26/34, one trigger output, one relay output
• Operating indicator: Buzzer
• Power supply: DC+12V (with power adapter), voltage range: 9-16V
• Operating temperature: -20 degrees Celsius to +80 degrees Celsius

Package Info: Weight: 3.06kgs / 6.75lb, Size: 56cm * 56cm * 12cm / 22.05inch * 22.05inch * 4.72inch
