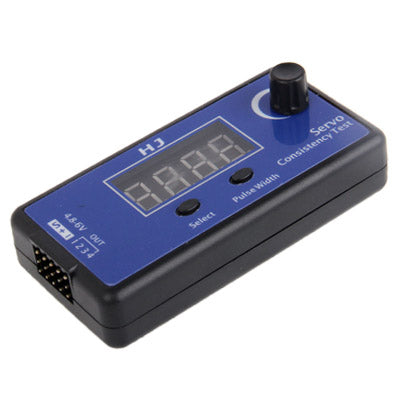

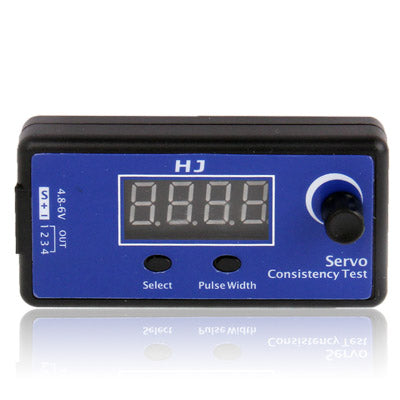

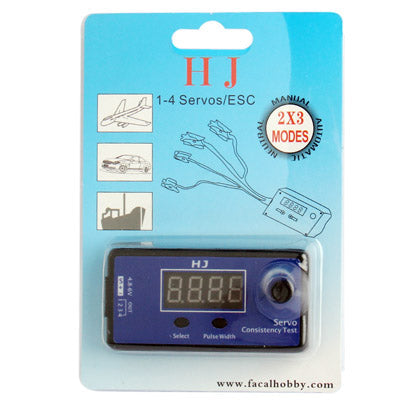

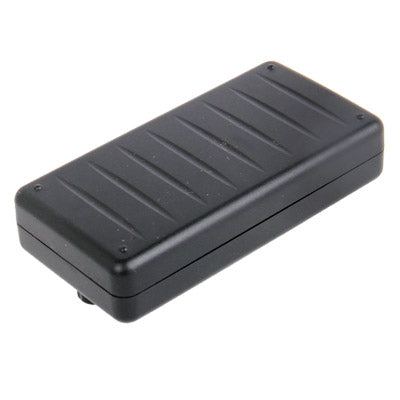

HJ Digital Servo Tester / ESC Consistency Tester for R/C Helicopter, HJ Digital Servo Tester – TPU

HJ Digital Servo Tester / ESC Consistency Tester for R/C Helicopter, HJ Digital Servo Tester – TPU.

Key Features:

• Input voltage: DC 5~6V
• Output signal width: 800~2200us
• Can be synchronized output control 4 servos and used to compare the performance steering gear control of the steering servo output signal can be accurate to...
• With PPM signal test function in the display, the input PPM signal changes while the input the PPM signal synchronization output to the servo
• Energized automatically enter manual mode (Manual) 20us
• 50H analog servo signal cycle, frequency 50Hz, rotary potentiometers to decrease or increase the width of the output pulse
• Button the Select (Note: the key switch function, circulation patterns)
• - S-1 manual mode (Manual)
• - S-2 bit mode (Neutral)
• - S-3 automatic mode (Automatic)
• Keys pulse width
• - 50H analog servo signal cycle 20us frequency 50Hz
• - 125H digital the steering gear a signal cycle 8us frequency 125Hz
• - 250H Digital Servo signal cycle 4us frequency 250Hz
• Warning: digital or analog signal button to select the corresponding servos and then plug in the steering servo, to avoid damage to the steering servo

Package Info: Weight: 0.11kgs / 0.23lb, Size: 14cm * 5cm * 3cm / 5.51inch * 1.97inch * 1.18inch
