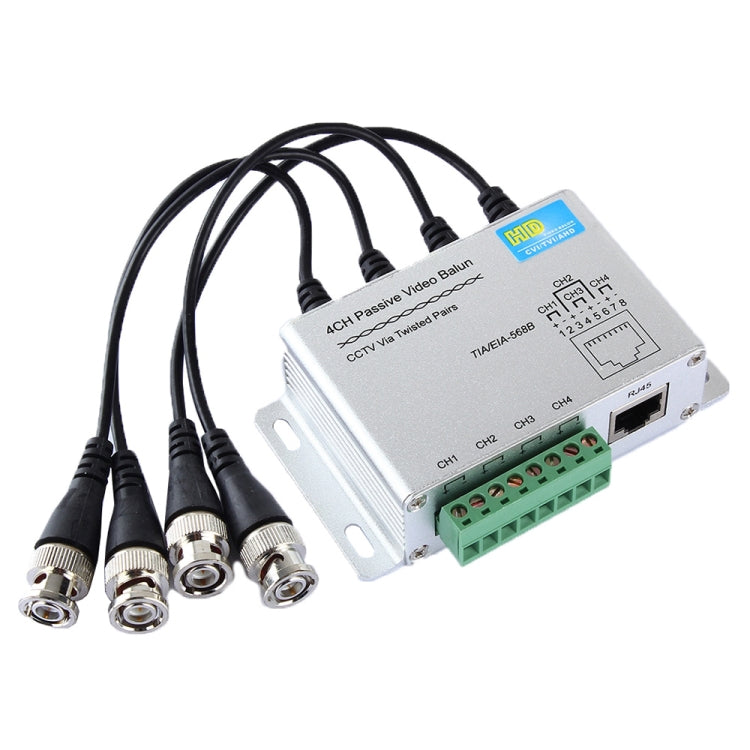

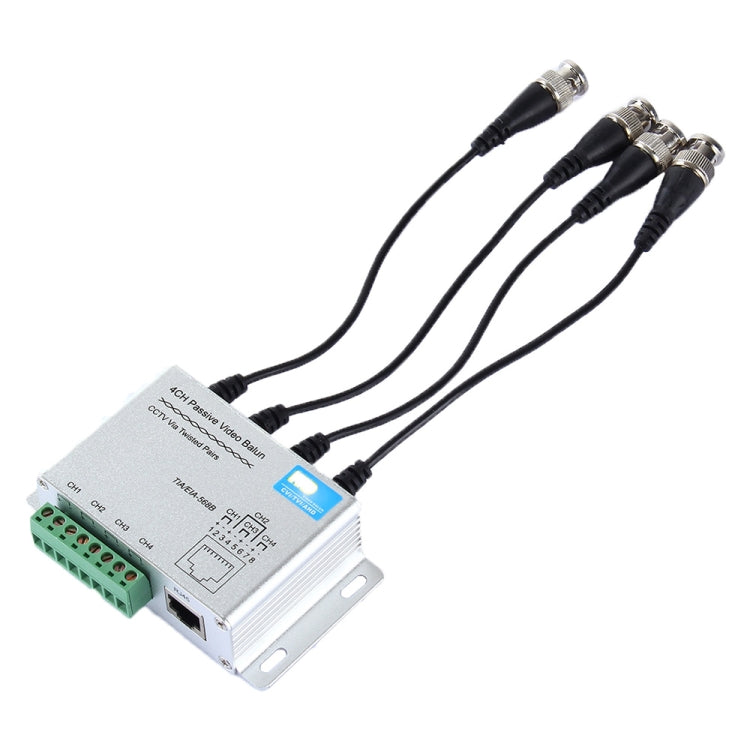

HD204A-F HD-CVI/TVI/AHD CCTV 4CH UTP Passive Video Balun, HD204A-F – 4K

HD204A-F HD-CVI/TVI/AHD CCTV 4CH UTP Passive Video Balun, HD204A-F – 4K.

Key Features:

• HD video balun is to convert the video signal into the balanced signal applicable to transimitted on common Cat-5 unshielded twisted pair wire with perfect...
• Compatible with all HD-CVI, HD-TVI, HD-AHD.
• Up to 450m for 720P CVI Cameras.
• Up to 250m for 1080P CVI Cameras.
• Up to 250m for 720P/1080p TVI Cameras.
• Up to 320m for 720P AHD camera.
• Up to 250m for 1080P AHD camera.
• NTSC, PAL, and SECAM video formats.
• No power required.
• 60dB cross talk and noise immunity.
• Built-in transient suppression protection.
• Surge protection 4KV, ESD: 8KV.
• Frequency response: DC to 60MHZ.
• Attenuation: 0.5dB type.
• CMRR: 60dB.
• Impedance: BNC: 75ohms, RJ45: 100ohms.

Package Info: Weight: 0.89kgs / 1.96lb, Size: 15cm * 15cm * 8cm / 5.91inch * 5.91inch * 3.15inch
