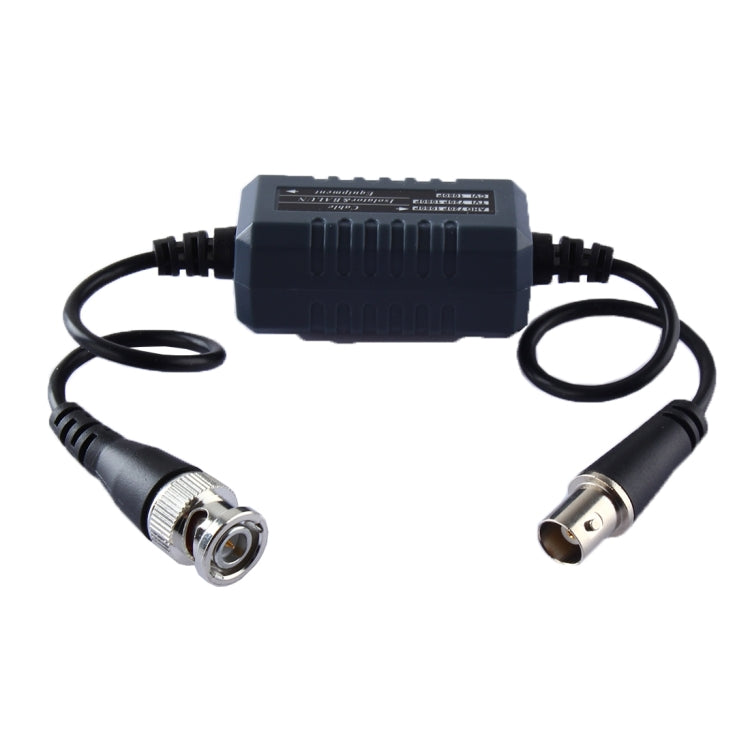

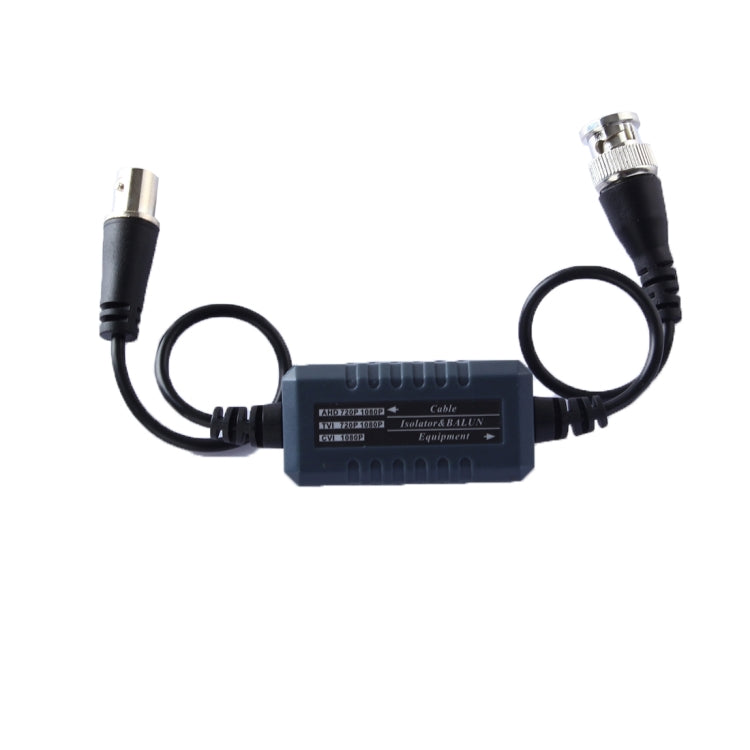

HD CVI/TVI/AHD Coaxial Ground Loop Isolator Video Balun BNC Male to Female Anti-jamming, Video Balun – Durable Build, Easy to Use

HD CVI/TVI/AHD Coaxial Ground Loop Isolator Video Balun BNC Male to Female Anti-jamming, Video Balun – Durable Build, Easy to Use.

Key Features:

• Compatible with CVI 1080P, TVI 720P/1080P, AHD 720P/1080P, it's not suitable for CVI 720P
• BNC male to BNC female with mini cable 18cm on both sides
• Passive,no power required
• Prevent video-signal distortion caused by video ground loops
• Eliminates picture tearing, cross talk and rolling
• Prevent power cables laid bu others interfering with the cctv system
• Built in video filter, perfect to work with dvr to immunity dvr interference, for interference rejection
• Built in TVS(Transient Voltage suppressors) for surge protection.
• Insertion Loss: 0.5dB
• Frequency Response: 20Hz-60MHz, +0/-4dB
• Resistance: 75 ohm
• Isolation Voltage: 600VDC(mini)
• Transient Voltage Suppressors: 12 Vrms

Package Info: Weight: 0.07kgs / 0.15lb, Size: 13cm * 9cm * 2cm / 5.12inch * 3.54inch * 0.79inch
