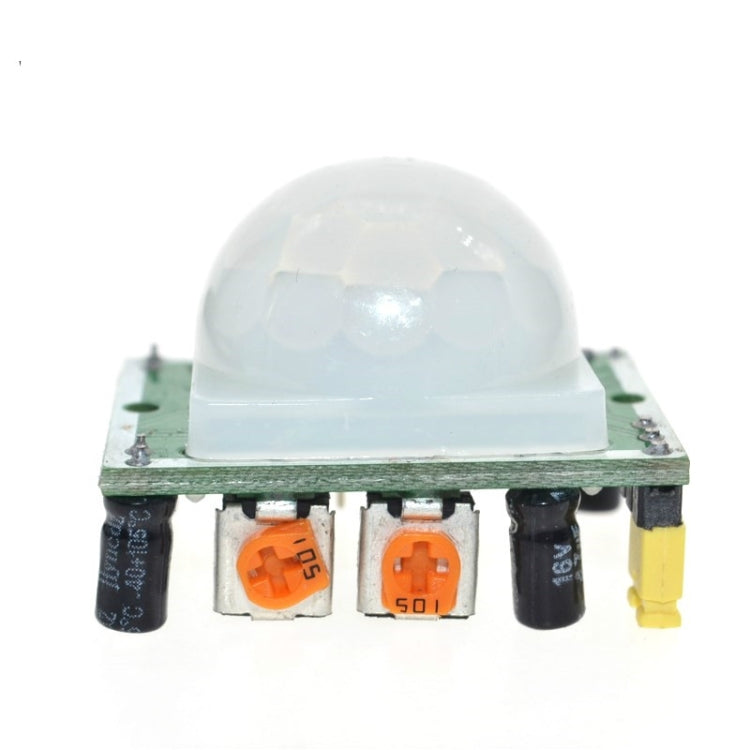

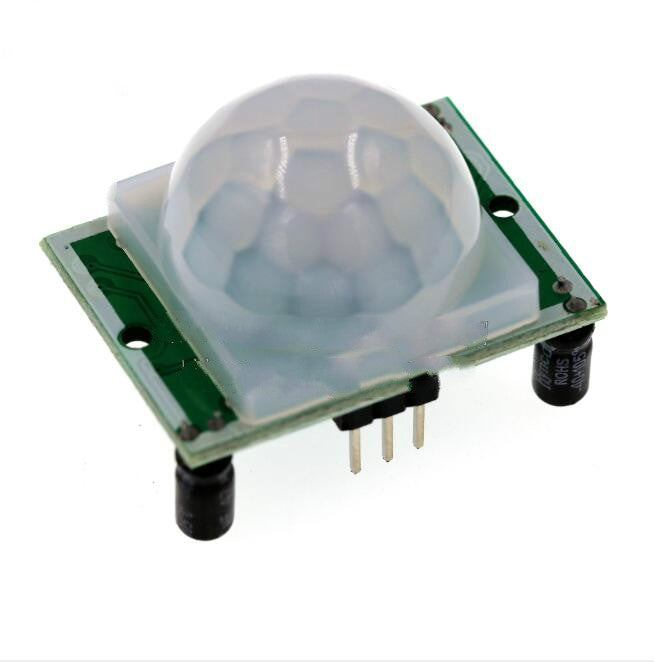

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor – TPU

HC-SR501 Module Human Infrared Sensor Module SUNLEPHANT Pyroelectric Infrared Sensor – TPU.

Key Features:

• Operating voltage range: DC voltage 5-20V
• Static current: <65uA
• Level output: 3.3 V high / low 0V
• Trigger mode: L non-repeatable trigger / H repeat trigger (default repeat trigger)
• Delay time: 0.5-200S (adjustable) can be made in the range of a few seconds - tens of minutes
• Blocking time: 0.2S can be made in the range of a few seconds - tens of seconds
• Circuit board dimensions: 32mm*24mm
• Sensing range: <120 degree cone angle, in 7m
• Working temperature: -15-+70 degrees
• Induction lens size: diameter: 23mm

Package Info: Weight: 0.03kgs / 0.06lb, Size: 8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
