GSM 980 Cellular Phone Signal Repeater Booster + Antenna (JAX-GSM980), JAX-GSM980 – TPU

GSM 980 Cellular Phone Signal Repeater Booster + Antenna (JAX-GSM980), JAX-GSM980 – TPU.

Key Features:

• **Specification
• 1) Frequency range:
• -Up link GSM 890-915
• -Downlink GSM 825-960
• 2) Gain(dB) GSM Up link: 55
• 3) GSM downlink: 60
• 4) Gain adjustable range: GSM950/ 50Db~55Db
• 5) Output power(dBm): ≥27 / 30
• 6) Pass band ripple GSM: 4dB
• 7) Guard band rejection: GSM(BW-60dB)≤42 MHz (BW-70dB)≤45 MHz
• 8) I/O impedance: 50Ω
• 9) I/O return loss: ≤-10dB
• 10) Noise coefficient: ≤5dB
• 11) Intermodulation attenuation (Po=13dBm): ≥40dBc
• 12) Transmission delay: ≤0.5us
• 13) Ambient temperature: -10℃～60℃
• 14) Power supply: AC220V / DC 12V 45～55Hz
• **Characteristic
• 1) Fully integrated 980 MHz antenna system
• 2) Powerful amplifier enables up to + 85 dB of signal gain including cable loss
• 3) Intelligent signal processing and real time adaptive operation
• 4) Automatically adjusts power levels as needed to ensure a consistent coverage footprint
• 5) Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
• 6) Auto-track LED diagnostics displays aid install and operation
• 7) Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices

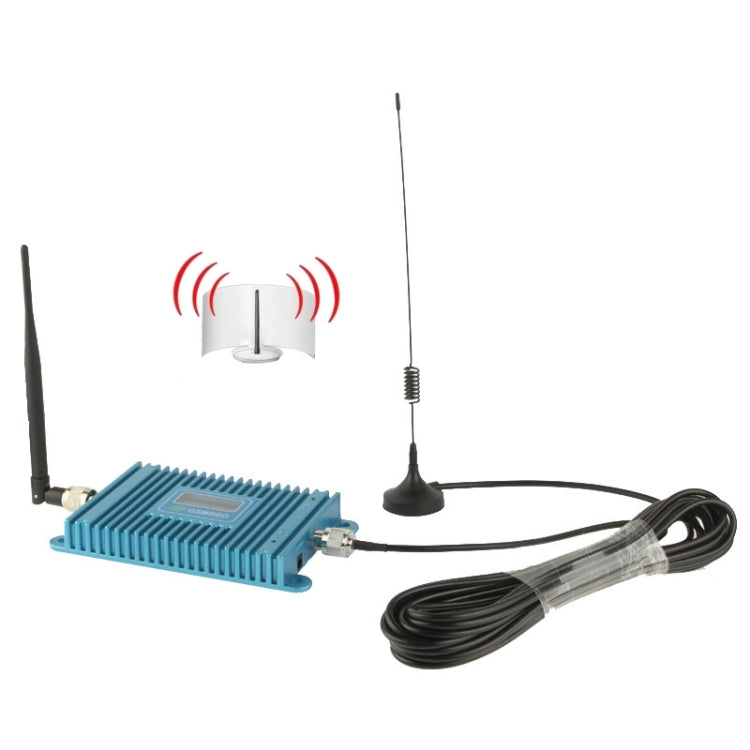

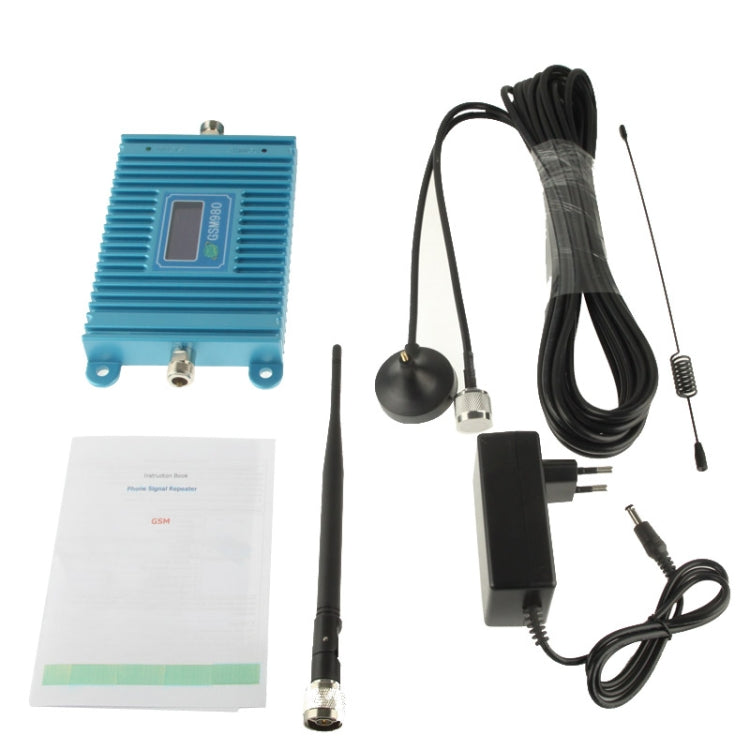

• **The package contains:
• 1) 55dB GSM cellular phone signal amplifier
• 2) 9dB outdoor antenna
• 3) 3dB indoor antenna
• 4) 10m cable
• 5) Mounting accessories
• 6) AC power supply

Package Info: Weight: 1.25kgs / 2.75lb, Size: 23.5cm * 15cm * 5cm / 9.25inch * 5.91inch * 1.97inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
