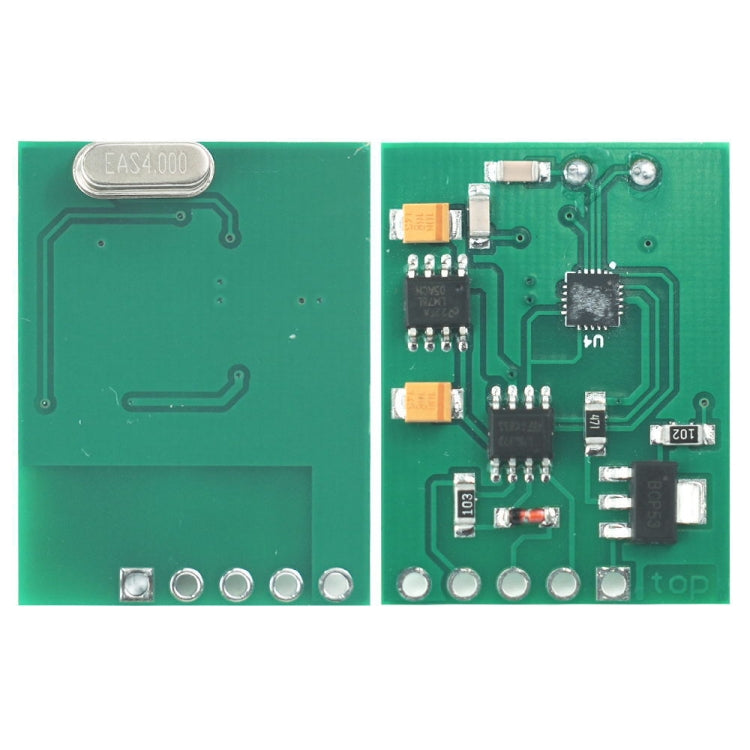

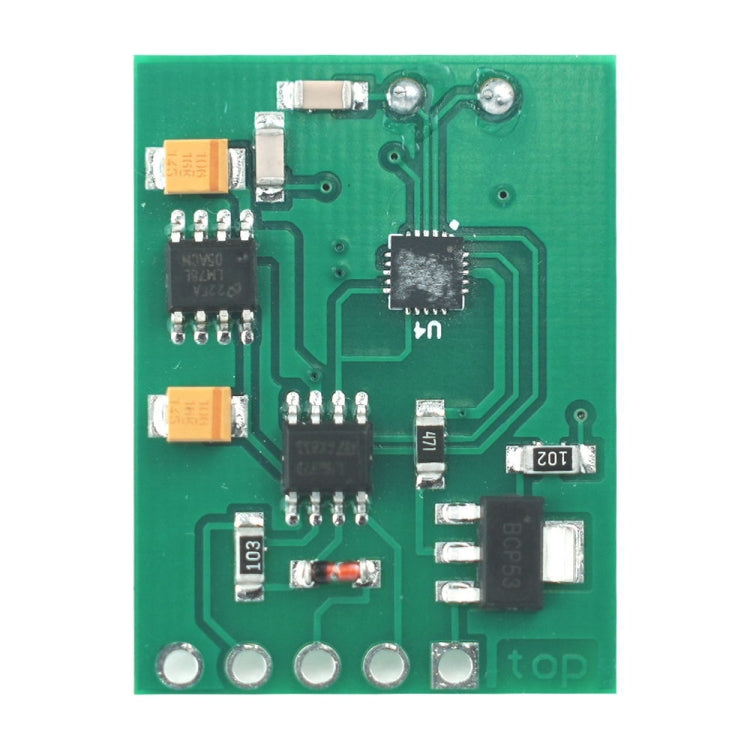

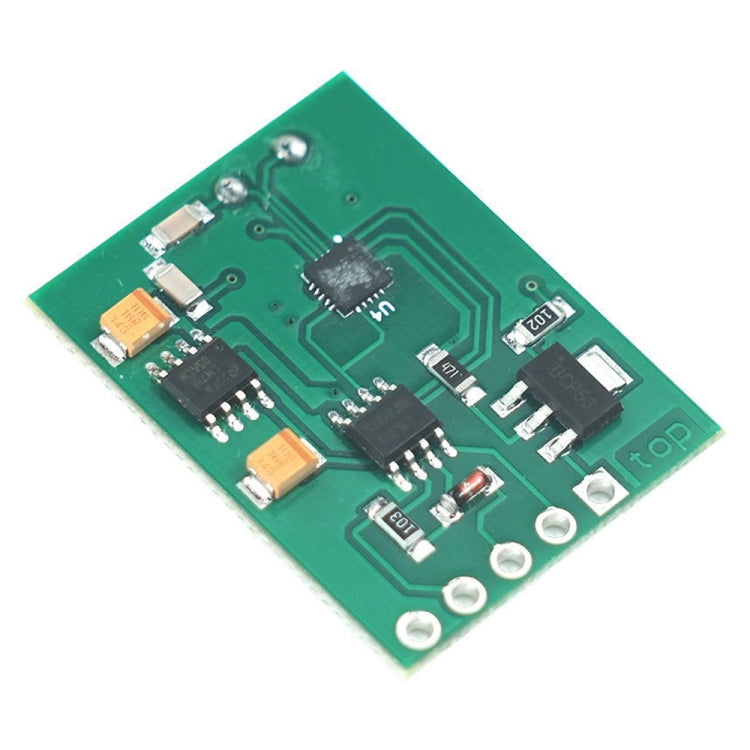

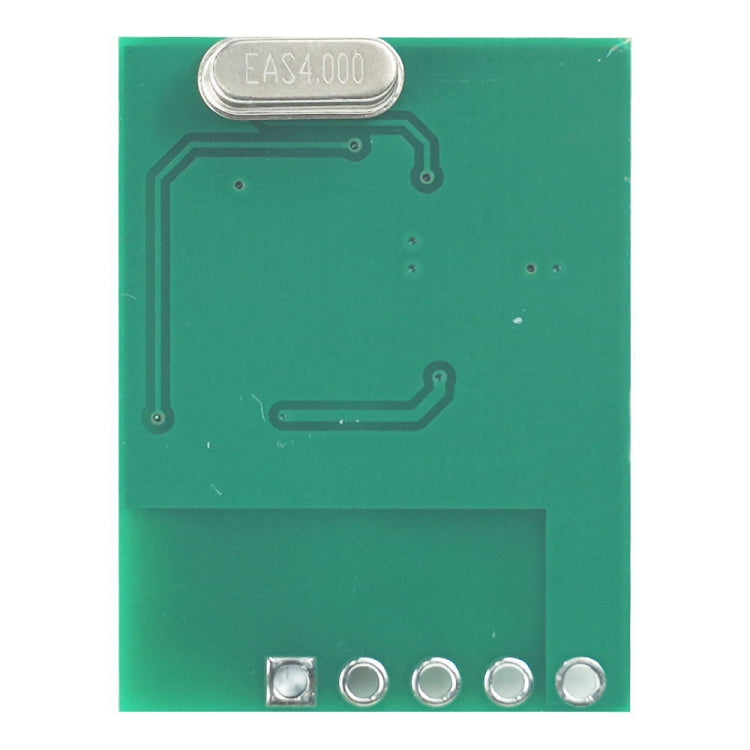

For Yamaha 2006-2009 SM04 Bicycle / Motorcycle Immo System Emulator Full Chips, Immo System Emulator Full Chips – Durable Build, Easy to Use

For Yamaha 2006-2009 SM04 Bicycle / Motorcycle Immo System Emulator Full Chips, Immo System Emulator Full Chips – Durable Build, Easy to Use.

Key Features:

• Compatible with all Yamaha motorcycles, bicycles and scooters from 2006 to 2009.
• Easy to install, no programming is required, only wires need to be connected.
• Completely imitate the work of conventional anti-theft systems, including the work of LEDs on the dashboard.
• For simulator installations in conventional anti-theft systems:
• - Remove the sealant from the immobilizer housing.
• - Remove a PCB from the immobilizer and remove the wires from it.

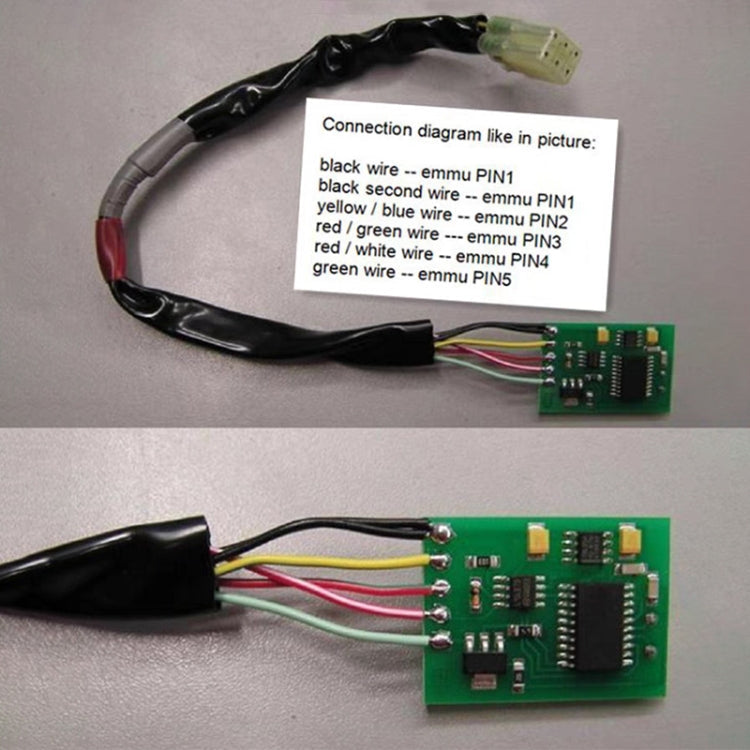

• - Connect the simulator according to the drawing.
• - Insert the simulator into the anti-theft system housing.
• The color of the wire and its appointment:
• - Black (2 pcs) for ground
• - Red BATT (+12V)
• - Yellow ignition (+12V)
• - Gray LED (+5V)
• - Blue K line anti-theft ECU

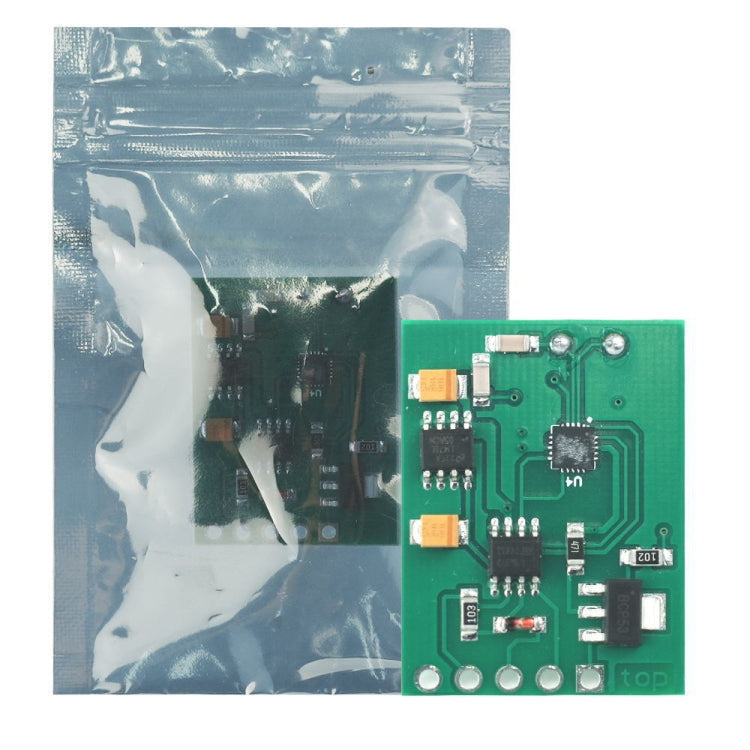

Package Info: Weight: 0.05kgs / 0.11lb, Size: 10cm * 6cm * 1cm / 3.94inch * 2.36inch * 0.39inch
