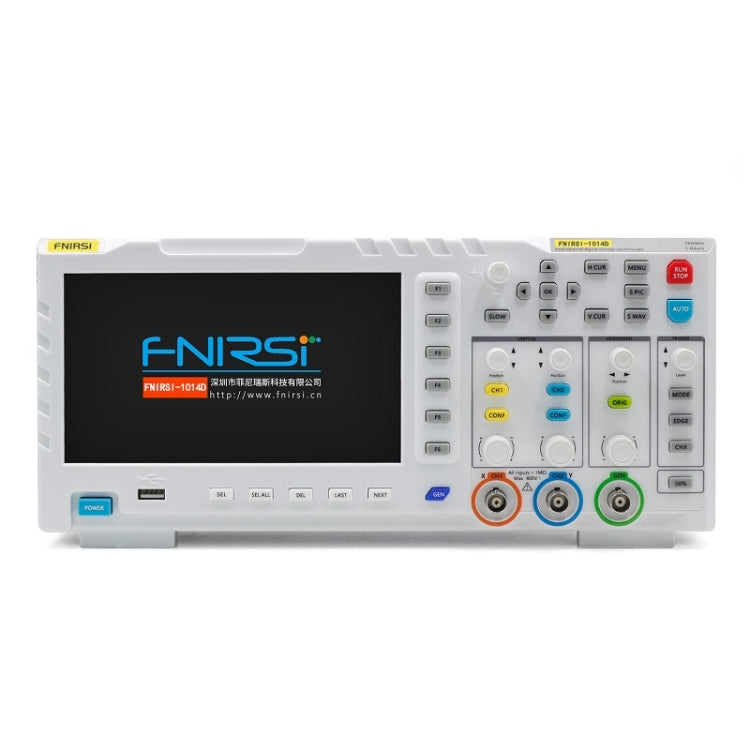

FNIRSI 2 In 1 Dual-Channel 100M Bandwidth Digital Oscilloscope 1GS Sampling Signal Generator, EU Plug, 1014D, 1014D +P4100 Probe – TPU

FNIRSI 2 In 1 Dual-Channel 100M Bandwidth Digital Oscilloscope 1GS Sampling Signal Generator, EU Plug, 1014D, 1014D +P4100 Probe – TPU.

Key Features:

• The oscilloscope has a real-time sampling rate of 1GSa/s and an analog bandwidth of 100MHz x 2

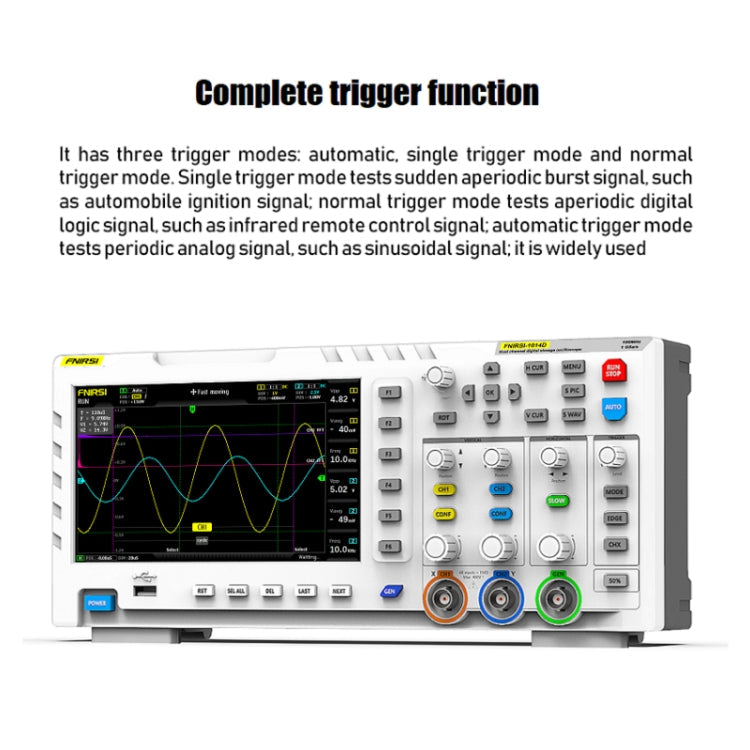

• Complete trigger function (single/normal/automatic), both periodic analog signal and non-periodic digital signal can be used freely

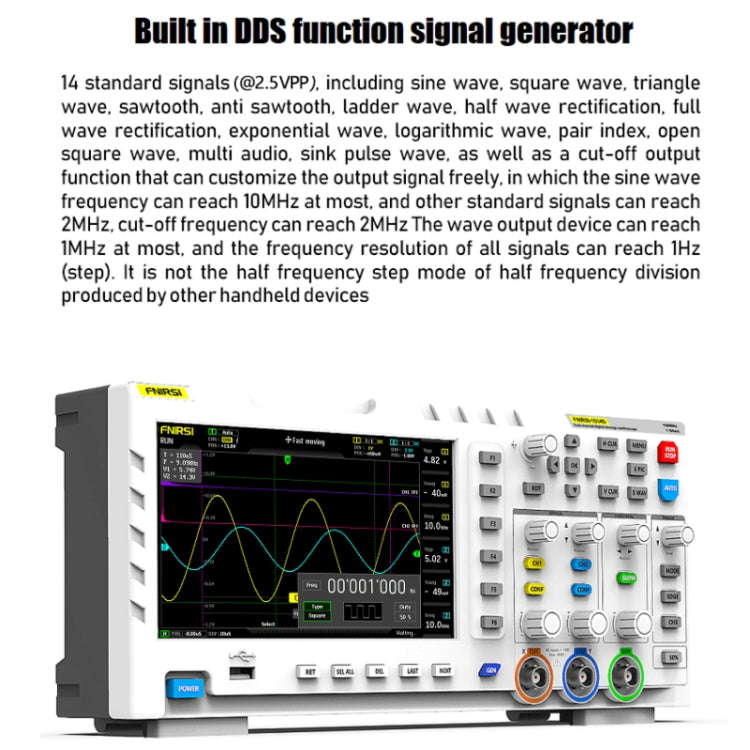

• Built-in DDS function signal generator and the industrys original chopping output (@2.5vpp), all signal frequency steps are 1Hz, support 14 kinds of...

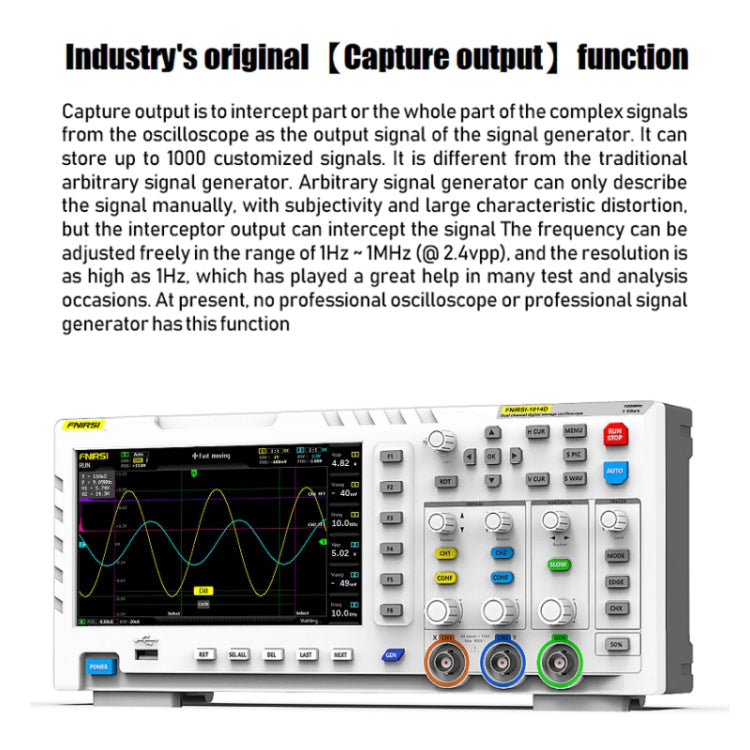

• The complex signal measured by the oscilloscope is used as the output signal of the signal generator, which can store up to 1000 custom cut-off signals

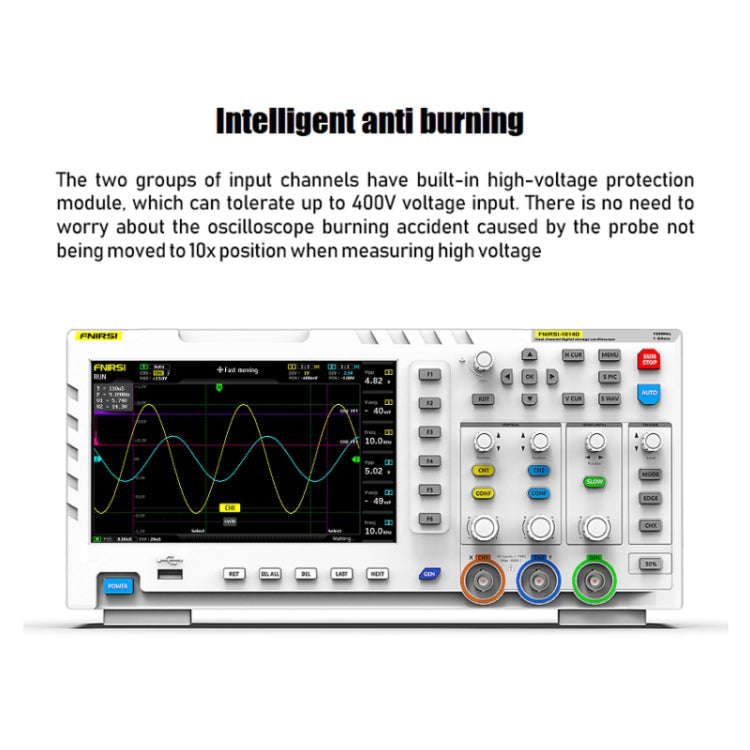

• The built-in high-voltage protection module can withstand continuous voltage up to 400V, so there is no need to worry about the oscilloscope burning...
• Large time base scrolling method, which can monitor slow level changes

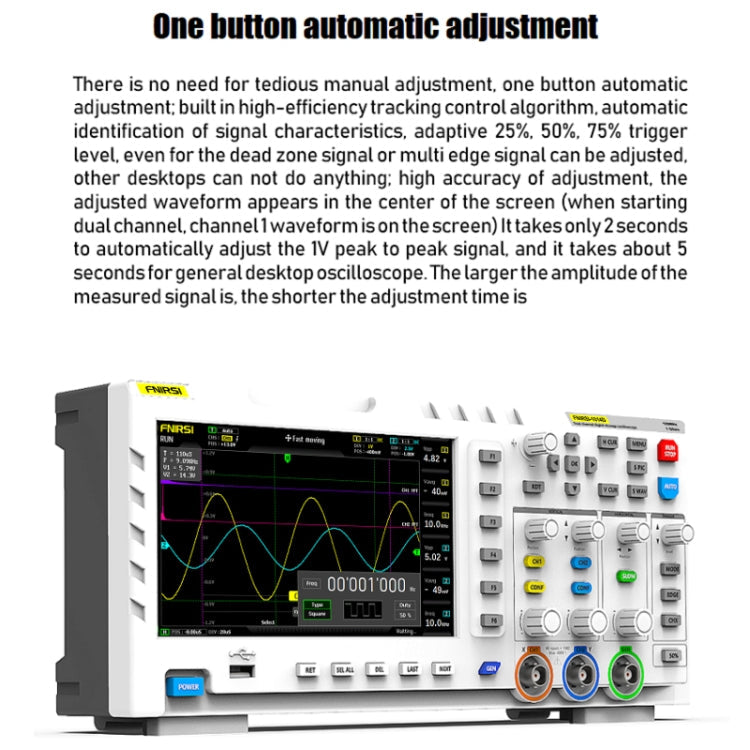

• Equipped with an efficient one-key automatic display of measurement waveforms, without cumbersome adjustments

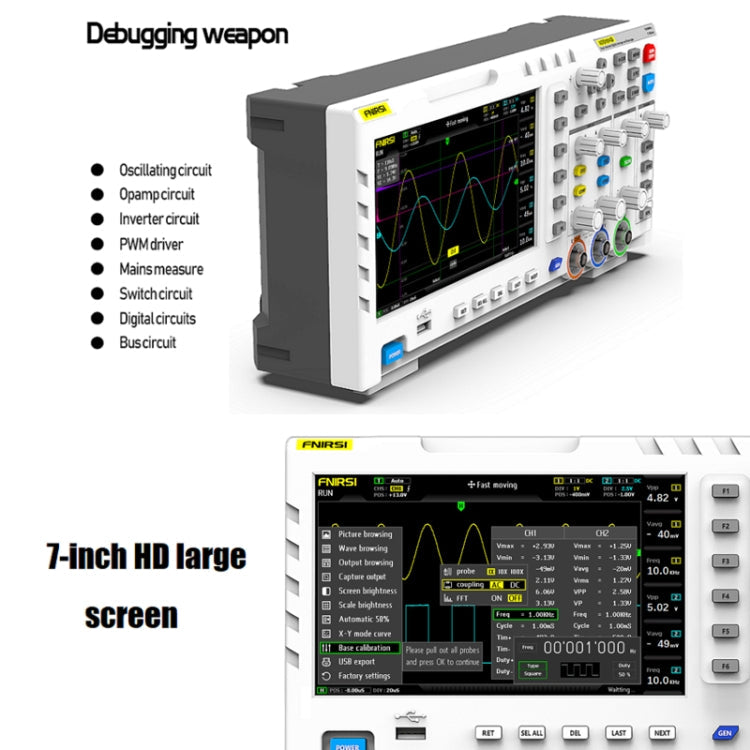

• 7-inch 800x480 resolution high-definition LCD display

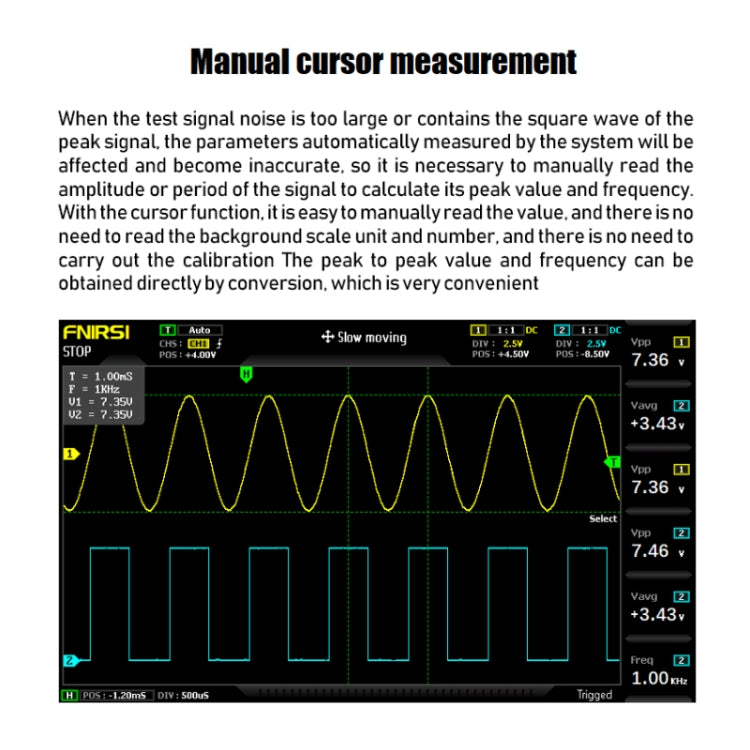

• Cursor measurement function, when manually reading the amplitude and frequency parameters, there is no need to read the background scale unit and quantity,...

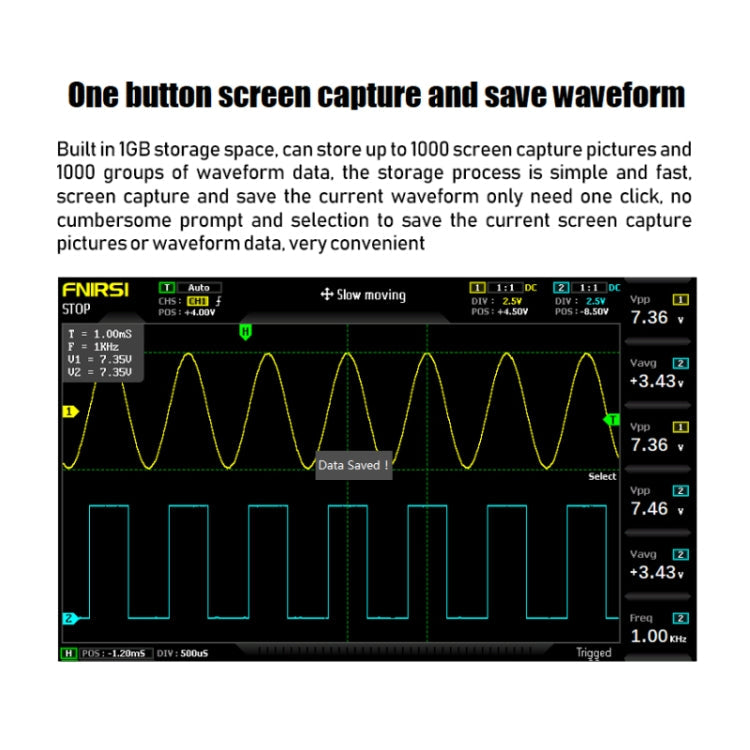

• Built-in 1GB storage space, can store 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, save the current waveform with...

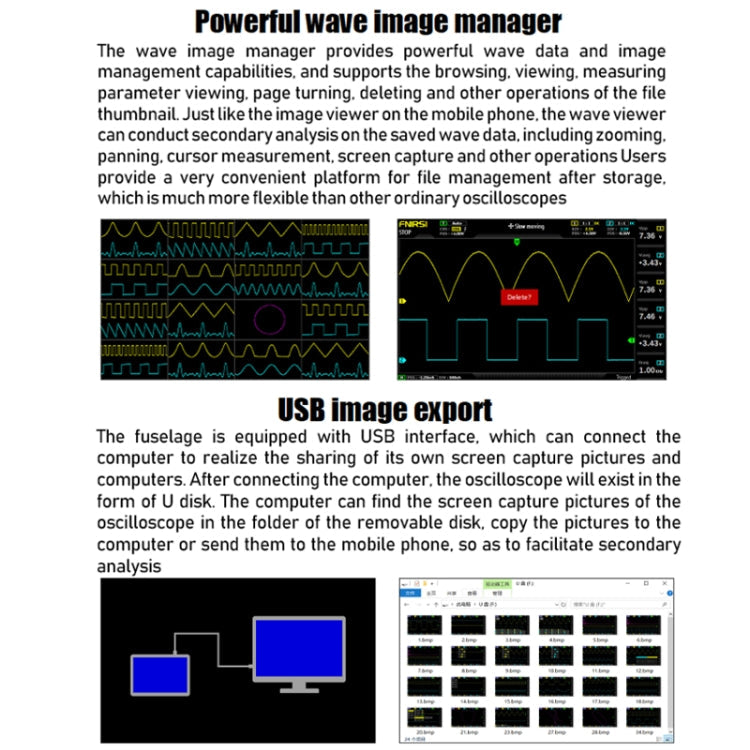

• Powerful waveform image manager, supports thumbnail browsing, viewing, viewing details, page turning, deletion, and waveform zooming in, zooming out,...
• The fuselage is equipped with a USB interface, which can be connected to a computer to realize the sharing of screenshots and pictures of itself, which is...

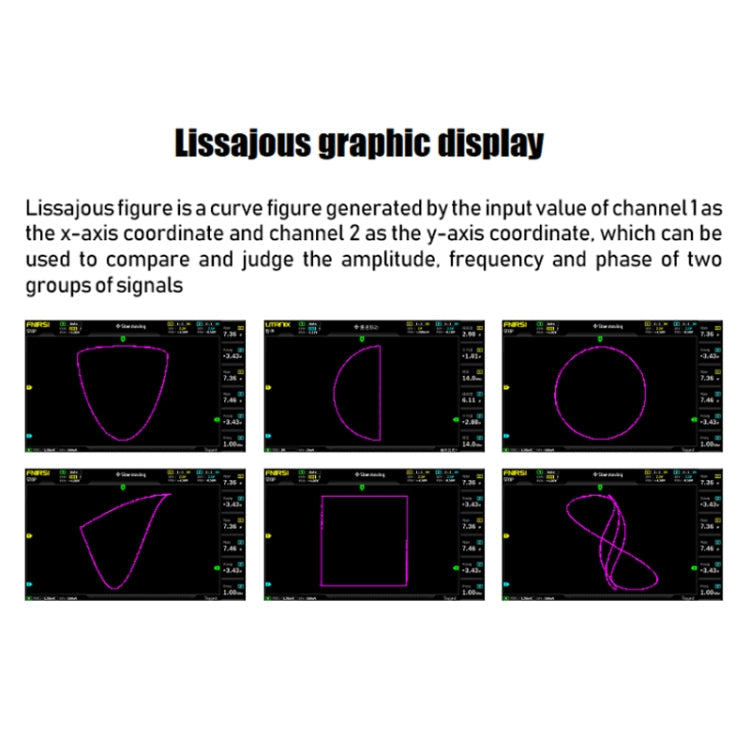

• Graphical display function, which can compare and judge the amplitude, frequency and phase of two groups of signals
• The FFT viewing function can estimate the harmonic components of the signal
• Built-in DDS signal generator, supports 12 kinds of function signals

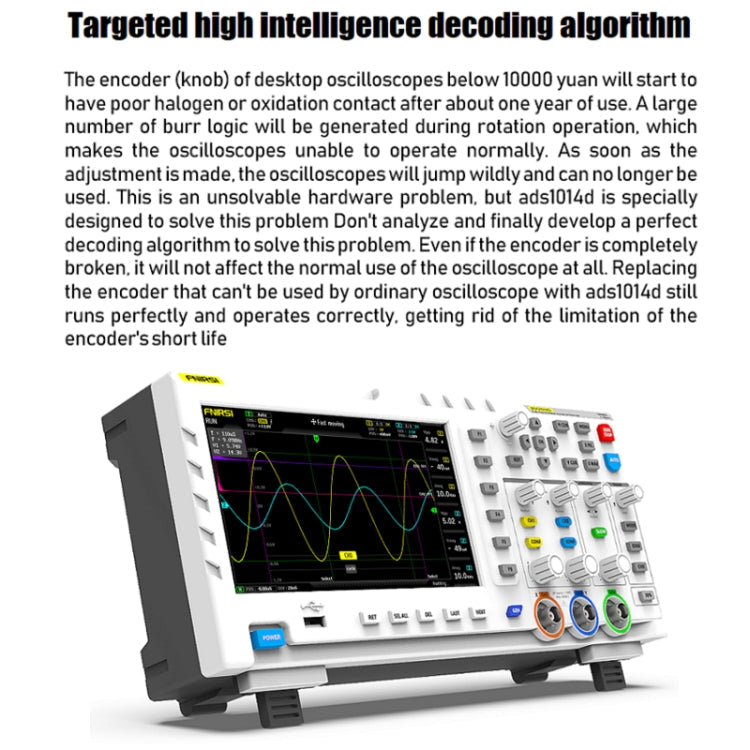

• For high intelligent decoding algorithm, the encoder has unlimited life, intelligent anti-burn function, 1X can withstand 400V withstand voltage
• With 100MHz x 2 analog bandwidth and @1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz)
• High measurement voltage range: 1X can measure 0~40V, 10X can measure 0~400V
• Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period
• Cursor measurement function: convenient for manual measurement of period, frequency and voltage =
• Perfect trigger function (single, normal, automatic), freeze waveform display at any time (pause function)
• With screen brightness adjustment function and background grid brightness adjustment function, easy to carry
• Material: ABS
• Analog log bandwidth: 100MHz x 2

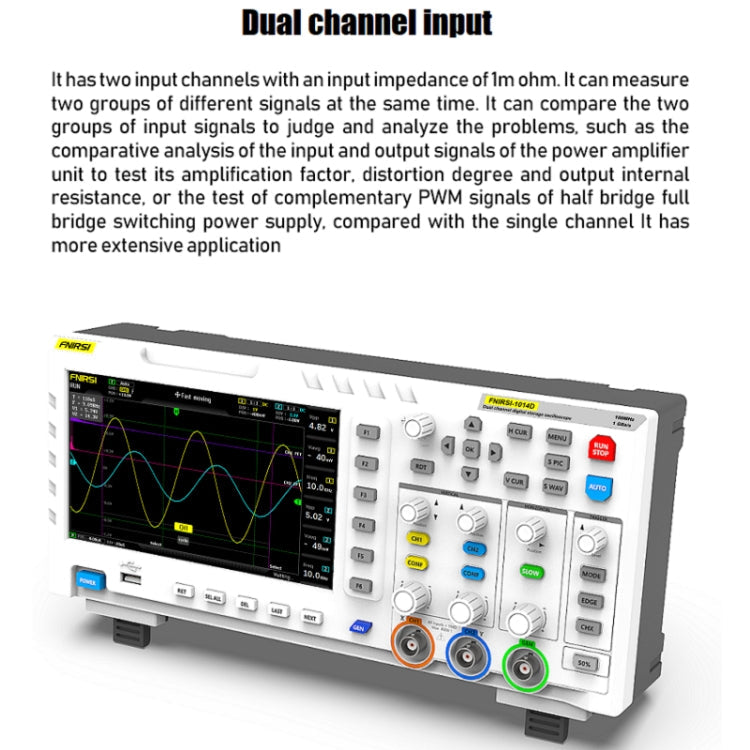

• Number of channels: 2 channels
• Real-time sampling rate: 1GSa/s
• Vertical sensitivity: 50 mV/div ~ 500 V/div
• Horizontal time base range: 50S/div～10nS/div
• Test voltage: 40 V (1X probe), 400 V (10X probe)
• Storage depth: 240Kbit
• Input resistance: 1 milliohm
• ADC precision: 8bits
• Coupling method: AC/DC
• Trigger mode: single, normal, automatic
• Trigger edge: rising edge/falling edge
• External trigger voltage: 0~40 V
• Expansion port: USB image export

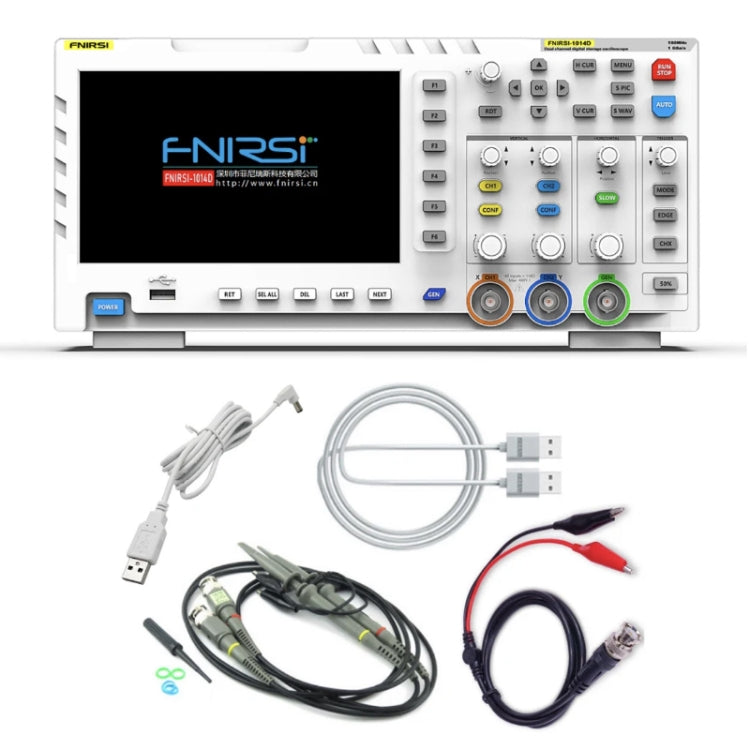

• Packing list:
• FNIRSI-1014D Oscilloscope host x 1
• Matched 100MHz probes (1X and 10X) x 2
• Clip x 1
• EU power adapter x 1
• USB cable x 1
• English user manual x 1
• P4100 probe (optional) x 1

Package Info: Weight: 1.70kgs / 3.76lb, Size: 37cm * 20cm * 13cm / 14.57inch * 7.87inch * 5.12inch
