FEELWORLD LUT7S PRO 1920x1200 2200 nits 7 inch IPS Screen HDMI 4K SDI Touch Camera Monitor, LUT7S PRO – Flip, TPU, 4K

FEELWORLD LUT7S PRO 1920x1200 2200 nits 7 inch IPS Screen HDMI 4K SDI Touch Camera Monitor, LUT7S PRO – Flip, TPU, 4K.

Key Features:

• Panel characteristics
• Screen size: 7 inches IPS
• Resolution: 1920x1200 pixels
• Dot pitch: 0.07875 (H) x 0.07875 (W) (mm)
• Screen ratio: 16:10
• Brightness: 2200cd/m2 (light sensor)
• Contrast ratio: 1200:1
• Backlight source: LED
• Viewing angle: 80 degrees/80 degrees (L/R) 80 degrees/80 degrees (U/D)
• enter

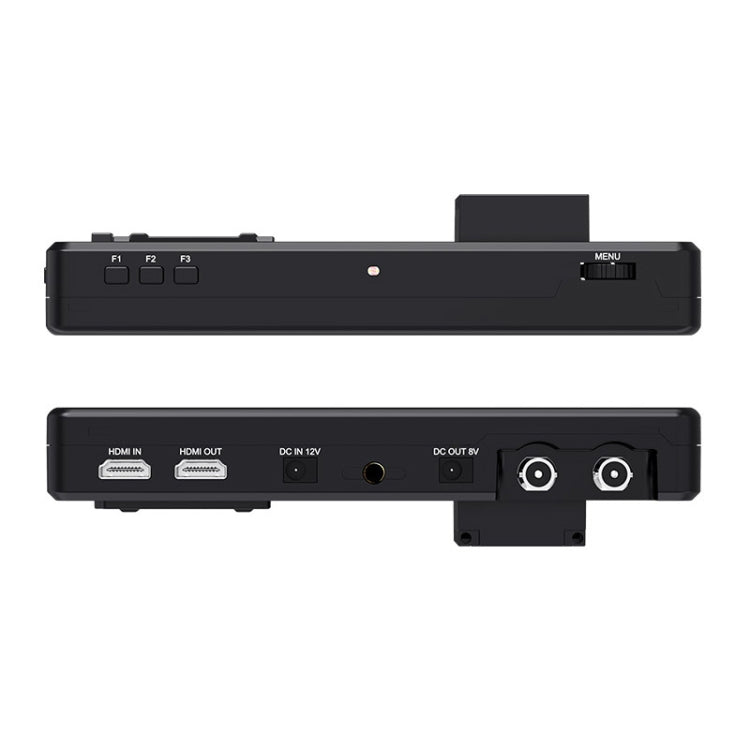

• 1x BNC: 3G-SDI
• 1x HDMI: HDMI
• Output
• 1x BNC: 3G-SDI
• 1x HDMI: HDMI
• 1x DC: DC OUT 8V (outer diameter 5.5mm, inner diameter 2.1mm; can supply power to SLR or mirrorless camera)
• Audio
• Audio: headphone jack, speaker
• HDMI input/output format:
• 480i/576i/480p/576p
• 1080i (60/59.94/50)
• 720p (60/59.94/50/30/29/25/24/23.98)
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K UHD 3840×2160p (30/29.97/25/24/23.98), 4096×2160p (24Hz)
• Other specifications:
• Input voltage: DC7-24V
• Power consumption: greater than or equal to 20W
• Working temperature: -20-50 degrees Celsius
• Storage temperature: -30-60 degrees Celsius
• Installation method: 1/4-20 standard quick installation screw hole (left, right, bottom)
• Battery gusset: F970 battery gusset
• Stand-alone size: 190Lx126Hx27D (mm)
• Stand-alone weight: 450g
• Note: You need to press the power button when shutting down, and you cannot unplug the power cord directly
• Product Features:
• Support 3D LUT Log gray film conversion to Rec709 monitoring, user-defined 3DLUT upload
• Support touch menu

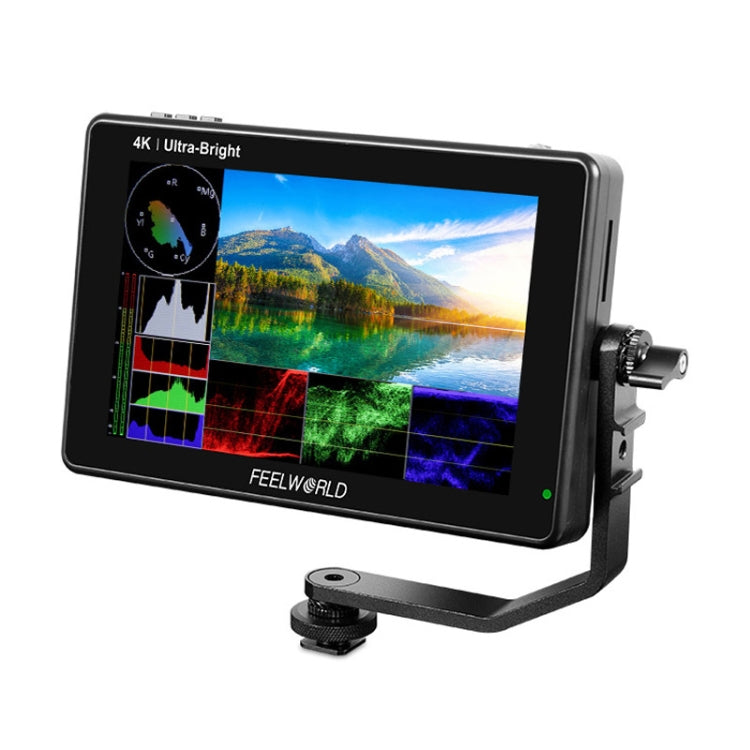

• Support full waveform display
• Waveform diagram (RGB, YUV, Y)
• Vector graphics
• RGB histogram
• Brightness histogram
• Auxiliary focus (red, green, blue, white, yellow focus color is optional; 1-10 focus level is optional)
• Pseudo-color
• Zebra pattern overexposure reminder (percent 1-100 adjustable)
• Monochrome display (gray, red, green, blue)
• Scan mode (under scan, over scan)
• Deformation mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
• Image flip (horizontal, vertical, horizontal & vertical)
• Image freeze
• Jiugongge
• Center mark
• Safety mark (percent 70, percent 80, percent 90, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
• Mask mark (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
• Marking color (red, green, blue, white, black, yellow)
• Color temperature adjustment
• Image enlargement (percent 100-300)
• Display ratio
• Point to Point

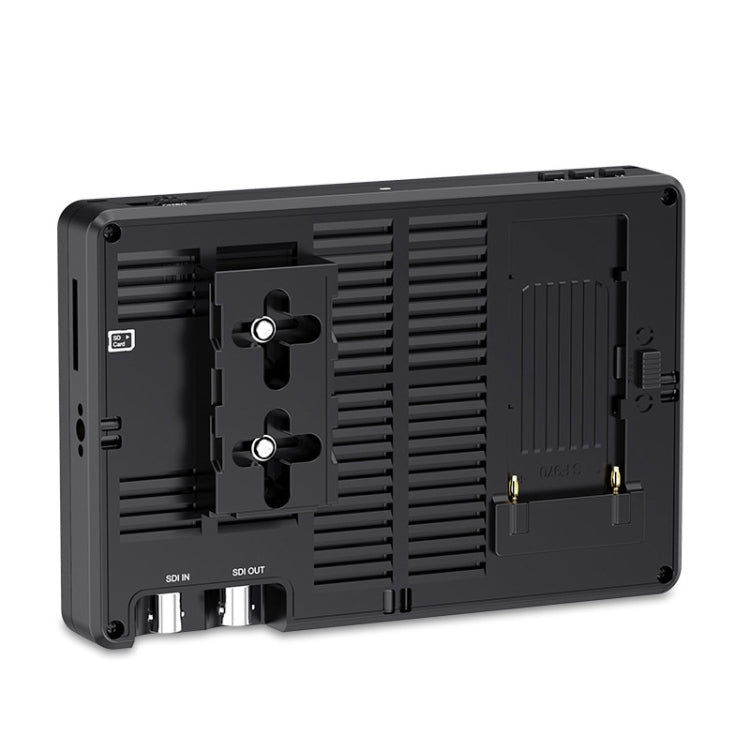

• A Sony F970 external power supply kit design has been added to the back of the monitor. You can install wireless video transmission, photography lights,...
• FEELWORLD LUT7S PRO has a complete set of tools with simple operation and professional functions. All operations can be completed with one touch. Video...

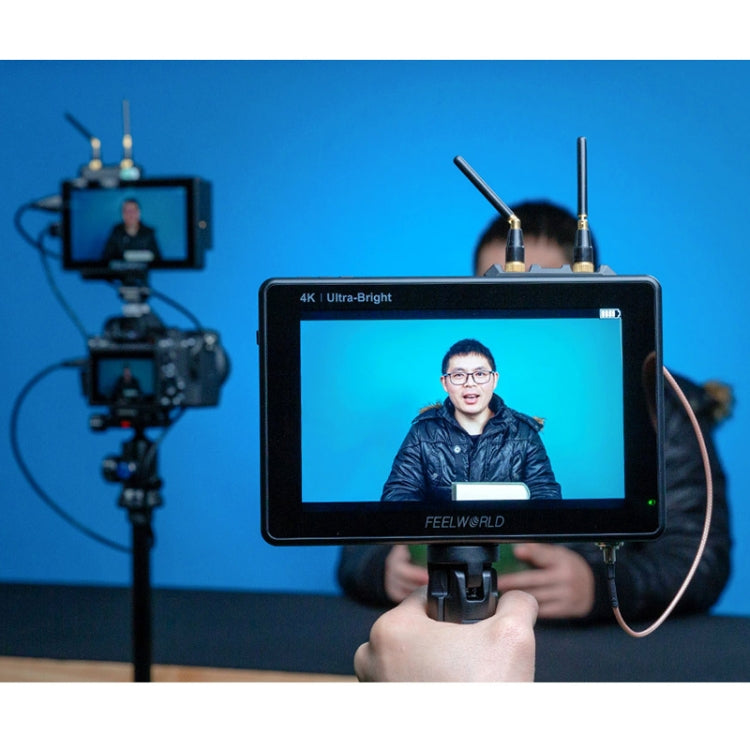

• FEELWORLD LUT7S PRO can perform clear and accurate on-site monitoring and image analysis during daytime shooting. The 7-inch 1920x1200 Full HD panel...
• The monitor not only has fine pixels to make every picture beautiful and eye-catching, but also has an ultra-high brightness of 2200 nits, which is 4 times...
• Standard configuration:
• HDMI, 1 point 2 lines x1
• Tilt bracket x1
• Manual x1

Package Info: Weight: 1.21kgs / 2.67lb, Size: 36cm * 11cm * 27cm / 14.17inch * 4.33inch * 10.63inch
