EMMC153 EMMC169 Flip Shrapnel To SD Interface Test Socket Burning Socket for Data Recovery Mobile Phone Repair – Flip

EMMC153 EMMC169 Flip Shrapnel To SD Interface Test Socket Burning Socket for Data Recovery Mobile Phone Repair – Flip.

Key Features:

• Type: Test block
• Interface type: SD
• Application: Integrated circuit IC
• Test method:
• A. Select the limit frame that matches the IC, and place the IC flat in the SOCKET according to the direction
• B. Insert the SD interface into the card reader and then connect to the computer, select the corresponding test program
• Features:
• SOCKET is compatible with the ball and no ball test, and the IC limit frame can be replaced. Compared with similar products, it has a long service life and...

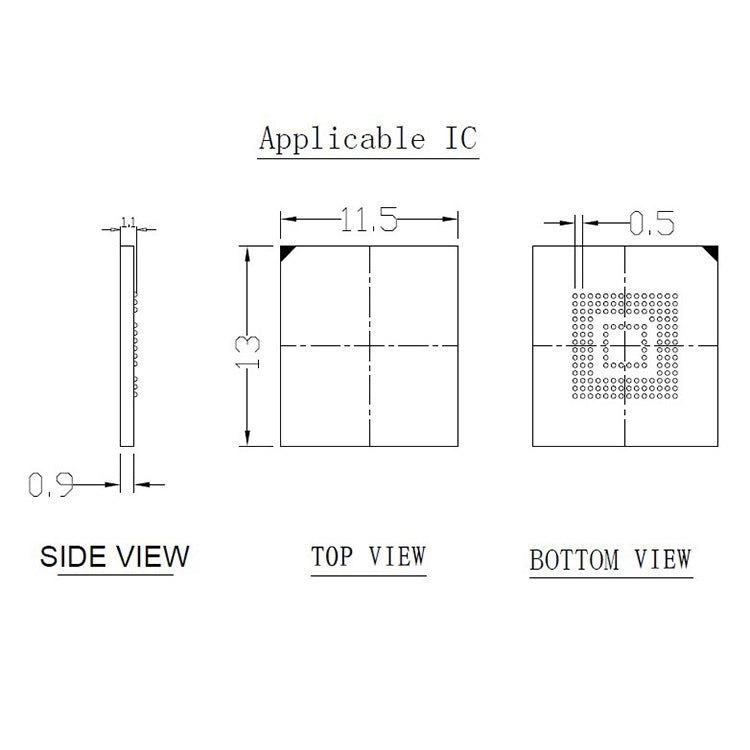

• Compatible with 169-FBGA 153-FBGA at the same time
• The shrapnel is made of imported beryllium copper by high-precision die stamping, and the head shape is imitated by the probe design, and the latter is...
• The contact module adopts an overall structure to reduce the problem of repeated positioning, ensure that its contact point is accurately aligned with the...
• Use welding structure to ensure good contact and stable testing

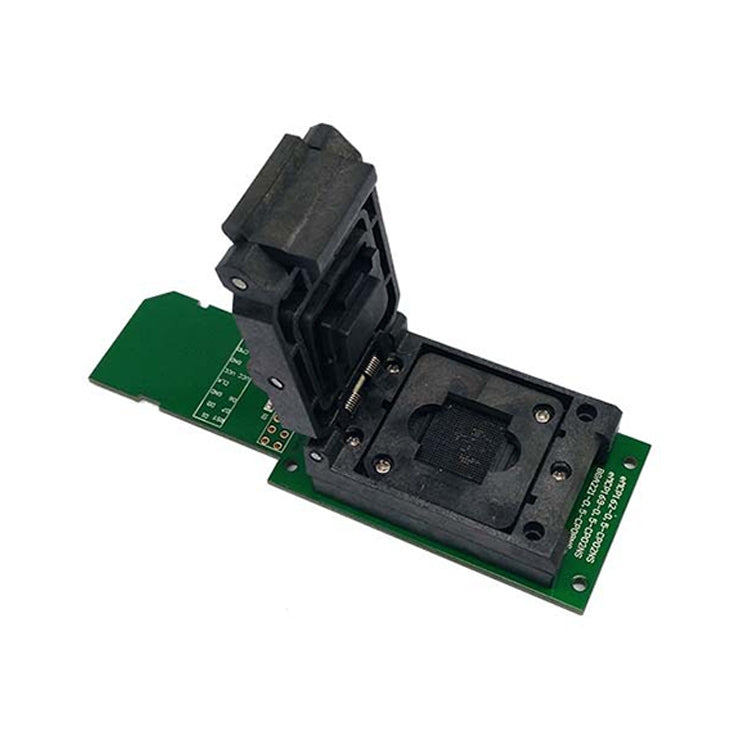

• Flip cover structure, more convenient for manual testing, convenient and simple operation
• The pressure IC adopts a mold integral molding and a spring self-adaptive structure to ensure that ICs of different thicknesses do not need any adjustments...
• The structure adopts injection molding, precise positioning, convenient access to IC, and higher work efficiency
• Repair and maintenance:
• Use an air gun or anti-static brush to remove impurities in the SOCKET seat to make it contact well;
• Clean the SOCKET with absolute alcohol to clean the attached impurities on the top of the shrapnel and make it contact well;
• If you find that the shrapnel inside the SOCKET is burned or broken, please purchase the corresponding SOCKET to replace it;
• It cannot be detected when the USB interface is plugged in. Please check whether the power switch is turned on or whether the computer USB connection is normal;
• It is strictly forbidden to soak and clean with organic solvents such as thinner water and board washing water to avoid damage to the internal structure of...
• When not in use for a long time, please seal it with an anti-static bag to prevent dust from falling in and affect the product test performance.

Package Info: Weight: 0.12kgs / 0.27lb, Size: 13cm * 10cm * 6cm / 5.12inch * 3.94inch * 2.36inch
