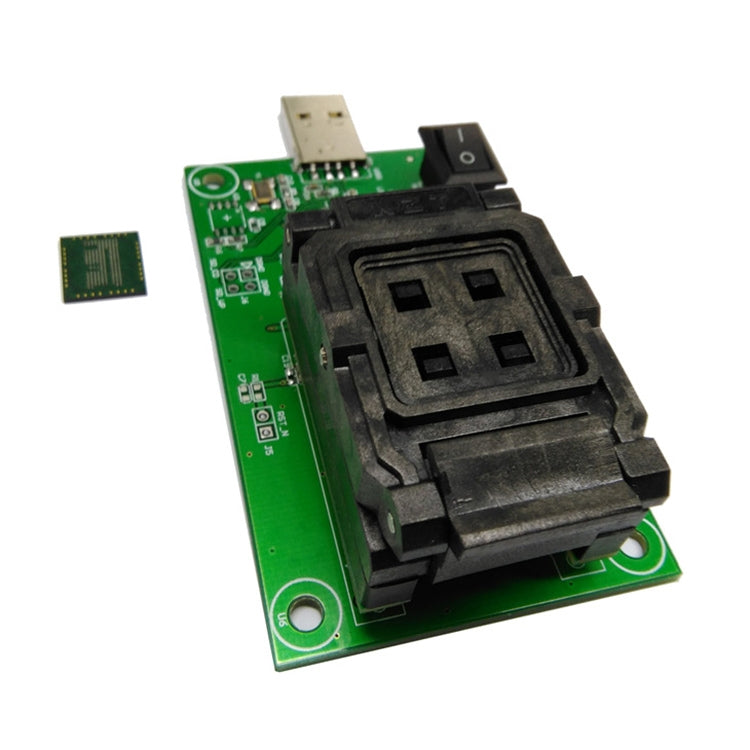

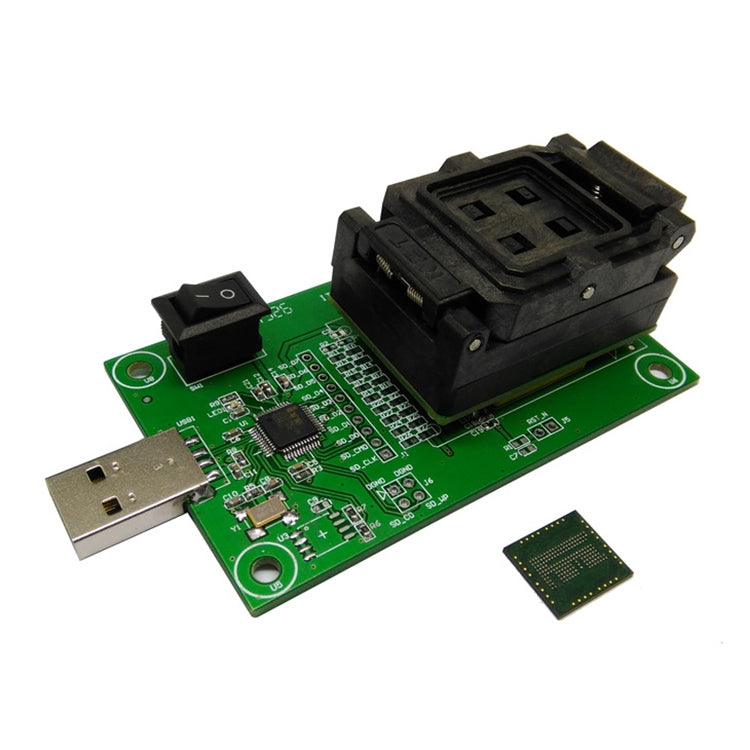

EMCP162/168 Flip Shrapnel To USB Test Socket EMCP Programming Socket Mobile Phone Font Read-Write Socket – Flip

EMCP162/168 Flip Shrapnel To USB Test Socket EMCP Programming Socket Mobile Phone Font Read-Write Socket – Flip.

Key Features:

• Type: test block
• Working frequency: high frequency
• Application: integrated circuit IC
• Interface type: terminal
• Production process: injection molding
• Features: stable testing
• Contact material: beryllium copper shrapnel
• Insulator material: PET
• Number of cores: 17
• Purpose: programming socket, test socket, for testing, reading and writing of EMCP IC chips
• Lead spacing: 0.5mm
• Service life: 100,000 times
• Testing method:
• Select the limit frame that matches the IC, and place the IC flat in the SOCKET according to the direction
• Plug the USB cable into the USB port of the computer, turn on the power switch of the socket, and select the corresponding test program
• Features:
• Also compatible with 186-FBGA 162-FBGA
• The shrapnel is made of imported beryllium copper by high-precision die stamping, and the head-shaped probe is designed to be hardened and thickened in the...
• Support hot plugging and separate power switch, support for testing through the USB interface or through the connection with the board on the board...
• Using floating board structure, precise positioning, convenient IC picking and placement, higher work efficiency

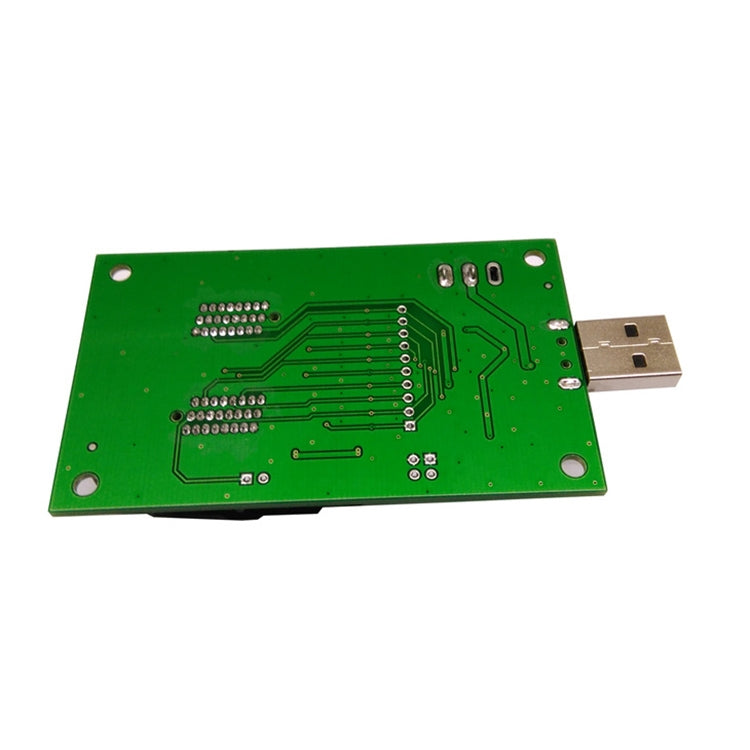

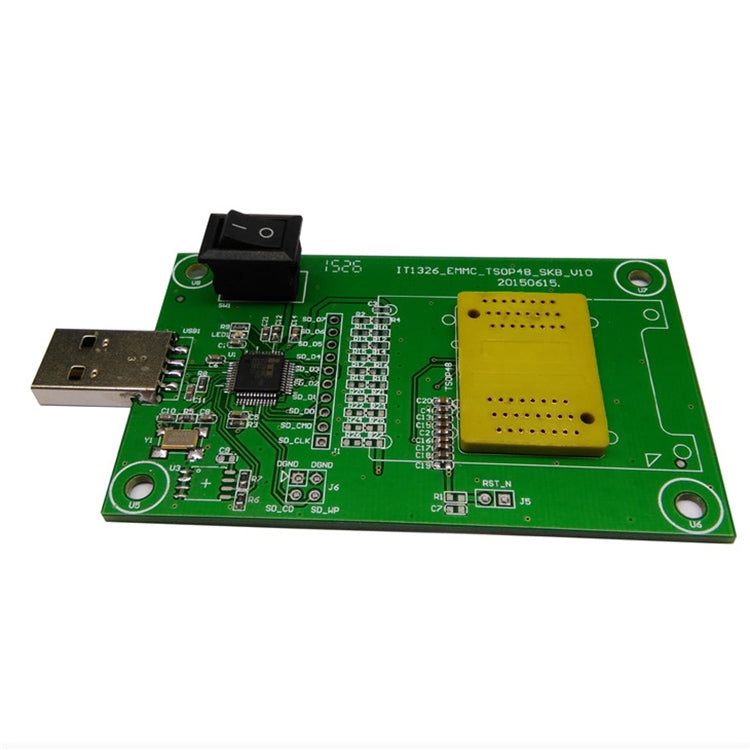

• The test board is welded to the adapter board, the test socket does not need to be soldered, and the pinholes are inserted into the adapter board

Package Info: Weight: 0.05kgs / 0.12lb, Size: 13cm * 10cm * 6cm / 5.12inch * 3.94inch * 2.36inch
