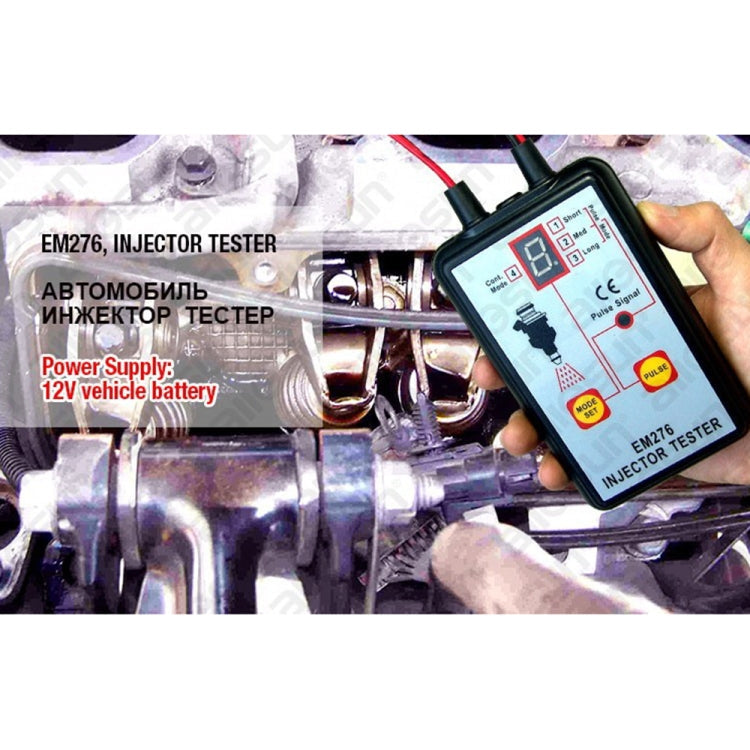

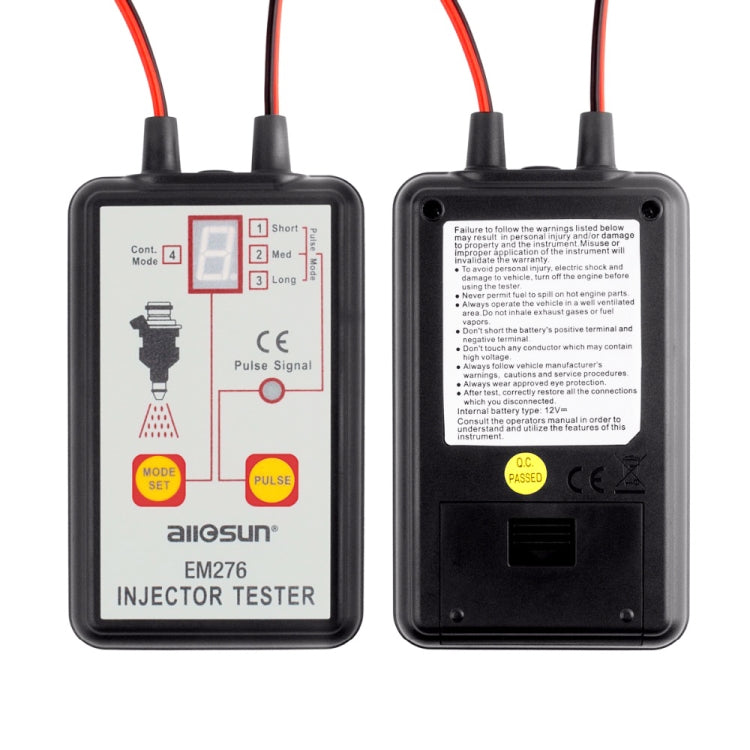

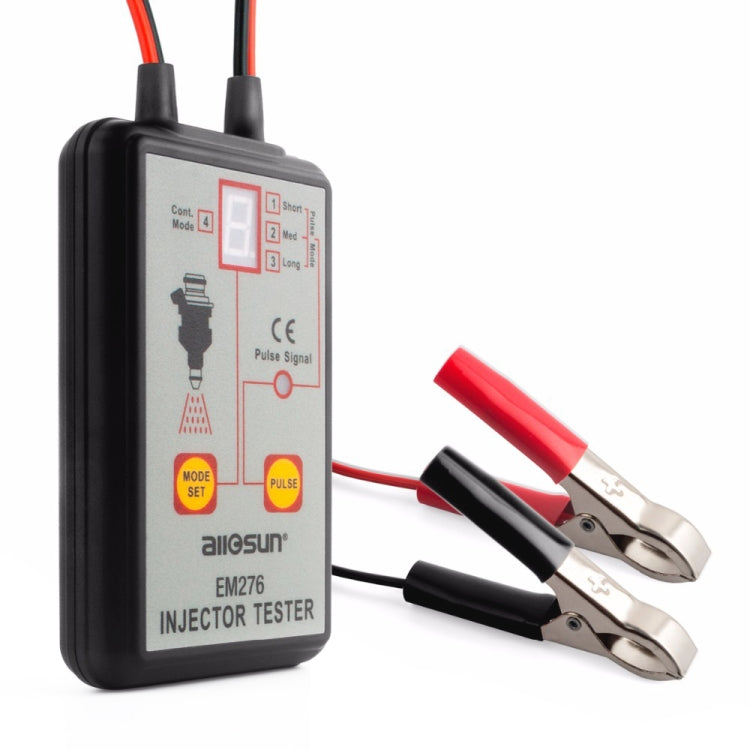

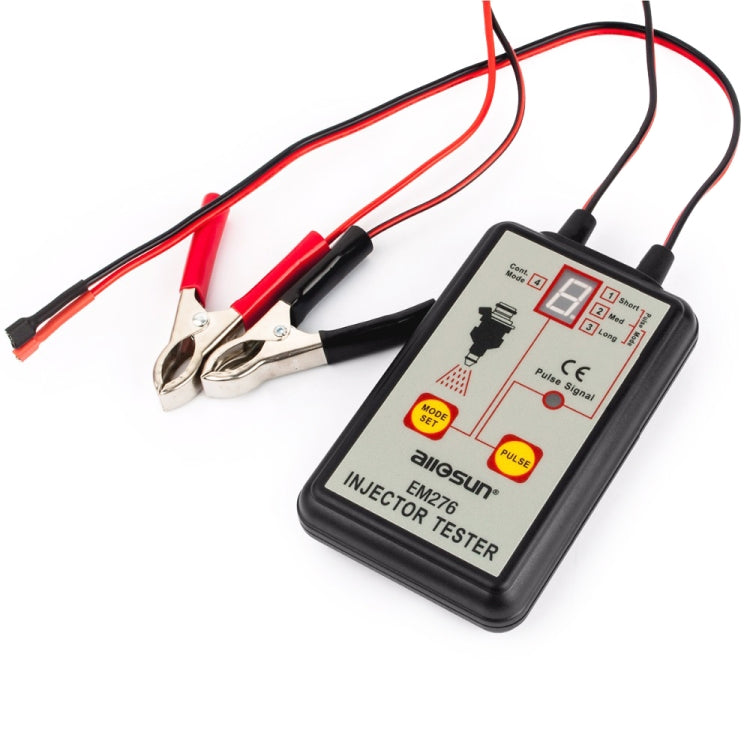

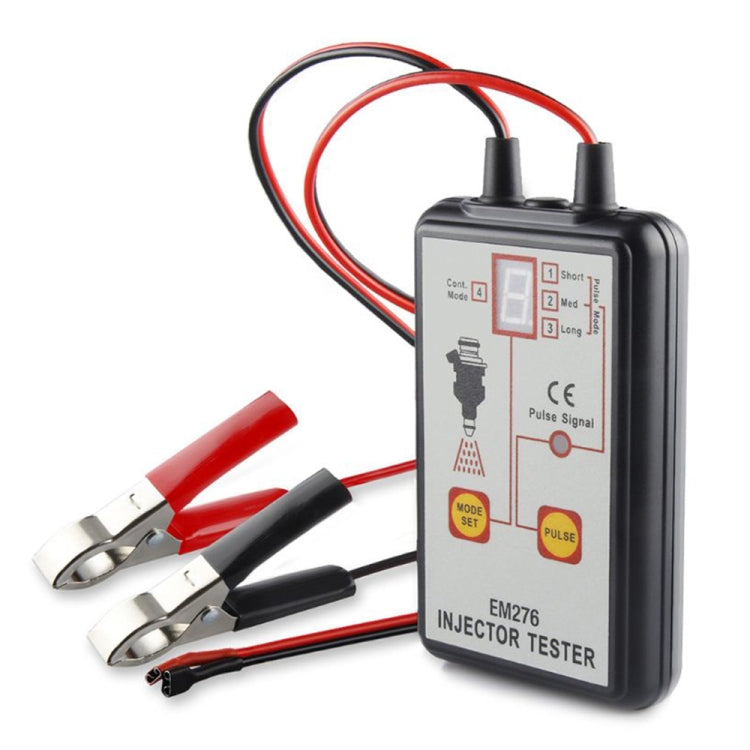

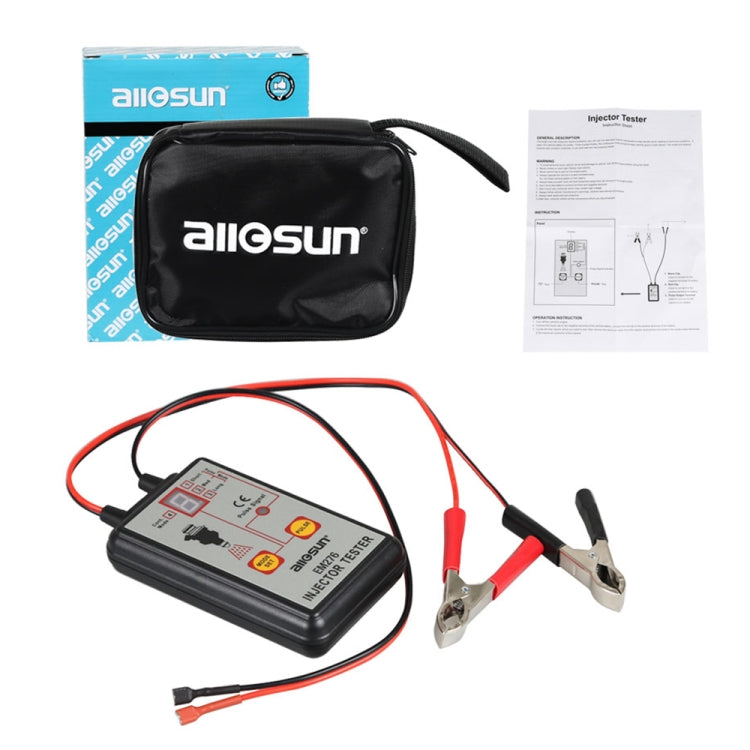

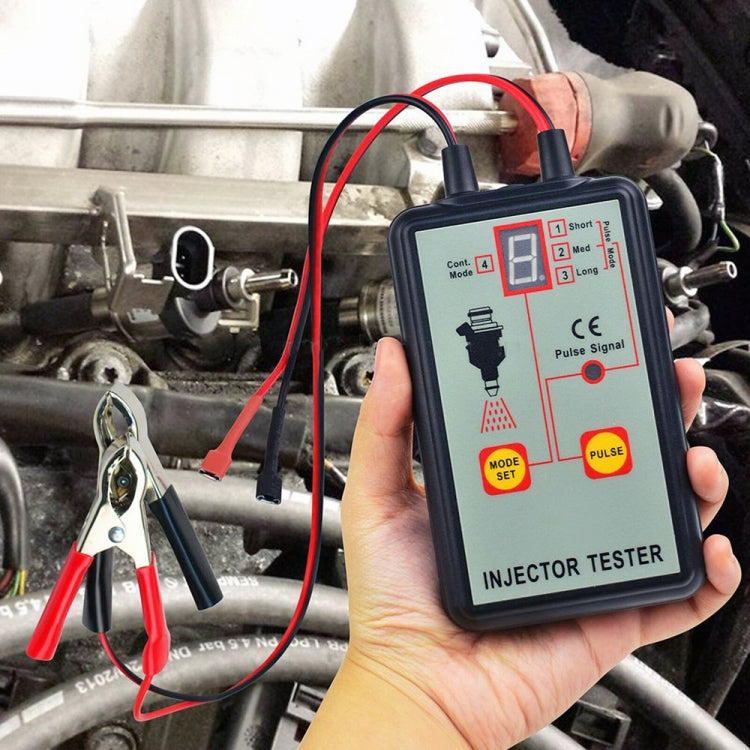

EM276 Car Fuel Injector Tester 4 Pluse Mode Fuel System Scanning Diagnostic Tool, EM276 – TPU

EM276 Car Fuel Injector Tester 4 Pluse Mode Fuel System Scanning Diagnostic Tool, EM276 – TPU.

Key Features:

• Features
• This tester can diagnose injector problems, you can use it on each injector individually to test stuck, leaking or burnt-out.
• It used 12V vehicle battery as power supply.
• It has 4 pulse modes and in the continuous working mode ( mode 4 ), it can help you identify the injector good or not when you switch off the engine.
• The lock mode can ensure the testing condition is same.
• It can work with any fuel pressure tester together.

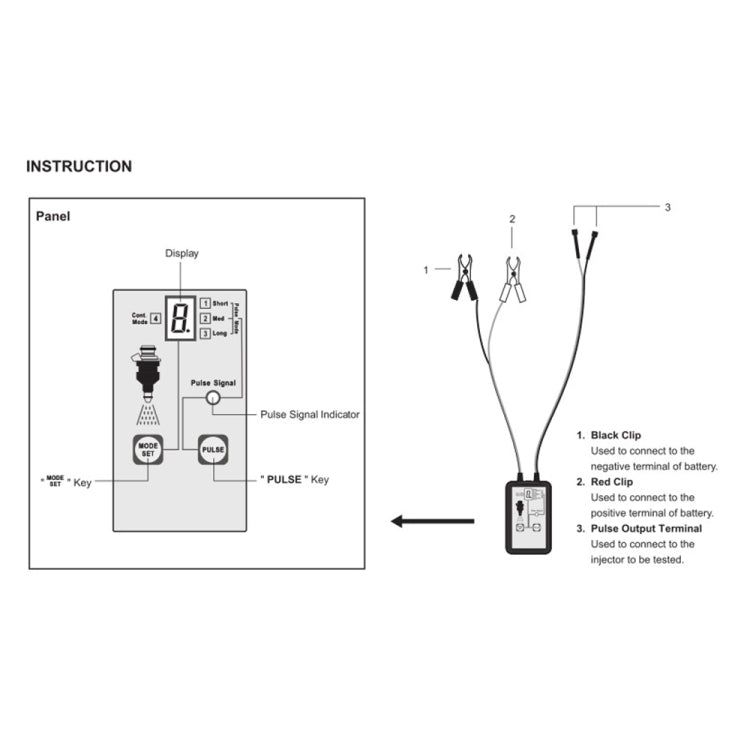

• Operation instructions
• Turn off the engine
• Connect Black / Red Clip to the Negative / Positive terminal of battery
• Connect pulse output terminal to the fuel injector
• Press the MODE SET key to select the desired pulse mode
• Press the PULSE key, the tester will output pulse to the injector, and then the pulse signal indicator will light as indication.
• 4 Mode
• Mode 1: the tester outputs 1 pulse, whose pulse width is about 250ms
• Mode 2: the tester outputs 50 pulse, every pulse the of pulse width is about 7ms
• Mode 3: the tester outputs 100 pulse, every pulse the of pulse width is about 3.5ms
• Mode 4: the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms, every pulse the of pulse width is about 7ms
• Specification
• Power Supply: 12V vehicle battery
• Operation Environment: 0 C - 40C, relative humidity less than 80%
• Storage Environment: -10 C - 50C, relative humidity less than 85%
• Size: 147x82x29mm
• Weight: about 165g
