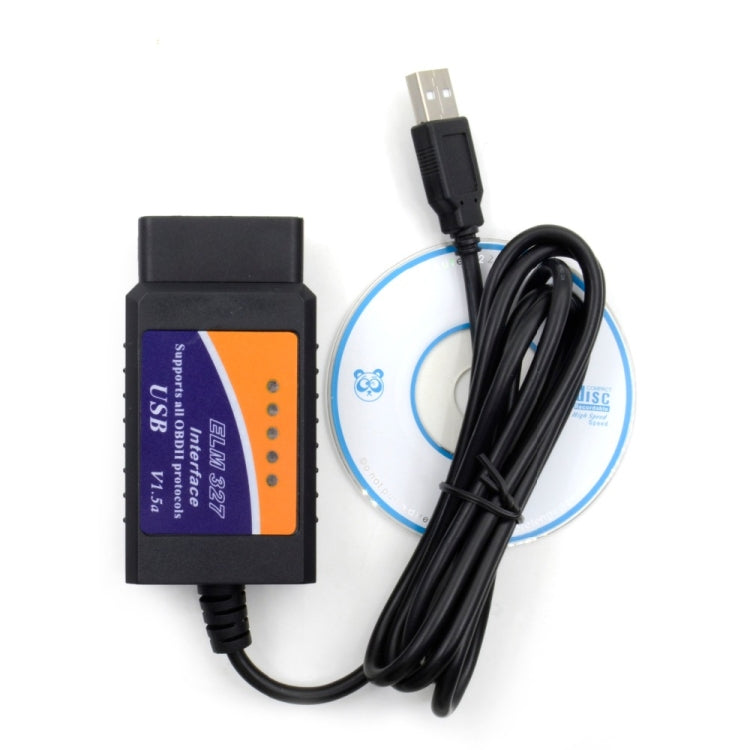

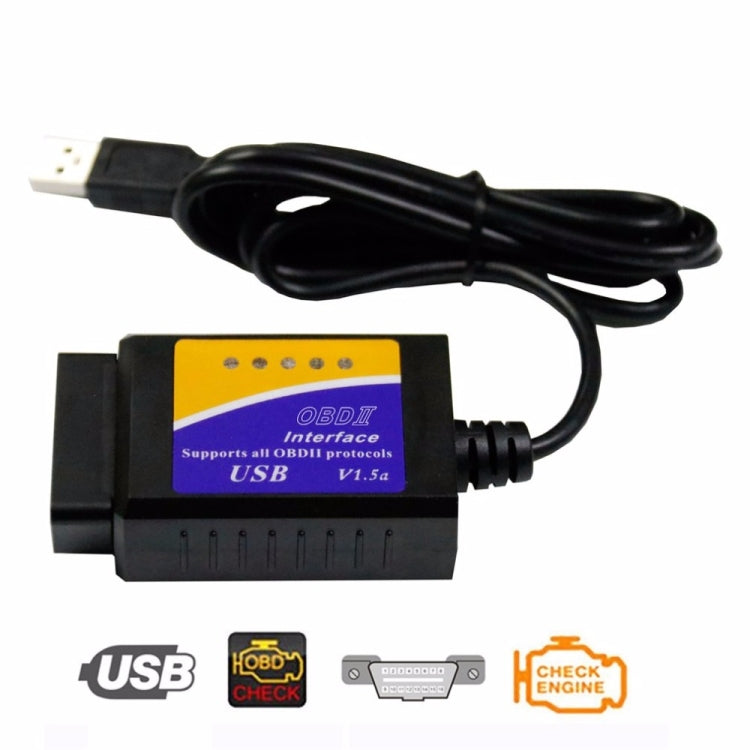

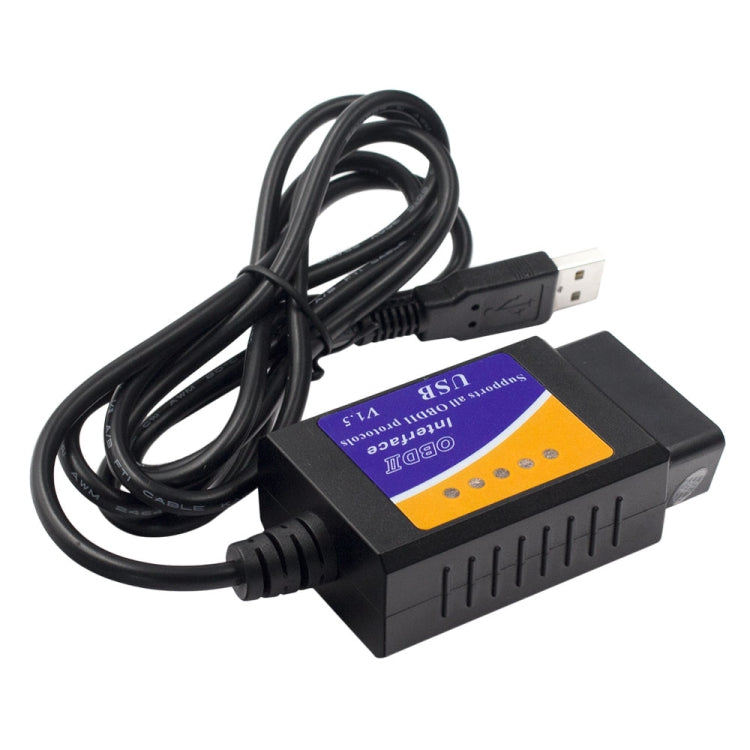

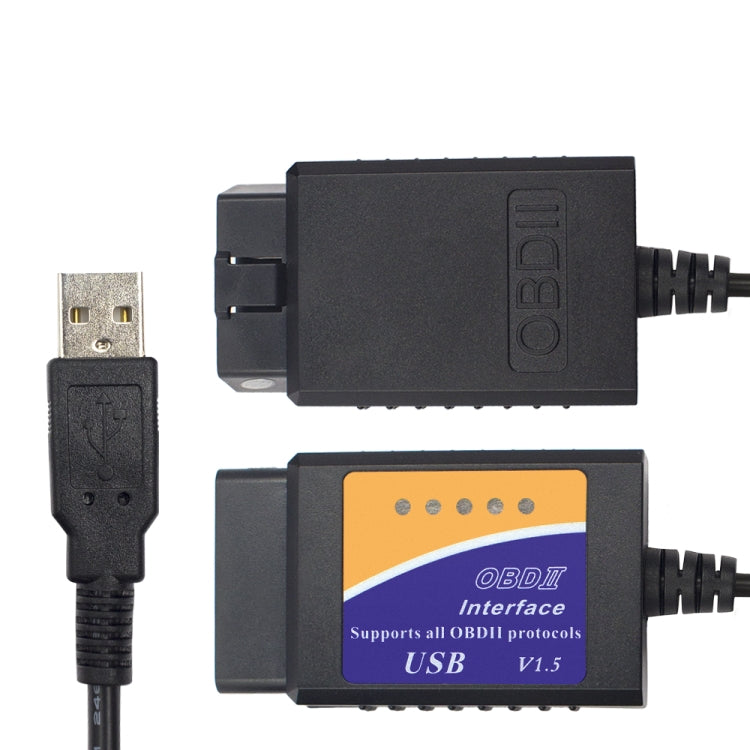

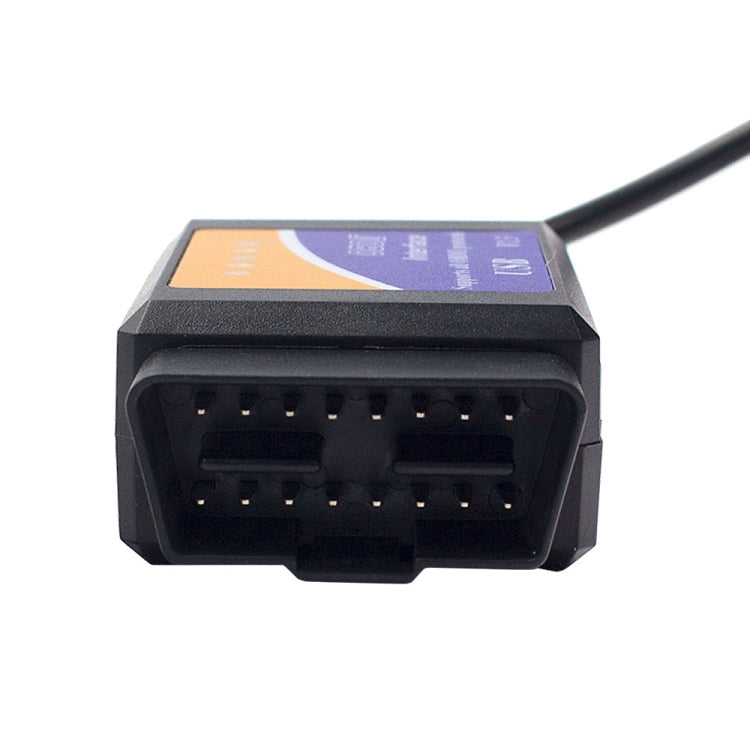

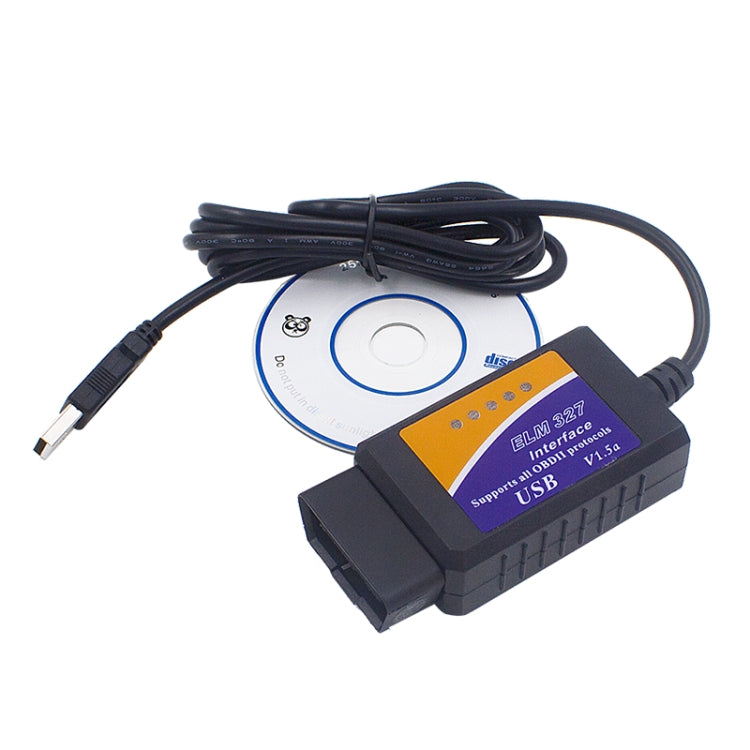

ELM327 Interface USB V1.5 OBDII Auto Diagnostic Scanner Tool, ELM327 V1.4 – TPU

ELM327 Interface USB V1.5 OBDII Auto Diagnostic Scanner Tool, ELM327 V1.4 – TPU.

Key Features:

• Note
• You need to disable your antivirus software (including the system built-in one) before installation. If you mind this, please do not purchase.
• Features
• ELM327 USB Plastic connect computer.
• Hardware V1.5,Soft ware V2.1
• Support most OBDII protocols
• Computer System: Windows XP/Win7 32bits,close anti-virus program to install soft ware.
• Support 12V gasoline cars, no supports diesel& truck.
• Multi-Language Available
• If CD broken in shipping way or unreadable,please feel free to contact us ,we will send u link to download,sorry for that.
• ELM327 1.5 USB Description
• ELM 327 is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM...
• OBD-II Software for ELM 327 is a free program that allows you to use your PC and a hardware interface to get the information from your cars computer
• OBDII Protocols
• Support All OBDII Protocols:(please check your car prtocols if supported or not )
• SAE J1850 PWM (41.6 kbaud)
• SAE J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (fast init, 10.4 kbaud)
• ISO 15765-4 CAN (11 bit ID, 500 kbaud)
• ISO 15765-4 CAN (29 bit ID, 500 kbaud)
• ISO 15765-4 CAN (11 bit ID, 250 kbaud)
• ISO 15765-4 CAN (29 bit ID, 250 kbaud)
• Output protocol: RS232
• Baud rate: 9600 or 38400
• Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
• Operating voltage: 12V, internal protection from short circuits/overvoltage
• Nominal idle current: 45 mA
• Install of ELM 327
• ELM327 1.5 USB Description:
• ELM 327 is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM...
• OBD-II Software for ELM 327 is a free program that allows you to use your PC and a hardware interface to get the information from your cars computer
• Support All OBDII Protocols:(please check your car prtocols if supported or not )
• SAE J1850 PWM (41.6 kbaud)
• SAE J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (fast init, 10.4 kbaud)
• ISO 15765-4 CAN (11 bit ID, 500 kbaud)
• ISO 15765-4 CAN (29 bit ID, 500 kbaud)
• ISO 15765-4 CAN (11 bit ID, 250 kbaud)
• ISO 15765-4 CAN (29 bit ID, 250 kbaud)
• Output protocol: RS232
• Baud rate: 9600 or 38400
• Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
• Operating voltage: 12V, internal protection from short circuits/overvoltage
• Nominal idle current: 45 mA??
• Install of ELM 327 USB Plastic:
• Simply extract the files into a folder on your computers hard drive, and you are ready to go.
• Touninstall the program, simply delete the entire contents of the folder where the program??resides.
• The software supports two platforms - DOS and Windows.
• The program lets you perform the following operations:
• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their??meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Display current sensor data, including:
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure
• AND Many others...
• Upcoming Features ELM 327 USB Plastic:
• Data graphing and logging
• Freeze Frame data
• Continuous and Non-Continuous Oxygen Sensor test results
• OBD-II Protocols of ELM 327 USB Plastic:
• ISO15765-4 (CAN)
• ISO14230-4 (KWP2000)
• ISO9141-2
• J1850 VPW
• J1850 PWM
• Vehicle Coverage of ELM327 USB Plastic:
• Works on OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
• Package List:
• 1 x elm327 USB interface
• 1 x CD
• Compatiable Car Brand:
• ELM327 support Multi-Brand Cars(supports 12V Gasoil cars, can not supports Diesel Cars /trucks), but it??doesnot work with all GASOLINE cars model,and also...

Package Info: Weight: 0.10kgs / 0.22lb, Size: 9cm * 8cm * 3cm / 3.54inch * 3.15inch * 1.18inch
