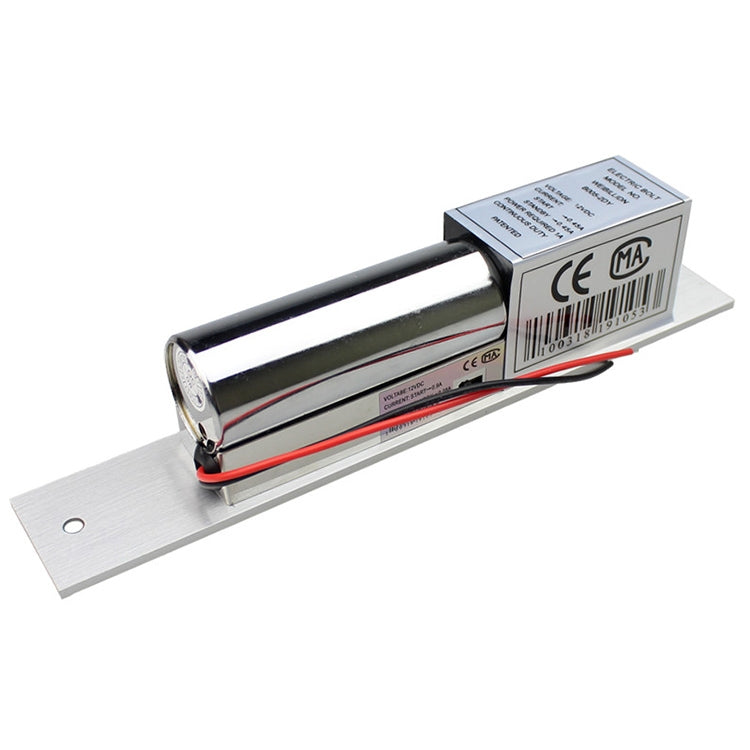

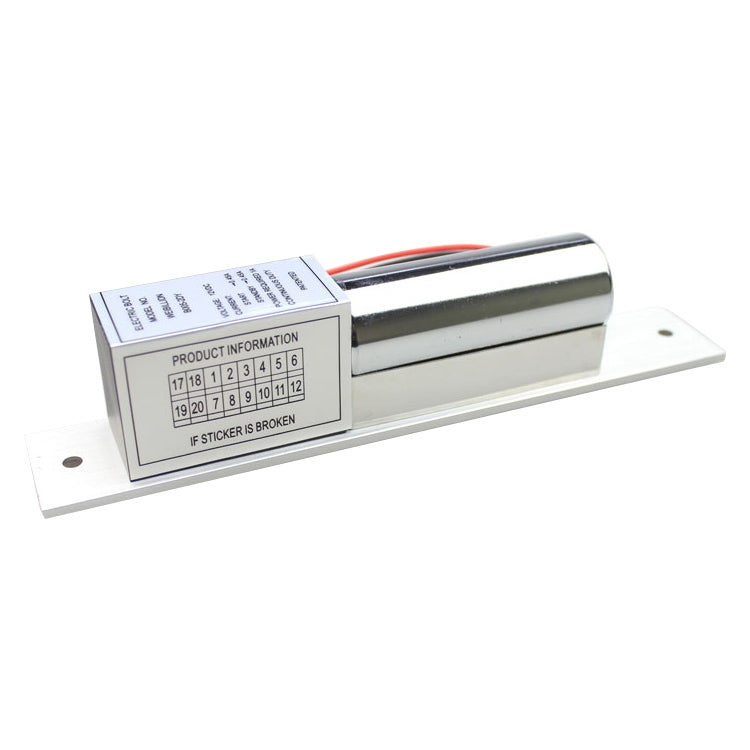

Electric Mortise Lock – Durable Build, Easy to Use

Electric Mortise Lock – Durable Build, Easy to Use.

Key Features:

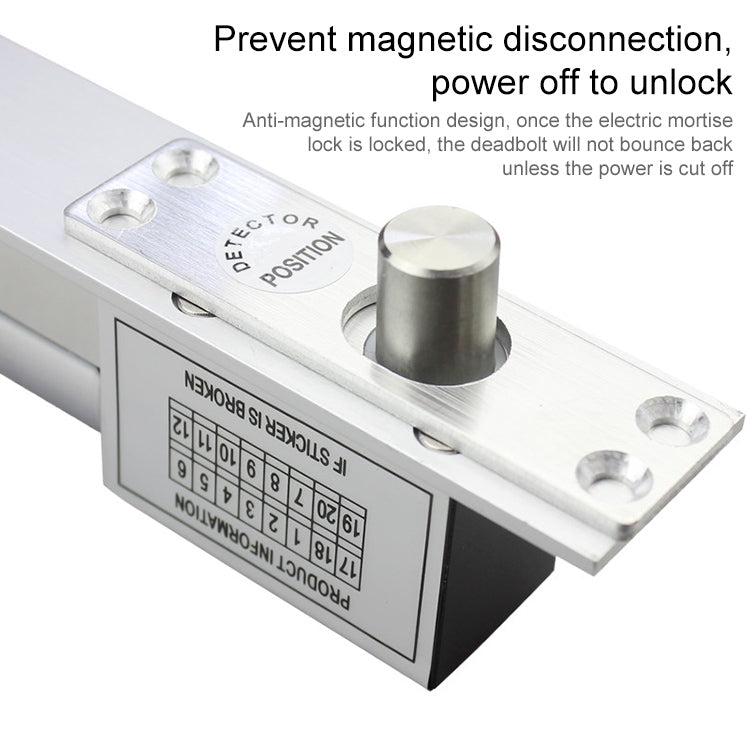

• The electric lock will lock when power get through, unlock when power off. Working Voltage is DC 12V.

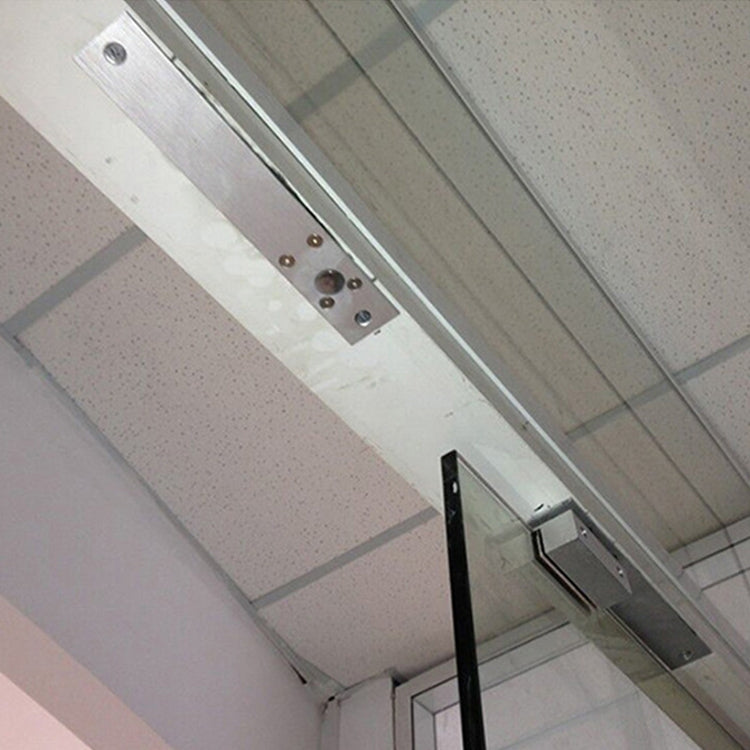

• * Install and use it:

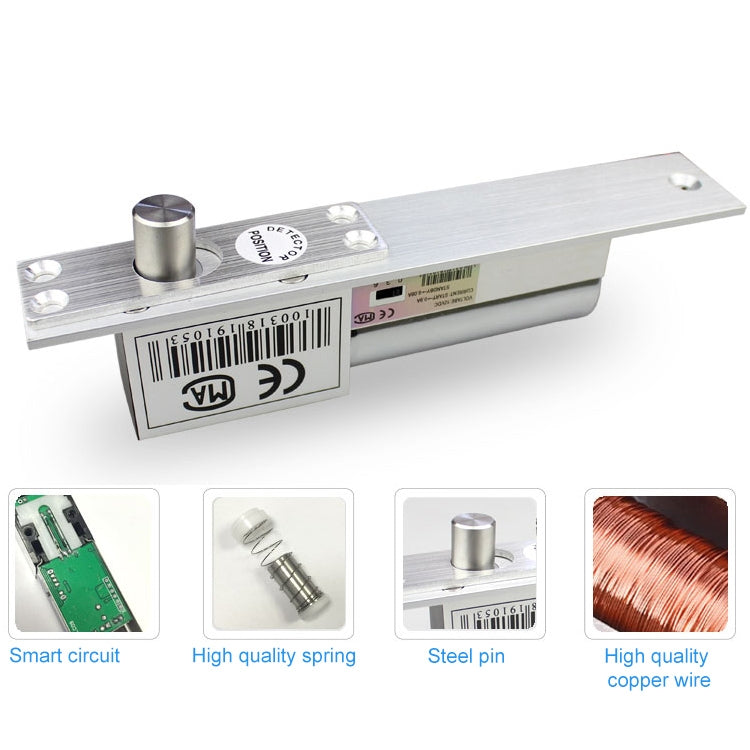

• The electrical lock is composed of two parts. One is stainless steel magnet support, the other is the lock body. When you install it, the gap between magnet...
• * Specification:
• 1) Working Voltage: DC 12V
• 2) Current: Starting current 0.45A, Working Current 0.45A
• 3) Coil type: Continuous working
• 4) Lock cylinder: Diameter 15.5mm stainless steel bolt, popping length: 15mm
• 5) The size of open hole for installing: 202mm (Length) x 35mm (Width)
• 6) The depth of the hole inside shouldn’t be less than 43mm
• 7) Decoration panel size: 210mm (Length) x 42mm (Width) x 0.8mm (Thickness)
• 8) Panel size: 200mm x 34mm x 3mm
• 9) Accessories for installing: Stainless steel magnet support one piece, M5x15mm (Length) screws two pieces, M4x11mm (Length) screws four pieces.

Package Info: Weight: 0.69kgs / 1.53lb, Size: 22.9cm * 5.8cm * 5cm / 9.02inch * 2.28inch * 1.97inch
