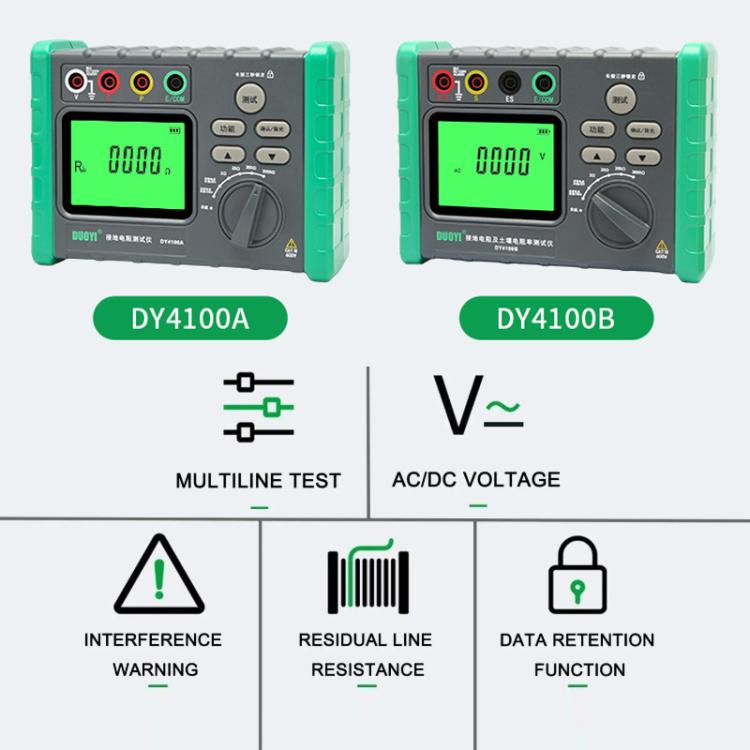

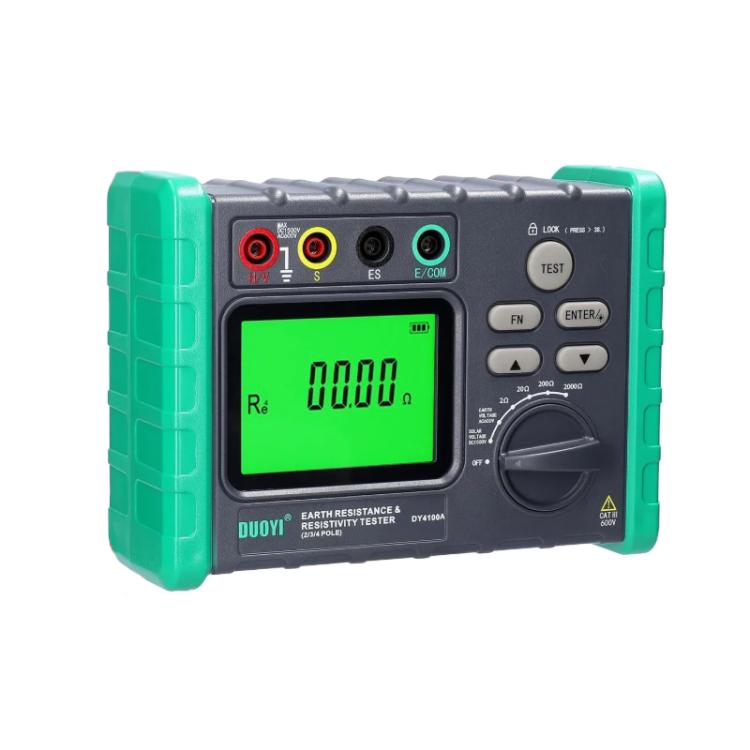

DUOYI Digital Ground Resistance Meter Tester, DY4100A, DY4100B – Durable Build, Easy to Use

DUOYI Digital Ground Resistance Meter Tester, DY4100A, DY4100B – Durable Build, Easy to Use.

Key Features:

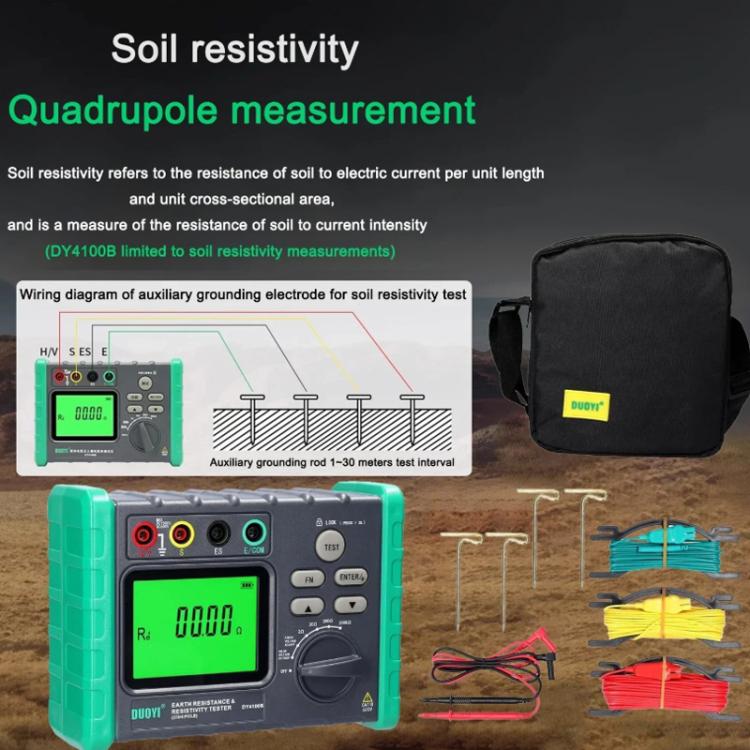

• Ground resistance Re (Rg when testing soil resistivity p)

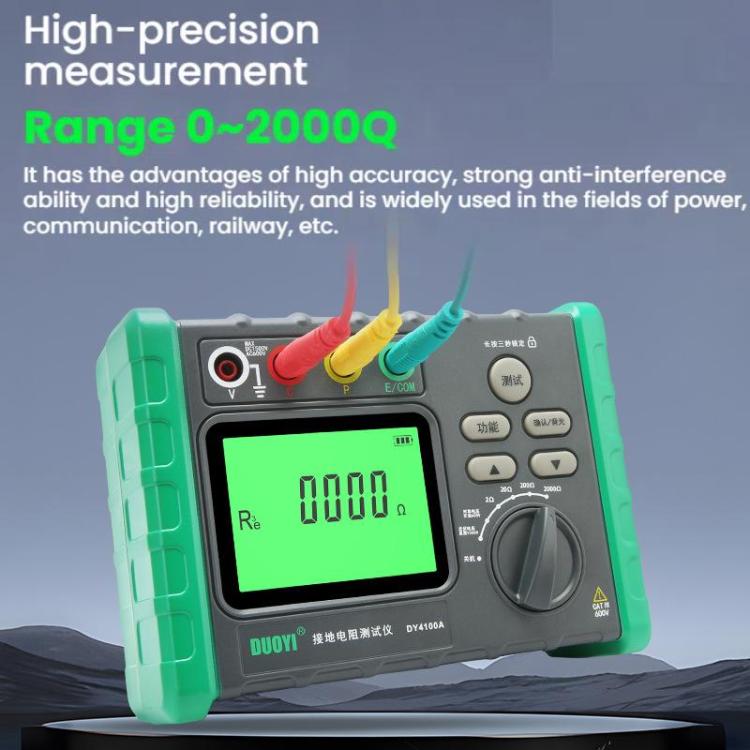

• Range: 2 ohms/20 ohms/200 ohms/2000 ohms
• Test range: 0.03~2.000 ohms/0.03~20.00 ohms/0.03~200.0 ohms/0.03~2000 ohms
• Voltage to ground (AC voltage): 600V Test range 0~600Vac
• Photovoltaic voltage (DC voltage): 1500V Test range: 0~1500Vac
• Test method: voltage drop method (applicable to the current and voltage test of the probe)
• Display: segment LCD display, display backlight
• Battery voltage warning: Battery logo display
• Continuous test times: In the 2 ohm range, test once every 30 seconds with a 1 ohm load, and can be repeated more than 400 times
• Input exceeds display: Display "OL"
• Automatic shutdown function: If there is no operation for 5 minutes after the key operation, the system will enter the automatic shutdown state
• Overload protection: AC280V/10 seconds between E-S ports
• Withstand voltage: AC3540V (50/60Hz)/5 seconds between the electrical circuit and the outer box
• Insulation resistance: 50 milliohms or more between the electrical circuit and the outer box/DC 1000V
• Power supply: 6 AA batteries (not included)

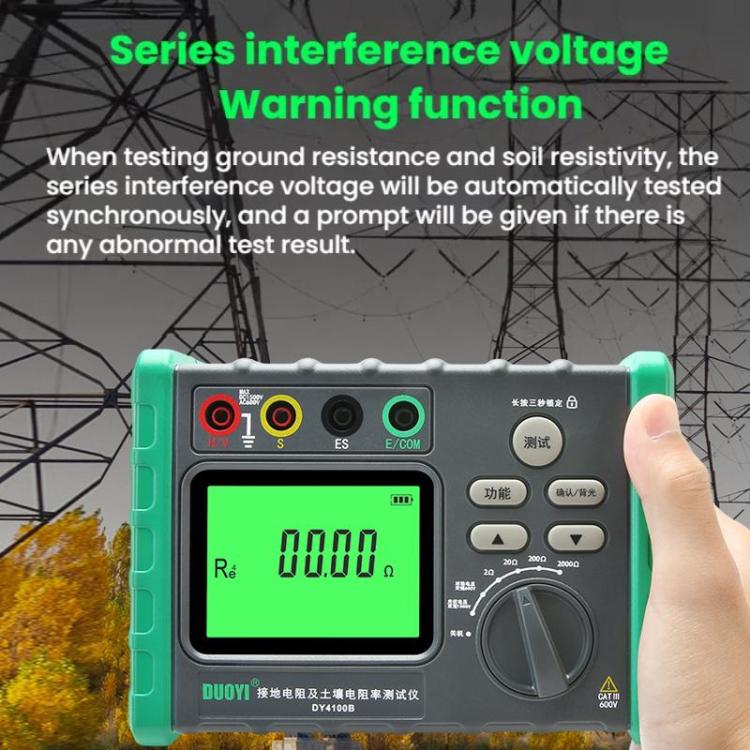

• When testing the ground resistance and soil resistivity, the series interference voltage will be automatically tested synchronously, and a prompt will be...

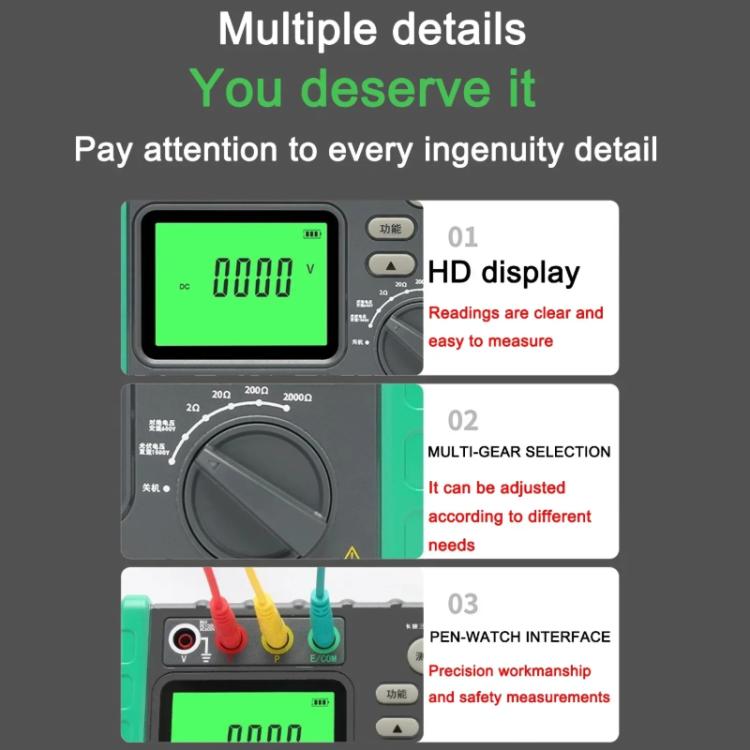

• High-definition display, clear reading, easy measurement

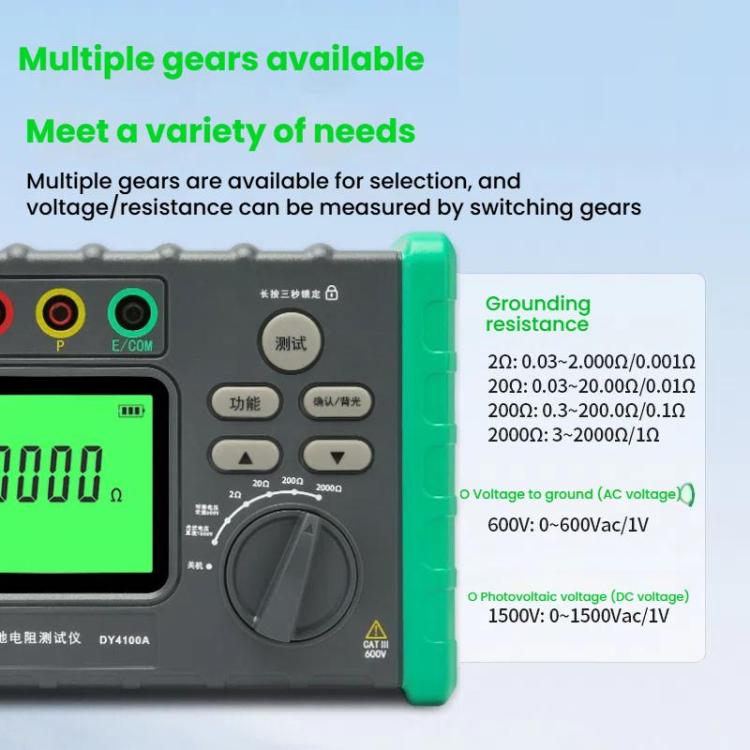

• Multiple gear selection, can be adjusted according to different needs
• Applicable to measurement in power, post and telecommunications, railway, petroleum, chemical, communication, mining and other departments
• Dimensions: 173x125x68mm
• Packing list:
• - DY4100A instrument x 1
• - Cloth bag x 1
• - Instruction manual x 1
• - Certificate x 1
• - Test line x 1 (red 15m/yellow 10m/green 5m)
• - Multimeter pen x 1
• - Ground rod x 2

Package Info: Weight: 2.20kgs / 4.86lb, Size: 26cm * 23cm * 14cm / 10.24inch * 9.06inch * 5.51inch
