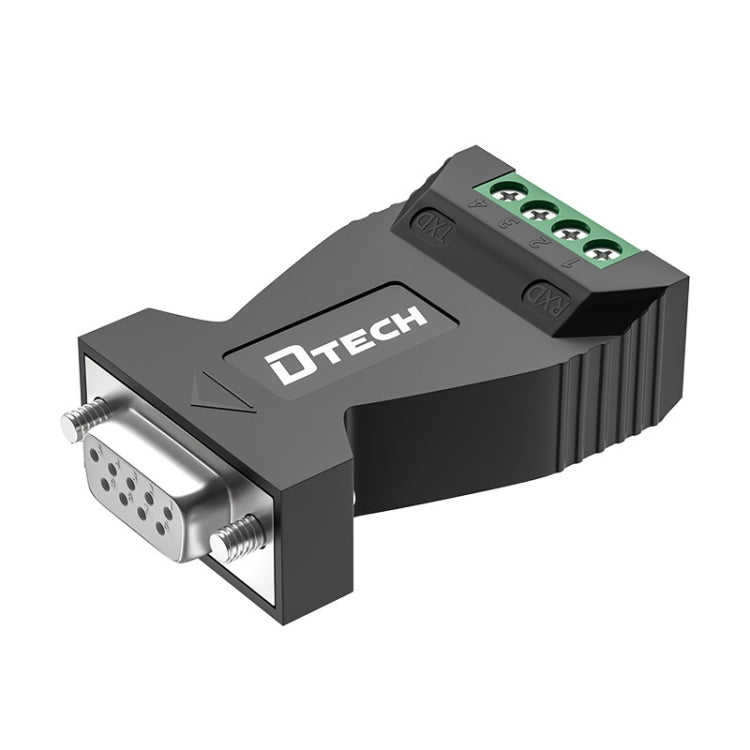

DTECH DT-9001 Industrial Grade Lightning And Surge Protection RS232 To 485 Converter, DT-9001 – Wear-resistant

DTECH DT-9001 Industrial Grade Lightning And Surge Protection RS232 To 485 Converter, DT-9001 – Wear-resistant.

Key Features:

• Interface compatible: RS-485, RS-232 standard
• Material: ABS
• Working mode: asynchronous half-duplex differential transmission
• Protection level: 600W lightning surge protection per line of RS-485 interface
• Transmission medium: twisted pair or shielded wire
• Transmission distance: RS-485 is less than 1200m, RS-232 is within 15m
• Transmission rate: 300-115.2kbps

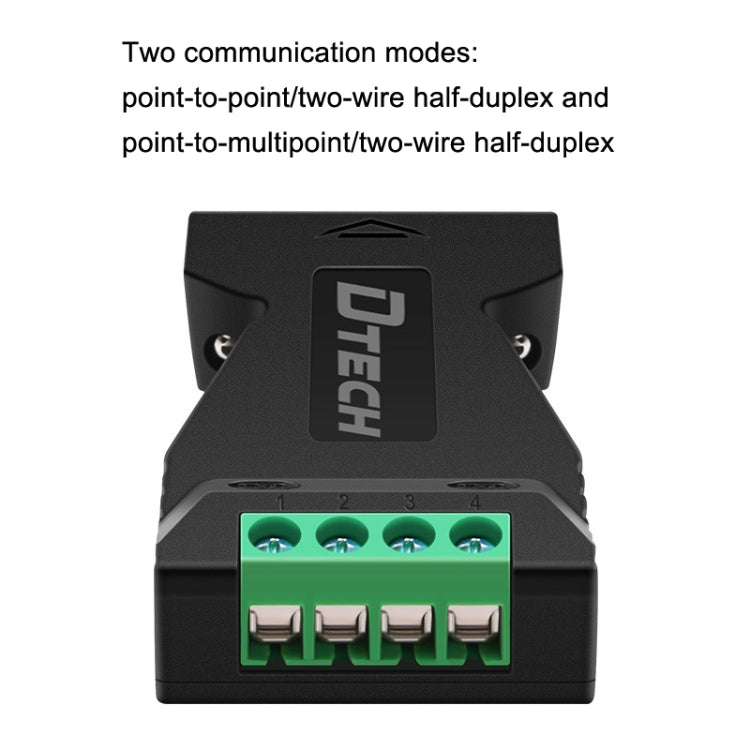

• Communication mode: point-to-point/two-wire half-duplex, point-to-multipoint/two-wire half-duplex
• Scope of application: suitable for PC, terminal equipment, industrial control, digital instrument acquisition, multi-serial port equipment, serial interface...

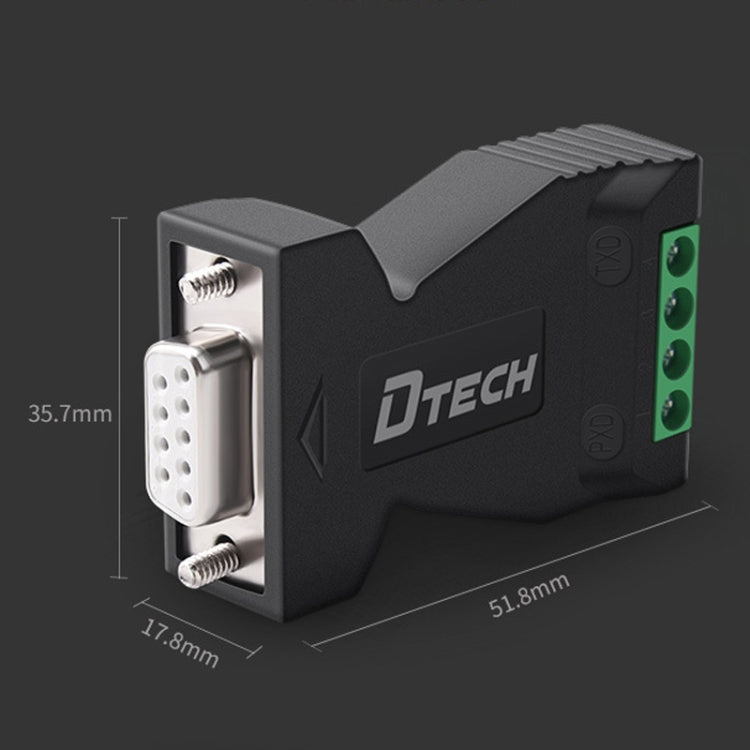

• Dimensions: about 51.8 x 17.8 x 35.7mm
• Weight: about 40g
• Features:

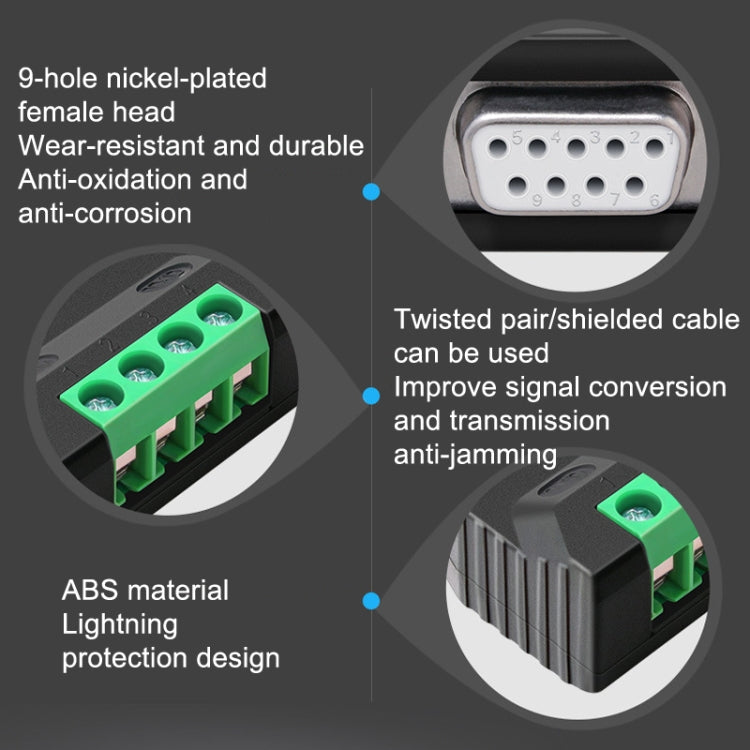

• 9-hole nickel-plated female head, wear-resistant and durable, anti-oxidation and anti-corrosion
• Twisted pair/shielded wire can be used to improve signal conversion and transmission anti-interference
• ABS material, lightning protection design

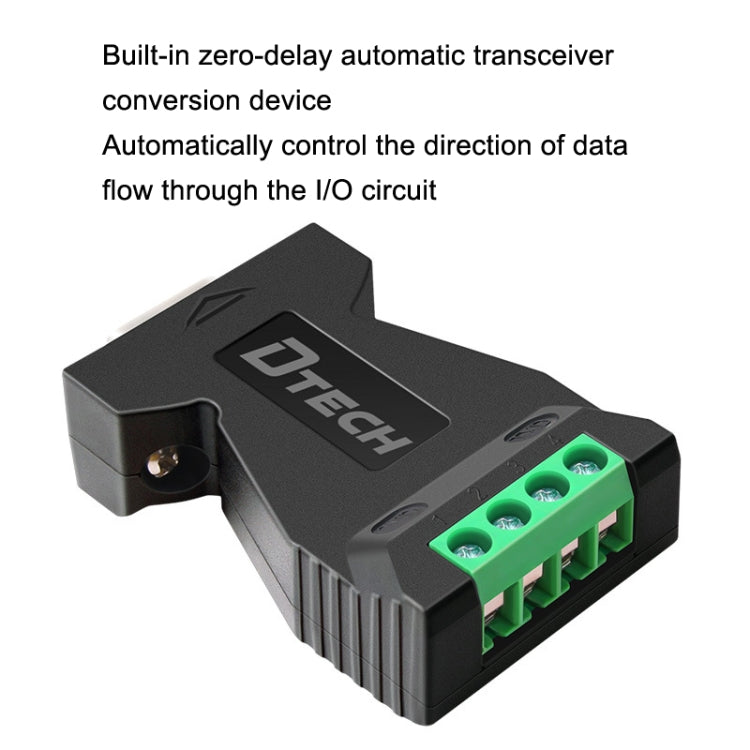

• Built-in zero-delay automatic transceiver conversion device, which automatically controls the direction of data flow through the I/O circuit

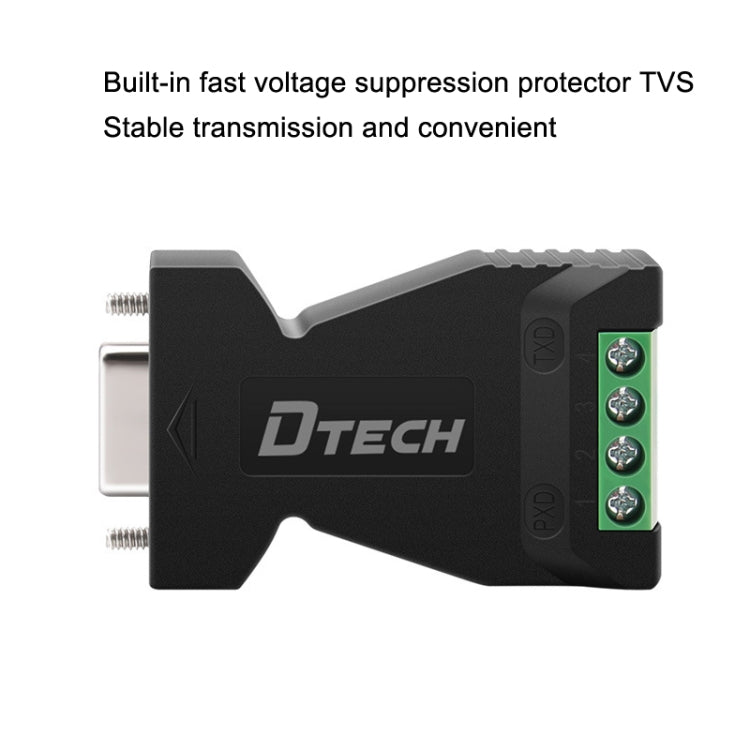

• Built-in fast voltage suppression protector TVS, non-optical isolation

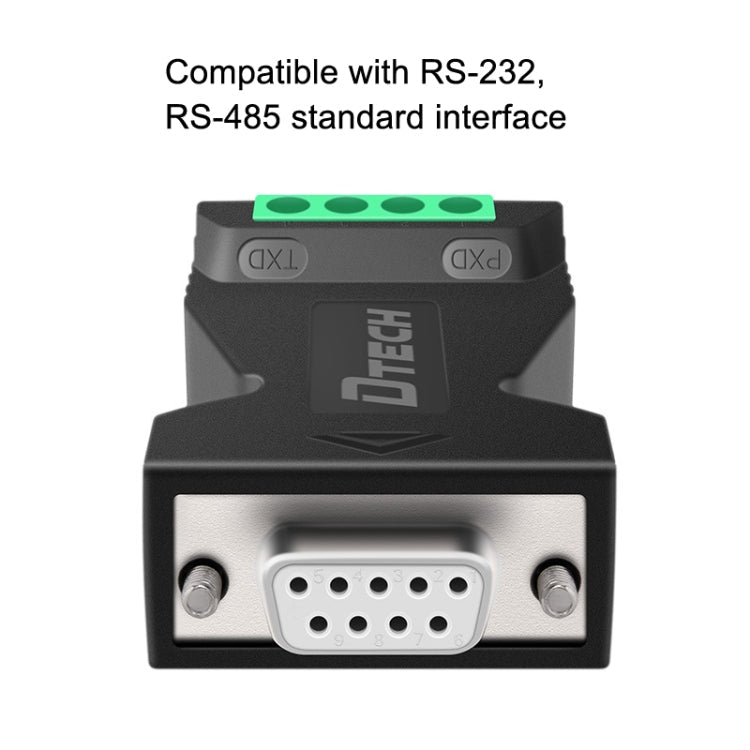

• Bidirectional transmission, compatible with RS-485, RS-232 standard interfaces
• Two communication methods, stable transmission, convenient and fast

Package Info: Weight: 0.06kgs / 0.14lb, Size: 8cm * 5cm * 2cm / 3.15inch * 1.97inch * 0.79inch
