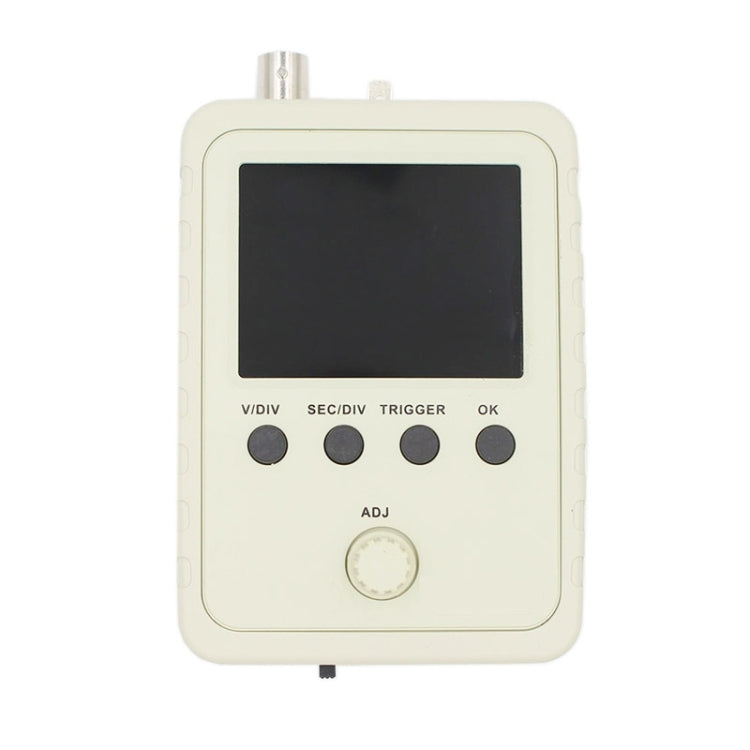

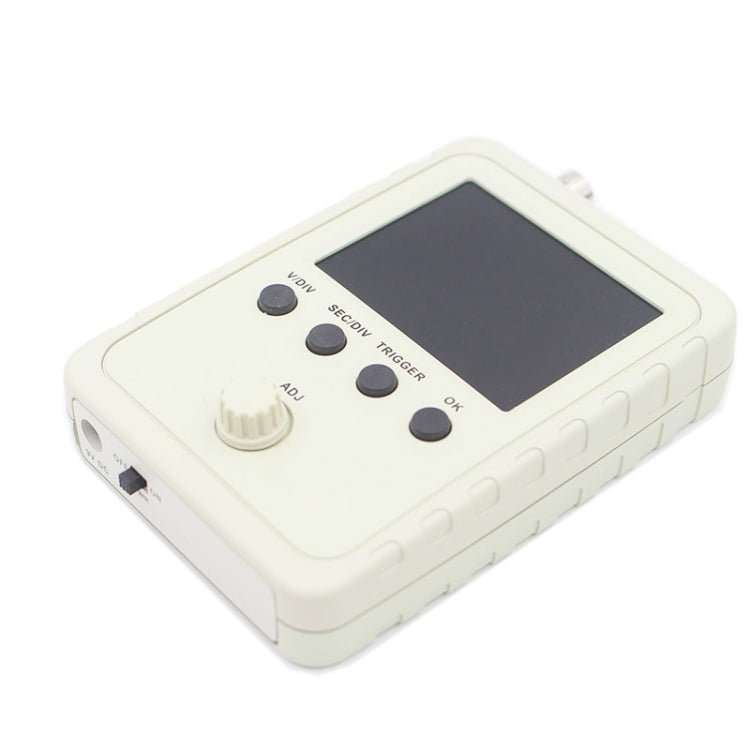

DSO138 Upgraded Shell Oscilloscope, DSO150 – Durable Build, Easy to Use

DSO138 Upgraded Shell Oscilloscope, DSO150 – Durable Build, Easy to Use.

Key Features:

• Highest real-time sampling rate: 1Msps
• Accuracy: 12Bit
• Sampling buffer depth: 1024 bytes
• Analog band width: 0-200KHz
• Vertical sensitivity: 5mV / Div – 20V / Div (progressive in 1-2-5 way)
• Adjustable vertical displacement with instructions
• Input impedance: 1MΩ

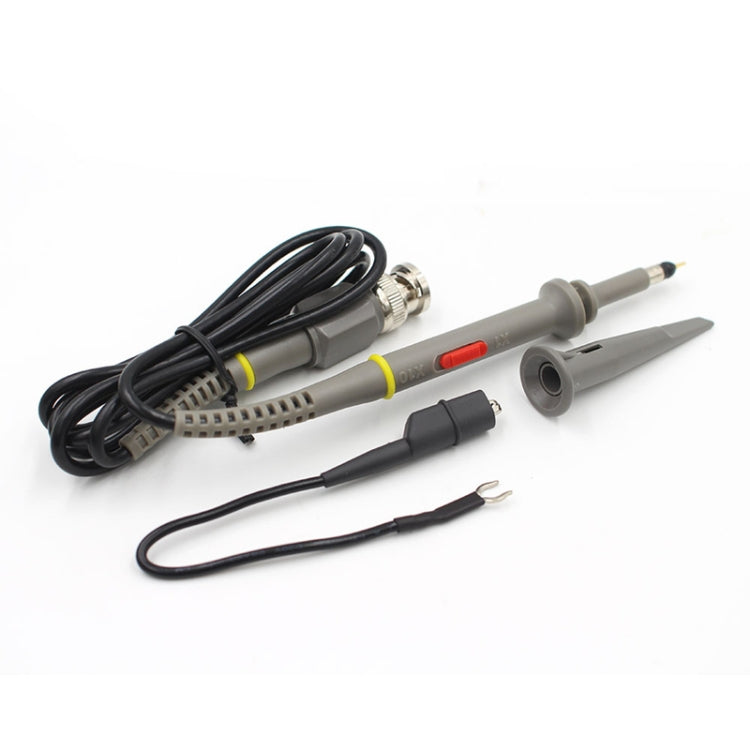

• Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)

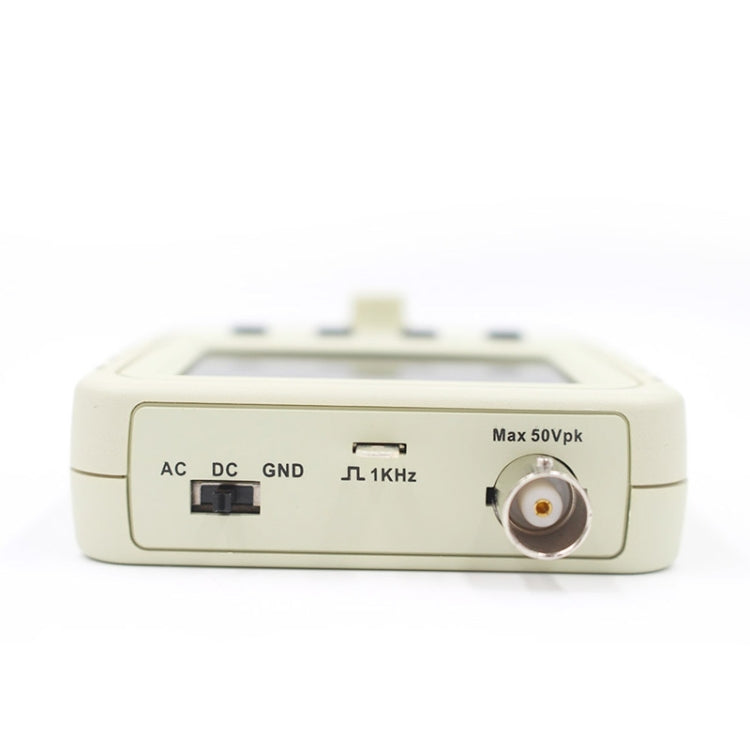

• Coupling methods include: DC / AC / GND
• Horizontal time base range: 10μs / Div – 50s / Div (progressive in 1-2-5)
• Trigger mode: With automatic, regular and single shot, easy to capture instantaneous waveform
• Trigger on rising or falling edge
• Trigger level position is adjustable, with indication
• Observe waveform before trigger (negative delay)
• Freeze waveform display at any time (HOLD function)
• Signal source: Comes with 1KHz /3.3V square wave test

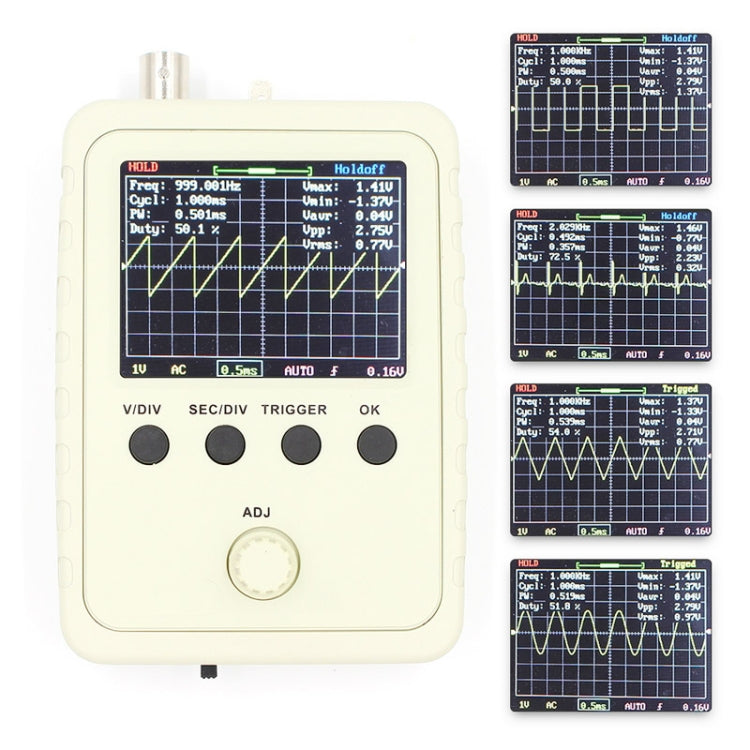

• The parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, peak-to-peak value, and...
• Save / recall waveform, the waveform does not disappear after shutdown

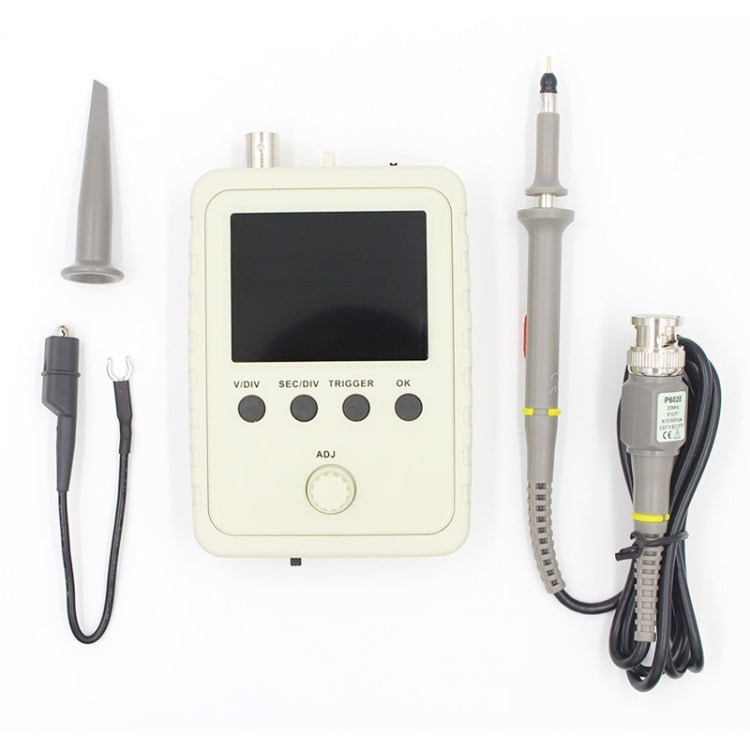

• Packing list:
• 15001K (SMD components are soldered)

Package Info: Weight: 0.18kgs / 0.39lb, Size: 20cm * 13cm * 5cm / 7.87inch * 5.12inch * 1.97inch
