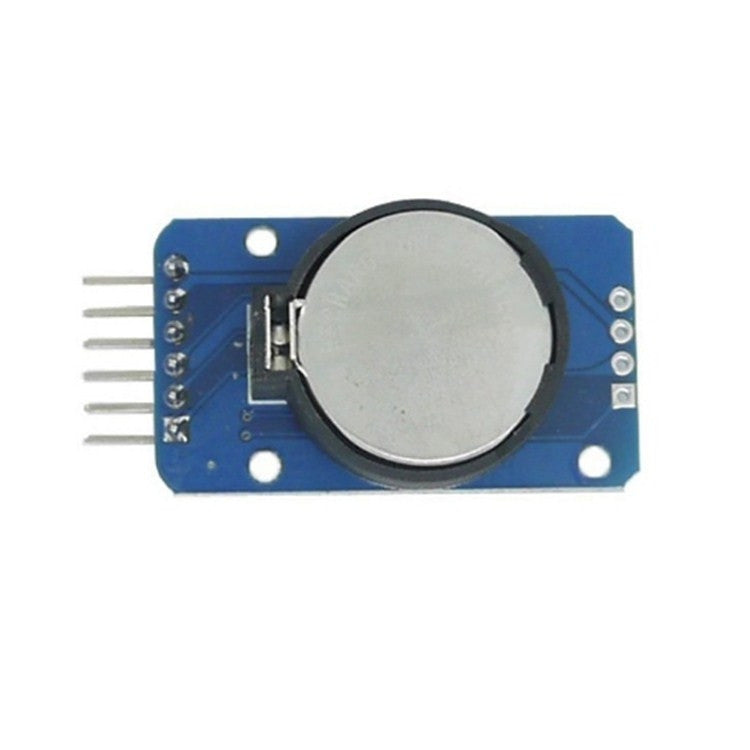

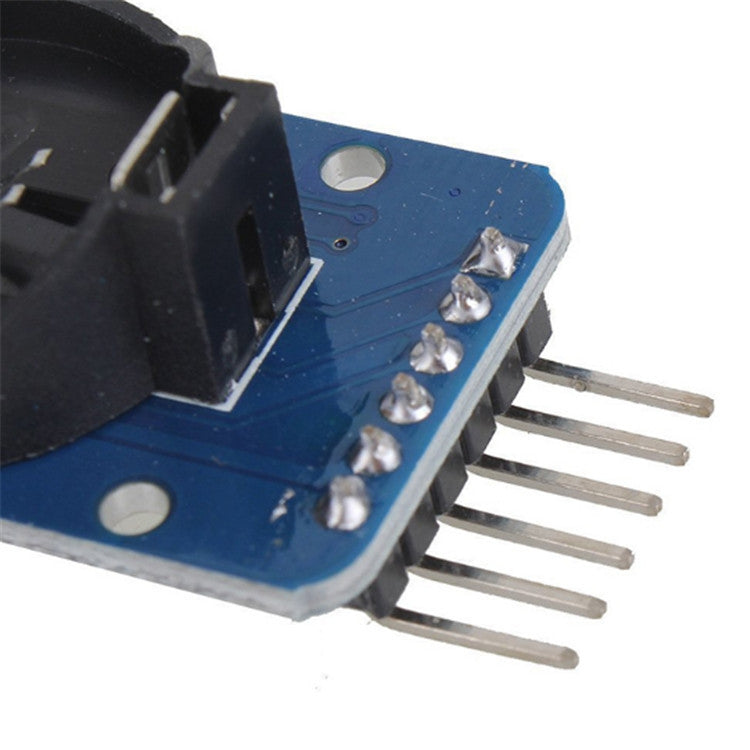

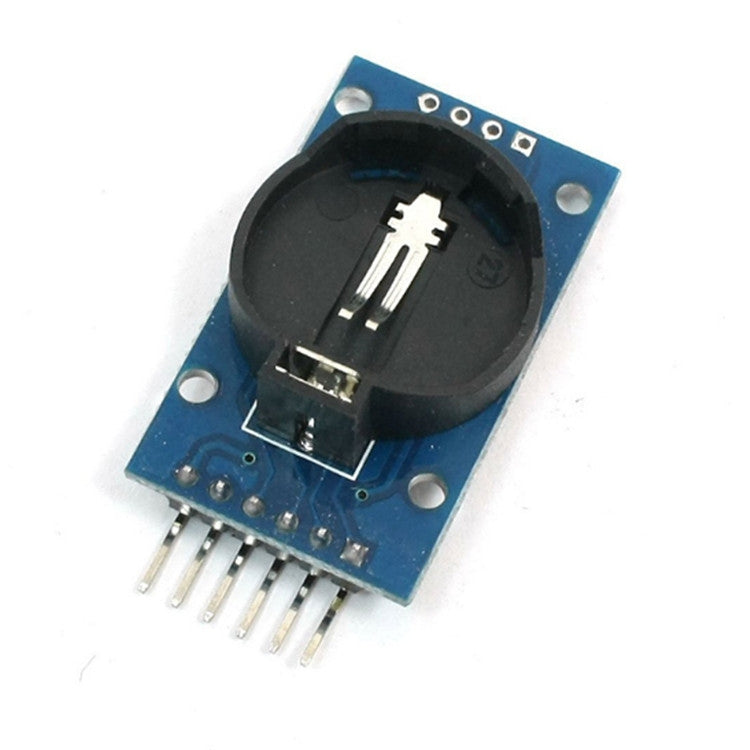

DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU Default Title

DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU

£6.99
Skip to product information
DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU Default Title
  • DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU Default Title
  • DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU
  • DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU
  • DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU
  • DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU
DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU

DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU

£6.99

DS3231 AT24C32 High Precision Clock Module IIC Module Memory Module – TPU.

Key Features:

  • Size: 38mm (length) X22mm (width) X14mm (height)
  • Weight: 8g
  • Working voltage: 3.3--5.5V
  • Clock chip: High-precision clock chip DS3231
  • Clock accuracy: Within 0-40 degree C, accuracy 2ppm, annual error about 1 minute
  • With 2 calendar alarm clocks
  • Programmable square wave output
  • Real-time clock generates seconds, minutes, hours, week, date, month and year time, and provides leap year compensation valid to 2100 years
  • The temperature sensor inside the chip has an accuracy of +/- 3 degree C
  • Memory chip: AT24C32 (storage capacity 32K)
  • IIC bus interface, high transmission speed 400KHz (when working voltage is 5V)
  • Can cascade other IIC devices, 24C32 address can be modified by short circuit A0 / A1 / A2, the default address is 0x57

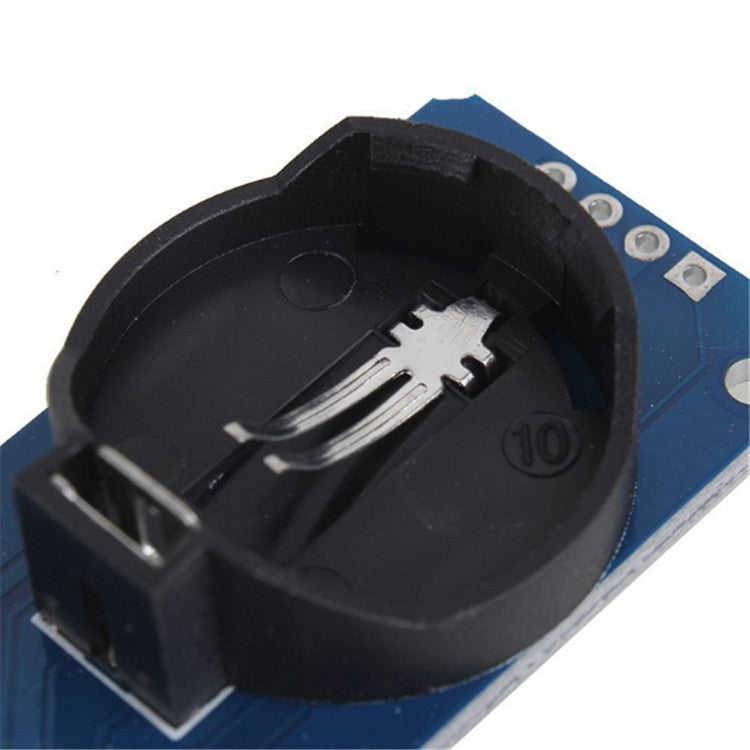

  • With rechargeable battery LIR2032 to ensure that the clock still runs normally after the system is powered off
  • Packing: Single anti-static packaging
  • Wiring instructions (taking Arduino uno r3 as an example):
  • SCL -- A5
  • SDA -- A4
  • VCC -- 5V
  • GND -- GND
  • DS3231 is a low-cost, high-precision I2C real-time clock (RTC) with integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device...
  • RTC saves seconds, minutes, hours, day, date, month and year information. Months less than 31 days will automatically adjust the end of the month, including...
  • Sophisticated, temperature-compensated voltage reference and comparator circuits are used to monitor VCC status, detect power failures, provide reset...
  • In addition to high timing accuracy, the DS3231 also has some other functions that expand the additional functions and selection range of the system host....

Package Info: Weight: 0.01kgs / 0.03lb, Size: 8cm * 5cm * 5cm / 3.15inch * 1.97inch * 1.97inch
