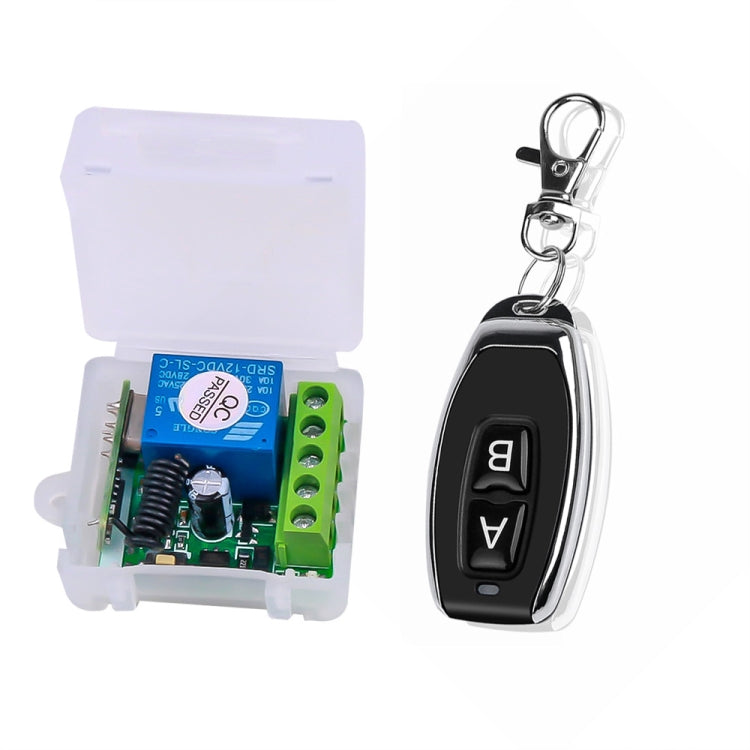

DC12V 1CH RF Remote Control Switch / 10A Relay / 433MHZ Switch Receiver – TPU

DC12V 1CH RF Remote Control Switch / 10A Relay / 433MHZ Switch Receiver – TPU.

Key Features:

• Product Features
• Output relay switching capability: Capable of controlling loads with voltages up to 250V. Requires a 12V power supply. 2. Small Size: The circuit board...
• User-Adjustable Operating Mode: Self-locking, interlocking, inching, and time-delay modes can be adjusted via pin short-circuit caps.
• Learning Pairing: You can learn to pair with any remote controller with the same frequency (dont worry if you lose your remote during use; simply buy a new...
• Technical Parameters
• Operating Voltage: DC 12V (3V/6V/9V/24V available on request)
• Quiescent Current: Less than or equal to 10mA
• Operating Temperature: -40 degrees Celsius to +80 degrees Celsius
• Receiver Sensitivity: More than or equal to -95dB
• Operating Frequency: Commonly 315MHz, 433.92MHz (other frequencies available on request)
• Output Current: Less than or equal to 10A
• Operating Mode: Inching, Self-Lock, Interlock, Delay (Adjustable)
• Output Mode: Contact Output (AC and DC controllable)
• Applications

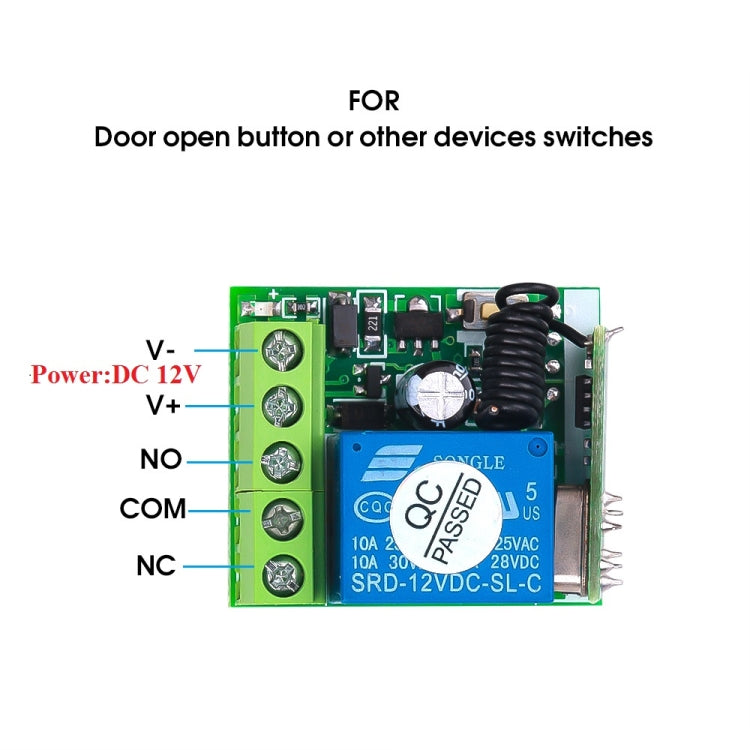

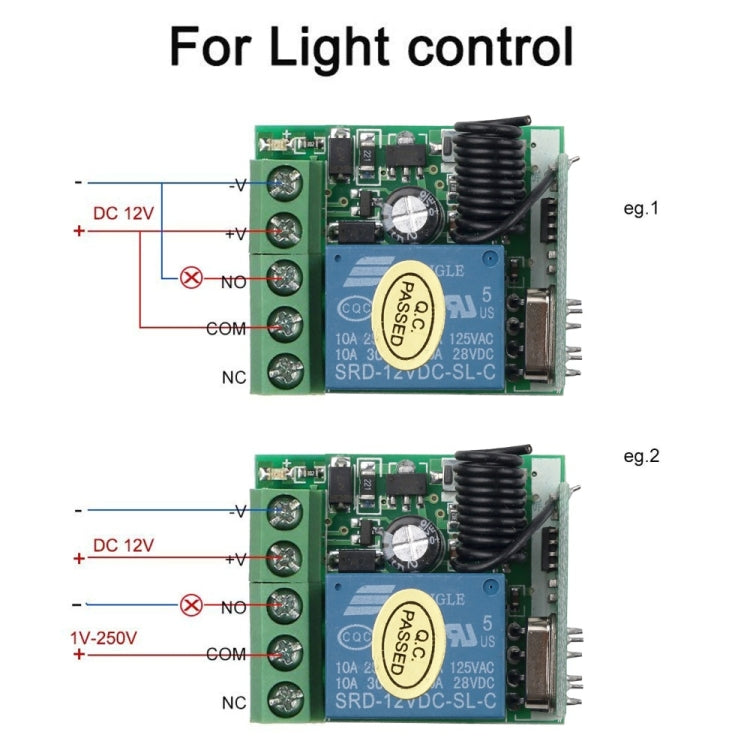

• This product uses an intelligent microprocessor control system and is suitable for garage door control, lighting control, remote curtain control, access...

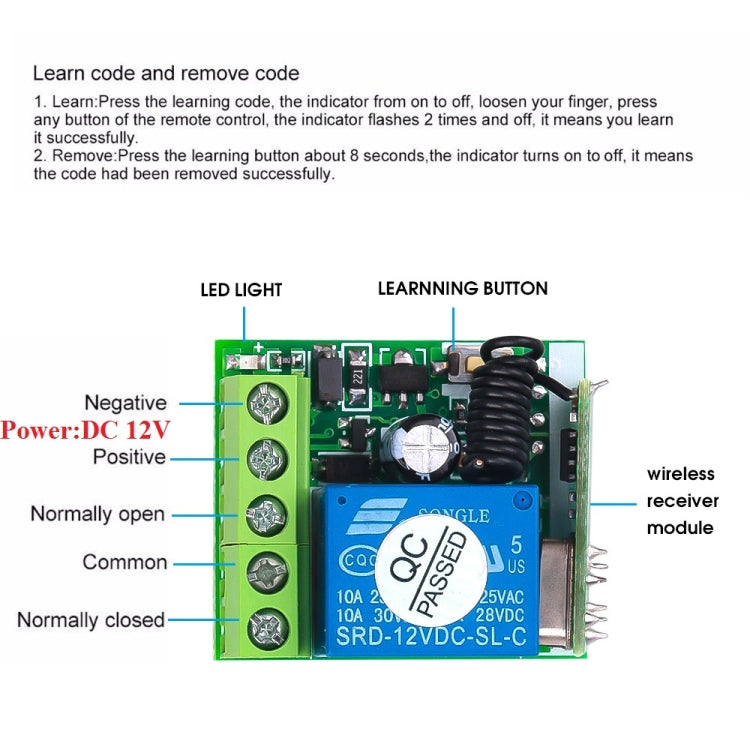

• Learn How to Pair Code
• Inching Learning Method:
• Press the pairing button on the control panel once. The LED indicator will flash once. Then, press the button on the remote control to be paired. The LED...
• Self-locking Learning Method:
• Press the pairing button on the control panel twice. The LED indicator will flash twice. Wait until the LED indicator turns off. Then, press the button on...
• Interlocking Learning Method:
• Press the pairing button on the control panel three times. The LED indicator will flash three times. After the LED indicator turns off, press the A and B...
• Press the control panel pairing button 4 times in a row. The LED indicator will flash 4 times. After the LED indicator goes off, press the button on the...
• 10-Second Delay Learning Method:
• Press the control panel pairing button 5 times in a row. The LED indicator will flash 5 times. After the LED indicator goes off, press the button on the...
• 15-Second Delay Learning Method:
• Press the control panel pairing button 6 times in a row. The LED indicator will flash 6 times. After the LED indicator goes off, press the button on the...
• Precautions
• Do not operate with power on. Always turn off the power before operating. Only power on after confirming that everything is working properly.
• If the remote control battery voltage is low, please replace the batteries immediately. (A low battery voltage in the remote control generally reduces the...
• Do not use this electronic product improperly. Improper use can reduce product performance and lifespan, and in severe cases, damage the product and pose a...
• The delay time setting is automatically set when entering learning mode. The delay time setting is linked to the number of times the learning button is...

Package Info: Weight: 0.07kgs / 0.15lb, Size: 7cm * 6cm * 3cm / 2.76inch * 2.36inch * 1.18inch
