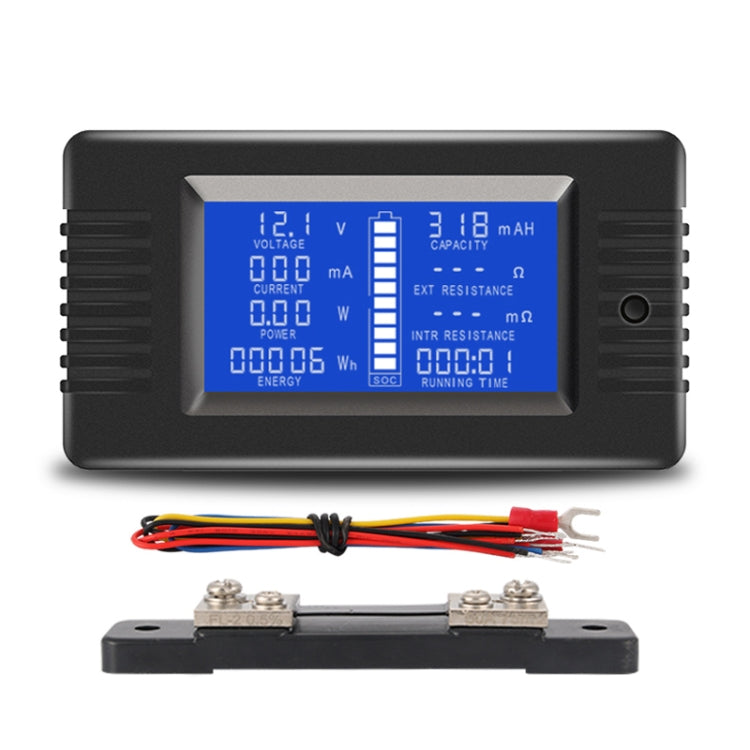

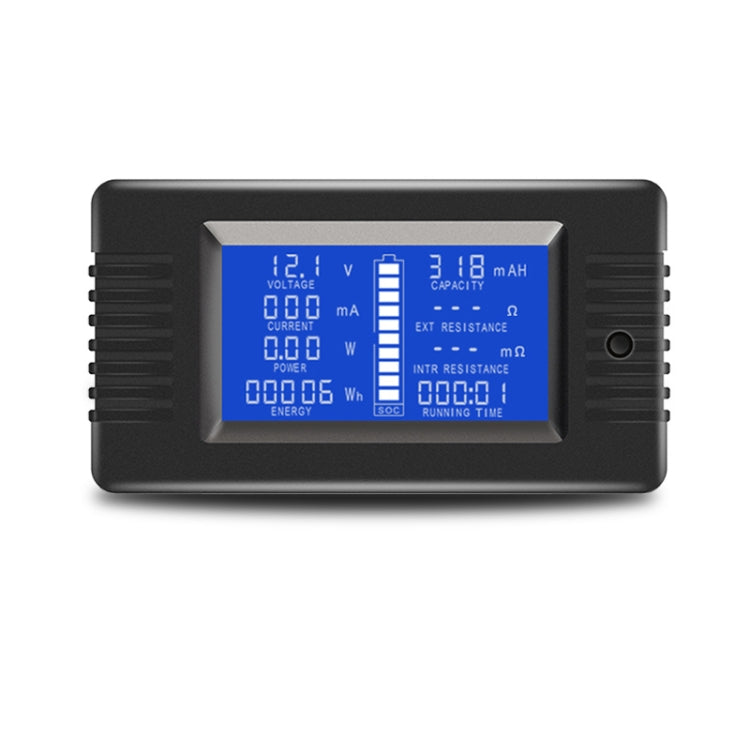

DC 0-200V Voltage Current Battery Tester, PZEM-015 With 50A Shunt, PZEM-015 With 100A Shunt, PZEM-015 With 200A Shunt, PZEM-015 With 300A Shunt, PZEM-015 Without Shunt – Durable Build, Easy to Use

DC 0-200V Voltage Current Battery Tester, PZEM-015 With 50A Shunt, PZEM-015 With 100A Shunt, PZEM-015 With 200A Shunt, PZEM-015 With 300A Shunt, PZEM-015 Without Shunt – Durable Build, Easy to Use.

Key Features:

• Mainly used to test various battery voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, discharge energy, power...
• Voltage:

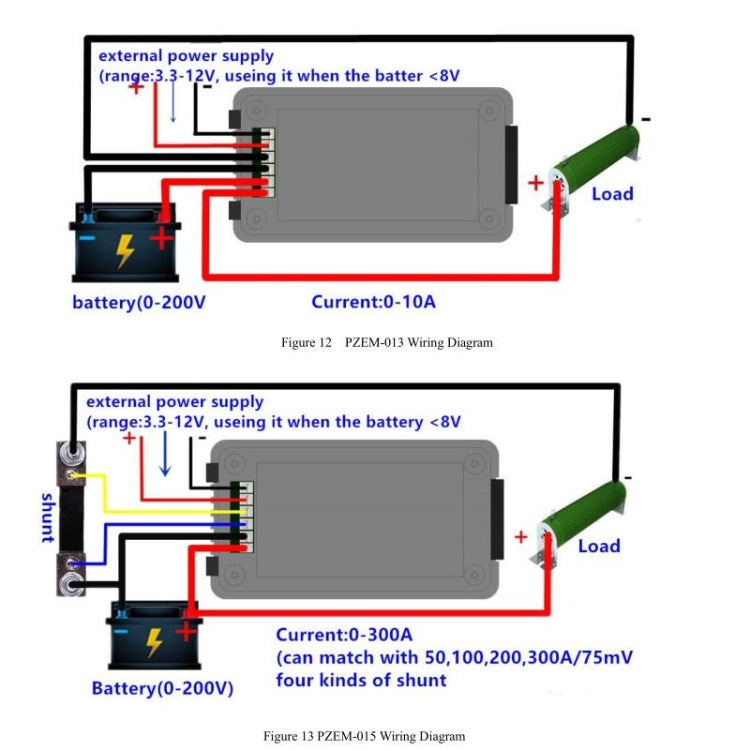

• - Measuring range: 0-200V. (When the test voltage is less than 8V, please use the independent power supply method)
• - Display format: less than 10V display such as: 9.99V
• Below 100V such as: 99.9V
• More than 100V display such as: 199V
• - Minimum resolution: 0.01V
• -Start test voltage: 0.05V
• - Measurement accuracy: 1%
• Current:
• - Measuring range: 0-10A (Model: PZEM-013)
• 0-300A (Model: PZEM-015)
• - Display format: less than 1A display as: 999mA
• Less than 10A is displayed as: 9.99a
• Less than 100A is displayed as: 99.9A
• Greater than or equal to 100A is displayed as: 199A
• - Minimum resolution: 1mA
• -Initial test current: 10mA (Model: PZEM-013)
• 20mA (Model: PZEM-015)
• - Measurement accuracy: 1%
• Power:
• - Measuring range: 0-2000W (Model: PZEM-013)
• 0-60000W (Model: PZEM-015).
• -Display format: less than 10W display as: 9.99W
• Less than 100W displayed as: 99.9W
• Less than 1000W displayed as: 999W
• Less than 10000W display as: 9.99kW
• Greater than or equal to 10000W displayed as: 19.9kw
• - Minimum resolution: 0.01W
• -Initial test power: 0.1W (Model: PZEM-013)
• 2W (Model: PZEM-015)
• - Measurement accuracy: 1%
• Impedance:
• - Measuring range: 0-1000Ohm
• - Display format: less than 100Ohm displayed as: 99.9Ohm
• Greater than or equal to 100Ohm displayed as: 999ohm
• When the test range is exceeded or the current is zero, "---" is displayed.
• - Minimum resolution: 0.1ohm
• - Measurement accuracy: 1%
• Internal resistance:
• - Measuring range: 0-999Milliohm
• -Display format: 999Milliohm When the test range is exceeded or the current is zero, "---" is displayed.
• - Minimum resolution: 1Milliohm
• - Measurement accuracy: 1%
• Note: Before testing the internal resistance, you need to preset the full voltage according to the battery type, and you can test it after it is fully...
• Capacity:
• - Measuring range: 0-1000Ah
• - Display format: less than 1AH is: 999mAH
• Less than 10Ah displayed as: 9.99 Ah
• Less than 100AH ??is displayed as: 99.9ah
• Less than 1000AH is displayed as: 999AH
• - Minimum resolution: 1mAH
• - Measurement accuracy: 1%
• The discharge energy is represented by the battery symbol, with a total of 10 grids, and each grid represents 10% of the power.
• Energy
• - Measuring range: 0-9999kWh
• -Display format: less than 1kWh display as: 999Wh
• Less than 10kWh displayed as: 9.99kwh
• Less than 100kWh is displayed as: 99.99kwh
• Less than 1000kWh is displayed as: 999.99kWh
• Greater than or equal to 1000kWh displayed as: 9999kWh
• Return to zero on overflow
• - Minimum resolution: 1Wh
• - Measurement accuracy: 1%

Package Info: Weight: 0.12kgs / 0.27lb, Size: 15cm * 12cm * 5cm / 5.91inch * 4.72inch * 1.97inch
