Cummins Inline6 Data Link Adapter Heavy Duty Diagnostic Tool Scanner, Diagnostic Tool Scanner – Durable Build, Easy to Use

Cummins Inline6 Data Link Adapter Heavy Duty Diagnostic Tool Scanner, Diagnostic Tool Scanner – Durable Build, Easy to Use.

Key Features:

• Introduction
• Note: You need to turn off the anti-virus software (including the system built-in one) before installation. Please do not place an order if you mind.
• The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB)...
• With full compliance to the Technology and Maintenance Council''''''''s RP1210 standard, the INLINE 6 will work with the latest Cummins INSITE, PowerSpec...
• It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications...
• The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.
• Each Cummins INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware,...
• Feature
• Supports SAE J1708/J1587 and J1939/CAN data links
• Both CAN ports auto detect between 250 & 500 kbps
• Supports USB full speed port at up to 2M baud rate
• Custom USB cable includes thumbscrews for secure mounting to INLINE 6
• Supports RS-232 PC serial port at up to 115.2k baud rate
• Is fully compliant with TMCs RP1210 standard
• Small enough to fit in pocket
• Attractive black powder coated aluminum housing provides ruggedness
• Derives 8 V to 50 V DC power from vehicle
• Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
• Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
• Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
• INLINE 6 is certified to meet European CE requirements
• Rated for -40to +85 degree Celsius operating temperature
• INLINE 6 meets rigorous Cummins in-cab environmental test requirements
• Language: English, Hungarian, Polish, Czech, Indonesian, Portuguese, German, Italian, Romanian, Danish, Japanese, Russian, Greek, Korean, Swedish, Spanish,...
• System: Windows 7 only

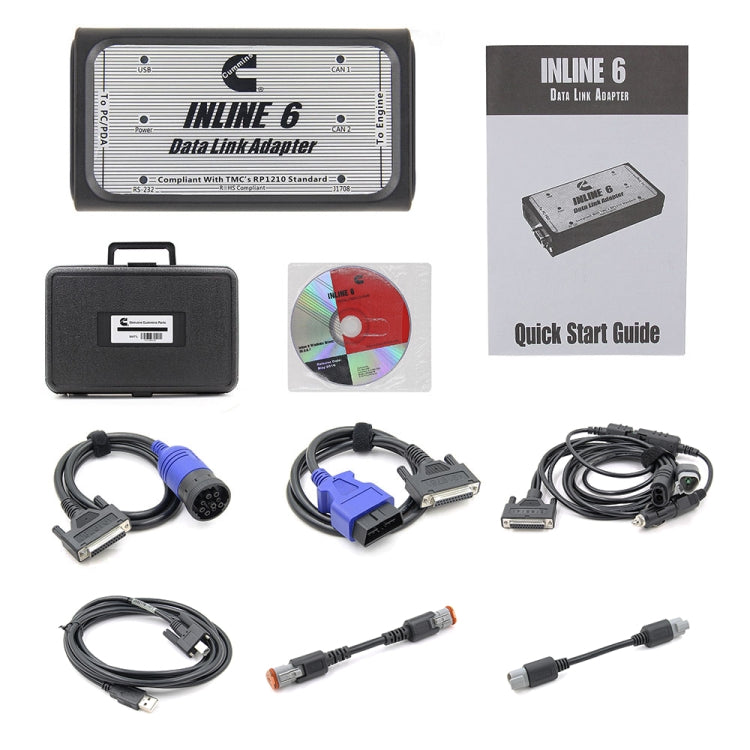

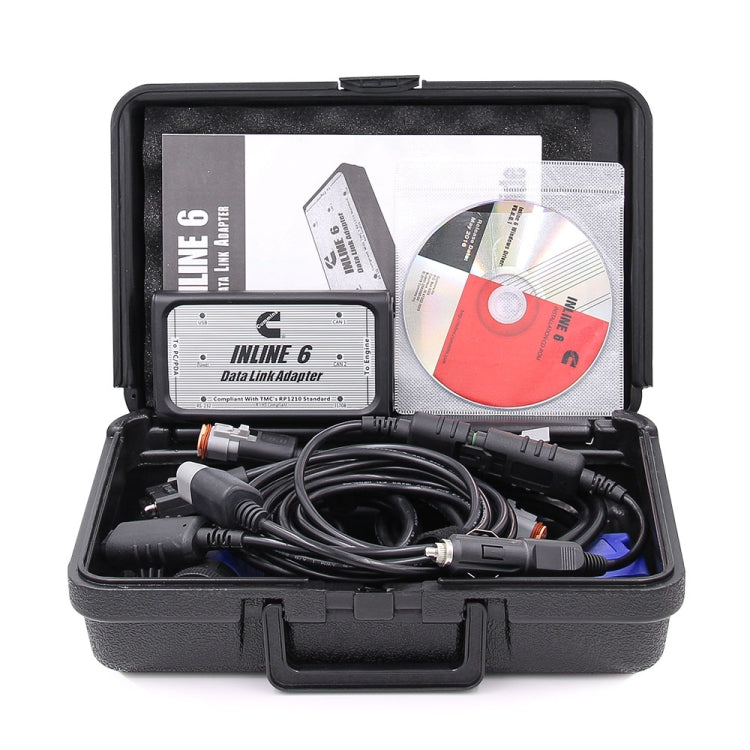

• Package List

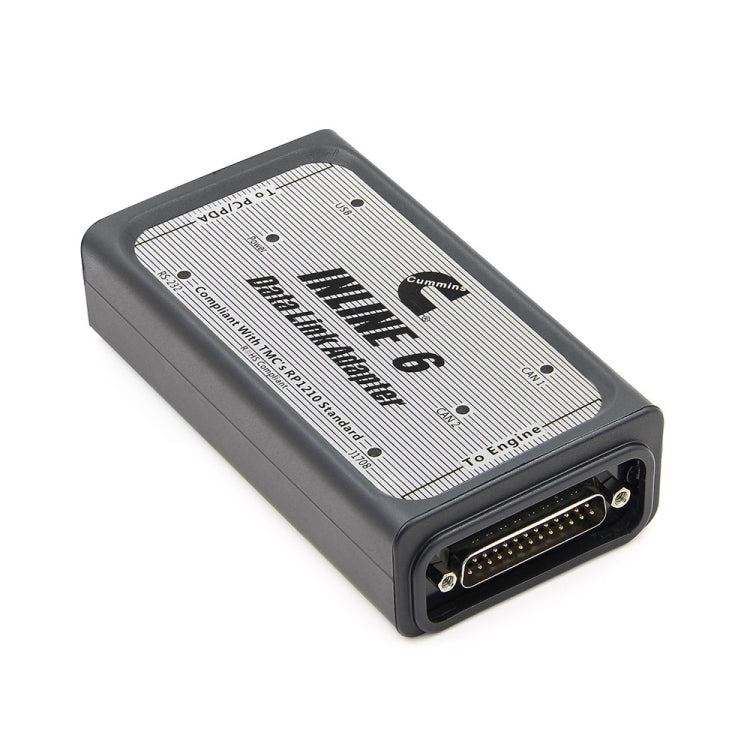

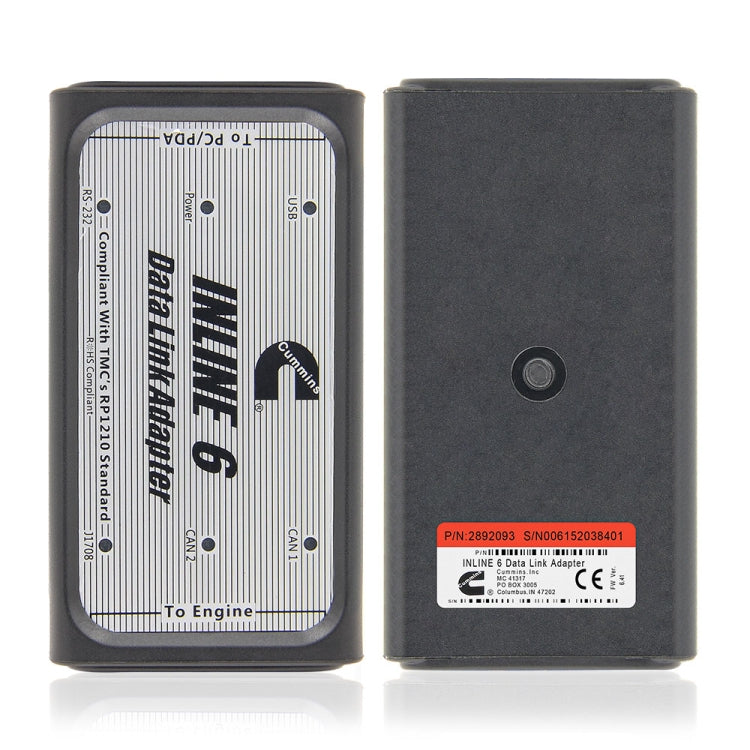

• - INLINE 6 data link adapter (P/N 2892093) x 1

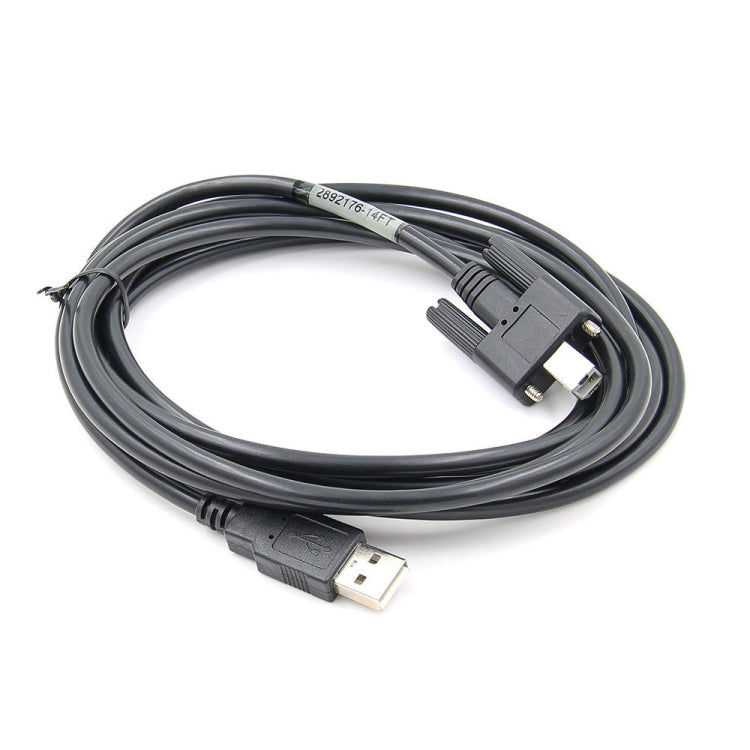

• - USB 14-foot cable (P/N 2892176) x 1
• - DB25F/9-pin data link cable (P/N 4919780) x 1

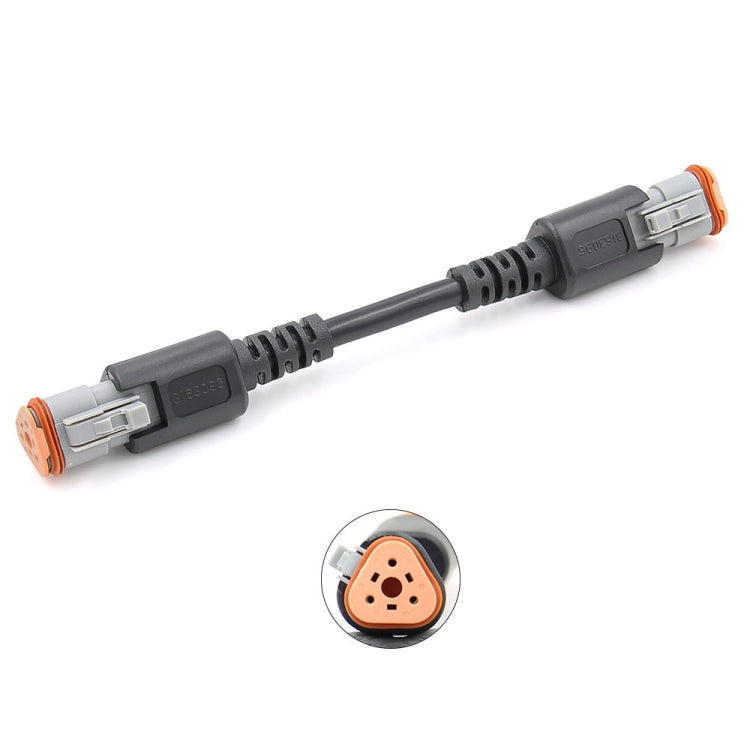

• - DB25F/3-pin/3-pin/2-pin cable (P/N 4919797) x 1
• - J1939 Gender Changer adapter (P/N 3163597) x 1
• - J1939 Backbone adapter (P/N 3163096) x 1
• - ObdII cable?? (P/N 4919781) x 1
• - Komatsu 12 pin cable x 1
• - INLINE 6 software CD (P/N 2892095)?? Include Insite 7.6.2 + keygen x 1

Package Info: Weight: 2.07kgs / 4.56lb, Size: 31cm * 22.3cm * 10.5cm / 12.2inch * 8.78inch * 4.13inch

Shipping: Shipping charges and final delivery dates are shown at checkout.
