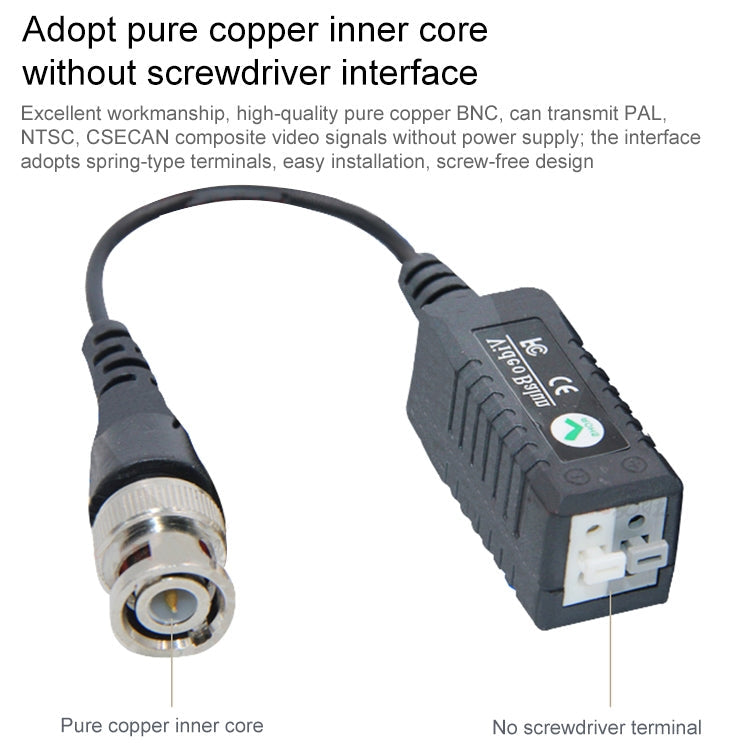

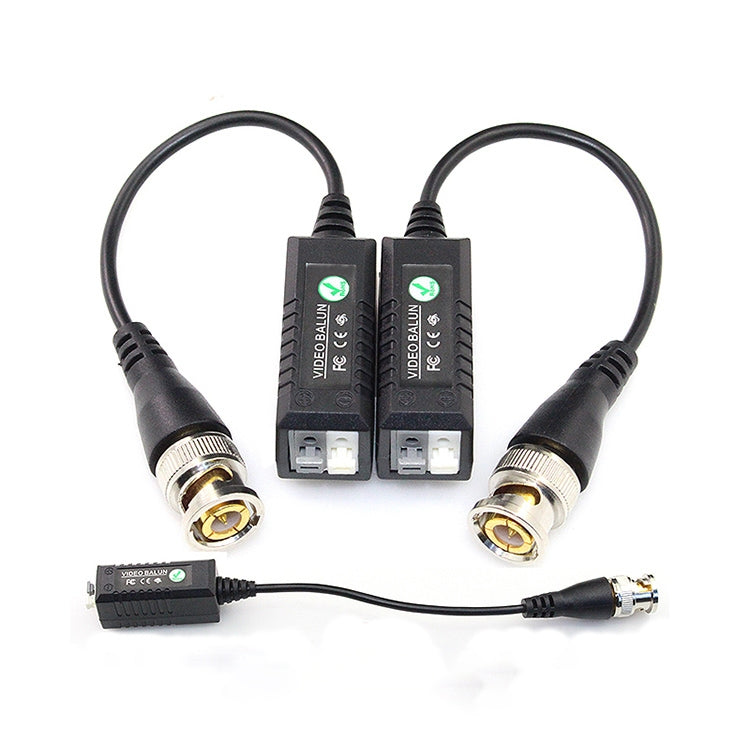

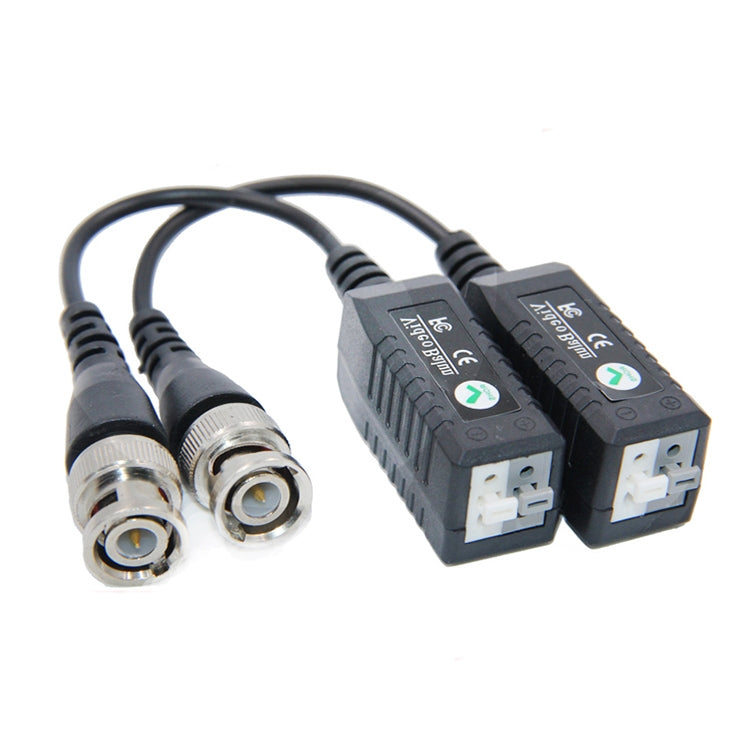

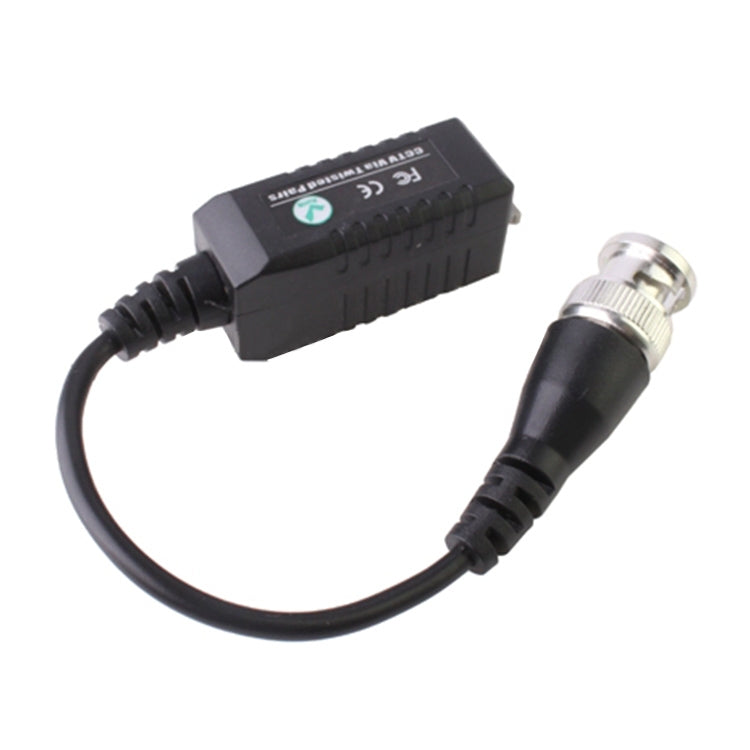

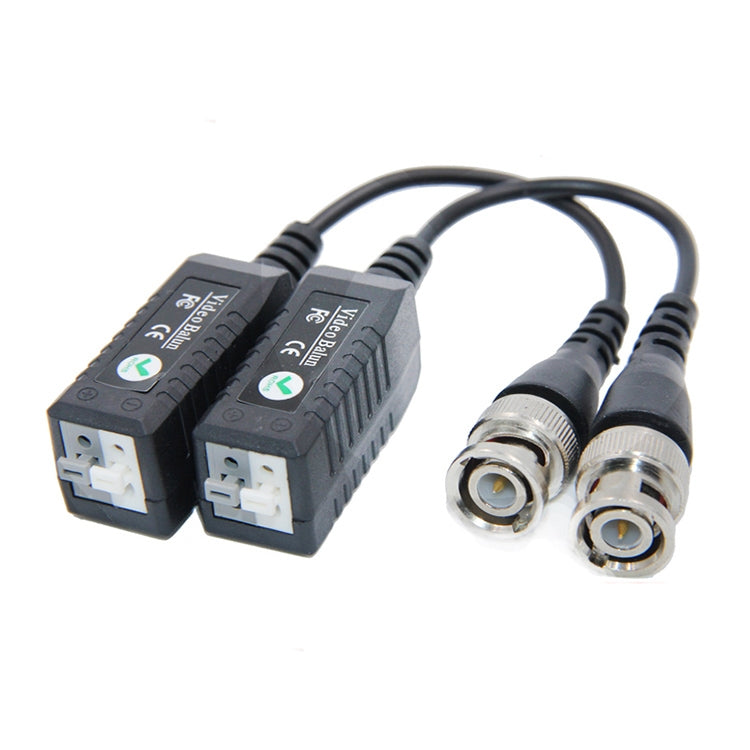

CCTV Via Twisted Pairs Passive UTP Video Transceiver, 103C – Durable Build, Easy to Use

CCTV Via Twisted Pairs Passive UTP Video Transceiver, 103C – Durable Build, Easy to Use.

Key Features:

• Features:
• Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
• Up to 1500m with any active UTP Video receiver
• "Press-Fit" terminal block
• NTSC, PAL, and SECAM video formats
• No power required
• 60dB crosstalk and noise immunity
• Compact size and easy installation
• Technical Specifications:
• Frequency response: DC to 8MHZ
• Attenuation: 0.5dB typ
• Impedance: BNC:75 ohms, CMRR: 60dB; Terminal: 100 ohms
• Working Temperature: -10 degree C to + 70 degree C
• Storage Temperature: -30 degree C to + 70 degree C
• Humidity: 0 to 95%
• Dimension: 39mm x 16mm x 19mm

Package Info: Weight: 0.07kgs / 0.16lb
