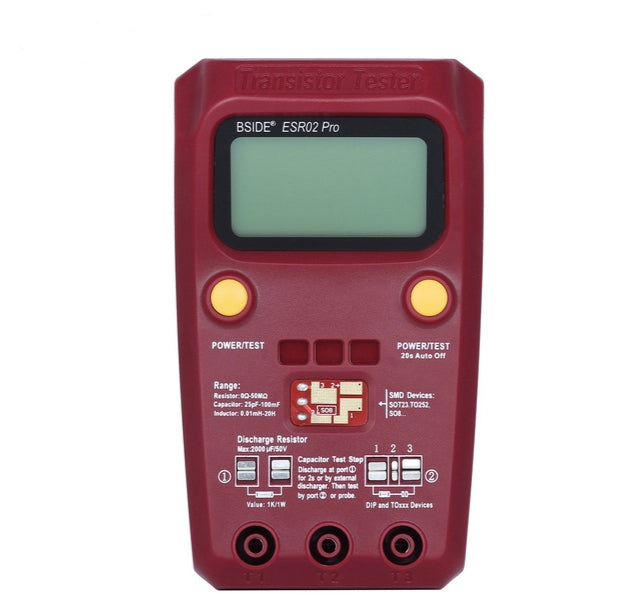

BSIDE ESR02 Pro Digital Transistor Test Table M328 Resistance Inductance Capacitance ESR Tester – Durable Build, Easy to Use

BSIDE ESR02 Pro Digital Transistor Test Table M328 Resistance Inductance Capacitance ESR Tester – Durable Build, Easy to Use.

Key Features:

• Features:
• Add startup voltage detection function
• Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, transistors, resistors and...
• Automatically test pin elements and display on LCD
• Reference for transistors, MOSFET protection diodes, and amplification factors that can detect the forward bias voltage of the transistors emitter.
• Measure the gate threshold voltage and gate capacitance of the MOSFET
• 1602 liquid crystal display adopts LCD (12864 liquid crystal backlight)
• Fast test speed, effective component test: 2 seconds (except for large capacitors, it takes a long time to measure large capacitance, and the measurement...
• One-click operation, boot test, one-click acquisition
• Power consumption shutdown mode: less than 20 nA
• Automatic shutdown function to avoid unnecessary waste, save battery power and improve battery life
• Specification:
• Two-button operation, automatic shutdown
• Only 20na off current
• Automatic detection of NPN, PNP bipolar transistors, N-channel and P-channel MOS field effect transistors, junction field effect transistors, diodes,...
• Automatically identify component pin arrangement

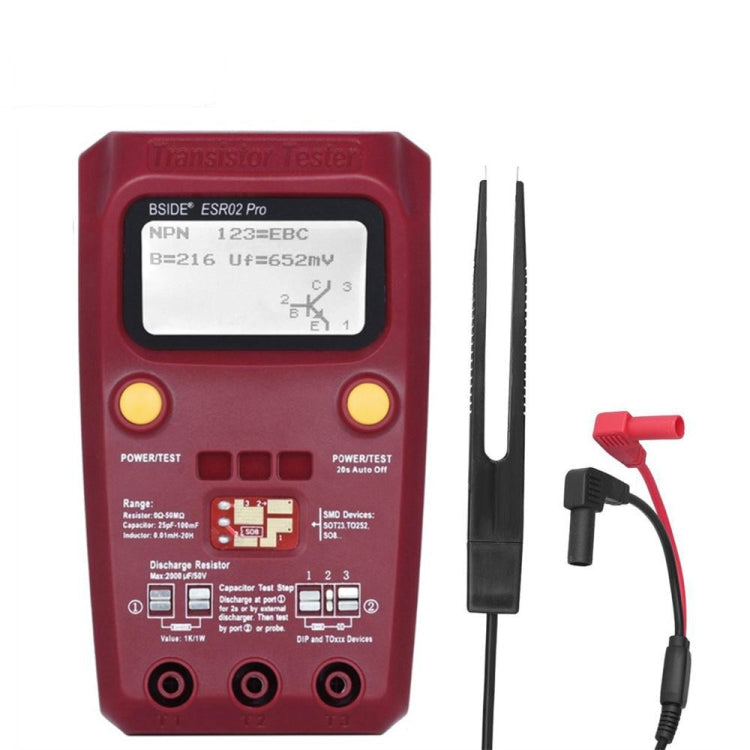

• Measurement of Bipolar Transistor Current Amplification Factor and Base-Emitter Threshold Voltage
• Identification of Darlington transistor by base-emitter threshold voltage and large current amplification factor
• Detects bipolar and MOS transistor protection diodes
• Gate MOS FET threshold voltage and gate capacitance measurement
• Two resistances and resistance symbol display can be measured simultaneously. The decimal value shown on the right is 4. The resistance symbols on both...
• Resistance measurement resolution is 0.1Ω, can measure 50MΩ
• Can measure 325pf-100mf capacitor with 1pf resolution

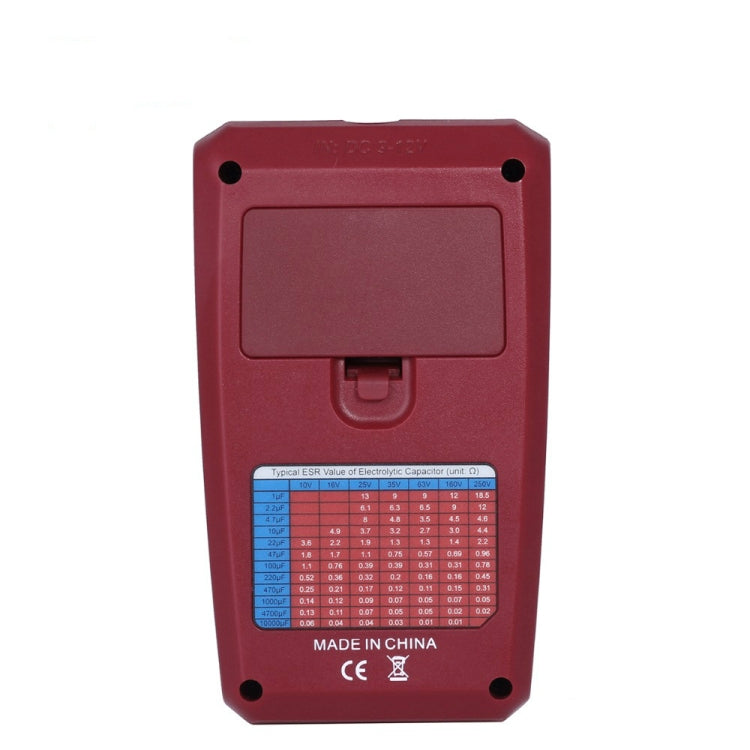

• 2uf more capacitors can measure equivalent series resistance at the same time. Two can be displayed as decimal values ??with a resolution of 0.01Ω
• The two diodes can be displayed with the diode symbol in the correct order, and the diode forward voltage can be given.
• The LED was detected as having a higher diode forward voltage. The combination of LEDs is identified as two diodes
• Can measure a single diode reverse capacitance. If the bipolar transistor is connected to the collector or emitter of the base and pins, the collector or...
• Can be connected with single measurement rectifier bridge

Package Info: Weight: 0.25kgs / 0.54lb, Size: 18cm * 10cm * 6cm / 7.09inch * 3.94inch * 2.36inch
