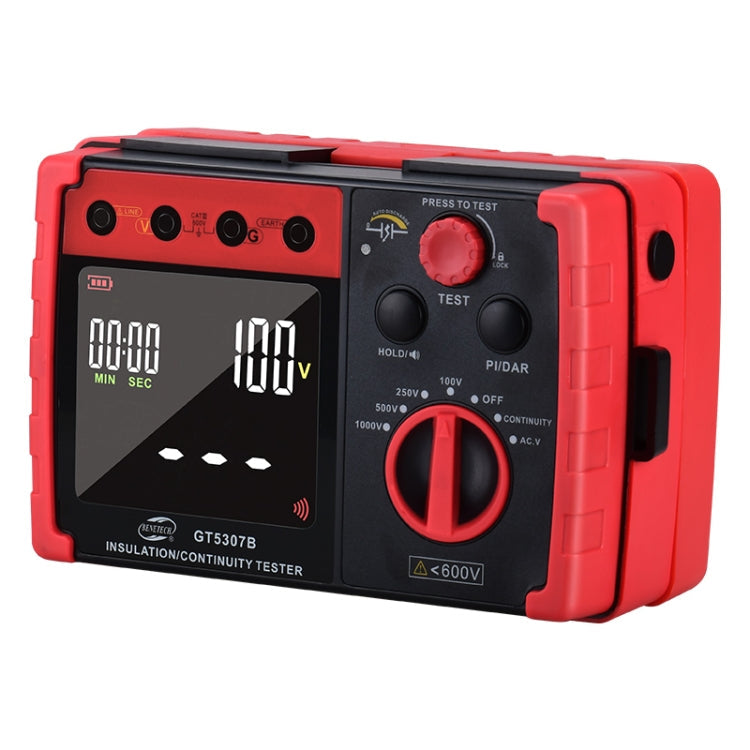

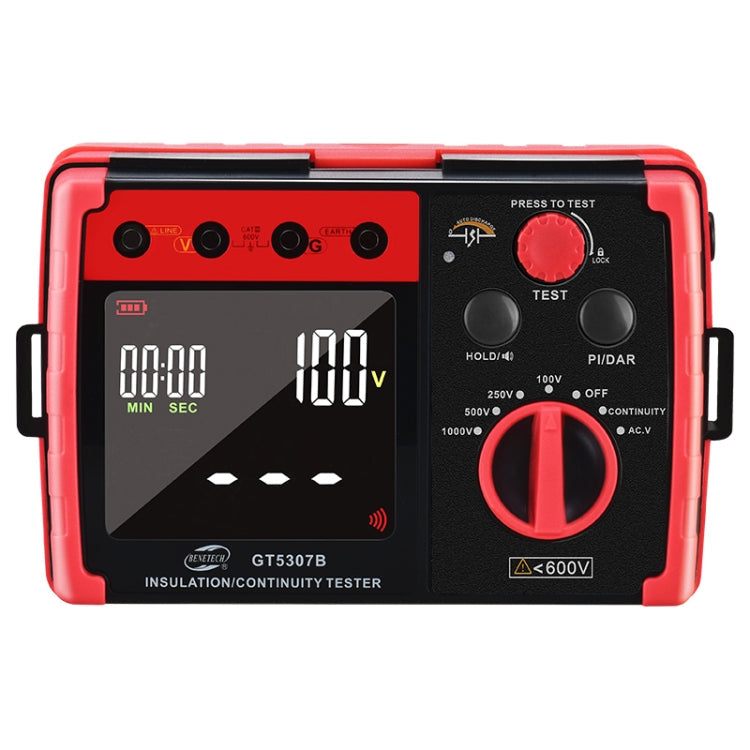

BENETECH GT5307B Professional LCD Digital Insulation Resistance Tester, GT5307B Insulation Resistance Tester – Durable Build, Easy to Use

BENETECH GT5307B Professional LCD Digital Insulation Resistance Tester, GT5307B Insulation Resistance Tester – Durable Build, Easy to Use.

Key Features:

• Features
• It is suitable for measuring the insulation resistance of various electrical equipment and insulating materials such as transformer, motors, cables,...

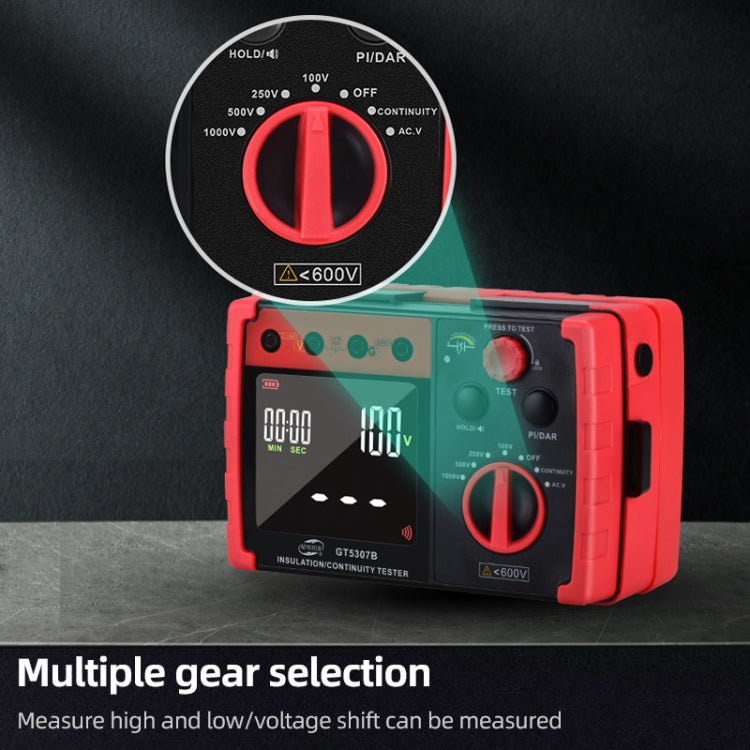

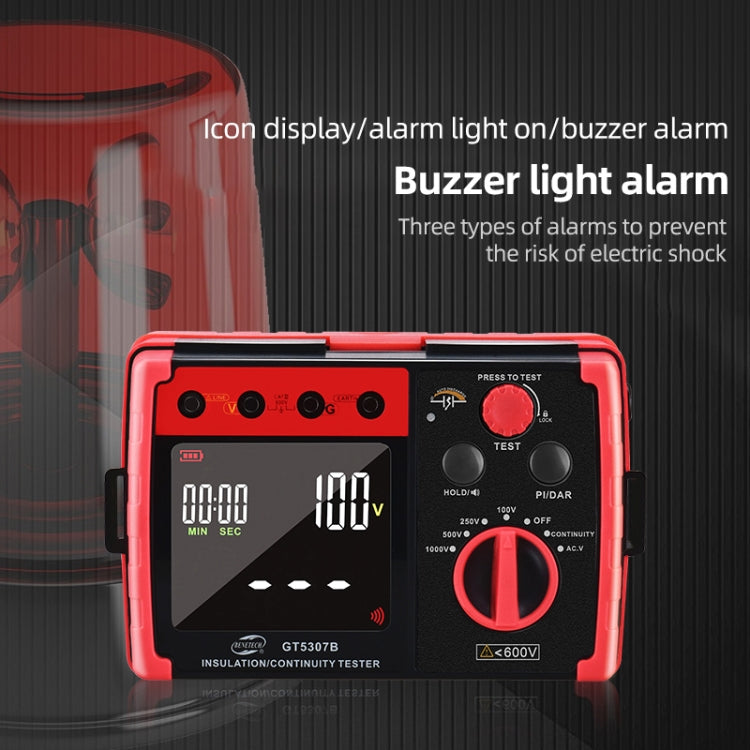

• Icon display/alarm light on/buzzer alarm three types of alarms to prevent the danger of electric shock. Multiple gears can be selected to measure high and...
• This instrument is a high performance digital instrument, with large LCD display, display screen make it easy to read measurements.
• Insulation resistance meter is beautiful, wide range, high accuracy, high resolution, convenient operation, easy to carry.

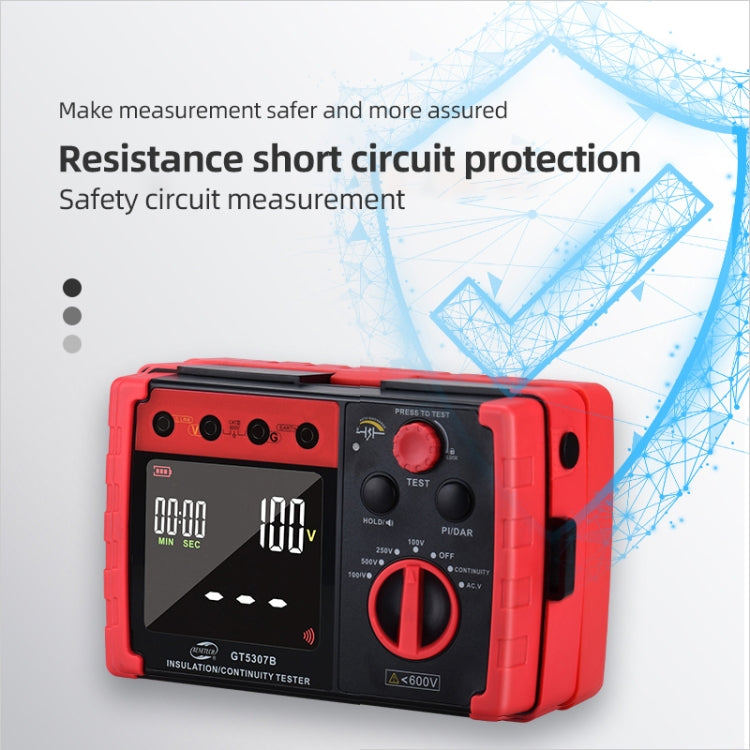

• Resistance short circuit protection makes the measurement safer and more assured. Carry out maintenance, testing and verification of various electrical...
• Functions
• Measurement of insulation resistance
• AC measurement
• DC measurement
• Small resistance measurement
• Live detection of tested resistance
• Short circuit protection of measured resistance
• AC and DC automatic identification
• Measurement data is locked.
• Polarization Index
• Absorption ratio test

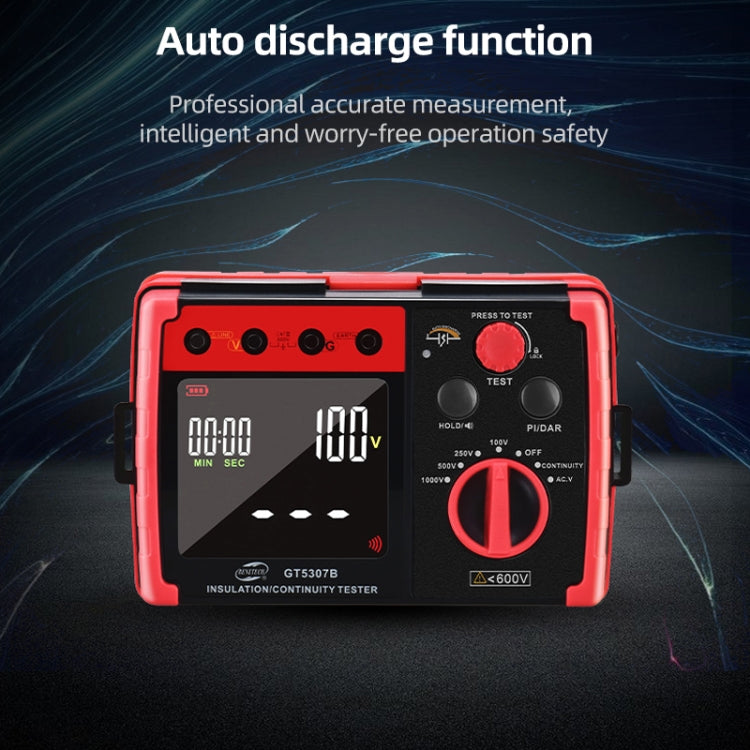

• Automatic discharge
• Low battery reminder
• Large LCD screen digital display
• External DC power supply DC9V 1.5A
• 10M internal resistance measurement
• Over limit alarm
• Auto range
• Red alarm light, buzzer alarm.
• High voltage alarm
• Test voltage display
• Specification
• Technical parameters display: Large-screen LCD (up to 500 counts).
• Over limit indication: Hi: The mark appears on insulation resistance range.
• Auto range: Higher range: 500 counts, Lower range: 1 count (only on insulation resistance range)
• Sampling Rate: 2 times / second
• Allowed altitude: Less than or equal 2000m (for indoor use)
• Operation environment: Temperature: 0-40 degree C / Humidity: Less than or equal 85%
• Operation environment: Temperature: -20-60 degree C / Humidity: Less than or equal 90%
• Overload protection: Insulation resistance range: AC 1200V / 10 seconds; Voltage range: AC 720V / 10 seconds
• Withstand voltage:AC 6000V (50 / 60Hz) / 5 seconds (between circuit and periphery)
• Insulation resistance: Greater than or equal 1000M ohms / DC 1000V (between circuit and periphery)
• Power supply: DC 9V (6x1.5V AA batteries, not included)
• Current consumption: Approximately 1.5A (normally maintained at approximately 50mA)
• Battery Life: About 12 hours
• Dimension: 176 x110 x 77mm

Package Info: Weight: 1.00kgs / 2.21lb, Size: 21cm * 20cm * 10cm / 8.27inch * 7.87inch * 3.94inch
