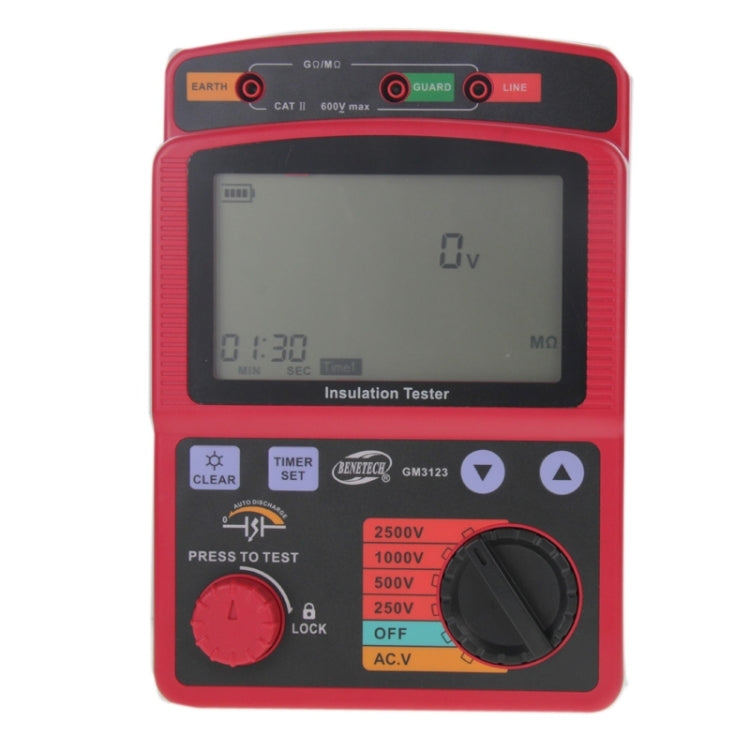

BENETECH GM3123 High Voltage Insulation Tester, GM3123 – Durable Build, Easy to Use

BENETECH GM3123 High Voltage Insulation Tester, GM3123 – Durable Build, Easy to Use.

Key Features:

• Features
• Auto discharge function to make the operation safe
• LCD backlight
• Digital readout display
• Live circuit warning symbols with audio sounds
• Anto power off function (in 10 minutes without operation)
• Timer measurement function
• Low battery indication

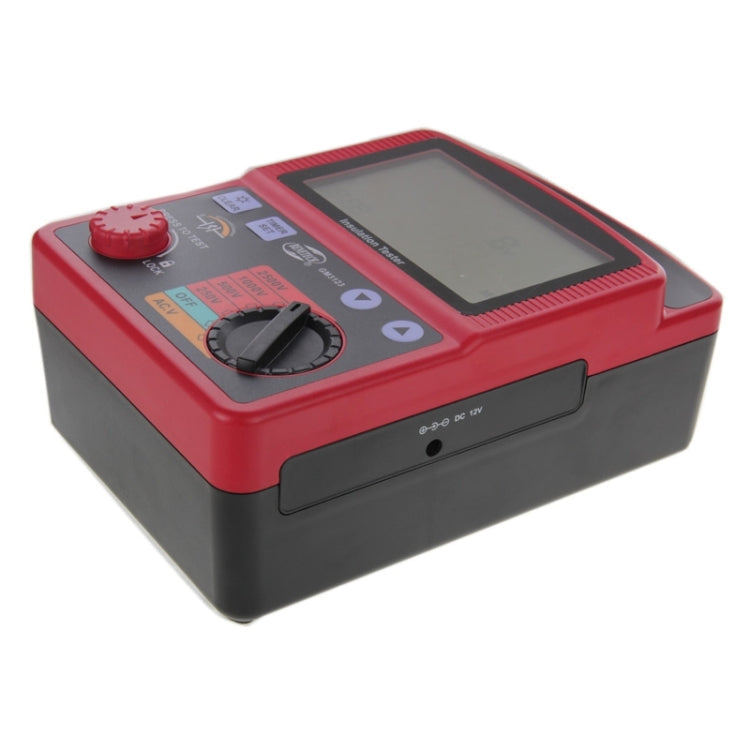

• Suitable for 12V DC adapter (12V / 1A)
• Specifications
• Display: Max. 999 counts LCD display (1000 counts only at 1T is displayed) Bar graph / max. 36 points.
• Over range indication: OL mark appears on insulation resistance range. LO mark appears on voltage range
• Auto-ranging: Range shifts to upper range: 1000 counts. Range shifts to lower range: 95 counts (merely on the insulation resistance range)
• Sample rate: 0.5-10 times / sec
• Operable altitude: Less than 2000m (Indoor use)
• Operation circumstance: Temperature 0-40 Celsius Degree, humidity: <=85%
• Storage circumstance: Temperature -20-60 Celsius Degree, humidity: <=90%
• Overload protection: Insulation resistance: AC 1200V / 10s, Voltage: AC 720V / 10s
• Voltage resistance: AC8320 (50/60Hz)/5 seconds (between electrical circuit and enclosure)
• Insulation resistance: 1000M of more / DC 1000V (between electrical circuit and enclosure)

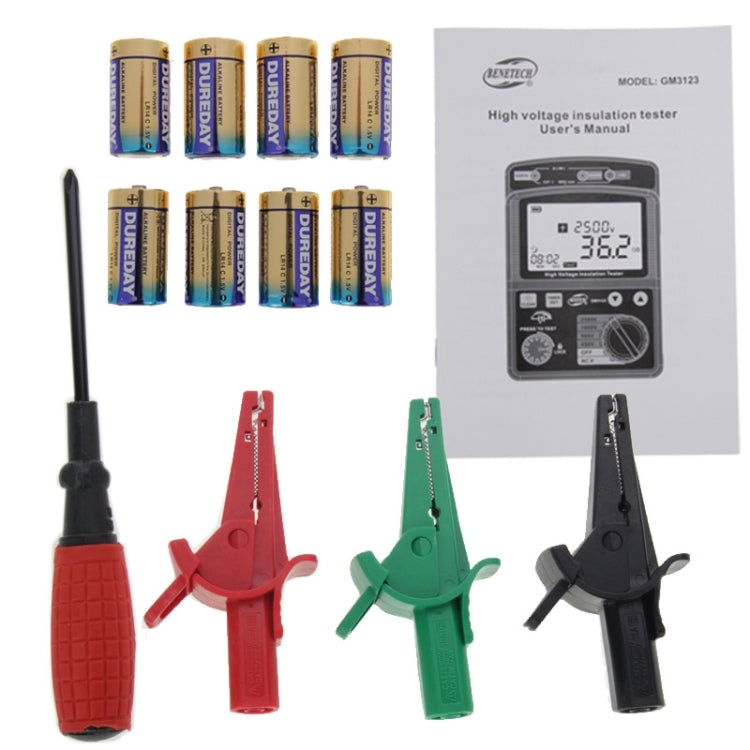

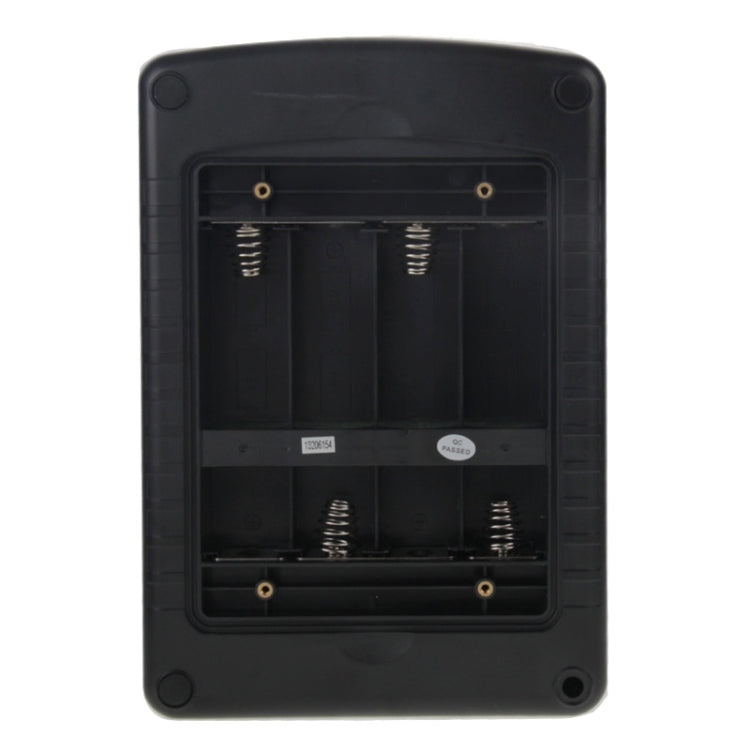

• Power Supply: DC 12V (8 x 1.5V LR14 batteries) (included)
• Size: 153mm x 96mm x 220mm
• Weight: 1032g (without batteries and test wires)

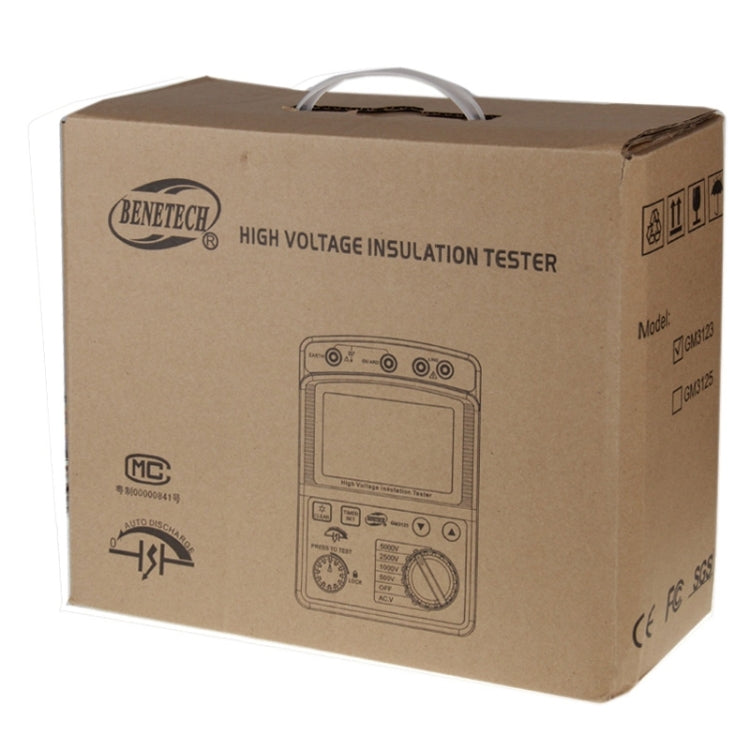

Package Info: Weight: 3.34kgs / 7.36lb, Size: 33cm * 27cm * 13.5cm / 12.99inch * 10.63inch * 5.31inch
