B877 3 Channel Personal Listener Headset Listening Mixer – TPU

B877 3 Channel Personal Listener Headset Listening Mixer – TPU.

Key Features:

• About The Product
• LINEPAUDIO B877 personal listener. Designed for players who want to listen to their voices via headphones or earphones, such as their vocal and musical...
• Three input channels are outputted by 1/4 and 1/8 (6.5 and 3.5 mm) of headphone holes through various level controllers, and the microphone channel and...
• Line input: 1/4 TRS stereo Jack for connecting line level signal sources, such as mixer listening / auxiliary output, cassette player output, CD player...
• Ground connecting: Plug jumper to disconnect the chassis grounding input of microphone pin 1 and the microphone passes through.
• The microphone: XLR Jack is in parallel with the microphone input Jack (hardwired) for delivery to the mixer or other microphone-level input device.
• Microphone input: XLR balanced Jack for connecting capacitors or moving-coil microphones.
• Device input: 1/4 TRS stereo Jack for connecting device or line level signals, such as guitar processors, keyboards, musical instruments, keyboards, or...
• Mono / stereo jumper: Select whether the input Jack is mono or stereo.
• Left / right output: Transformer balanced XLR output from device input.
• hGrounding route: A plug jumper used to disconnect the chassis from the output Jack of the 1/4 RS device.
• Mono / stereo jumper (located below the line input): select whether the line input Jack is mono or stereo.
• Note: The interface of the XLR Jack under MONO mode can be used for "Phantom Power" which is required to connect the mixer.
• Headset output: 1/4 stereo Jack and 1/8 stereo Jack for connecting stereo headphones or headphones.
• Line level: Adjust the level signal from the line input to the headphone mixing.
• Microphone level: Adjust the level signal from microphone input to headphone mixing.
• Inst. level: Adjust the level signal from inst. input to headphone mixing.

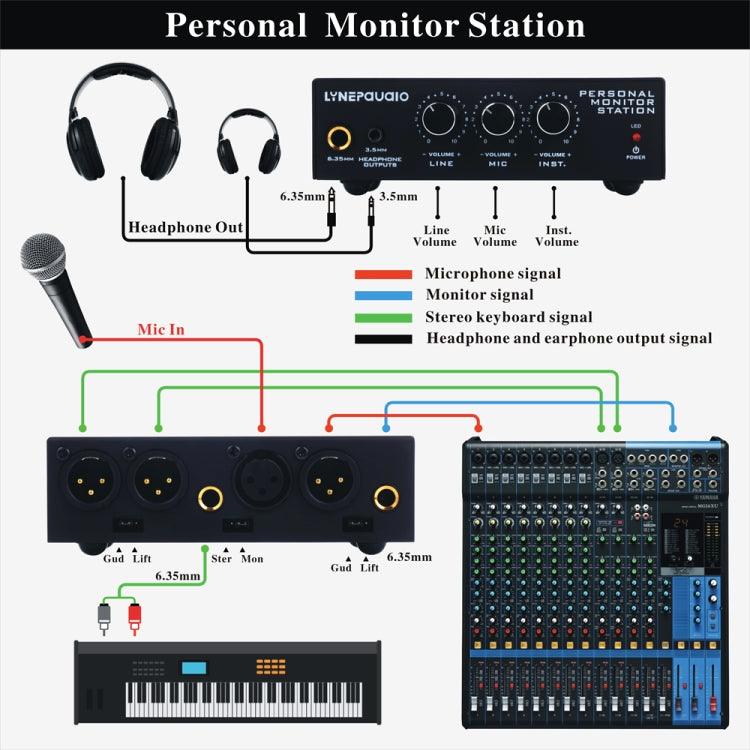

• The line input is connected to a 1/4 "stereo or mono plug." If the plug is 6.35mm stereo, select the mono / stereo jumper set by stereo. The plug is a...
• Microphone input is connected to a dynamic microphone or capacitive microphone via a standard XLR cable. If you are using a capacitive microphone, you need...
• Instrument input is connected to the guitar preamplifier output, keyboard or any stereo or monophonic instrument signal. Select stereo or mono.
• Features
• Max input level: -20 dB XLR, +40dB line, +15dB instrument.
• Input impedance: 50K ohms
• Output frequency response: 10-30kHz +/-3dB
• Output impedance HDPHN: 10ohms
• Output impedance: 2 ea; 100ohms balanced
• Gain: 20 dB 1/4 inch, 50dB XLR
• HDPHN frequency response: 20Hz-20kHz
• S/N ratio: 90dB
• Power: DC 9-16V
• 1/4 TRS stereo / mono listening input.
• The XLR microphone enters w/ pass-through.
• 1/4 TRS stereo instrument input, 6.35mm / 3.5mm stereo / mono output.

Package Info: Weight: 0.66kgs / 1.46lb, Size: 22cm * 20cm * 6cm / 8.66inch * 7.87inch * 2.36inch
