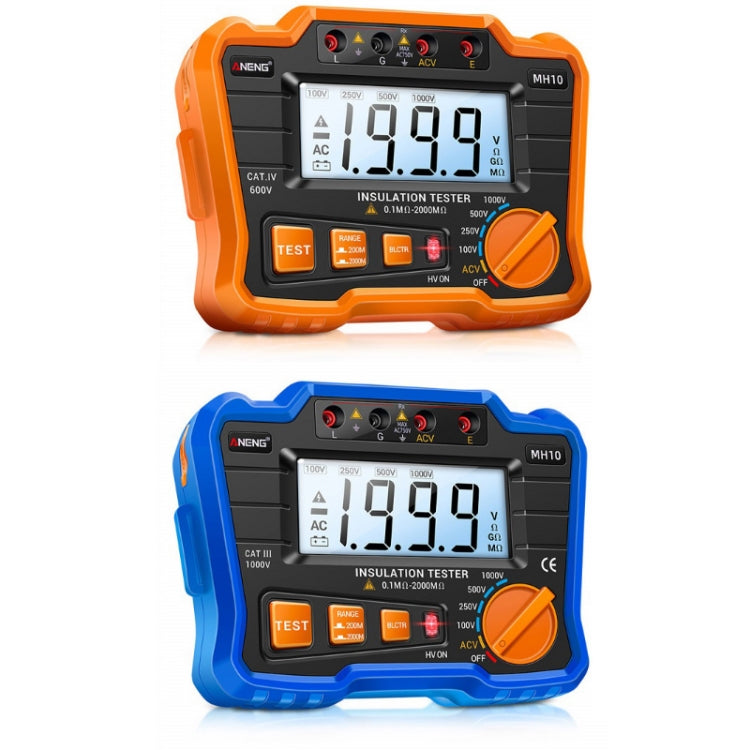

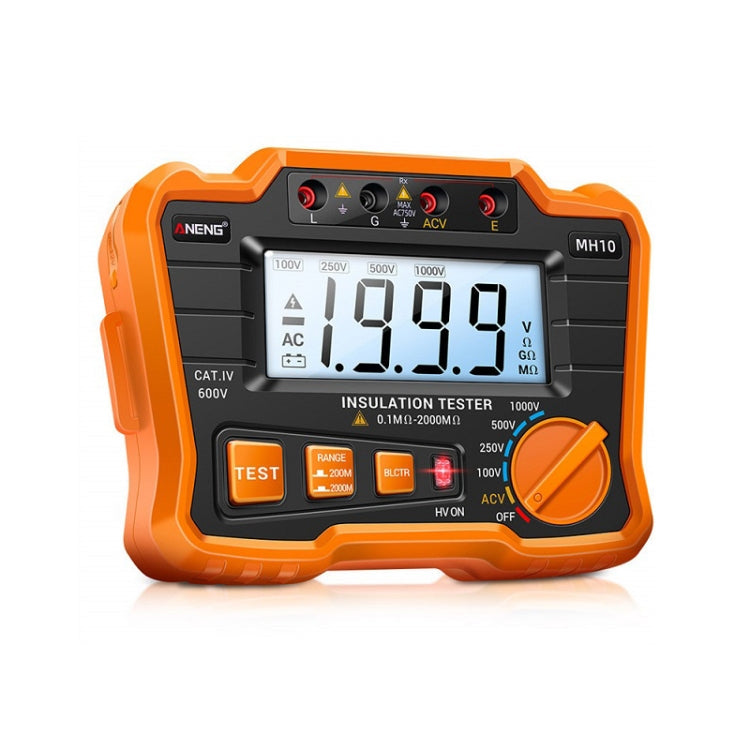

ANENG MH10 Digital High Precision Insulation Resistance Tester, Orange, Blue – TPU

ANENG MH10 Digital High Precision Insulation Resistance Tester, Orange, Blue – TPU.

Key Features:

• Material: ABS

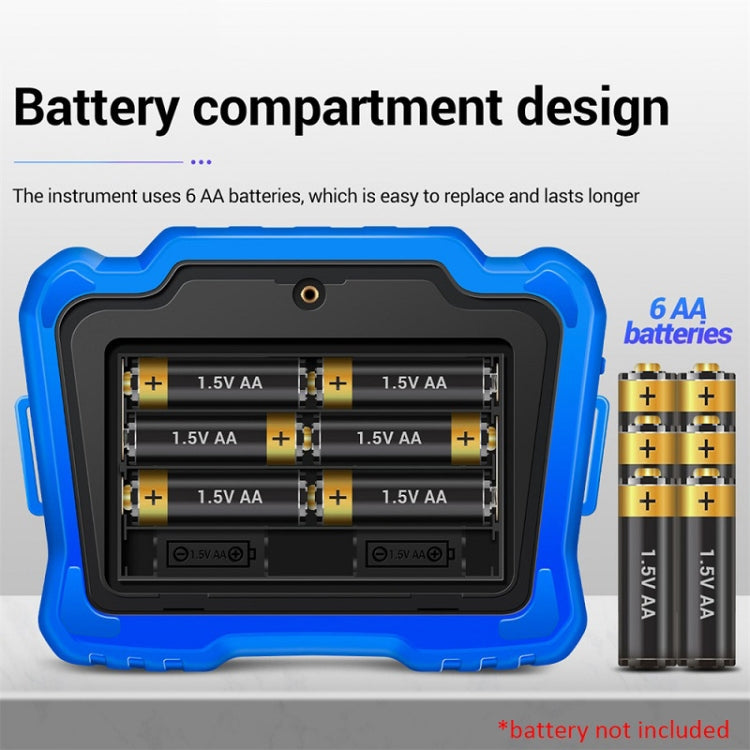

• Battery: 6 AA batteries (not included)
• Short circuit current: 1.7mA/1.4mA
• Low battery voltage indication: the display shows
• Count: 1999 (MAX)
• Test voltage: 100V/250V/500V/1000V
• The total length of the lead wire: 91.5 cm
• The megohmmeter insulation tester is suitable for measuring the insulation resistance of various electrical equipment and insulating materials such as...
• Megohmmeter tester is suitable for maintenance, repair, testing and verification of various electrical equipment
• The rated output voltage can be used with function knob, MH10 is 100V, 250V, 500V, 1000V

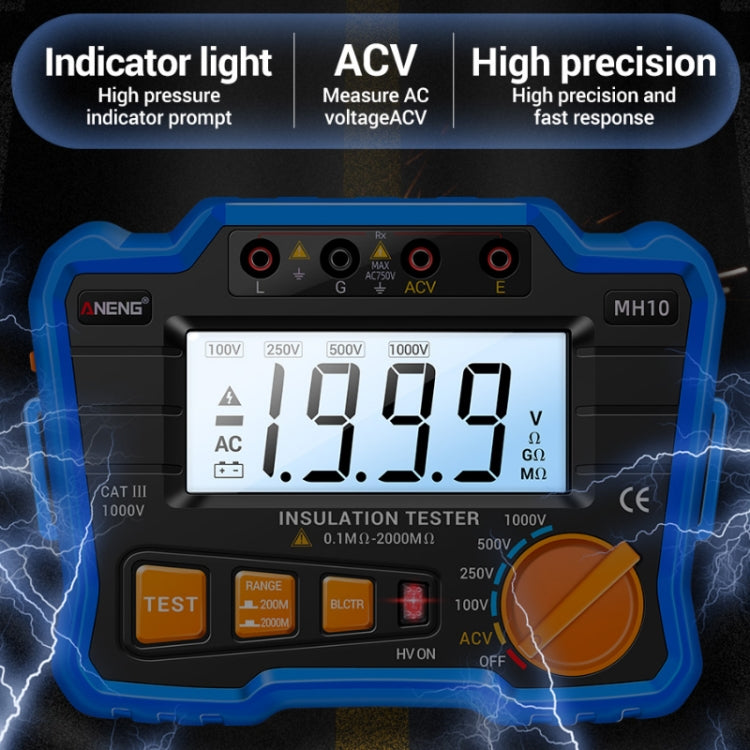

• The LED light (HV ON) and the HV on the left side of the display indicate the high voltage output in the instrument and the danger of electric shock
• The measurement range of MH10 is 0.1-1999 milliohms, and the range can be changed manually
• Strong load capacity, output short-circuit current greater than 1.0mA
• The digital megger can measure AC voltage from 1V to 750V, and the frequency of AC voltage is 40Hz to 70Hz
• Appearance size: 160x125x85mm
• Weight: about 543.2 grams

Package Info: Weight: 0.86kgs / 1.90lb, Size: 22cm * 21cm * 9cm / 8.66inch * 8.27inch * 3.54inch
