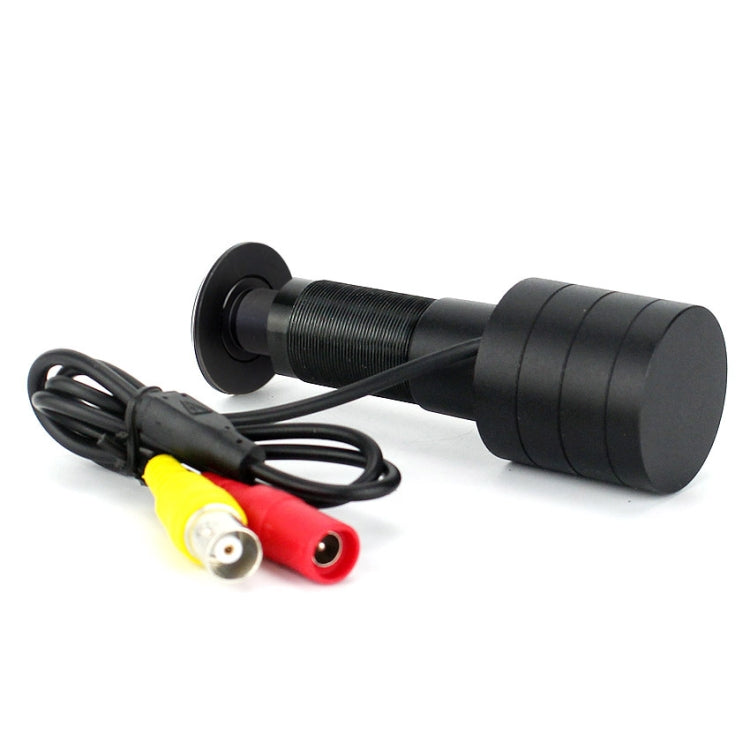

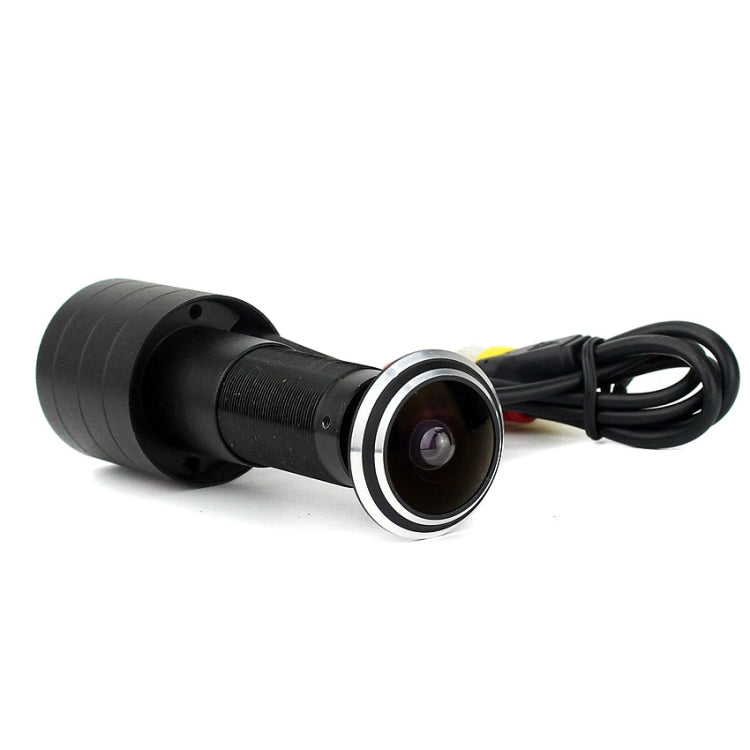

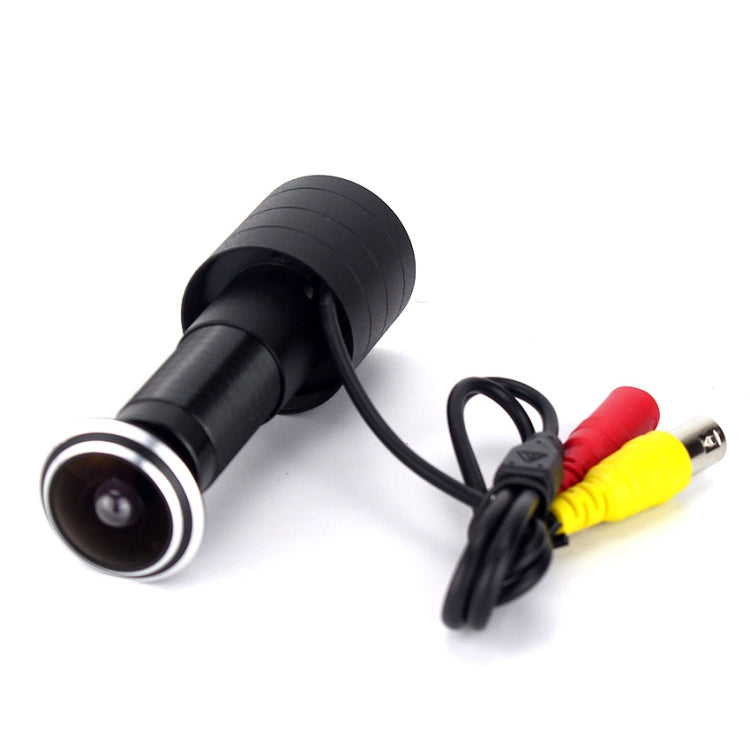

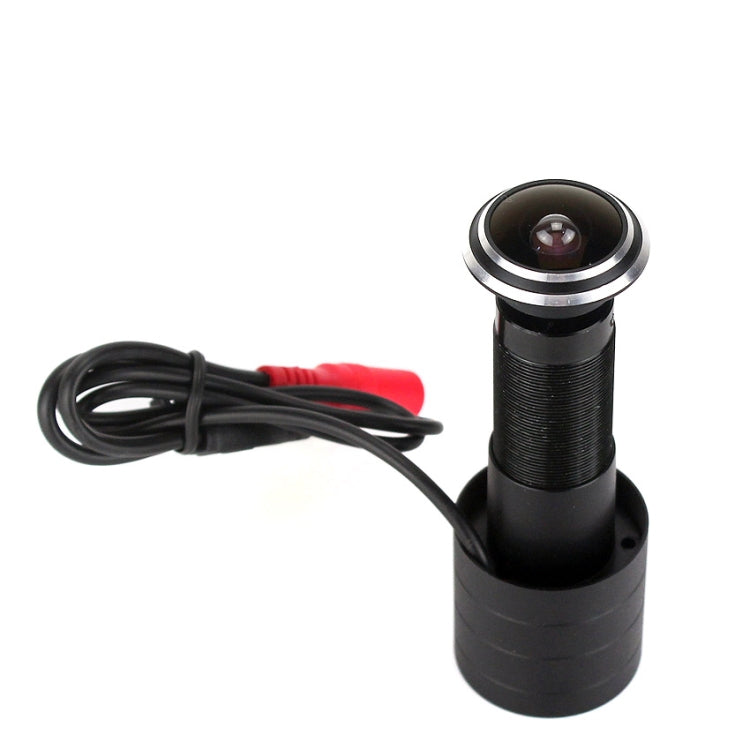

800TVL CVBS Analog door cat eye Color wide view Door Viewer Camera Adjustable Home Security Camera – TPU

800TVL CVBS Analog door cat eye Color wide view Door Viewer Camera Adjustable Home Security Camera – TPU.

Key Features:

• Alarm:No Resolution :800TVL signal:CVBS, (support to monitor Ditectly) Power Supply:DC 12V Video Output:BNC Model:SMT-DVC800 The total length...

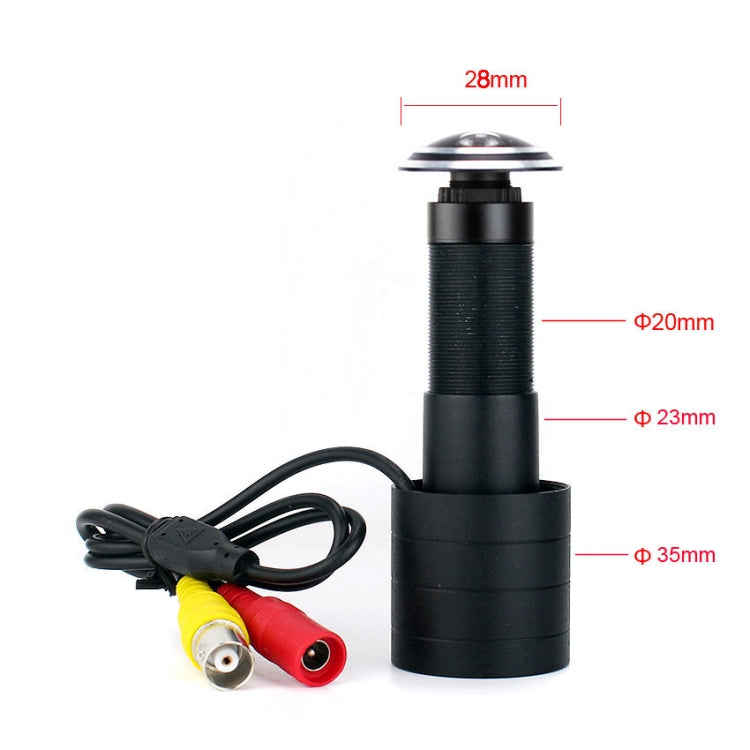

• At the bottom of the thickest part of the 35mm
• Horizontal resolution 800 TV Lines,
• No amount of infrared light (without IR)
• Scanning frequency PAL: 15.625 kHz / 50 KHz
• Scanning System 2: 1lnterlace, 2: 1 interlace
• Minimum illumination 0.5 Lux
• Internal Synchronization Internal / DC12V
• Signal / noise ratio greater than 48dB Better than
• Auto Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec.
• Video Output 1 Vp-p, 75 composite signal
• Power supply 12V DC ( 10%)
• 1mm lens configuration
• View Angle About 120degree
• Power Consumption 800mA / DC12V

Package Info: Weight: 0.14kgs / 0.32lb, Size: 17cm * 15cm * 5cm / 6.69inch * 5.91inch * 1.97inch
