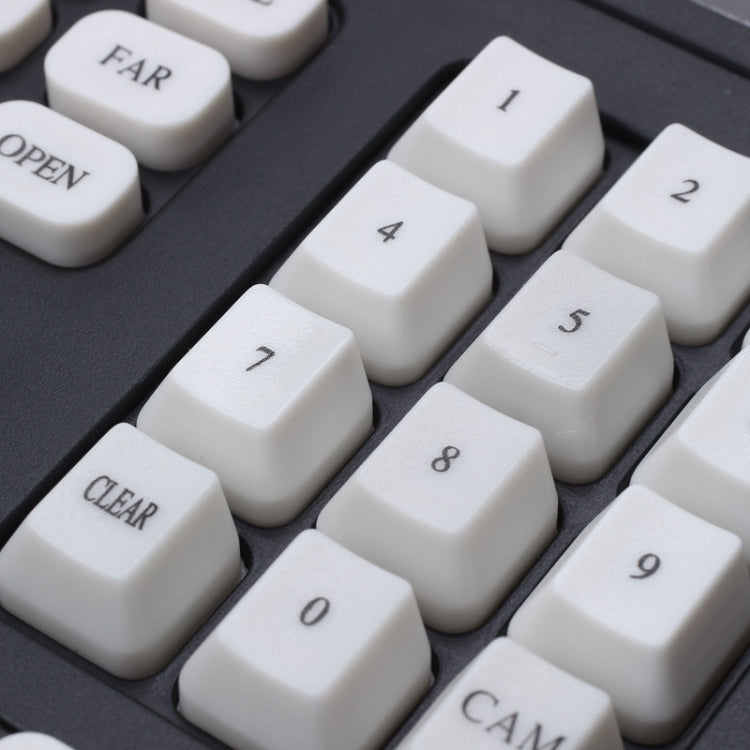

8003H Analog Coaxial Dome Control Keyboard RS485 PTZ, 2 Axis, 3 Axis, 4 Axis – Durable Build, Easy to Use

8003H Analog Coaxial Dome Control Keyboard RS485 PTZ, 2 Axis, 3 Axis, 4 Axis – Durable Build, Easy to Use.

Key Features:

• Multi-functional design, can realize the setting and calling of camera head, high-speed dome, constant speed dome, low-speed dome, lens control and preset point

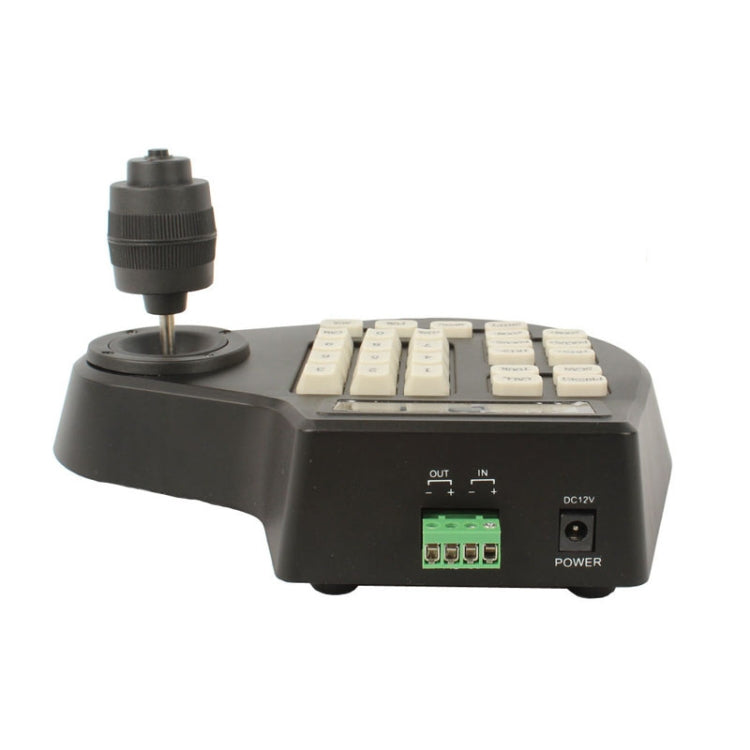

• Input voltage: DC12V/500mA
• Power consumption: less than 5W

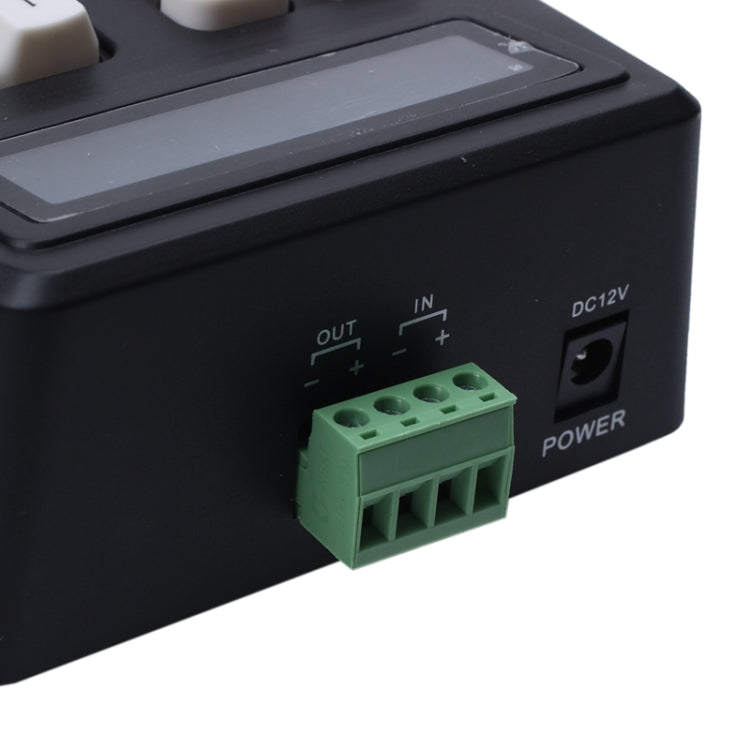

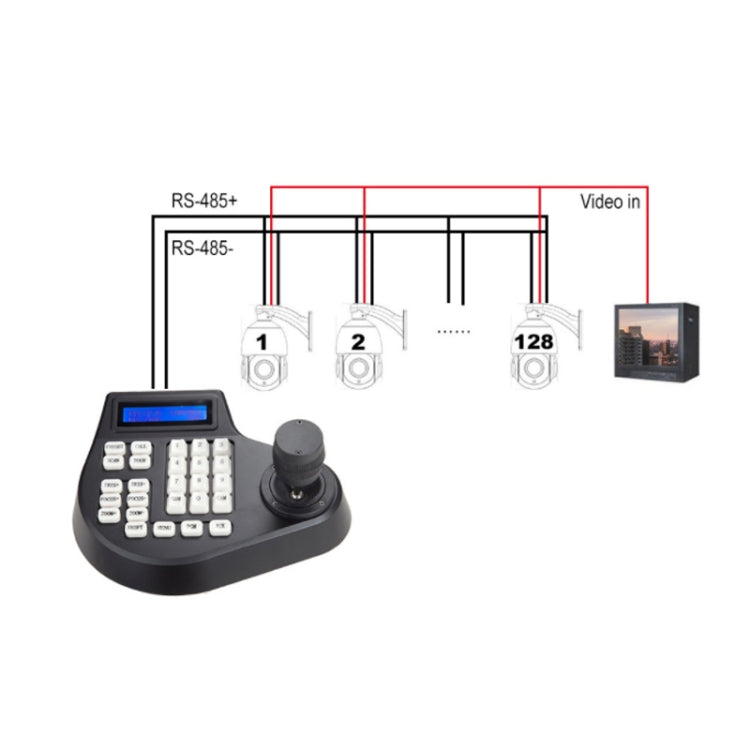

• Communication interface: RS485 bus
• Communication distance: 1500m (0.5mm twisted pair)
• Communication protocol: PELCO-D, PELCO-P, SAMSUNG, AD, PANASONIC
• Baud rate: 9600
• Communication parameters: 8 data bits, 1 stop bit, no parity

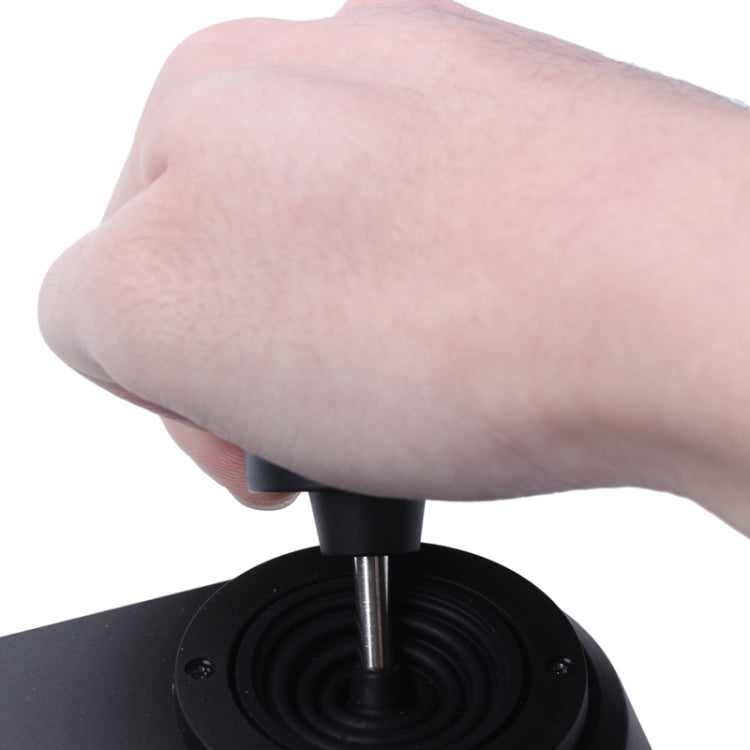

• Joystick:

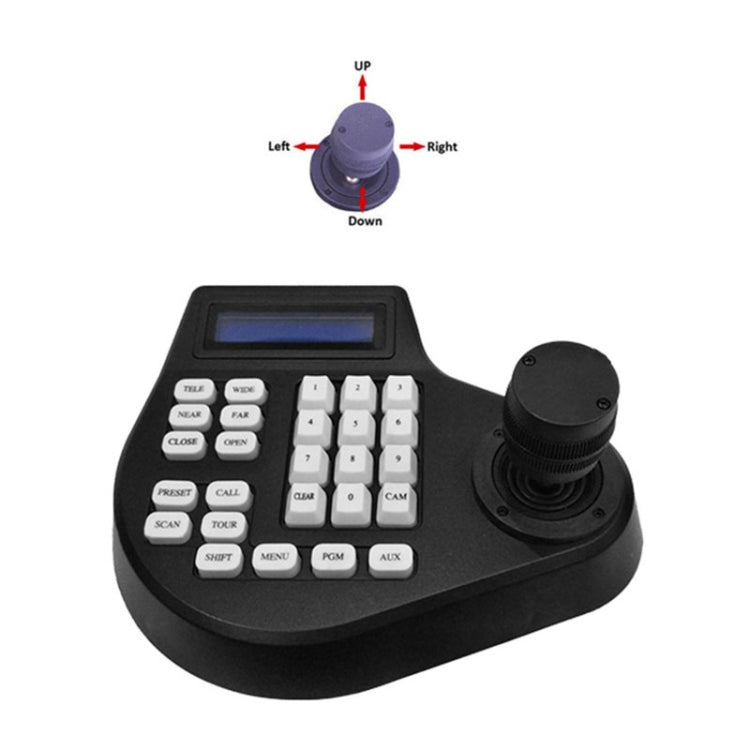

• - 2 axis: joystick to control the ball machine up and down, left and right
• - 3 axis: joystick control ball machine up and down, twist the joystick ball machine can be zoomed
• - 4 axis: joystick control the ball machine up and down, twist the joystick ball machine can be zoomed, joystick more OK button
• Display: LCD
• Weight: about 890g

Package Info: Weight: 1.00kgs / 2.21lb, Size: 25cm * 21cm * 13cm / 9.84inch * 8.27inch * 5.12inch
