8-Channel UHF Split-Type RFID Reader / Writer with WiFi Aantenna, Ethernet / Serial Port, Warehouse Management & Industrial Electronic Tag Identification, RFID Reader with WiFi Aantenna – TPU

8-Channel UHF Split-Type RFID Reader / Writer with WiFi Aantenna, Ethernet / Serial Port, Warehouse Management & Industrial Electronic Tag Identification, RFID Reader with WiFi Aantenna – TPU.

Key Features:

• Features
• All-aluminum housing design for excellent heat dissipation and industrial-grade protection;

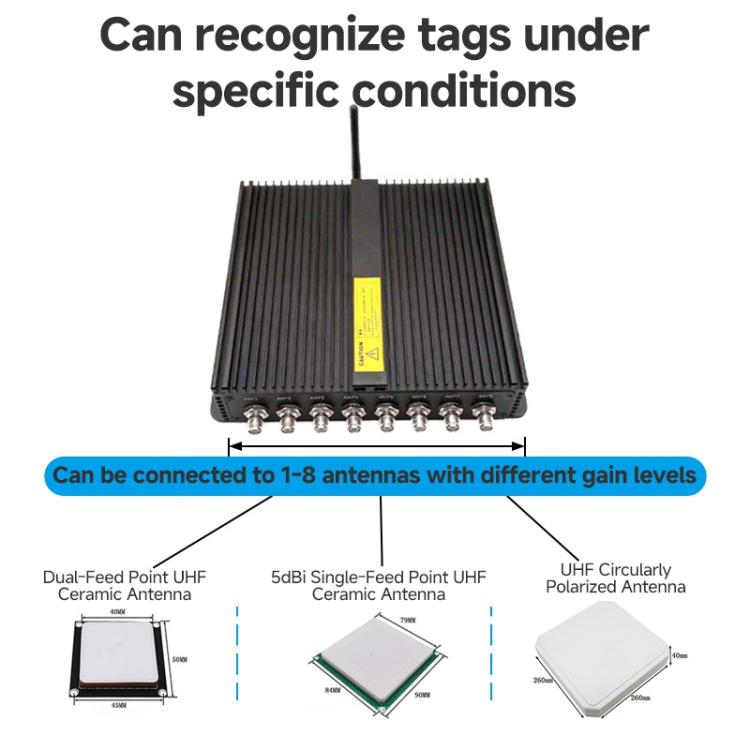

• Supports up to eight external antennas, with flexible antenna size and feeder length;
• Compatible with multiple international and domestic protocol standards;
• Broad-spectrum frequency hopping mode for superior anti-interference capabilities;
• Industrial-grade design, 24/7 operation;
• Read and write designated tags;
• Supports development in multiple languages, including VC, VB, and C#;
• Applications: Vehicle management, asset management, personnel management, production line management, logistics and traceability management,...
• Specifications
• Model: FF-783B
• Chipset: Impinj E710
• Operating Frequency: Standard ISM 902-928MHz and ISM 865-868MHz (optional)
• Operating Mode: Wide Spectrum Frequency Hopping Scheme (FHSS)
• RF Power: 0-33dBm, software-adjustable
• Card Reading Speed: Software-configured, average single-card reading speed of less than 6ms per 64 bits; 500 tags/second for multiple tags

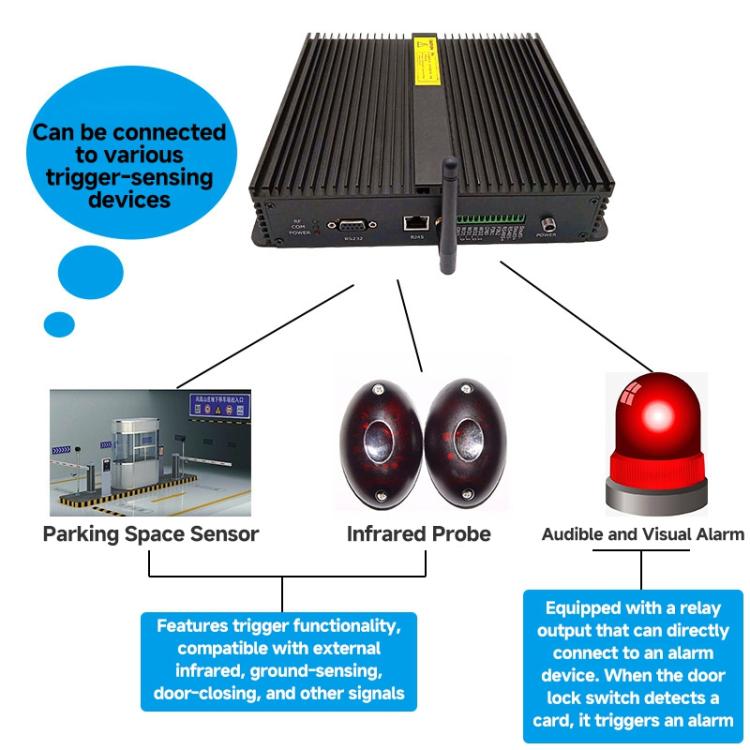

• Card Reading Mode: Software-configured automatic reading, external trigger-controlled reading, and command-based reading

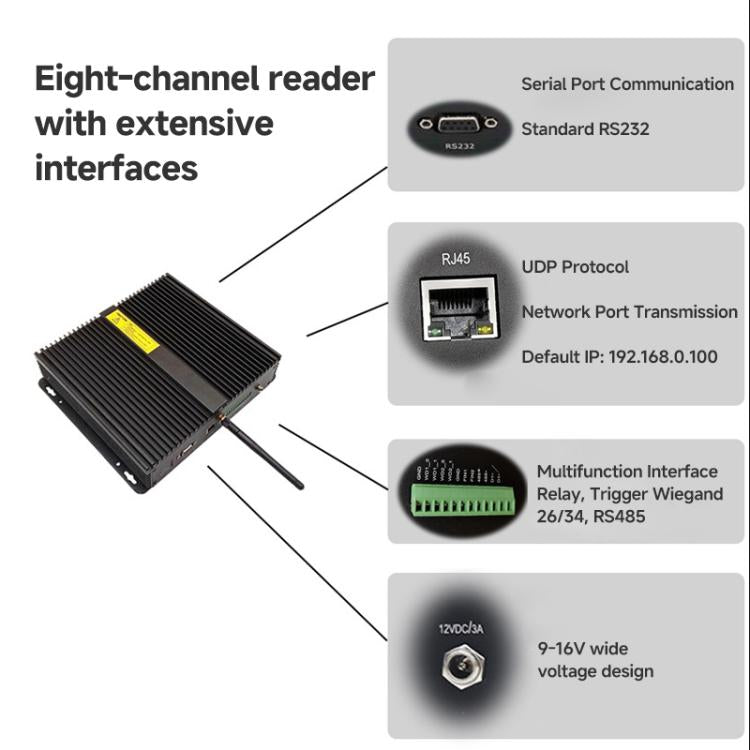

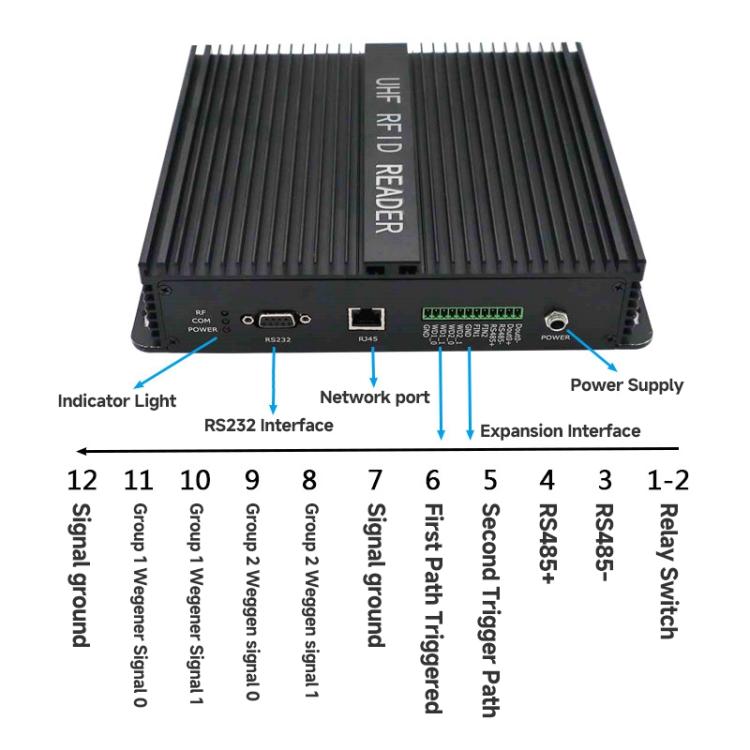

• Data Interfaces: WiFi, RS232, RS485, RJ45, Wiegand 26/34, two triggers, two relay outputs
• Card Reading Range: Greater than 25m (depending on antenna and tag)
• Card Reading Indicator: Buzzer and LED
• Power Supply: DC+12V (with power adapter), supports voltage range 9-16V
• Supported Protocols: ISO18000-6B, ISO18000-6C (EPC GEN2)
• Dimensions: 235 x 200 x 53mm
• Net Weight: 3kg

Package Info: Weight: 4.03kgs / 8.88lb, Size: 32cm * 27cm * 13cm / 12.6inch * 10.63inch * 5.12inch
