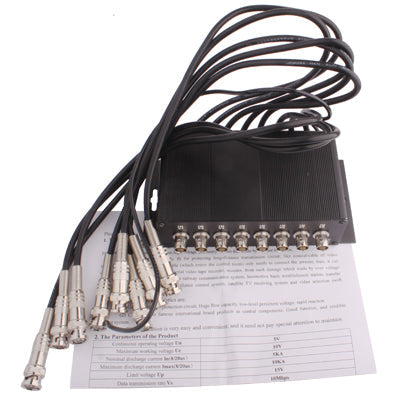

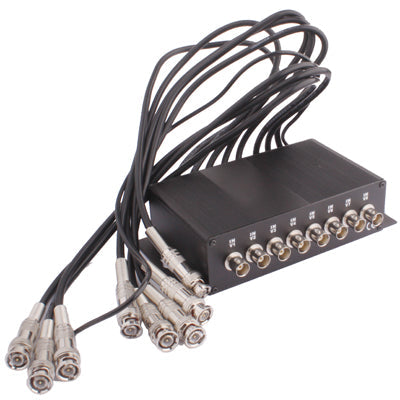

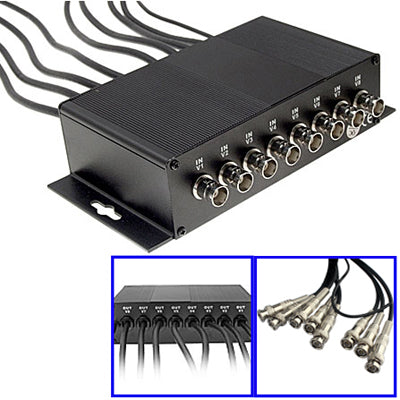

8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8), CoaxJK/ V8 – Durable Build, Easy to Use

8 Channel CCTV BNC Surge Arrester Surge Protector Device (CoaxJK/ V8), CoaxJK/ V8 – Durable Build, Easy to Use.

Key Features:

• 8 Channel CCTV BNC Lightning Arrester Surge Protector Device.

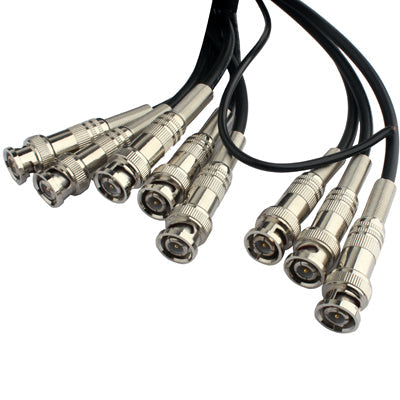

• CCTV Lightning Arrester adopt internal standard BNC interface(male to female).
• Suitable for coaxial communication equipment surge protection, such as cable TV, aatellite TV receive, minitor system, etc.
• This 8CH Surge Protector can protect the lighting response of coaxial cable or equipment damage caused by other high surge voltage.
• CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.
• Specifications:
• Working Voltage: 5V
• Max Working Voltage: 10V
• Nominal Discharge Current(8/20us): 5KA
• Discharge Current(8/20us): 10KA
• Voltage Limit: 15V
• Data Transfer Rate: 100Mbps
• Insertion Loss: 0.2db
• Response Time: 1nS
• Interface Type: BNC
• Protection Method: Line to line, line to ground
• Working Temperature: -25-/+65 degree C
• Humidity: ~95% 25-30 degree C
• Test Standard: IEC61643-21: 2000
• Cable length: Approx. 400mm
• Size: Approx.168x80x40mm

Package Info: Weight: 0.64kgs / 1.40lb
