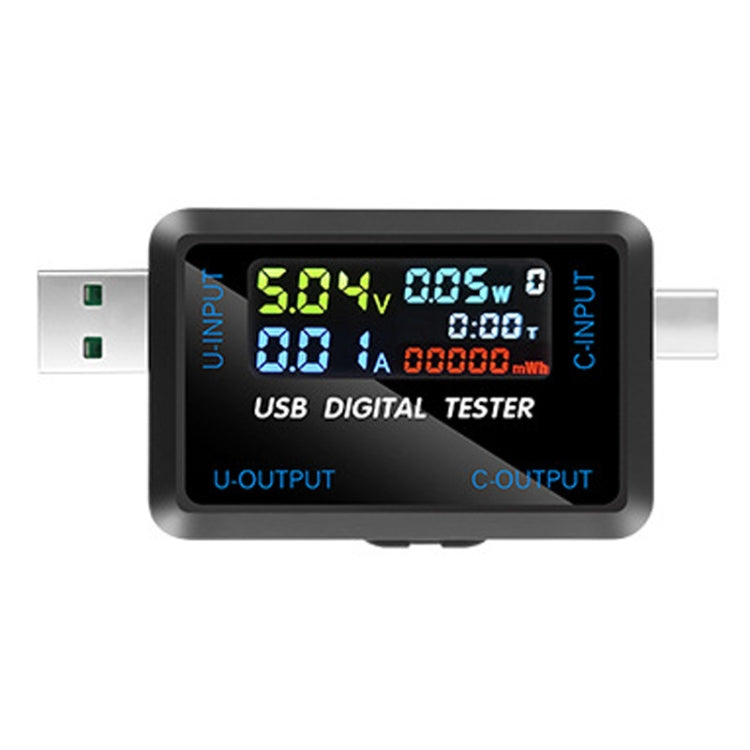

6527-Q Multifunctional Digital Voltage And Current Meter Portable Capacity Tester, 6527-Q – Fast Charging, TPU

6527-Q Multifunctional Digital Voltage And Current Meter Portable Capacity Tester, 6527-Q – Fast Charging, TPU.

Key Features:

• A variety of fast charging protocols automatically detect fast charging identification test, to meet the needs of various types of cell phone users

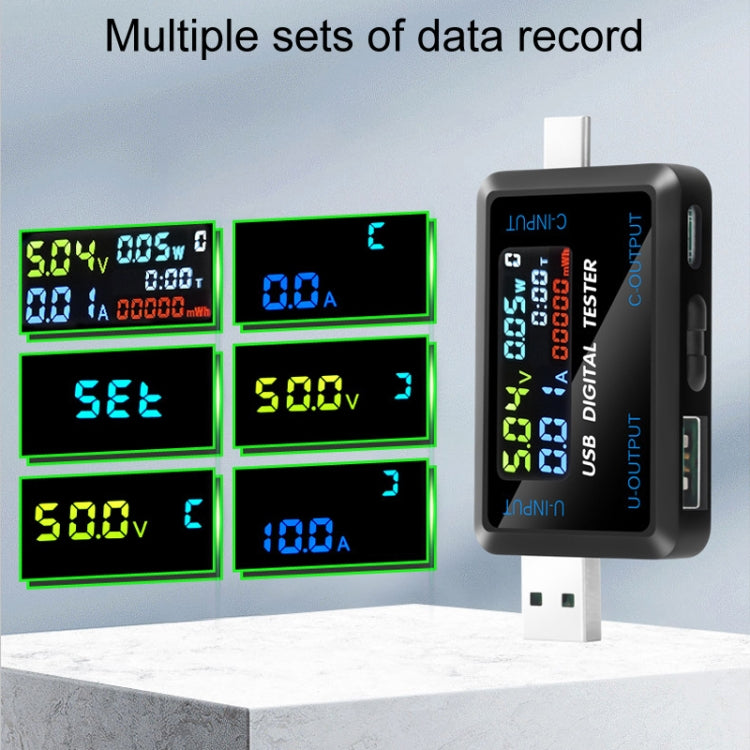

• Multi-group data recording battery capacity detection
• When the power supply to the notebook, you can real-time monitoring of charging voltage and current and other parameters of information

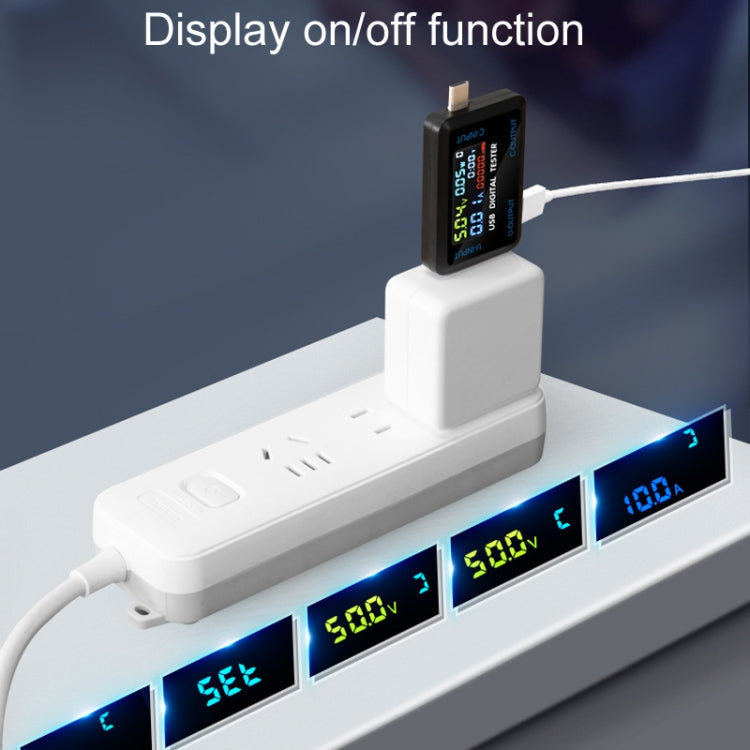

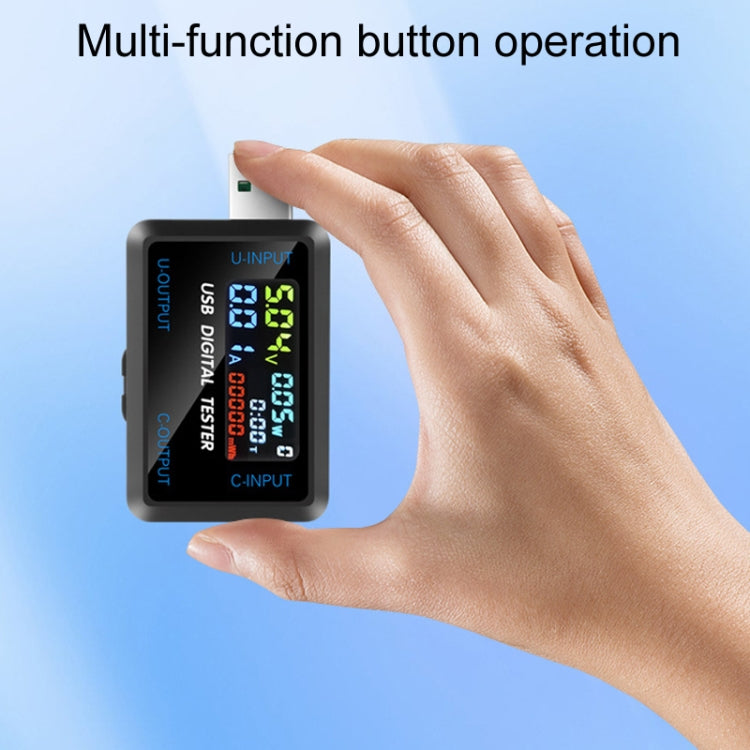

• Through the multifunctional key short press switch interface to the hibernation interface for the closed display, but also normal charging to the device at...
• Parameters:
• Voltage measurement range:4.5V-36.0V
• Current measurement range: 0-5A/0-8A
• Capacity totalization range:0-99999mAh
• Power accumulation range:0-99999mWh
• Power measurement range:0.00-150W
• Impedance measurement range: 1-999.9Ohm
• Temperature measurement range: 0-80 degrees celsius
• Timing time: 999 hours and 59 minutes

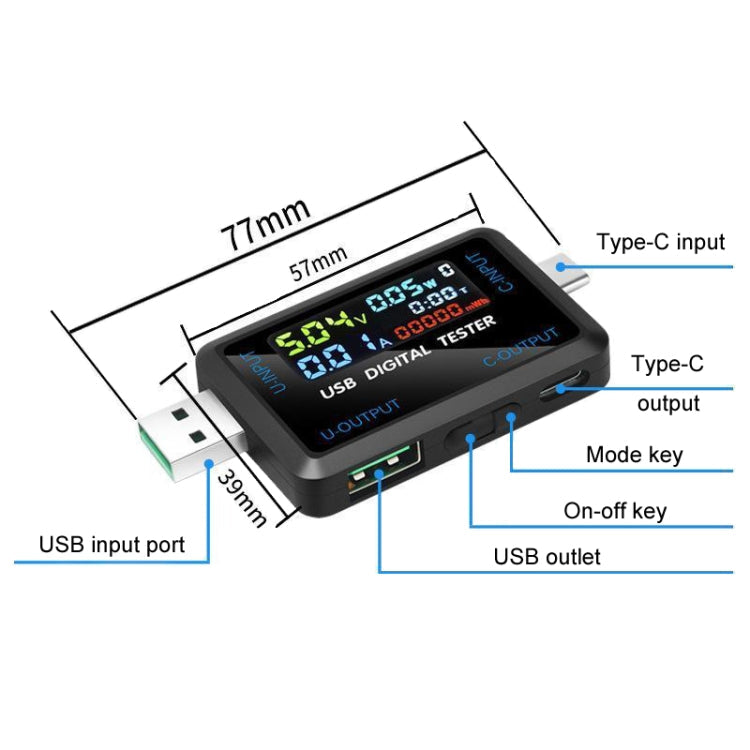

• Input interface: 5A high current USB interface/Type-C interface
• Output interface: USB/Type-C
• Voltage range: OV-2.99V
• Refresh time: more than 500mS/time
• Measurement rate: about 0.5 times/second

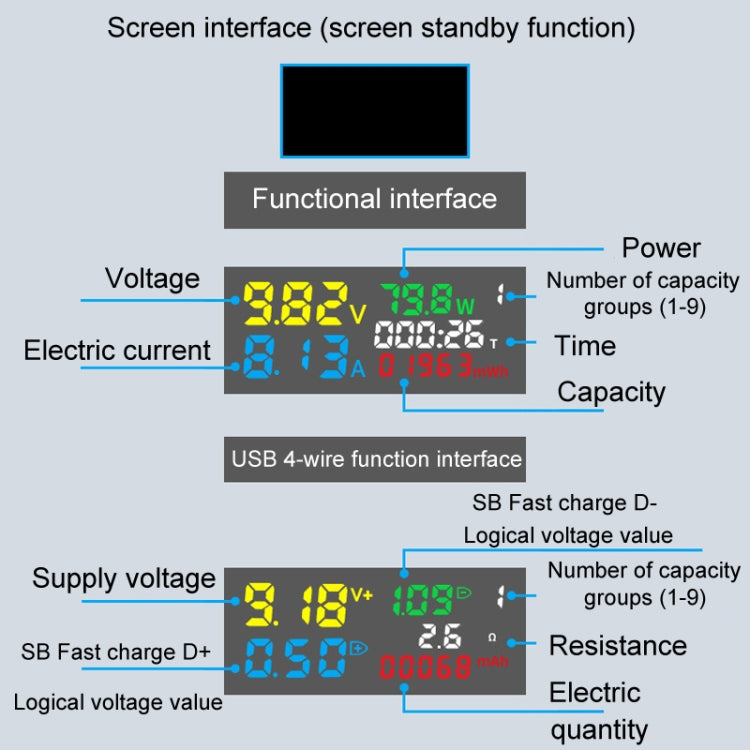

• Display type: IPS true-color digital LCD screen
• Self-consumption current: less than 0.02A
• Operating temperature: -10-60 degree celsius
• Operating humidity: 10-80 (no condensation)
• Working air pressure: 80-106kPa

Package Info: Weight: 0.03kgs / 0.07lb, Size: 10cm * 7cm * 3cm / 3.94inch * 2.76inch * 1.18inch
