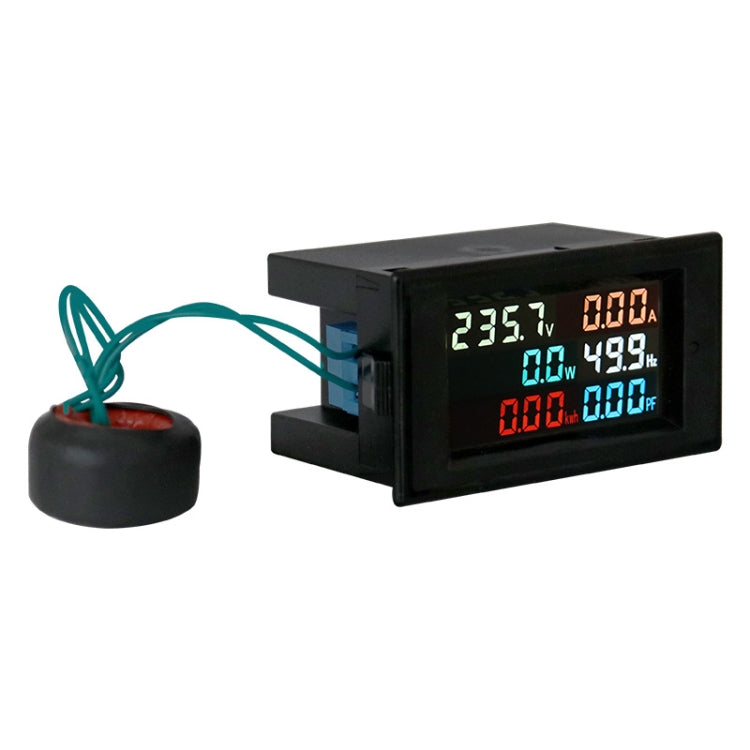

6 in 1 Multifunctional AC Voltage and Current Digital Display Instrument, D69-2058 – Durable Build, Easy to Use

6 in 1 Multifunctional AC Voltage and Current Digital Display Instrument, D69-2058 – Durable Build, Easy to Use.

Key Features:

• It can measure and display 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electric energy at the same time\

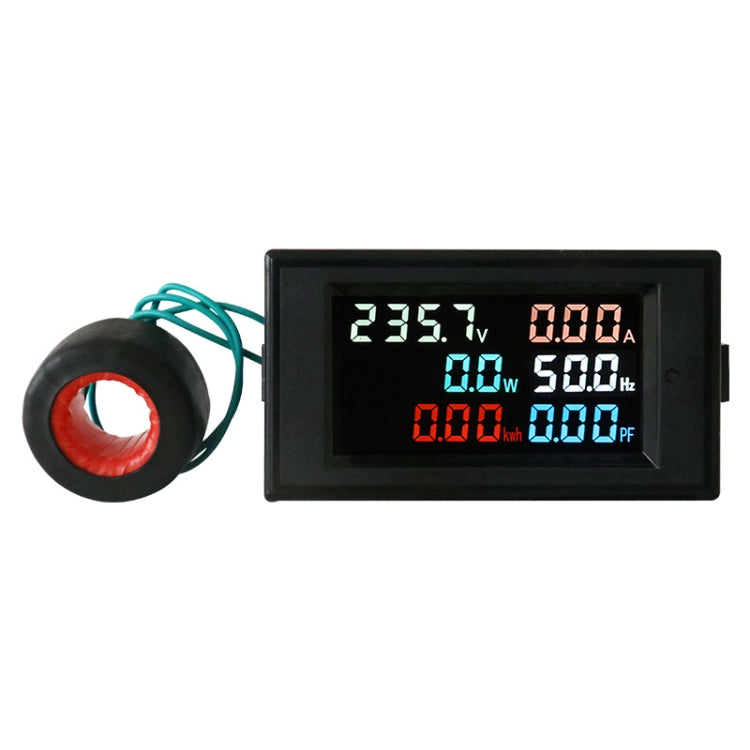

• The instrument display part adopts color high-definition LCD screen

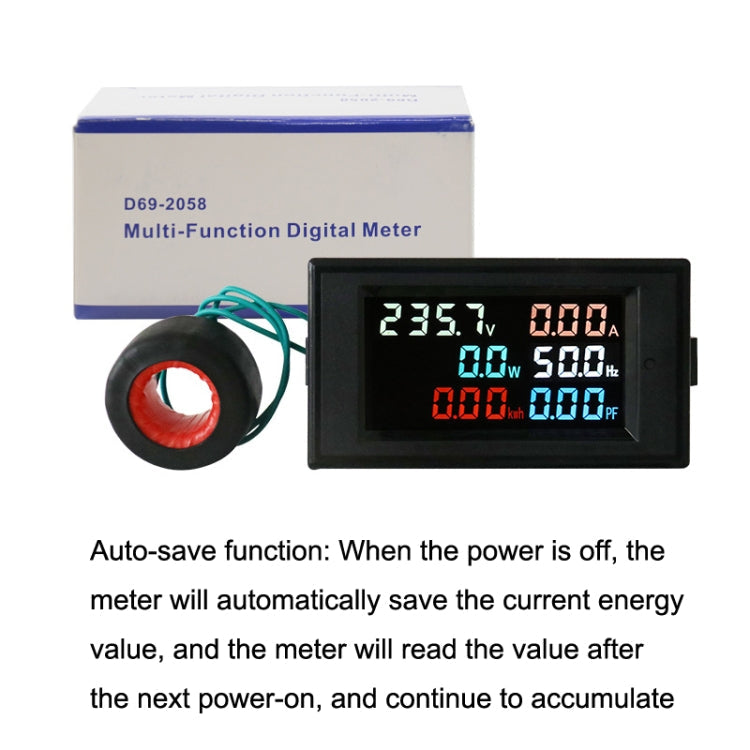

• Auto-save function: When the power is off, the meter will automatically save the current energy value, and the meter will read the value after the next...
• Measurement speed: about 2 times/second
• Dimensions: 79x43x48mm
• Measuring range:
• AC voltage: AC80.0-300.0V, or AC200.0-450.0V
• AC current: AC0－99.99A, the current display resolution is 0.01A, when it exceeds 100A, it displays 100.0A
• Power frequency: 45.0Hz-65.0Hz
• Power factor: 0.00-1.00PF
• Active power: The measurement range is 0-45000W (the display resolution between 0-9999.9W is 0.1W, the rest is 1W)
• Electric energy: The measuring range is 0-99999kwh
• How to use and connect

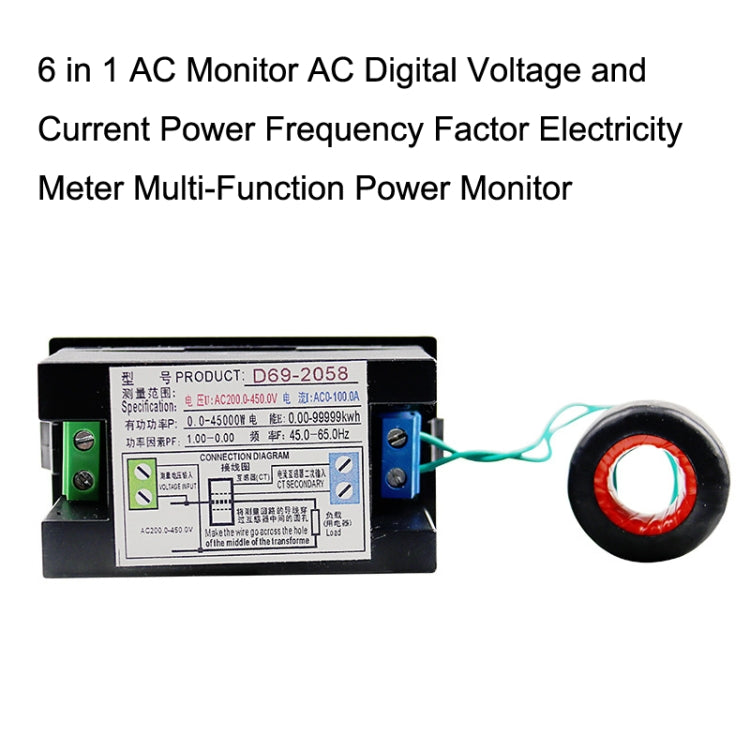

• Connect according to the wiring diagram in the attached picture, connect the secondary end of the current transformer with the instrument (green lead) to...
• Connect the voltage measurement lead to the green terminal of the meter; then connect the measurement voltage; start reading the measurement results
• After the power is turned on, the meter displays the measured value
• Press and hold the reset button on the front panel of the instrument for 5 seconds

Package Info: Weight: 0.12kgs / 0.25lb, Size: 10cm * 6.5cm * 6.5cm / 3.94inch * 2.56inch * 2.56inch
