5800ACT-VH 5 Inch Large Screen Engineering Treasure Coaxial AHD / TVI / CVI 8MP Analog Video Surveillance Tester, US Plug, 5 inch (With US Plug Power Adapter) – Lanyard, TPU

5800ACT-VH 5 Inch Large Screen Engineering Treasure Coaxial AHD / TVI / CVI 8MP Analog Video Surveillance Tester, US Plug, 5 inch (With US Plug Power Adapter) – Lanyard, TPU.

Key Features:

• Video signal test function: built-in high-definition 5.0-inch 800 (RGB) x 480 wide viewing angle display, supporting PAL/NTSC image signals
• PTZ control function: Built-in Pelco-D/P PTZ control protocol, through RS485 interface, you can control the up, down, left, right, zoom, focus, aperture...
• DC12V 1A power output function: provide temporary power supply for the camera
• Audio test function: you can test the audio equipment such as pickups on the front-end of video surveillance
• Enhanced network cable test function: through the UTP CABLE TEST test port on the instrument
• Support VGA video input, when accessing VGA video cable, enter the menu and select VGA mode, resolution support 1024 x 768, 1280 x 1024
• Support HDMI video input, when accessing HDMI video cable, it will automatically switch to HDMI mode, the resolution supports 480i/P, 576i/P, 720i/P, 1080i/P
• TVI camera test, support 720p 25/30/50/60fps/1080p 25/30fps, 5MP.8MP resolution camera image test
• AHD camera test, support 720p 25/30fps/ 1080p25/30fps, 5MP.8MP resolution camera image test
• CVI camera test, support 720p 25/30fps/ 1080p25/30fps, 5MP.8MP resolution camera image test
• Built-in 3.7V 3000mAh Li-polymer battery
• Charging time: about 2-3h
• Use time: about 6h (without CCD power output)

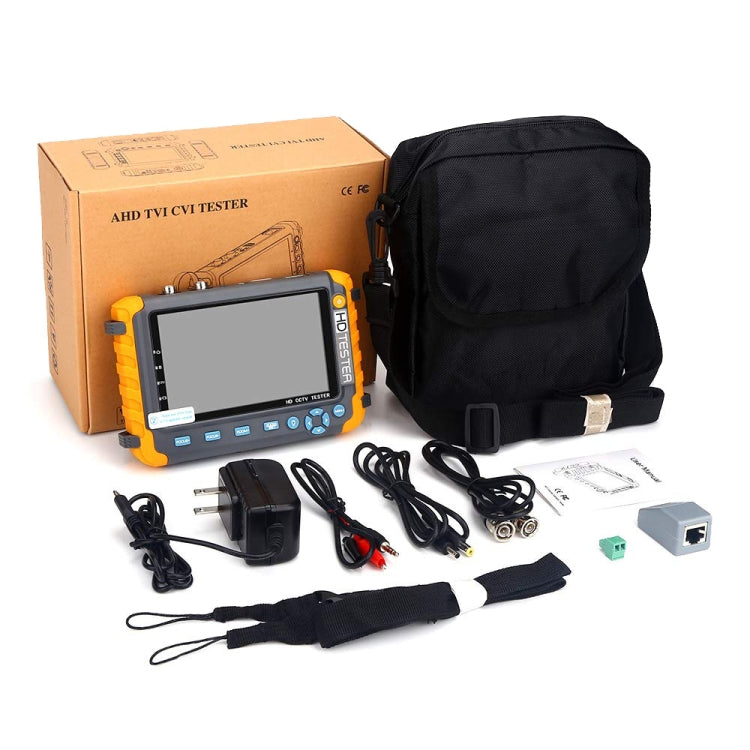

• Packing list:
• - Frequency monitoring tester x 1
• - US plug adapter x 1
• - BNC cable x 1
• - RS485 connector x 1
• - Power output conversion cable x 1
• - Audio cable x 1
• - Lanyard x 1
• - Storage bag x 1
• - Instruction manual x 1

Package Info: Weight: 1.20kgs / 2.65lb, Size: 30cm * 15cm * 6cm / 11.81inch * 5.91inch * 2.36inch
