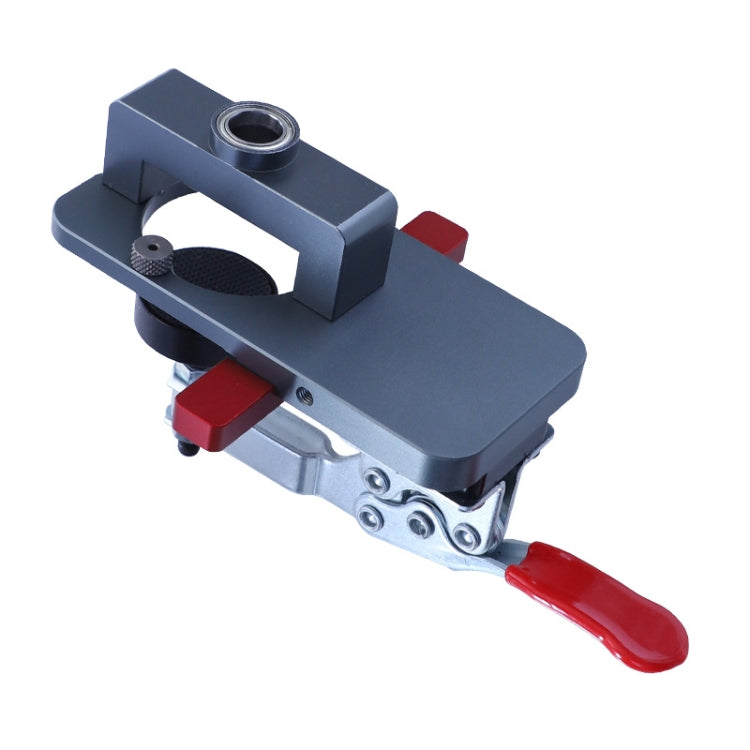

35mm Hinge Open Hole Cabinet Door Plate Hinge Packed Locator, 6 PCS / Set Hinge Open Hole – Aluminum Alloy

35mm Hinge Open Hole Cabinet Door Plate Hinge Packed Locator, 6 PCS / Set Hinge Open Hole – Aluminum Alloy.

Key Features:

• Aluminum alloy material, sperm manufacturing, beautiful and durable
• Accurate positioning, easy to operate

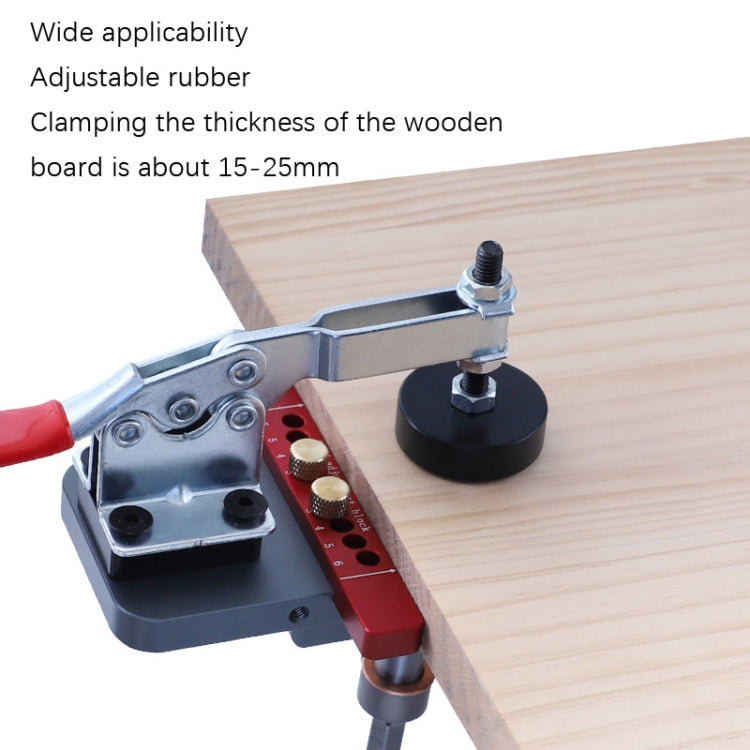

• Applicability, adjustable rubber presses, clamping wood plate thickness ranges about 15-25mm

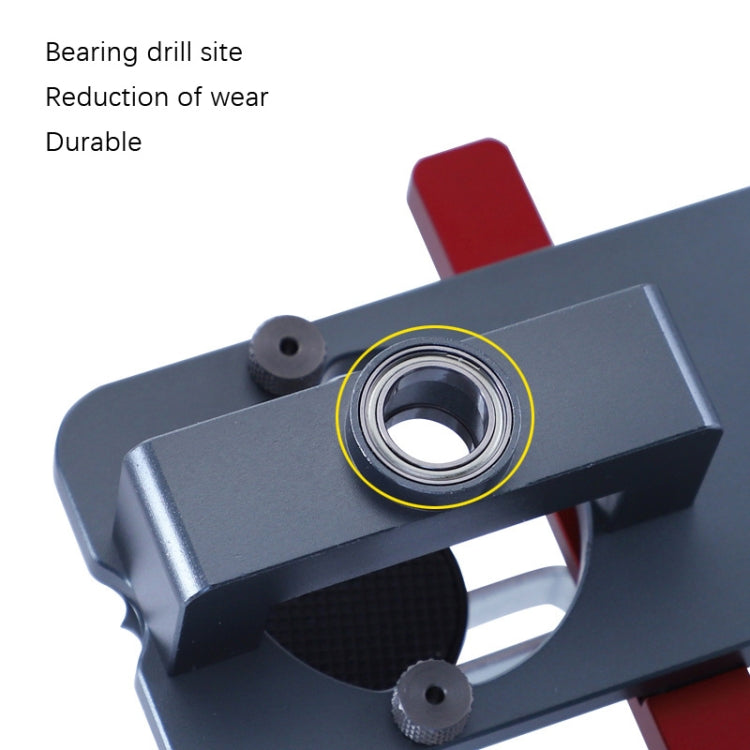

• Bearing drilling sites, reduce wear, durable

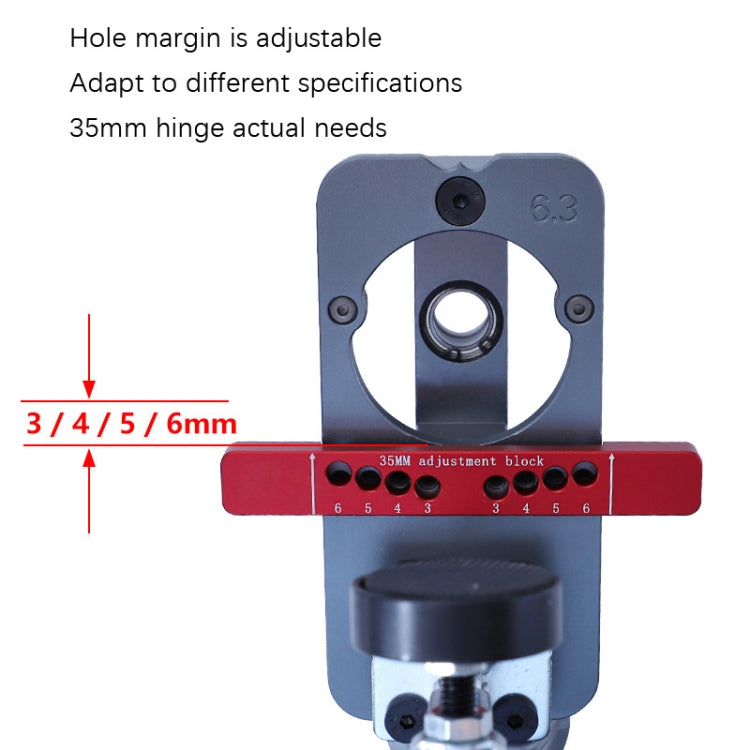

• Adjustable in the hole margin, adapt to the actual needs of 35mm hinges of different specifications
• Uses: 35mm hinge open hole installation, door panel hinge piping positioning, woodworking open auxiliary tool

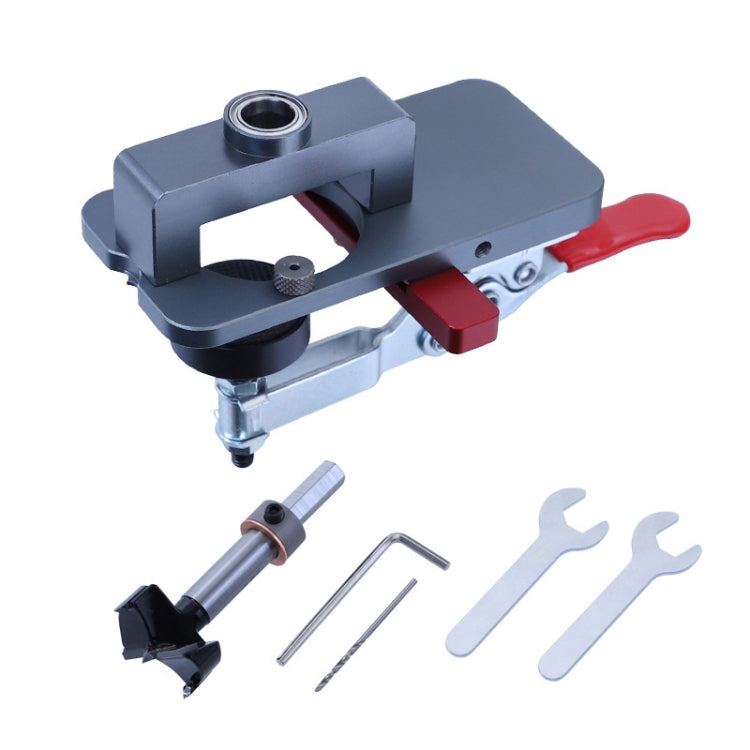

• Packing list: hinge punch locator body X1, 35mm open cell X1, wrench x2, 2mm drill bit X1, hex wrench x1

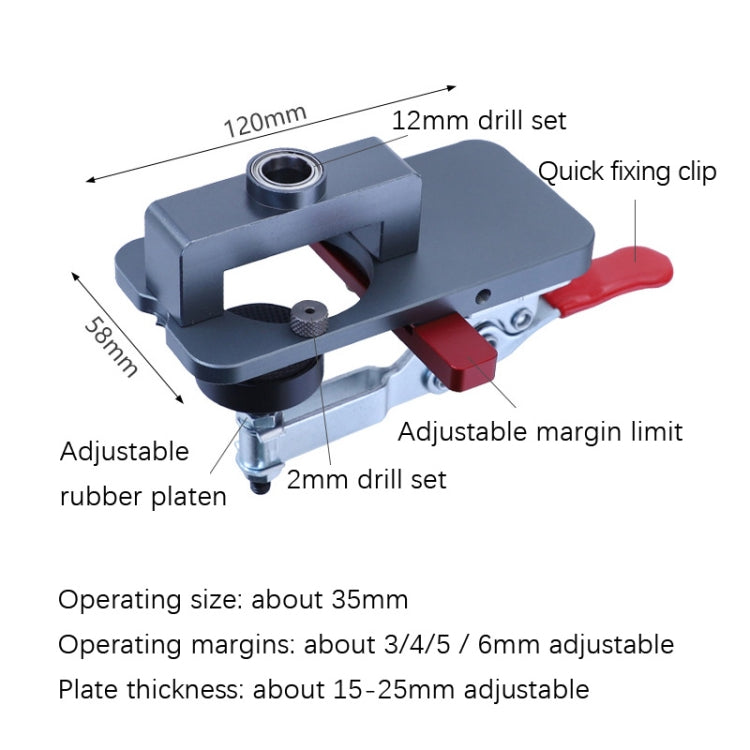

• Operating size: about 35mm
• Operating margins: about 3/4/5 / 6mm adjustable
• Plate thickness: about 15-25mm adjustable
• Size: about 12x5.8 cm
• Weight: about 634 grams
• Installation method:
• Install a 35mm opener, adjust the perforation depth, normal 12-13mm, then lock the limit ring
• Adjust the quick clip Black Block Fixed Size (Note: Tool adjustable fixed wooden board size is 15-25mm)
• The punch is moved to the wooden planx, lock the quick clip
• Electric drill holds the opening of the open hole, uniformly press the hole to 12-13mm depth, then hit the left and right side 2mm screw hole

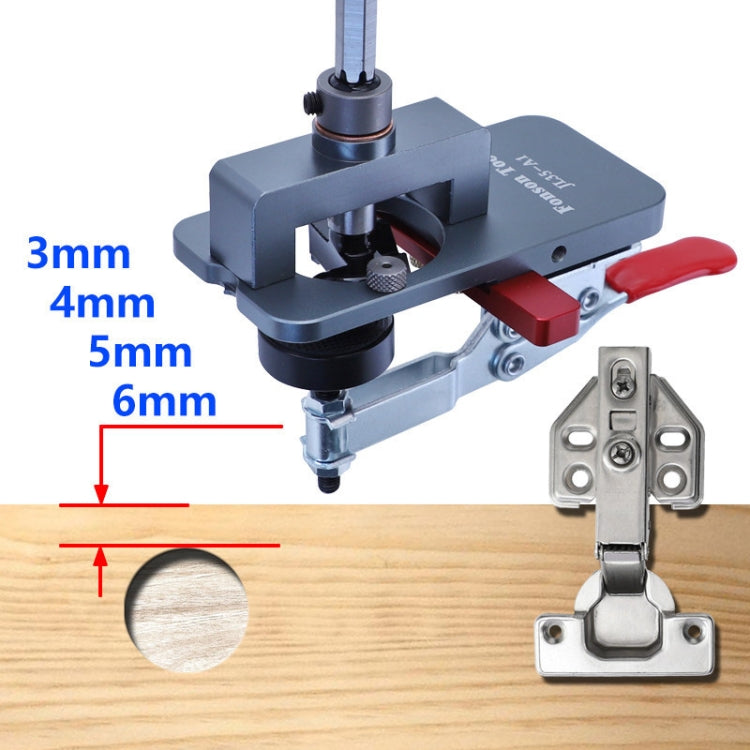

• 35mm hole to the edge can be adjusted to 3, 4, 5, 6mm
• Install 35mm hinge

Package Info: Weight: 0.65kgs / 1.42lb, Size: 21cm * 12.5cm * 9.5cm / 8.27inch * 4.92inch * 3.74inch
