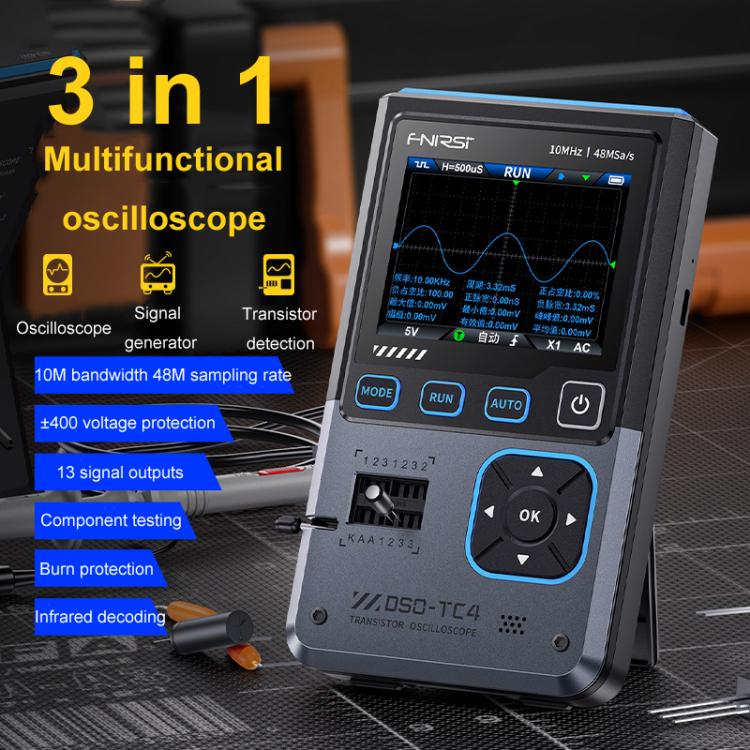

3 In 1 Oscilloscope Transistor Tester Signal Generator 10M Bandwidth Burn-In Proof, FNIRSI DSO-TC4 – TPU

3 In 1 Oscilloscope Transistor Tester Signal Generator 10M Bandwidth Burn-In Proof, FNIRSI DSO-TC4 – TPU.

Key Features:

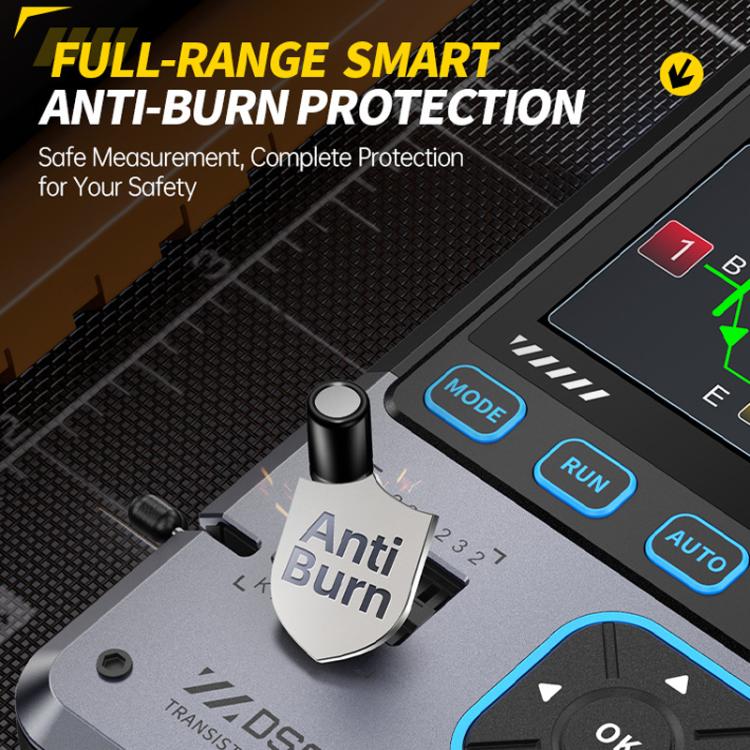

• All-round intelligent anti-burn protection, safe measurement, comprehensive protection for your safety

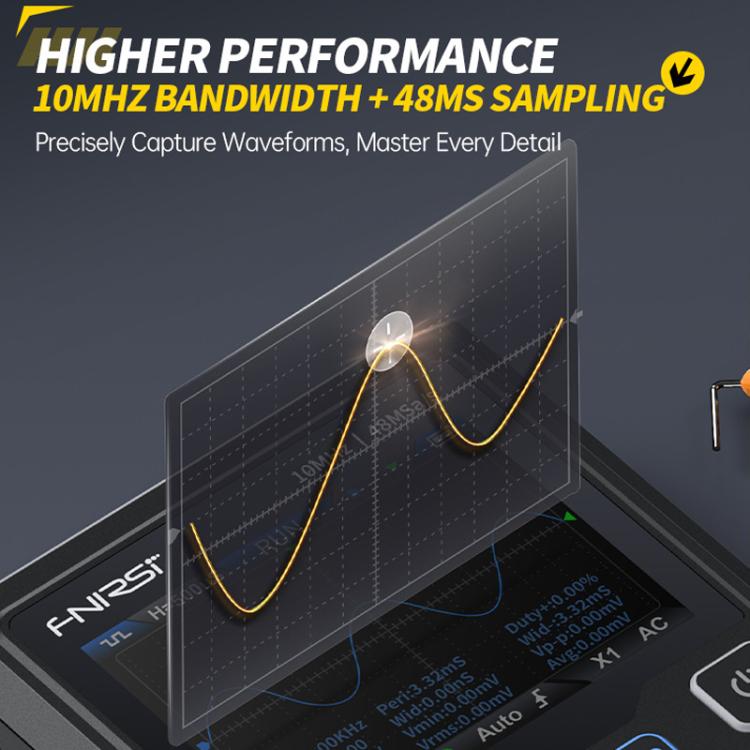

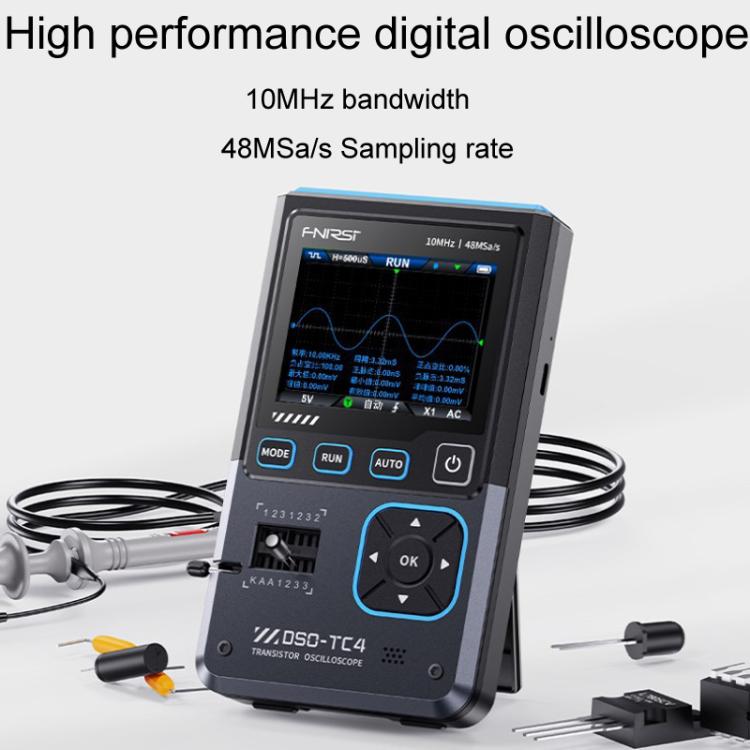

• Higher performance 10mhz bandwidth +48MS sampling, accurate capture of the waveform, master every detail

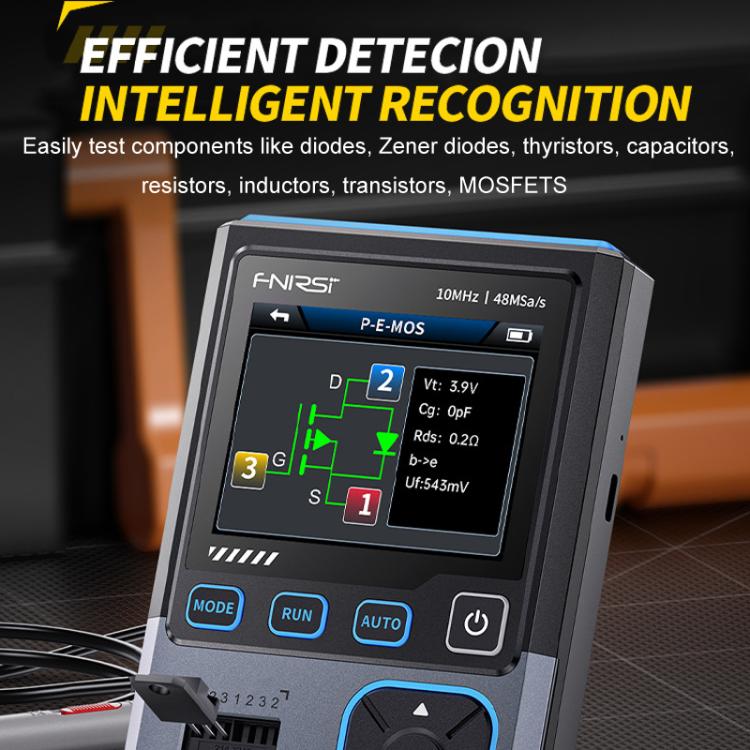

• Efficient detection and intelligent identification of easy to test devices, such as diodes, zener diodes, thyristors, capacitors, resistors, inductors,...

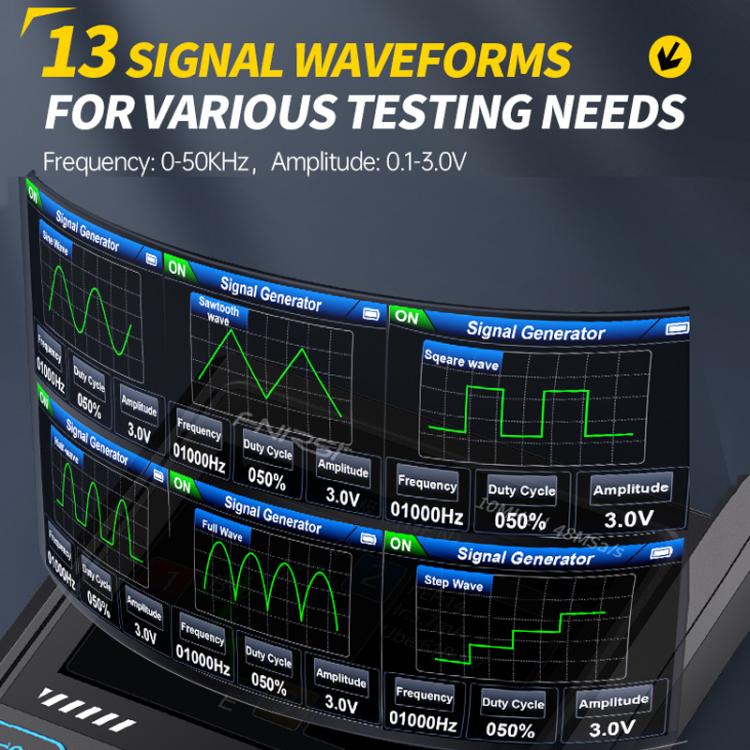

• 13 kinds of signal waveforms, can meet a variety of test needs

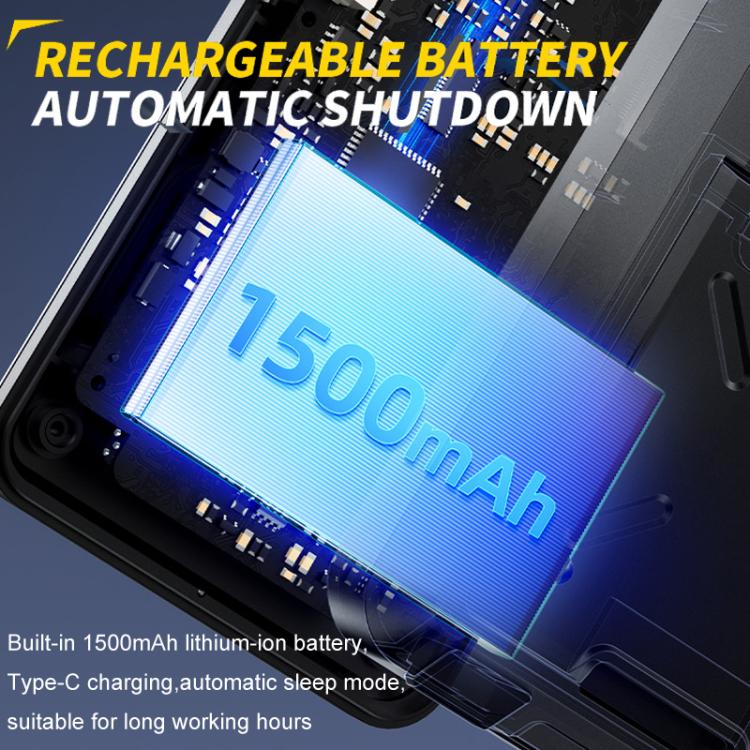

• Built-in 1500mAh lithium-ion battery, Type-C charging, automatic sleep mode, suitable for long-time work

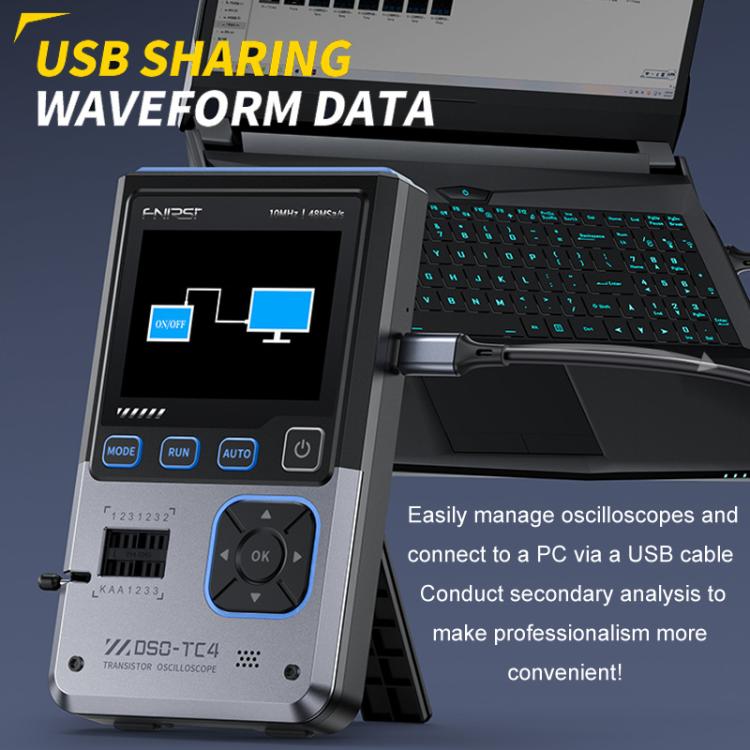

• USB share waveform data, easy to manage the oscilloscope, and connected to the PC via USB cable for secondary analysis
• Functional parameters:

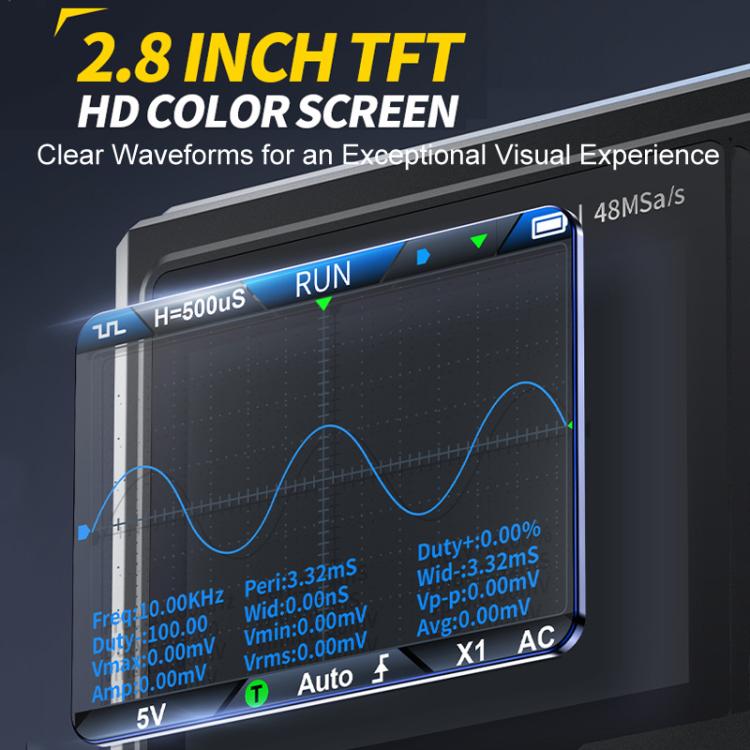

• Screen: 2.8-inch TFT color screen
• Backlight: adjustable backlight brightness
• Power supply: TYPE-C (5V/1A)
• Battery: 3.7V/1500mAh

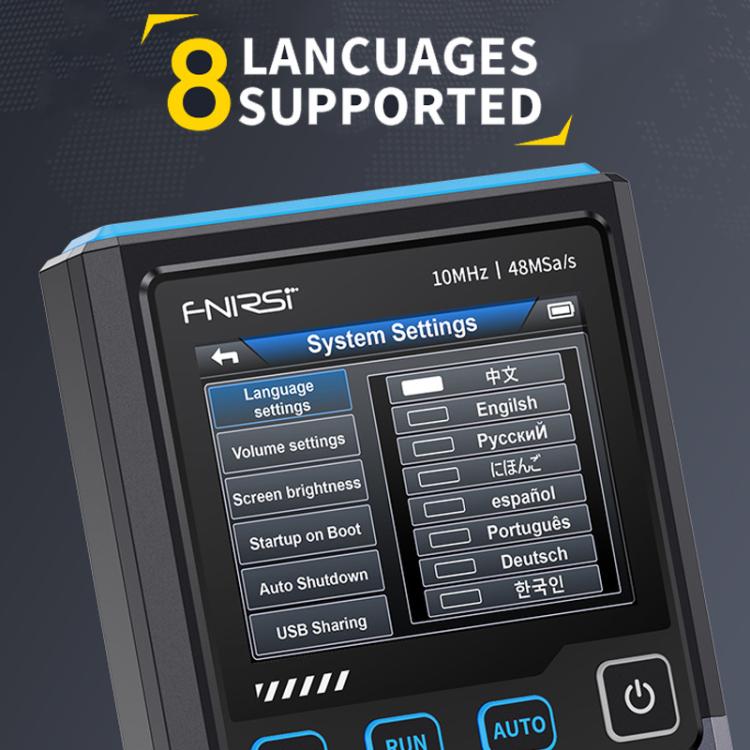

• Language: Chinese, English, German, Portuguese, Spanish, Japanese, Russian, Korean
• Size: about 90 x 142 x 27.5mm
• Weight: about 186g
• Oscilloscope parameters:
• Real-time sampling rate: 48MSa / s
• Analog bandwidth: 10MHz
• Input impedance: 1 megohm
• Coupling method: AC/DC
• Test voltage range: 1:1 probe: 80Vpp (+40V); 10:1 probe: 800Vpp (+400V)
• Vertical sensitivity: 10mV/div-10V/div (X1 gear)
• Vertical displacement: adjustable with indication level
• Horizontal time base range: 50ns-20s
• Trigger mode: automatic, regular and single (Auto/Normal/Single)
• Trigger type: rising edge, falling edge
• Trigger level: adjustable, with instructions
• Waveform freeze: Yes (HOLD function)
• Transistor parameters:
• Diode: forward voltage drop less than 5V
• Voltage regulator diode: 0-32V
• Field Effect Tube: JFET, IGBT, MIOSTET
• Unidirectional thyristor: turn-on voltage less than 5V, gate level
• Bidirectional thyristor: trigger current 6 less than mA
• Capacitance: 25pF-1000uF
• Resistance: 0.01 ohm-50 megohm
• Inductance: 10uH-1000uH
• Signal generator parameters:
• Output waveform: support 13 kinds of waveform output
• Waveform frequency: 0-50KHz
• Square wave duty cycle: 0-100 percent
• Waveform amplitude: 0.1V-3.0V

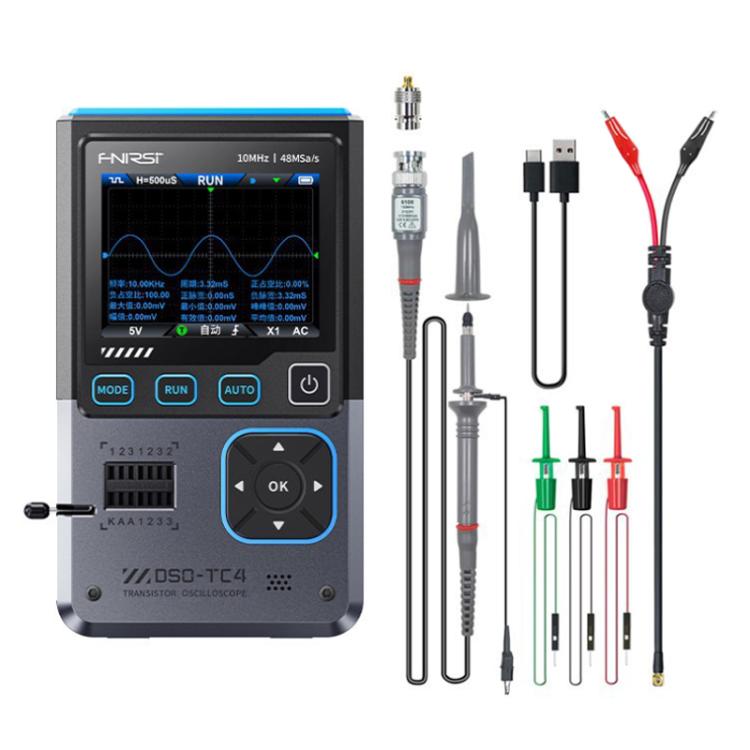

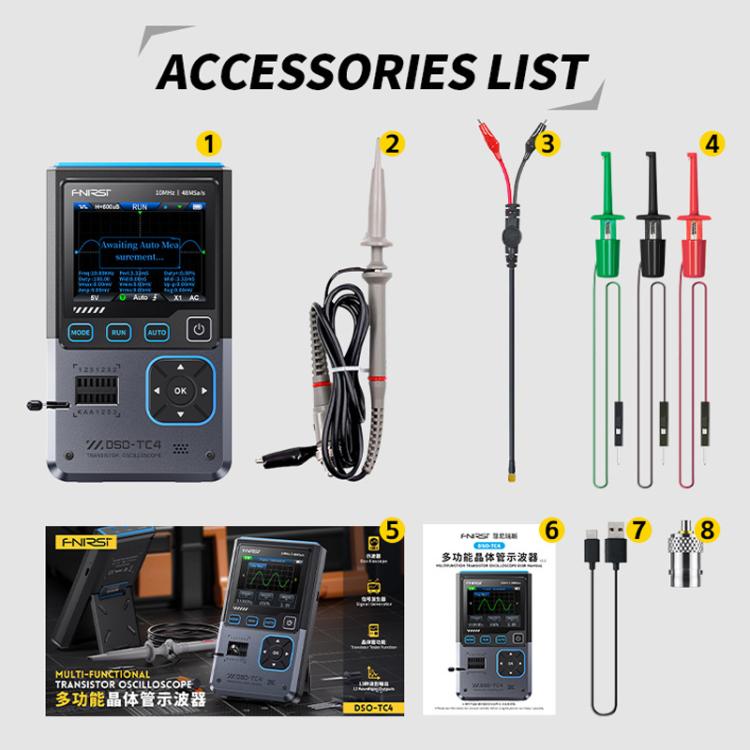

• Packing list:
• DSO-TC4 tester x 1
• P1600 oscilloscope probe x 1
• Adaptor x 1
• TYPE-C charging cable x 1
• Normal probe x 1
• Test hook x 3

Package Info: Weight: 0.42kgs / 0.93lb, Size: 21cm * 11cm * 7cm / 8.27inch * 4.33inch * 2.76inch
