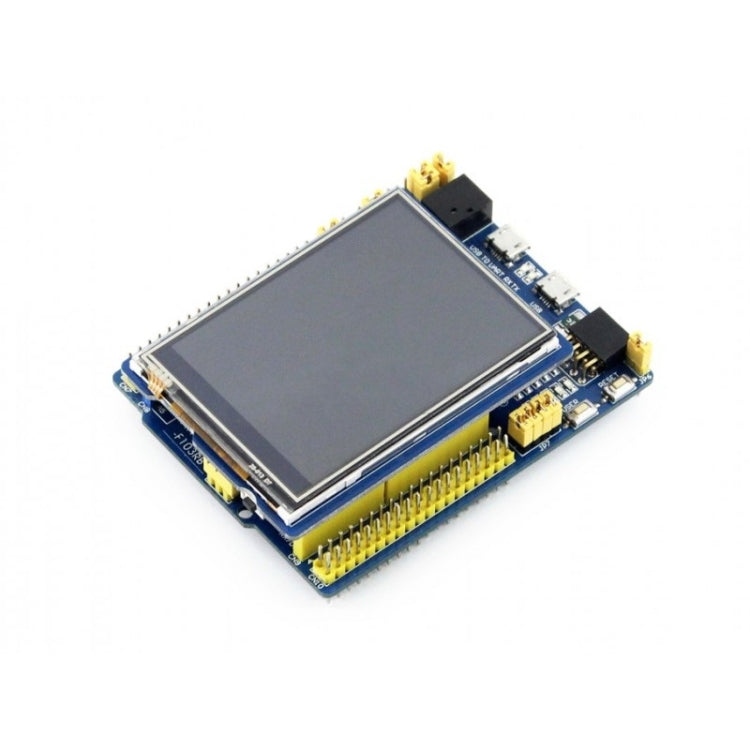

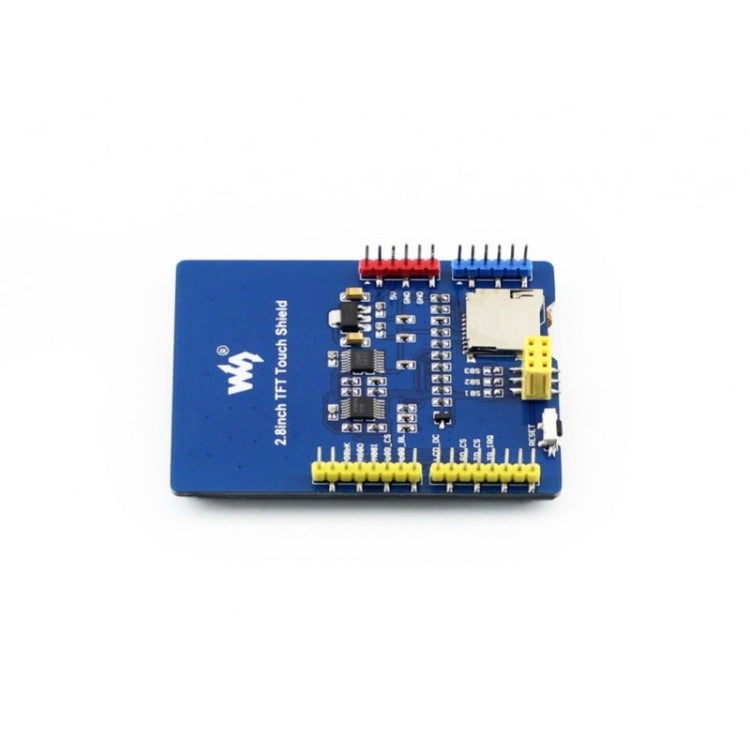

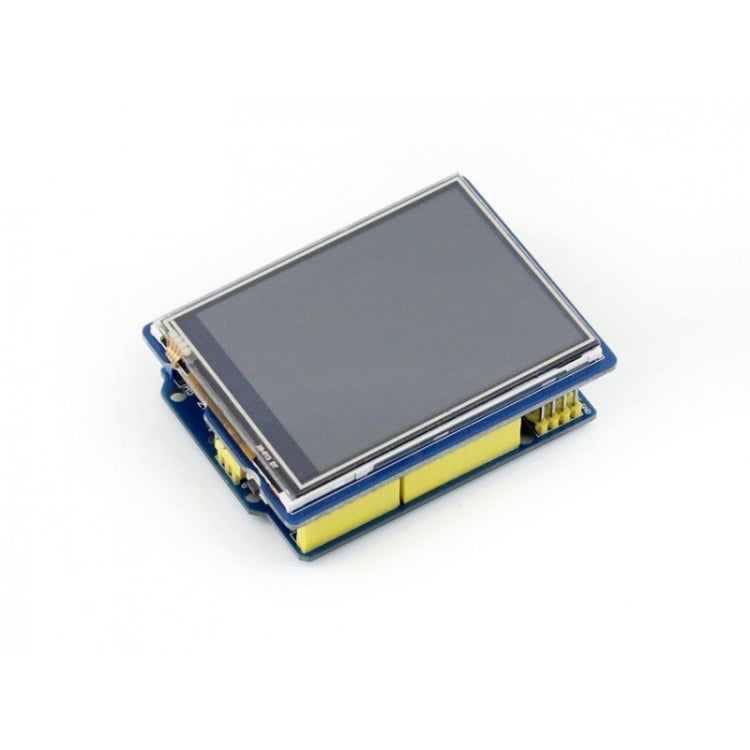

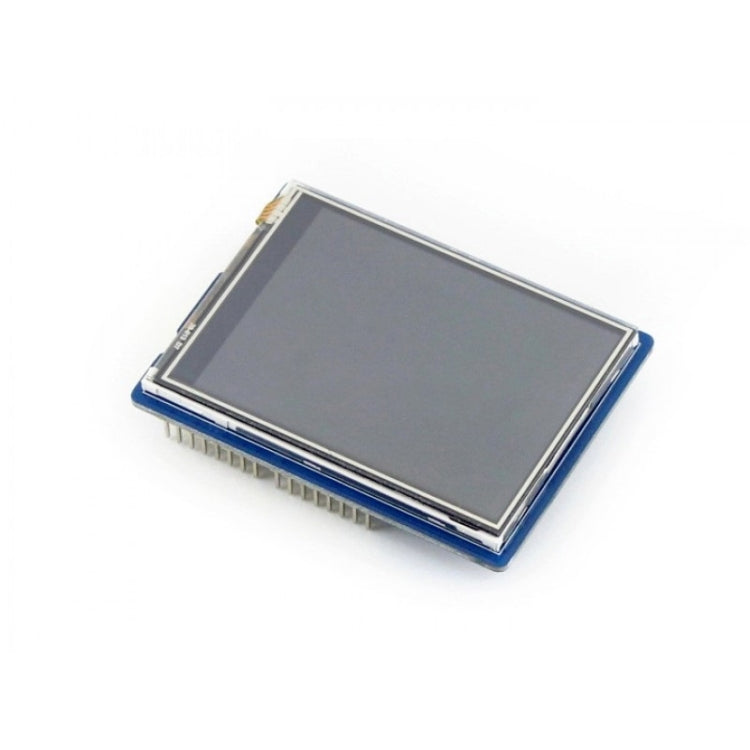

2.8 inch Touch LCD Shield for Arduino – Touch Control

2.8 inch Touch LCD Shield for Arduino – Touch Control.

Key Features:

• Features
• 1. Resistive touch screen TFT LCD, 2.8inch, 320x240 resolution
• Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO
• Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
• Micro SD slot, provides an easy way to store photos for displaying
• Controlled via SPI, only a few Arduino pins are used
• Backlight adjustable by program, lower power consumption
• Key Parameters
• 1. LCD Type: TFT
• LCD Interface: SPI
• LCD Controller: HX8347D
• Touch Screen Type: Resistive
• Touch Screen Controller: XPT2046
• Colors: RGB, 65K colors
• Resolution: 320x240 (Pixel)
• I/O Voltage: 3.3V/5V
• Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield

Package Info: Weight: 0.08kgs / 0.18lb, Size: 8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch
